TITAN ULTIMATE DOOR KIT | Acoustic Enhancement & Noise Defence for Car Doors

Titan Ultimate Door Kit Acoustic Enhancement and Noise Reduction for Car Doors

The Titan Ultimate Door Kit is a complete acoustic enhancement and noise reduction kit for vehicle doors, combining butyl damping sheets, acoustic cotton, Shield Max material, speaker foam seal, sound snakes, and door clip foam rings into a single all-in-one package. It addresses road noise, panel vibration, heat transfer, and speaker performance across six installation steps, with all components self-adhesive for DIY installation.

Product overview

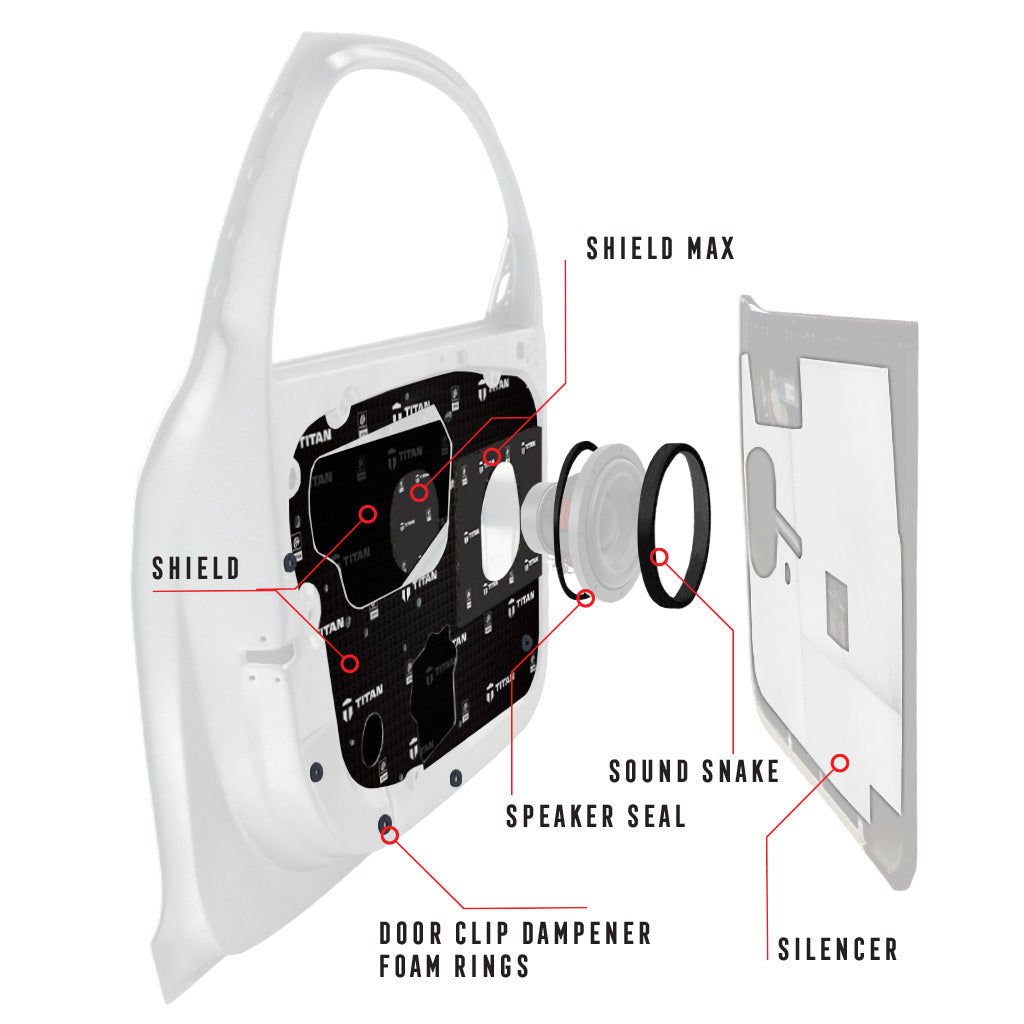

The Ultimate Door Kit takes a layered approach to door acoustic treatment. Shield butyl sheets applied to the outer and inner door skins transform the door's noise and heat barrier properties. Silencer acoustic cotton installed behind the door trim absorbs and disperses sound energy, eliminates wire and harness rattles, and reduces creaking. Shield Max material around the speaker mounting area eliminates panel vibration and creates an airtight seal to recover bass response lost through gaps, with remaining material applied behind the speaker to absorb backwaves.

Speaker foam strips create a secondary airtight seal between the speaker and mounting plate. Sound snakes, suited to speakers up to 8 inches, seal the front lip of the speaker against the door trim panel to direct all audio into the cabin. Door clip dampener rings fit around door clips to eliminate rattles between the door and trim panel. Double-sided Silencer application tape is included for securing the acoustic cotton. All components are self-adhesive or tape-applied for tool-free DIY installation.

Features and benefits

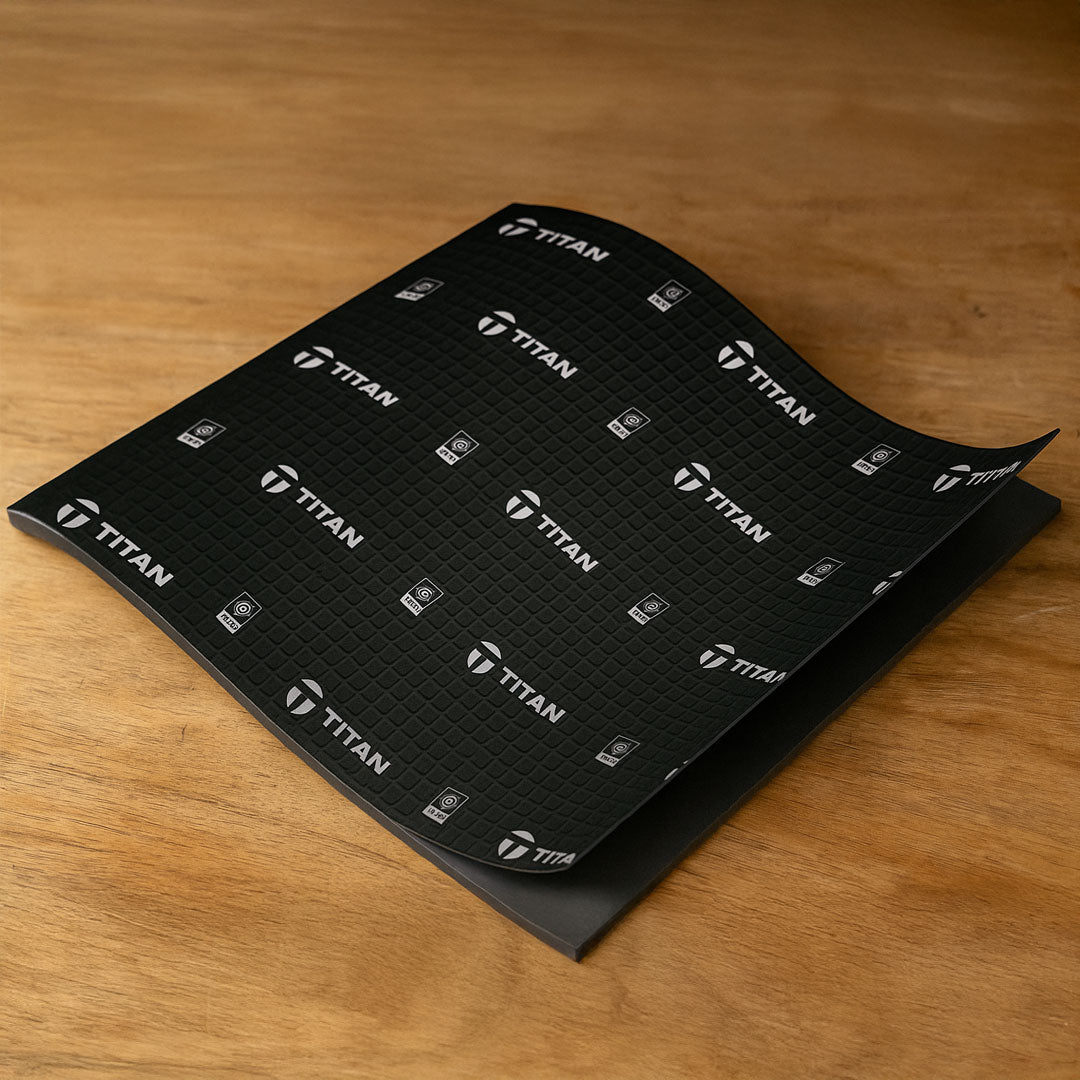

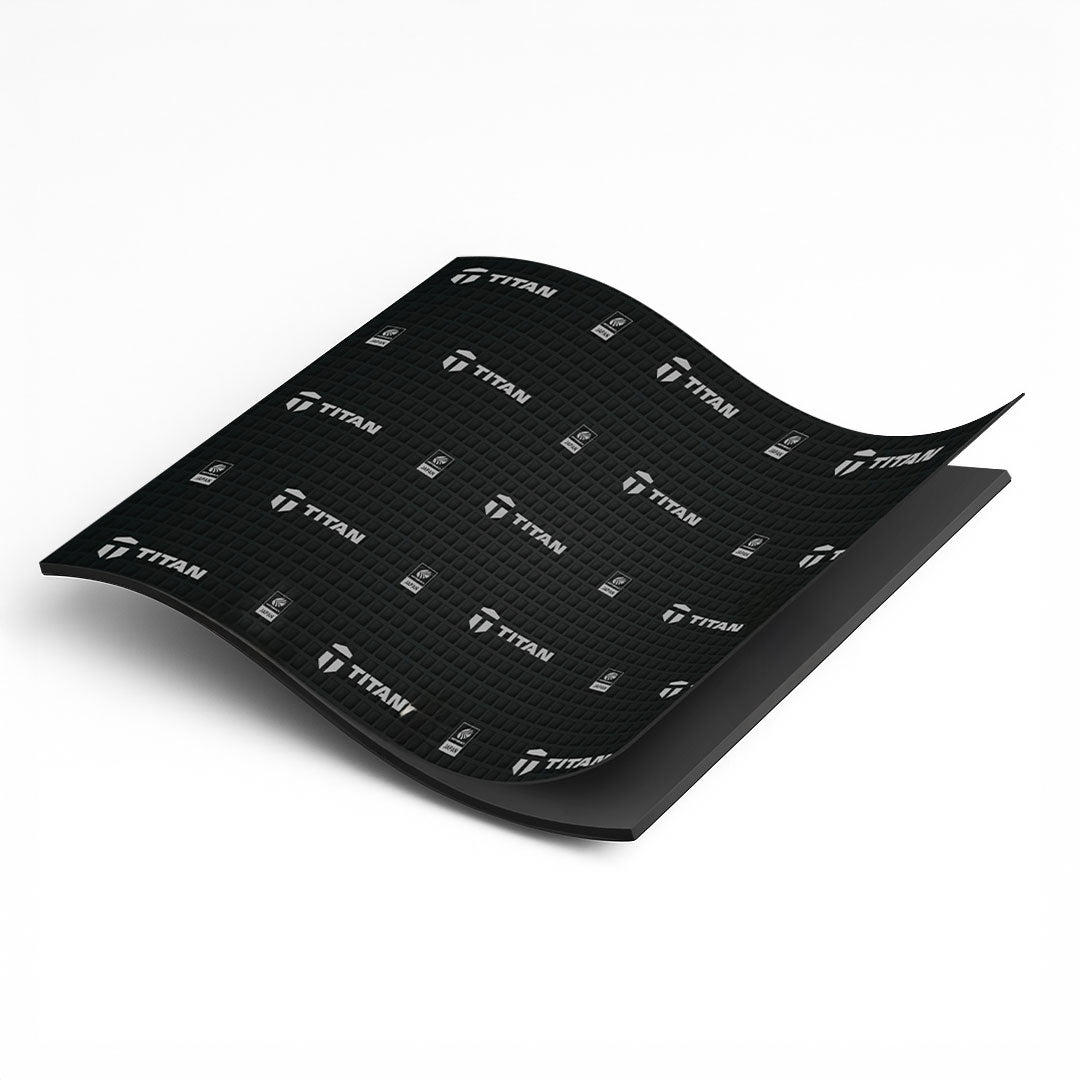

Shield butyl damping sheets: Six pieces of 400 x 500 x 2.1mm butyl sheet applied to the outer and inner door skins provide a substantial noise and heat barrier, reducing road noise, engine hum, and wind turbulence entering the cabin.

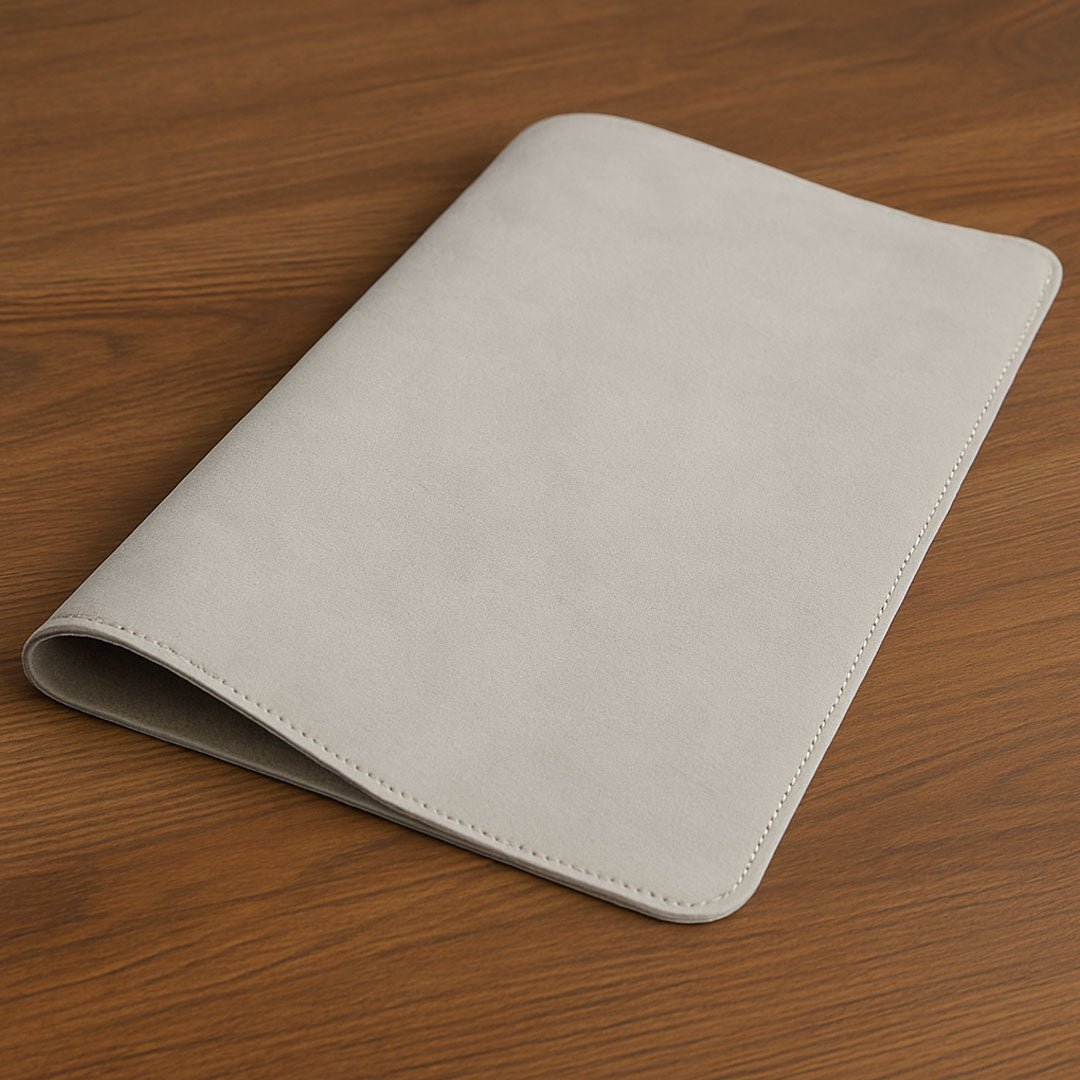

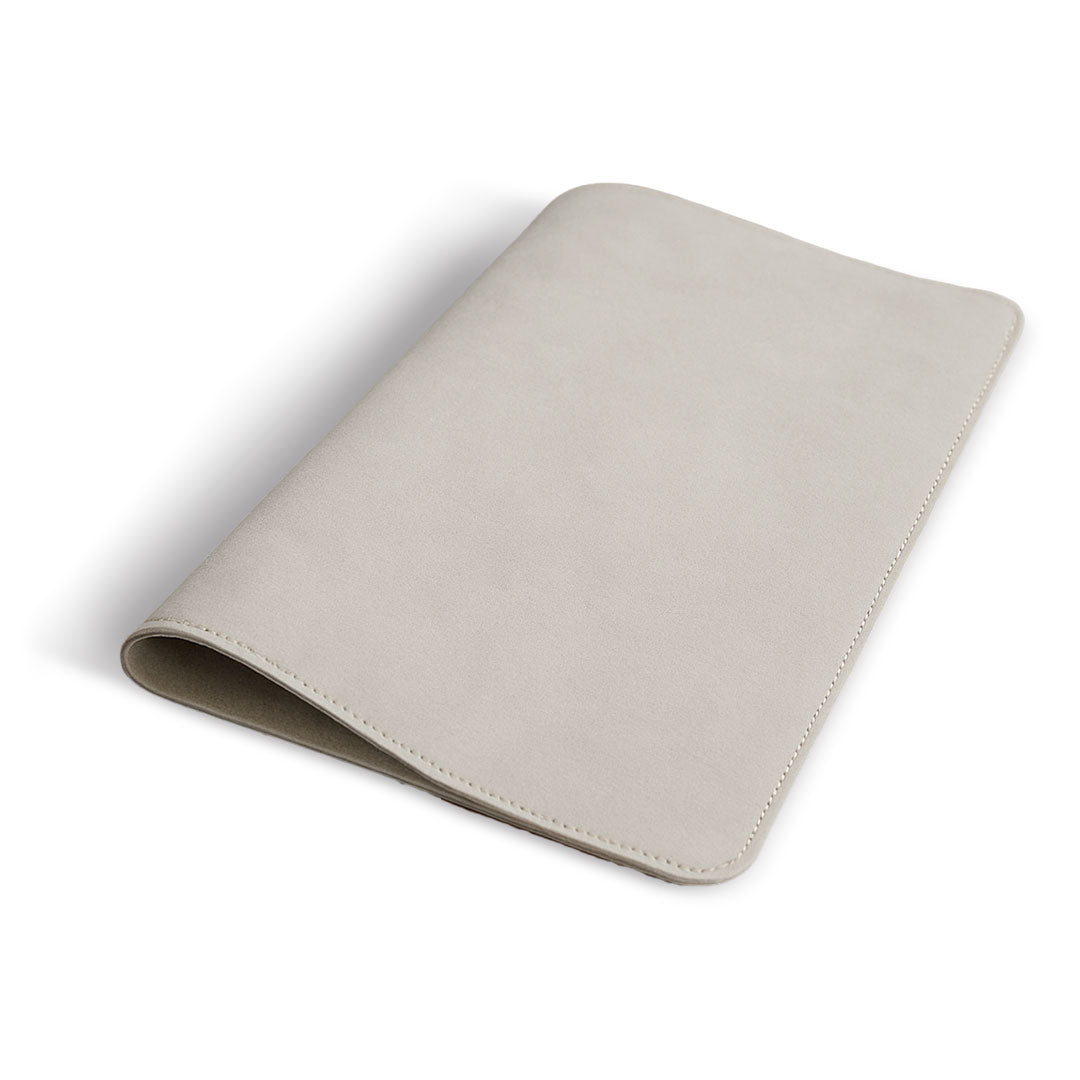

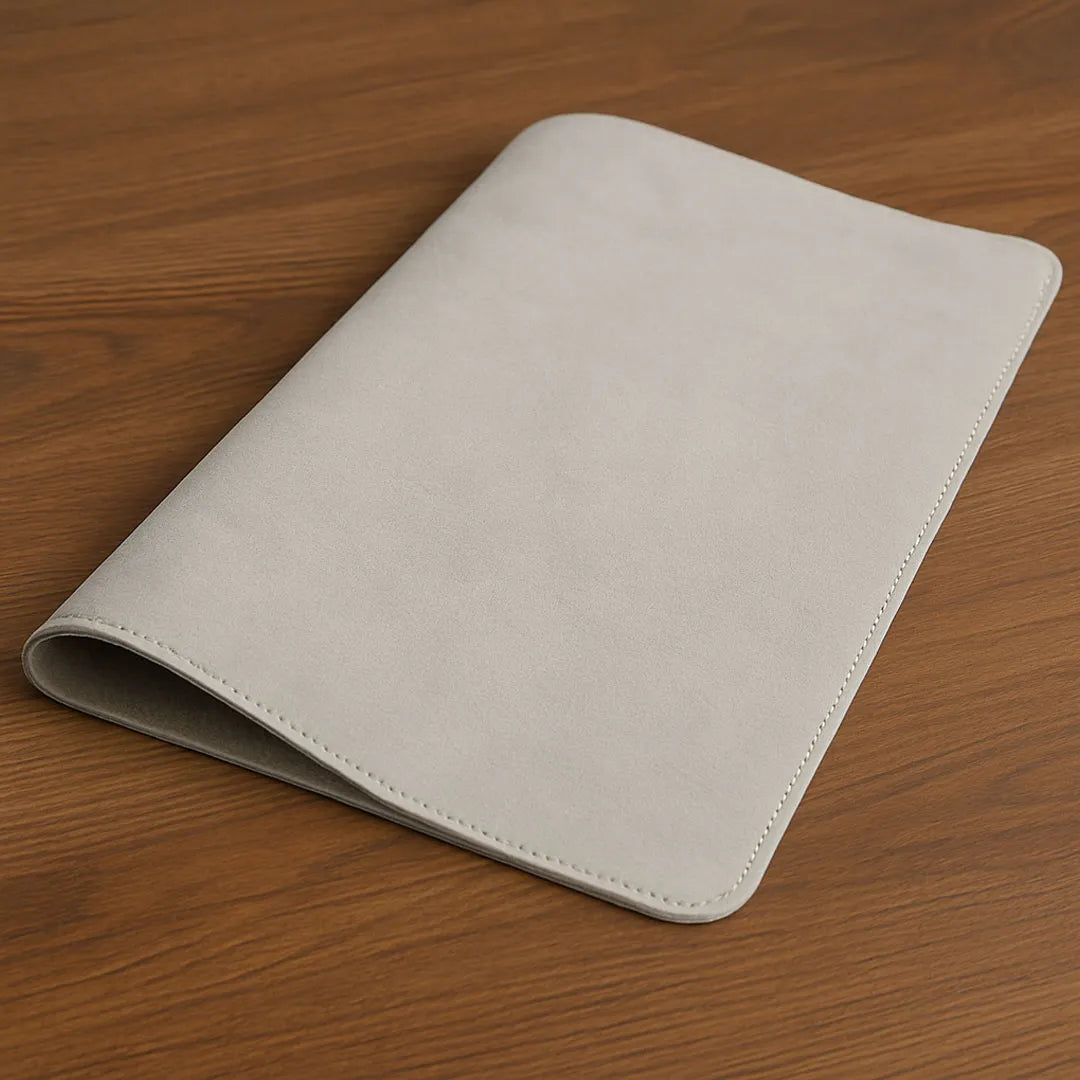

Silencer acoustic cotton: Four pieces of 450 x 600 x 3mm porous acoustic cotton installed behind the door trim absorb and disperse sound energy, eliminate wire and harness rattles, and reduce panel creaking.

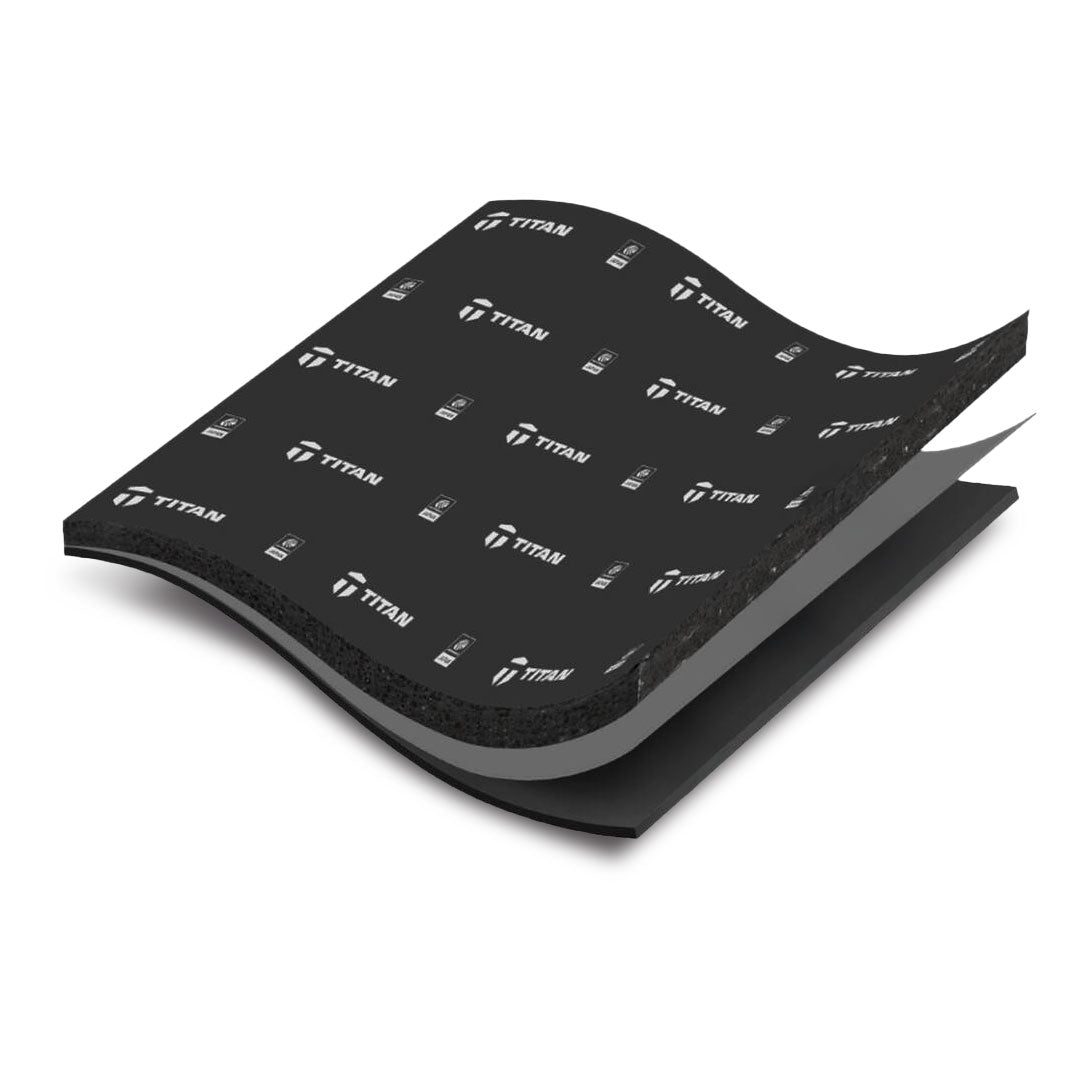

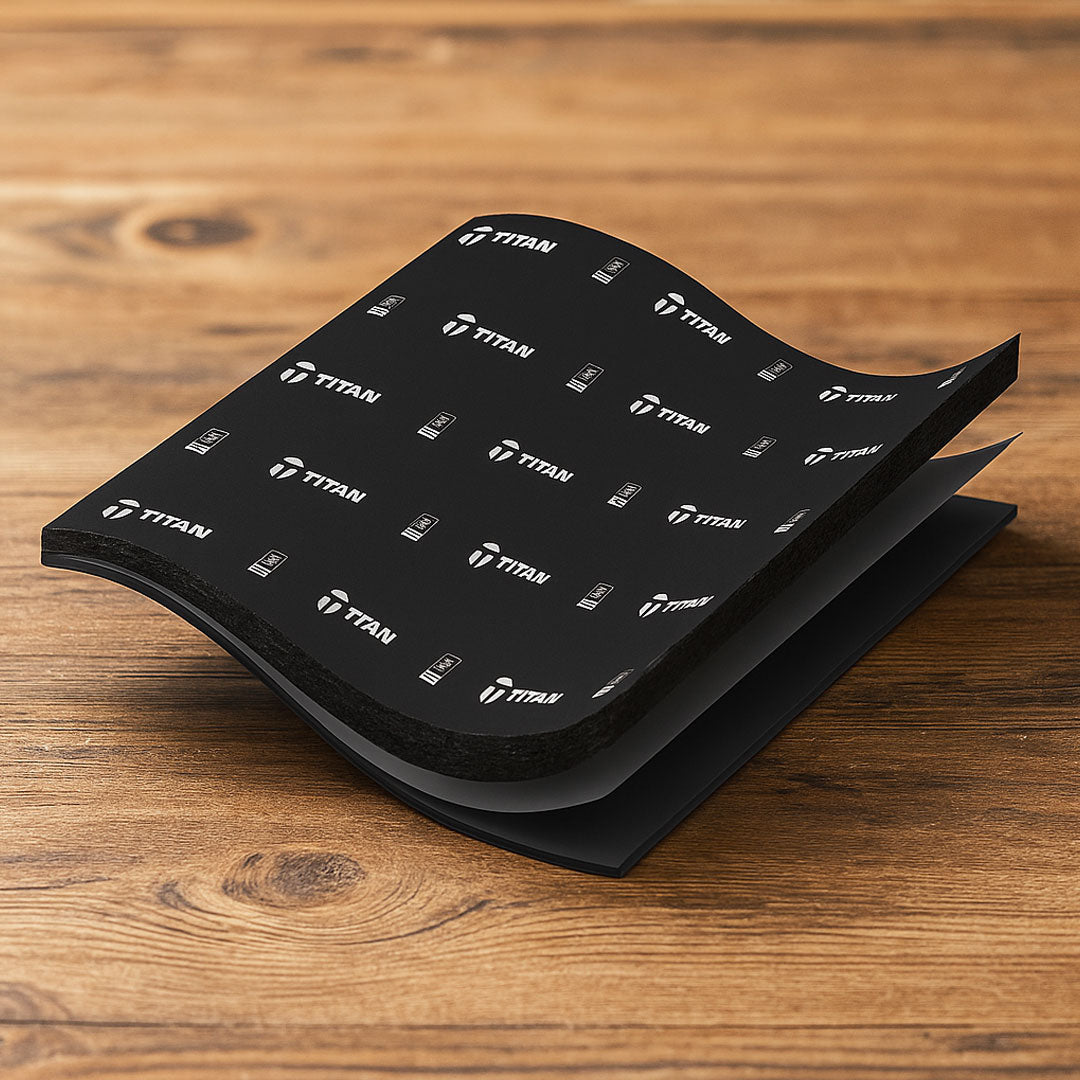

Shield Max acoustic damping: Applied around the speaker mounting area to eliminate panel vibration and create an airtight seal between the mounting plate and door panel, recovering bass response lost through gaps. Remaining material is applied behind the speaker to absorb backwaves.

Speaker foam seal strip: Creates a secondary airtight seal around the speaker mounting surface to reduce sound distortion and boost low-frequency response by preventing air leakage between the speaker and mounting plate.

Sound snakes: Attach around the front lip of the speaker and seal against the door trim panel, directing all audio into the vehicle cabin and preventing sound loss behind the door trim. Suited to speakers up to 8 inches.

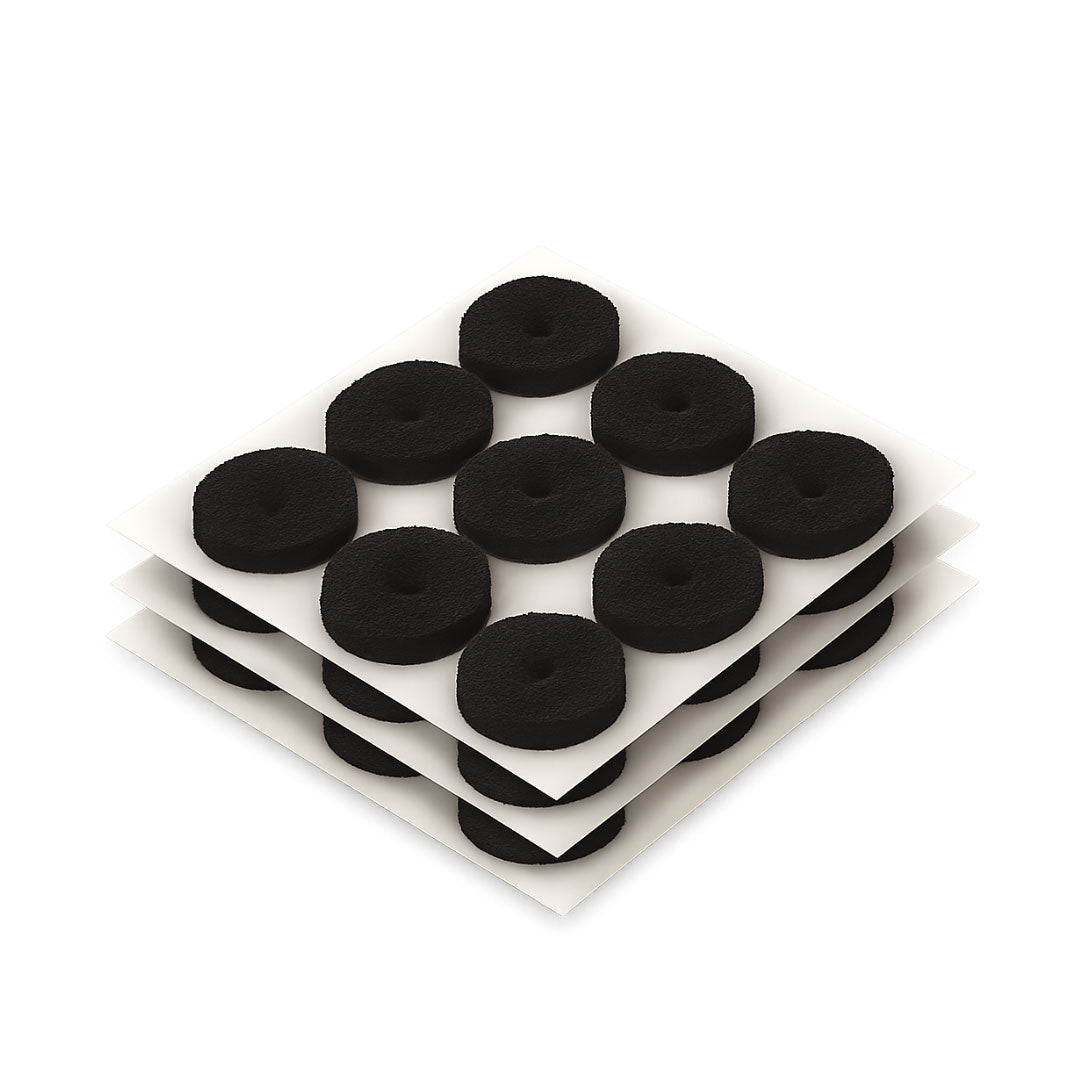

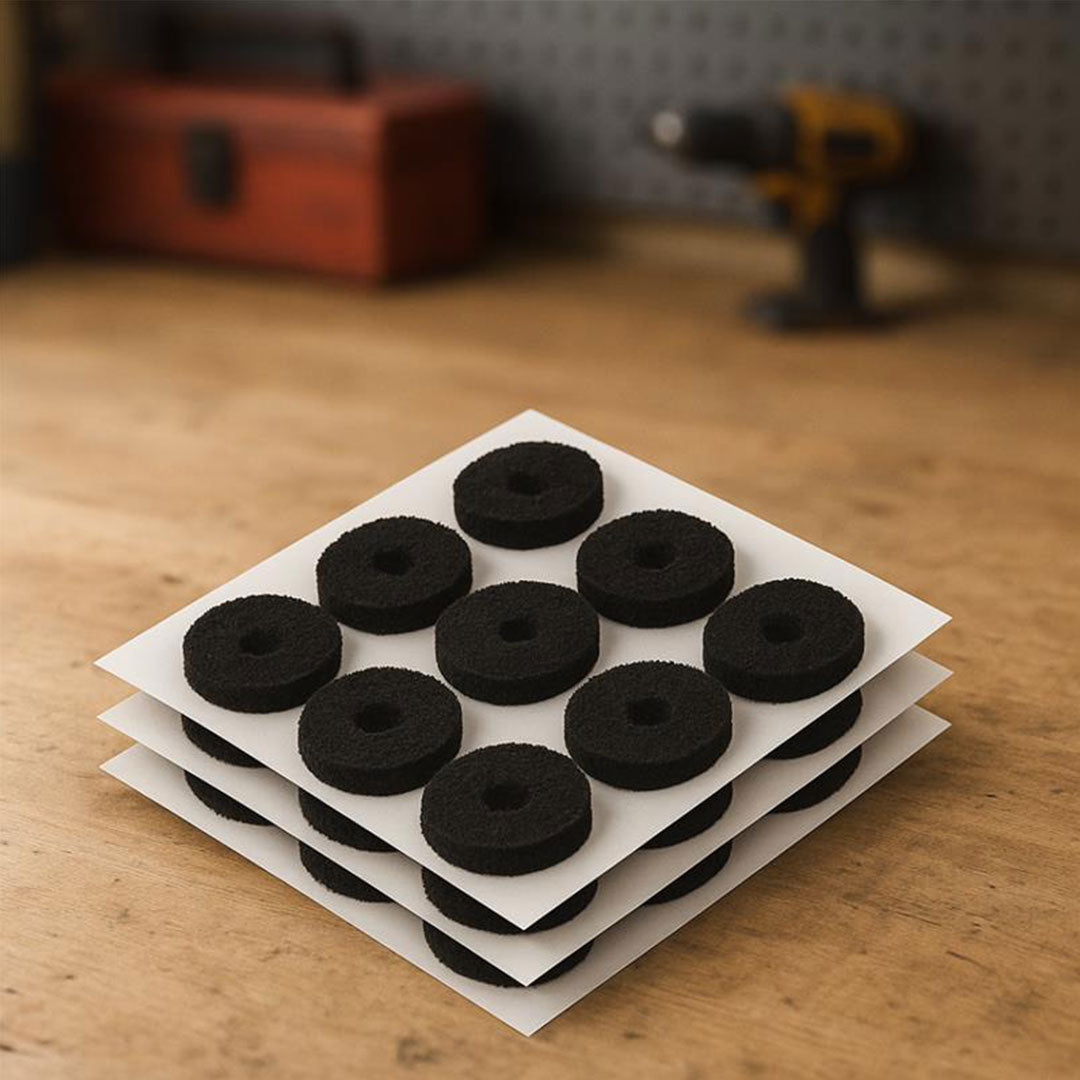

Door clip dampener foam rings: Fit around door clips to eliminate rattles between the door and door trim panel, preserving sound clarity and removing distracting noise during listening.

Thermal insulation: The butyl and acoustic cotton layers provide additional thermal insulation, helping stabilise cabin temperature in both hot and cold conditions and reducing strain on the air conditioning and heater.

DIY peel-and-stick installation: All components use self-adhesive or tape application, making the entire kit a straightforward DIY installation without professional tools or skills required.

What's in the box

• 6 x Shield butyl sheets 400 x 500 x 2.1mm (1.2sqm total)
• 4 x Silencer acoustic cotton 450 x 600 x 3mm (1.08sqm total)
• 2 x Shield Max 250 x 250 x 7.5mm pieces (0.12sqm each)
• 2 x 890mm Sound Snakes
• 1 x 1400mm Speaker Seal foam strip
• 27 x Door Clip Dampener Foam Rings
• Double-sided Silencer application tape

Technical specs

Frequently asked questions

How many doors does the Titan Ultimate Door Kit cover?
Based on the quantities supplied, the kit provides materials for treating two doors. Contact us if you need guidance on coverage for additional doors or a full four-door installation.

What size speakers is the Ultimate Door Kit compatible with?
The sound snakes included in the kit are suited to speakers up to 8 inches. Contact us for guidance on suitability for your specific speaker size.

Does the Ultimate Door Kit require professional installation?
No. All components use self-adhesive or tape application, making the entire kit a straightforward DIY installation without professional tools or skills.

Will the Ultimate Door Kit reduce road noise as well as improve speaker performance?
Yes. The Shield butyl sheets and Silencer acoustic cotton work together to reduce road noise, engine hum, wind turbulence, and panel vibration, while the Shield Max, speaker foam seal, and sound snakes improve speaker acoustics and bass response.

Is the Ultimate Door Kit different from the Titan Ultimate Speaker Kit?
Yes. The Ultimate Speaker Kit focuses specifically on speaker acoustic performance with Shield Max, sound snakes, speaker foam seal, and door clip rings. The Ultimate Door Kit includes all of those components plus Shield butyl damping sheets and Silencer acoustic cotton for comprehensive door noise reduction and thermal insulation treatment.
