TITAN SHIELD 4 | Premium Acoustic & Vibration Deadening Sheets – 4-Pack Noise & Heat Insulation for Cars

Titan SHIELD 4 Premium Butyl and Aluminium Sound Deadening Sheets 400x500mm 4 Pack

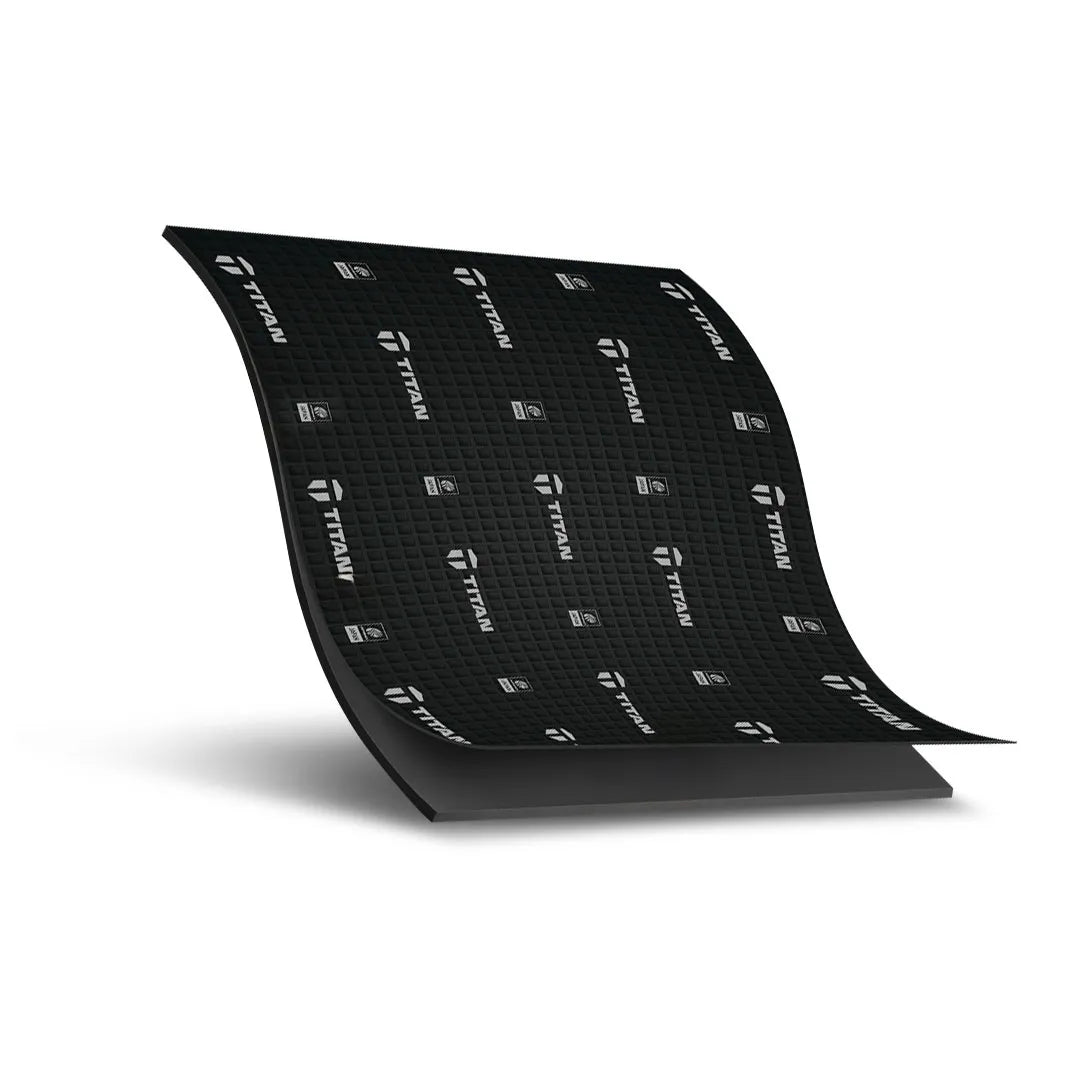

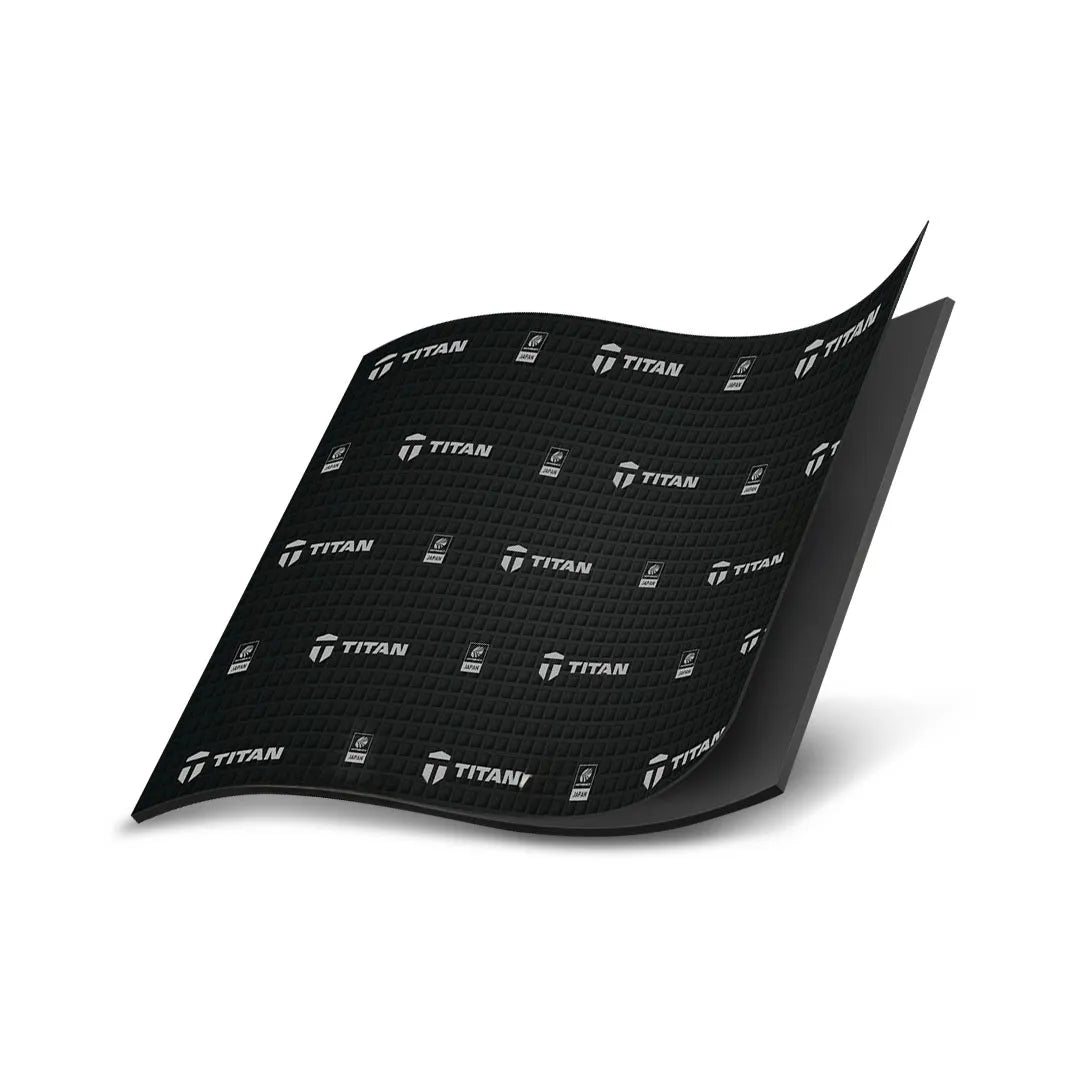

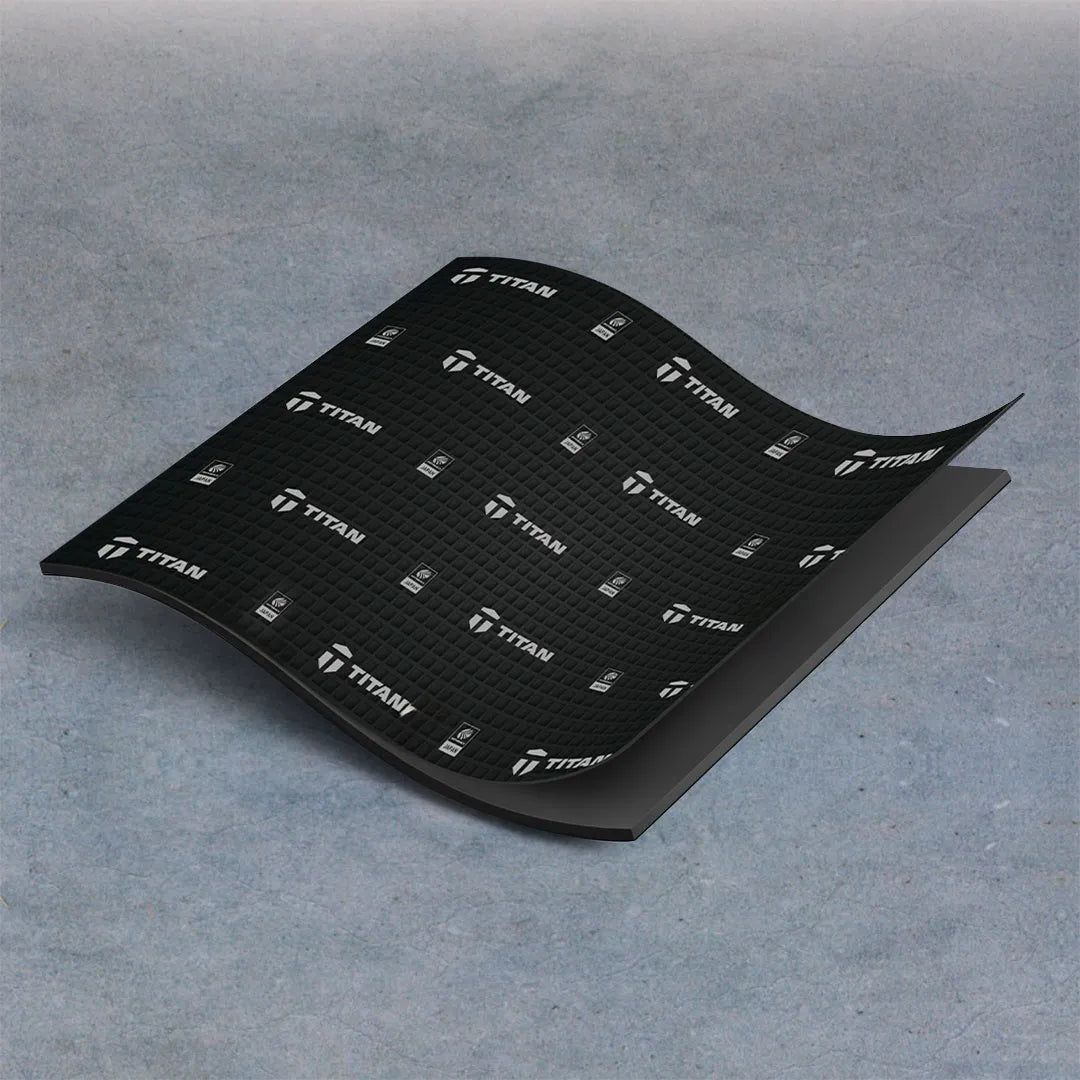

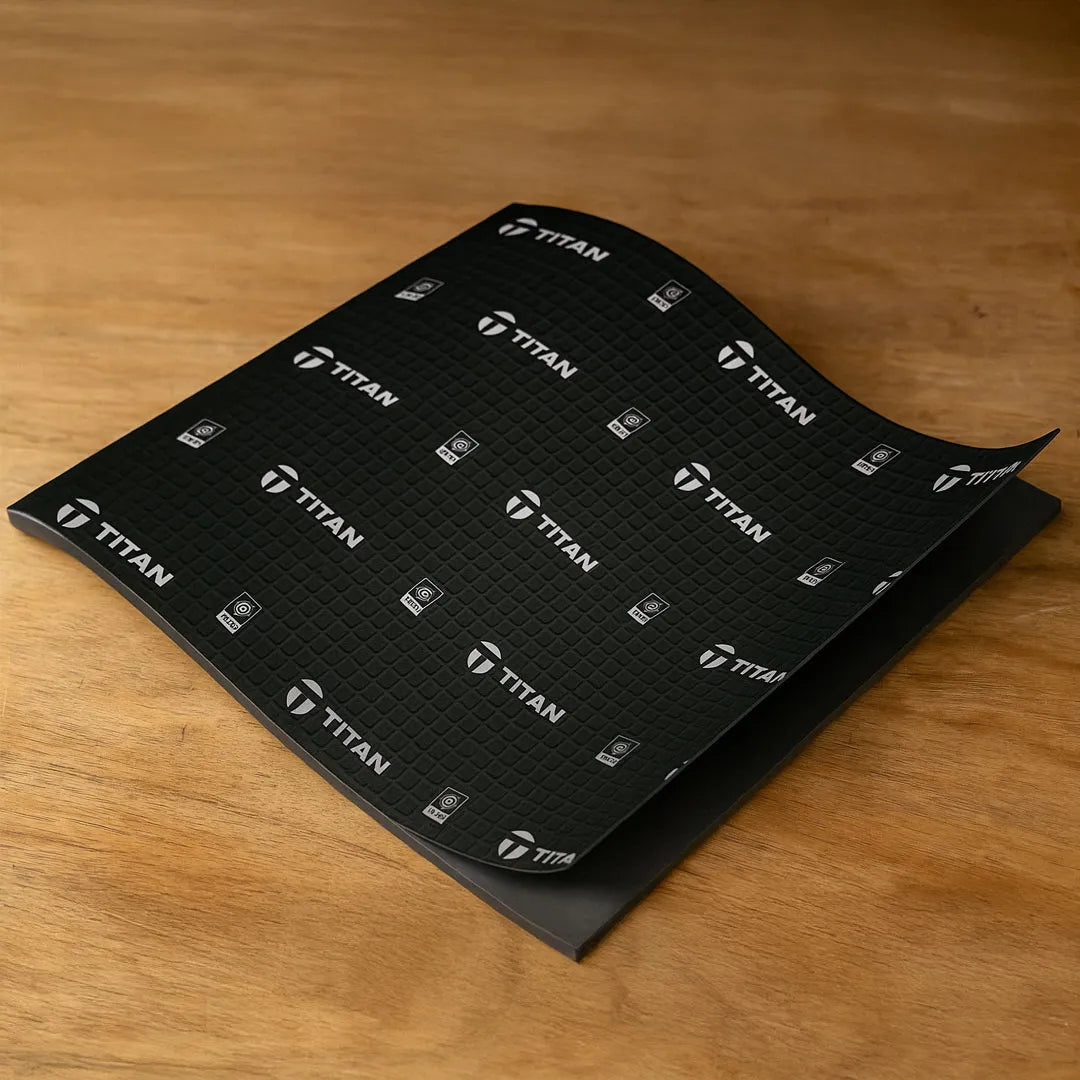

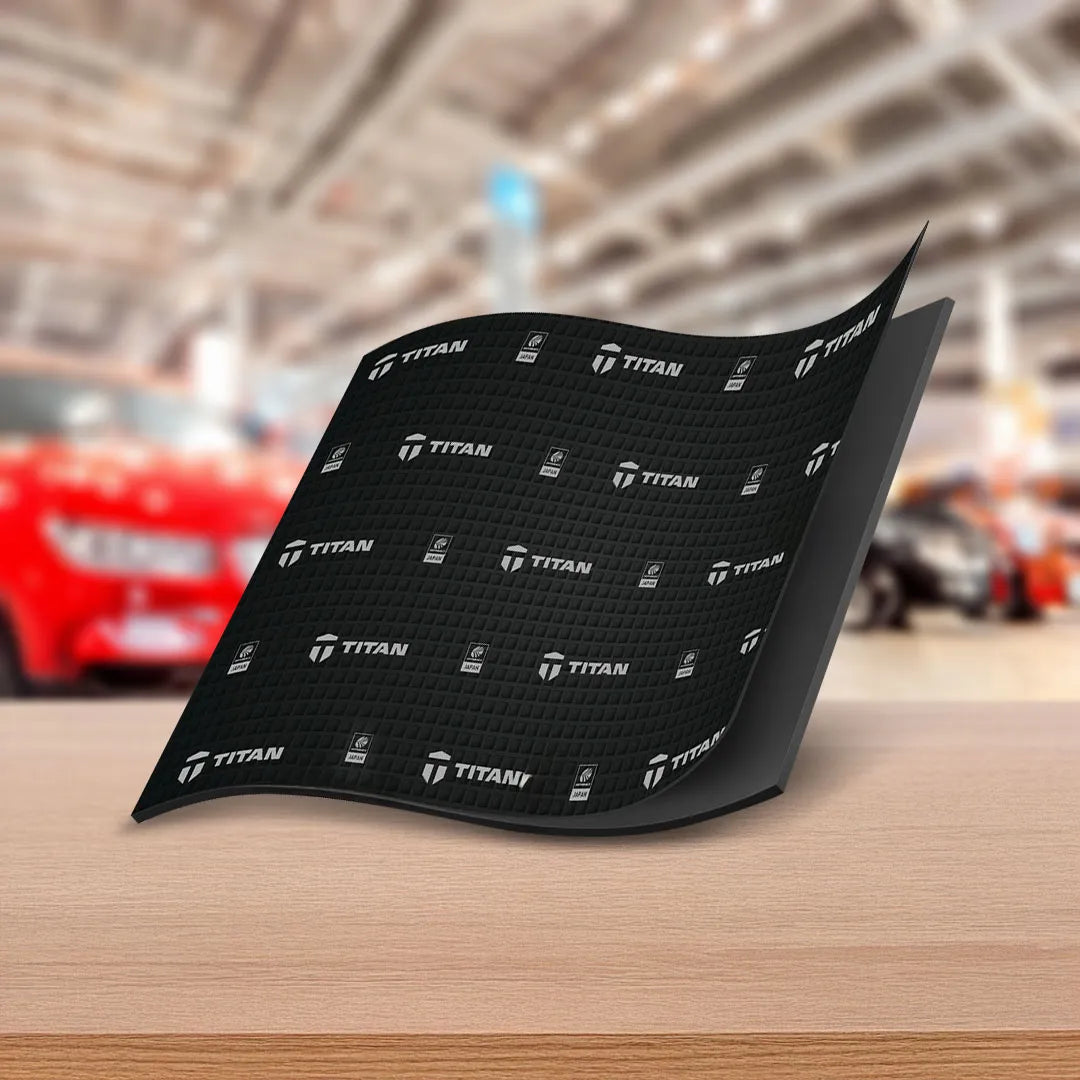

The Titan SHIELD 4 is a 2-layer acoustic and vibration deadening sheet combining 2mm high-grade butyl with a 0.13mm aluminium layer, supplied as four pieces measuring 400 x 500 x 2.1mm each for a total coverage of 0.8sqm. Designed for doors, floors, roofs, bonnets, and boot lids, the peel-and-stick self-adhesive backing bonds firmly to metal surfaces without additional tools. The aluminium layer is proven to reduce temperature transfer by up to 40%.

Product overview

The SHIELD 4 uses a high-grade butyl formula that absorbs and disperses panel vibrations at the point of contact with the surface, eliminating road noise, engine hum, and rattles at the source. The superior adhesive backing integrates seamlessly with metal surfaces for a long-lasting bond that does not peel or sag over time. The 0.13mm aluminium foil layer acts as a thermal barrier, reflecting heat away from the cabin in summer and retaining warmth in winter, with a proven reduction in temperature transfer of up to 40%.

Each 400 x 500mm sheet can be cut to fit irregular surfaces including door skins, floor pans, roof panels, bonnets, and boot lids. Four pieces are supplied per pack, covering 0.8sqm in total.

Features and benefits

2mm high-grade butyl layer: Absorbs and disperses panel vibrations at the point of contact, eliminating road noise, engine hum, and rattles at the source for a quieter cabin environment.

0.13mm aluminium foil layer: Acts as a thermal barrier proven to reduce temperature transfer by up to 40%, keeping the cabin cooler in summer and warmer in winter.

Peel-and-stick self-adhesive backing: The heavy-duty adhesive bonds firmly to metal surfaces without additional tools or adhesives, providing a strong and lasting grip that does not peel or sag over time.

400 x 500mm sheet size: Each sheet can be cut to fit irregular surfaces including door skins, floor pans, roof panels, bonnets, and boot lids for versatile automotive installation.

4-piece pack with 0.8sqm coverage: Four pieces per pack provide sufficient material for targeted panel treatment across doors, floors, and other key noise entry points.

Multi-surface application: Suited to doors, floors, roof panels, bonnets, boot lids, and firewalls across passenger vehicles, vans, and other vehicle types.

Enhances audio system clarity: Reducing panel vibration and road noise improves in-car audio performance by eliminating distortion and reverberation caused by resonating panels.

Technical specs

Frequently asked questions

How many pieces are included in the Titan SHIELD 4 pack?
The SHIELD 4 pack includes four pieces, each measuring 400 x 500 x 2.1mm, providing a total coverage of 0.8sqm.

What is the difference between SHIELD 4 and SHIELD MAX?
The SHIELD 4 is a 2-layer butyl and aluminium sheet at 2.1mm thickness. The SHIELD MAX adds a 6mm acoustic foam layer for additional sound absorption, bringing the total thickness to 7.5mm. The SHIELD MAX also comes in larger 700 x 1000mm sheets. Contact us for guidance on which product suits your specific application.

Can the SHIELD 4 be cut to fit irregular surfaces?
Yes. Each 400 x 500mm sheet can be cut to shape for irregular surfaces including door skins, floor pans, roof panels, bonnets, and boot lids.

Does the SHIELD 4 require additional adhesive for installation?
No. The SHIELD 4 features a peel-and-stick adhesive backing that bonds firmly to metal surfaces without additional adhesives or tools.

How effective is the SHIELD 4 at reducing heat transfer?
The aluminium foil layer in the SHIELD 4 is proven to reduce temperature transfer by up to 40%, helping maintain more stable cabin temperatures in both hot and cold conditions.
