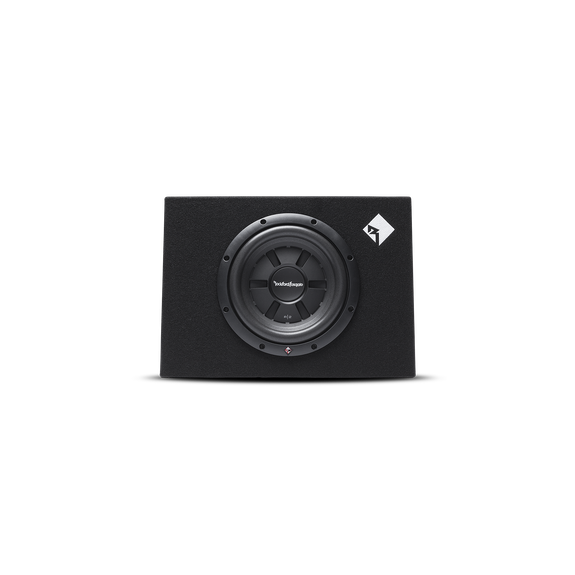

Rockford Fosgate R2S-1X10 Prime 10" R2S Shallow Loaded Enclosure

Rockford Fosgate R2S-1X10 Prime R2S 10" Shallow Loaded Enclosure Compact Fit, Real Bass

Product Overview

The Rockford Fosgate R2S-1X10 is a single 10" shallow loaded enclosure housing a Prime R2S shallow subwoofer (R2SD4-10), rated at 200 Watts RMS and 400 Watts peak, internally pre-wired to a 2-ohm load. The more compact sibling of the R2S-1X12, it delivers genuine Prime series bass performance from a slim-line wedge profile just 8.25 cm deep at the top and 13.34 cm at the base in a narrower 48.26 cm wide footprint suited to tighter behind-seat and under-seat spaces in Australian utes, single-cab trucks, and compact vehicles.

Like the R2S-1X12, the R2S-1X10 is purpose-built for installations where depth and width are the critical constraints and budget is a consideration. The R2SD4-10 shallow driver is engineered specifically for reduced mounting depth, and the wedge enclosure geometry is optimised for single-cab truck and limited seat-travel installations. CEA-2031 compliant and constructed from 5/8" MDF with high-density carpet and 12 AWG quick-release compression terminals, the R2S-1X10 is a ready-to-install solution that requires only a power feed, ground, and audio signal to get running.

Key Specifications

• Subwoofer: Single 10" Rockford Fosgate Prime R2S shallow (R2SD4-10)
• Power handling: 200W RMS / 400W peak
• Pre-wired impedance: 2 ohm (internally wired)
• Enclosure type: Shallow sealed wedge
• Construction: 5/8" MDF
• Finish: High-density carpet
• Input terminals: Up to 12 AWG quick-release compression
• Dimensions (H x W x D bottom x D top): 34.29 x 48.26 x 13.34 x 8.25 cm (wedge)
• Shipping weight: 9.02 kg
• CEA-2031 compliant

Features & Benefits

• Ultra-slim wedge profile 8.25 cm at top, 13.34 cm at base: Engineered for the most space-restricted behind-seat and under-seat installations in Australian single-cab trucks, utes, and compact vehicles. The tapered wedge profile fits neatly behind seats with limited travel clearance where flat-bottomed or deeper enclosures will not.
• Narrower than the R2S-1X12: At 48.26 cm wide versus 69.53 cm for the R2S-1X12, the R2S-1X10 fits in installations where the 12" enclosure width is too great the same shallow wedge depth profile in a significantly more compact width for tighter spaces.
• Prime R2S shallow 10" driver (R2SD4-10): Specifically engineered for shallow mounting depth, not a standard driver forced into an undersized box. Delivers accurate, controlled bass output within the sealed shallow enclosure alignment it is designed for.
• 200W RMS / 400W peak power handling: Accessible power requirements suited to entry-level and mid-range mono amplifiers. Pre-wired to 2 ohms confirm your amplifier's 2-ohm power rating before purchase.
• Pre-wired to 2 ohms: Factory internal wiring presents a 2-ohm load to the amplifier. No internal wiring configuration required connect your amplifier to the 12 AWG compression terminals and go.
• Optimised wedge design for single-cab trucks and limited seat travel: The wedge geometry is specifically optimised for single-cab and restricted seat-travel installations, maximising internal enclosure volume within the minimum available depth a practical solution for Australian working utes and single-cab trucks.
• Lightest enclosure in the Rockford Fosgate shallow loaded range: At just 9.02 kg, the R2S-1X10 is the most manageable shallow loaded enclosure in this catalogue. Easy for a single person to handle, position, and install a practical advantage for DIY installs in tight spaces.
• CEA-2031 compliant: Power handling figures comply with the CEA-2031 standard for loaded subwoofer enclosures, providing a verified and comparable specification.
• 5/8" MDF construction: Rigid enclosure walls minimise panel flex and resonance at sustained 200W RMS input levels, ensuring consistent bass reproduction in the shallow sealed alignment.
• High-density carpet finish: Durable, professional appearance suited to daily under-seat and behind-seat use in Australian utes and trucks.
• 12 AWG quick-release compression terminals: Tool-free wiring connection and disconnection for clean installation and easy removal practical for ute and single-cab installs where the enclosure is occasionally removed.
• Prime series value positioning: Delivers Rockford Fosgate engineering and factory tuning at the accessible Prime series price point a genuine step up from generic shallow enclosures without the cost of the Punch P3S shallow range.

Technical Specs

Compatible With

• Mono amplifiers stable at 2 ohms, rated at or near 200W RMS at 2 ohms
• Rockford Fosgate Prime and Punch series mono amplifiers
• Single-cab trucks and utes with behind-seat or under-seat depth and width restrictions
• Compact vehicles where the R2S-1X12 width (69.53 cm) is too large for the available space
• Vehicles requiring the most compact shallow loaded enclosure option in the Prime range
• Rockford Fosgate wiring kits for 2-ohm mono amplifier installation
• Rockford Fosgate RCA cables and signal accessories

Frequently Asked Questions

What amplifier does the R2S-1X10 require? The R2S-1X10 is pre-wired to 2 ohms and handles 200W RMS. A mono amplifier stable at 2 ohms and rated at or near 200W RMS at 2 ohms is recommended such as a compatible Rockford Fosgate Prime or Punch mono amplifier. Confirm your amplifier's 2-ohm rating before purchase.

What is the difference between the R2S-1X10 and R2S-1X12? Both share the same shallow wedge depth profile (13.34 cm base, 8.25–8.26 cm top) and 2-ohm pre-wiring. The R2S-1X10 uses a 10" R2S driver rated at 200W RMS in a narrower 48.26 cm wide enclosure weighing 9.02 kg. The R2S-1X12 uses a 12" R2S driver rated at 250W RMS in a wider 69.53 cm enclosure weighing 11.15 kg. Choose the R2S-1X10 when width or weight is the tighter constraint.

How shallow is the R2S-1X10 enclosure? The R2S-1X10 wedge profile is 13.34 cm deep at the base and 8.25 cm deep at the top, with an overall height of 34.29 cm and width of 48.26 cm. It is specifically optimised for single-cab trucks and utes where seat travel limits available mounting depth.

How does the R2S-1X10 compare to the Punch P3S-1X10? Both are shallow sealed wedge enclosures for ute and truck installs. The P3S-1X10 uses a higher-pedigree Punch P3S shallow driver with 300W RMS power handling and 10 AWG terminals. The R2S-1X10 uses a Prime R2S shallow driver with 200W RMS and 12 AWG terminals making it the more budget-accessible shallow loaded 10" enclosure in the Rockford Fosgate range.

Is the R2S-1X10 suitable for a DIY installation? Yes. At 9.02 kg with 12 AWG quick-release compression terminals, the R2S-1X10 is easy for a single person to handle and install. Connect power, ground, signal, and speaker wiring to a compatible 2-ohm mono amplifier and the system is ready to use without specialist tools or professional installation.
