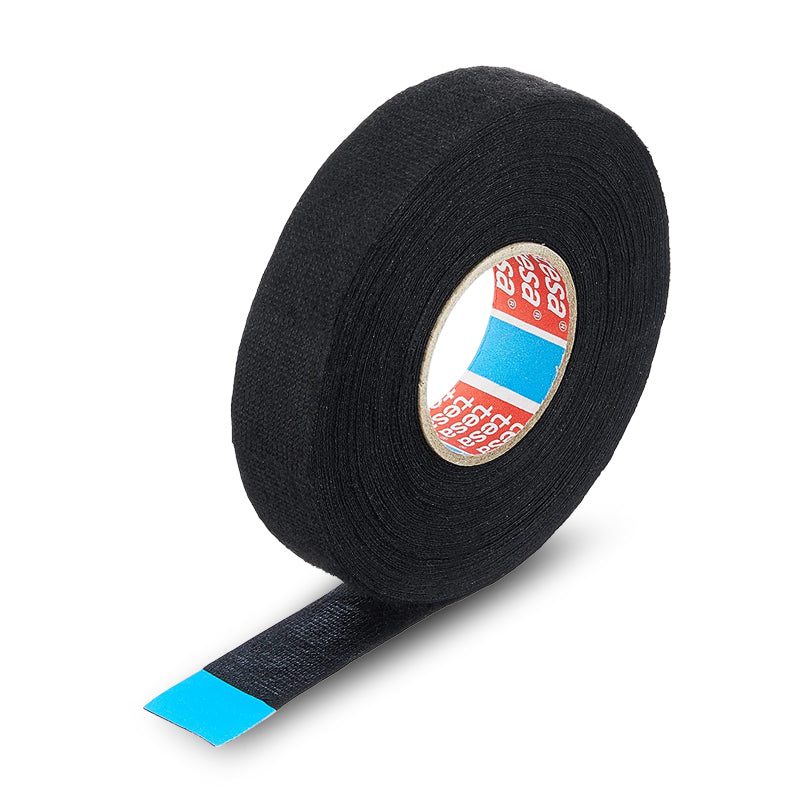

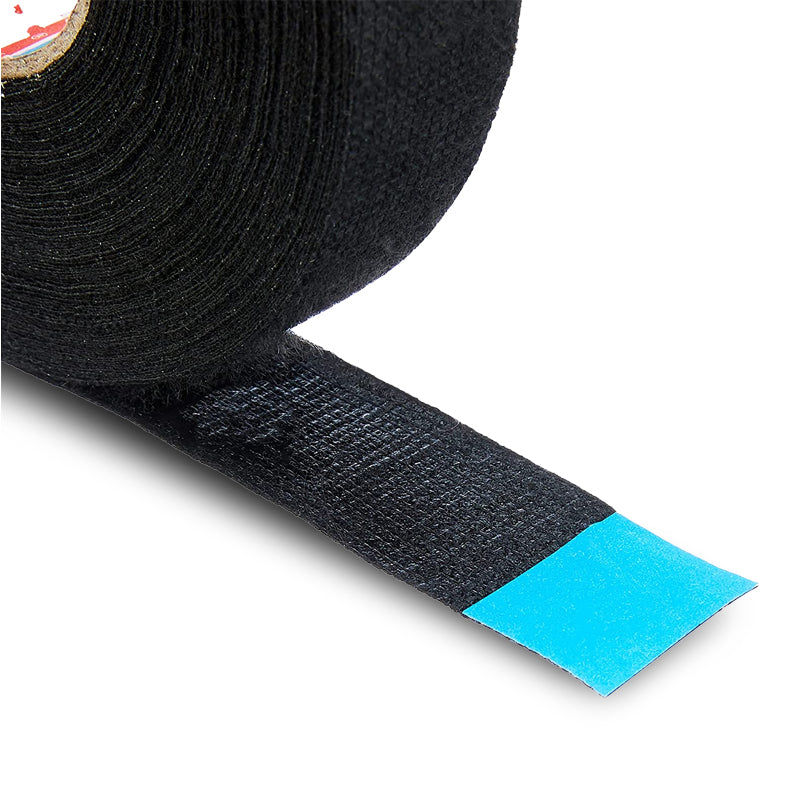

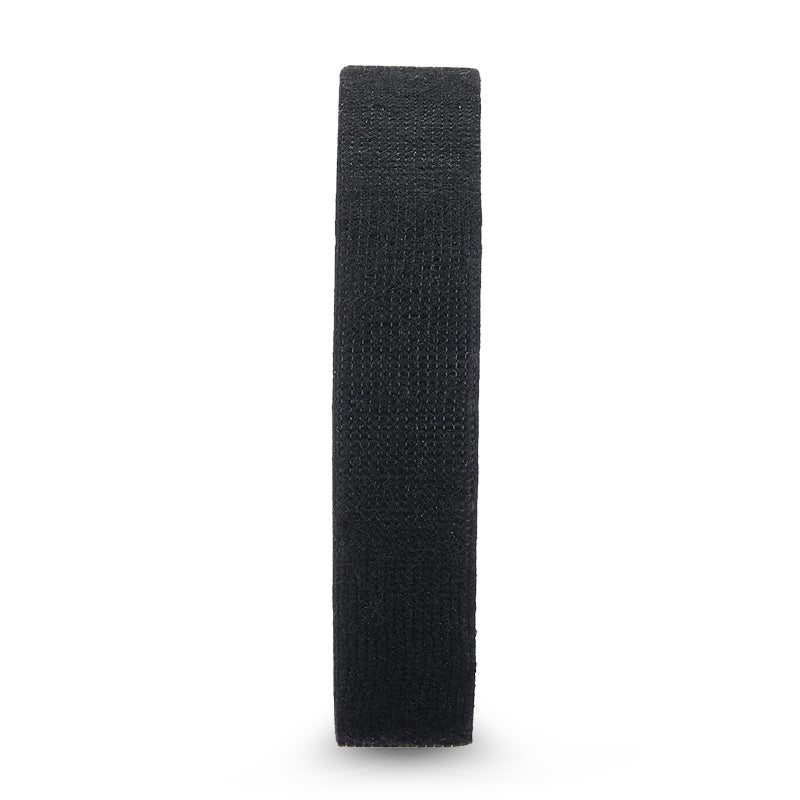

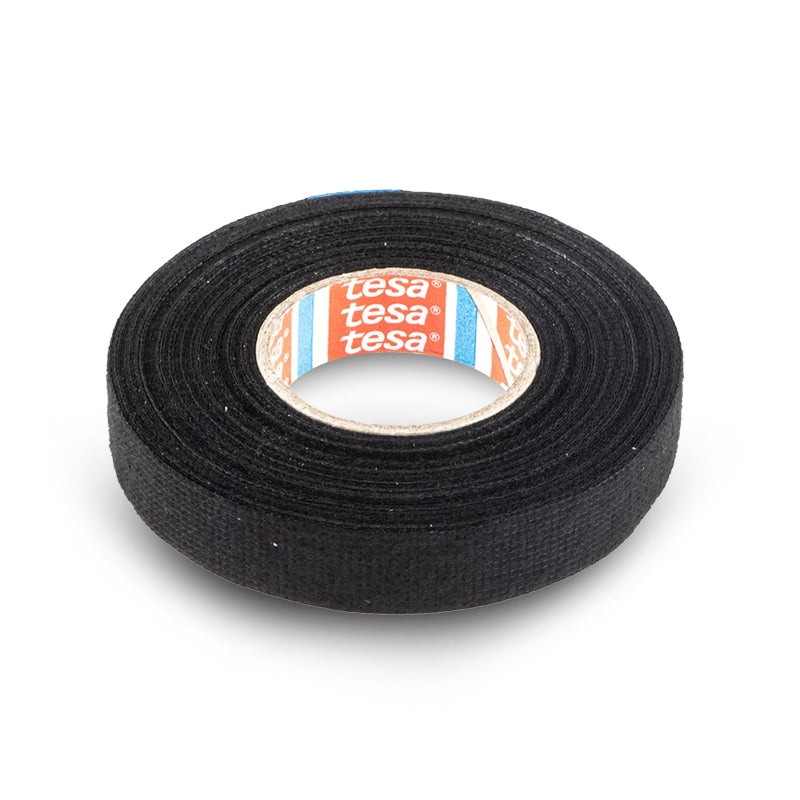

DNA 51608 Tesa PET Fleece Tape 25 Mtr - Black

Fleece Tape Is a Modern Day Anti Rattle Wiring Loom Tape Used by Today's Leading Auto Manufactures

Tesa 51608 is a universal tape for wire harness bundling in the passenger compartment. It combines important features such as noise dampening, abrasion resistance, and bundling strength while keeping harnesses flexible supporting an easy harness assembly process at the OEM. Tesa 51608 is a PET fleece wire harness tape with a rubber-based adhesive that is optimized for manual application.

Features:

• Colour: Black
• Roll Size:19mm x 25 metres
• Pack Size:1 Roll
• Packaging: Roll
• Noise dampening
• Abrasion resistant
• Flexible and smooth
• Tear resistant
• Stable unwind force
• Age-resistant
• Strong adhesion
• Hand-tearable

Specifications:

• Backing material: PET Fleece
• Total thickness: 280 µm
• Type of adhesive: Rubber-based
• Adhesion to steel: 3 N/cm
• Elongation at break: 20%
• Tensile strength: 40 N/cm
• Temperature resistance min: -40°C
• Temperature resistance (3000h): 105°C
• Abrasion resistance (10mm mandrel): Class B (acc. to LV312)
• Abrasion resistance (5mm mandrel): Class A (acc. to LV312)
• Flame resistance as composite: Class B (acc. to LV312)
• Unwind force (roll width = 9mm): 4.6 N/roll (30 m/min)
• Unwind force (roll width > 9mm): 9 N/roll (30 m/min)
• Noise damping (decibel): Class C (acc. to LV312)
