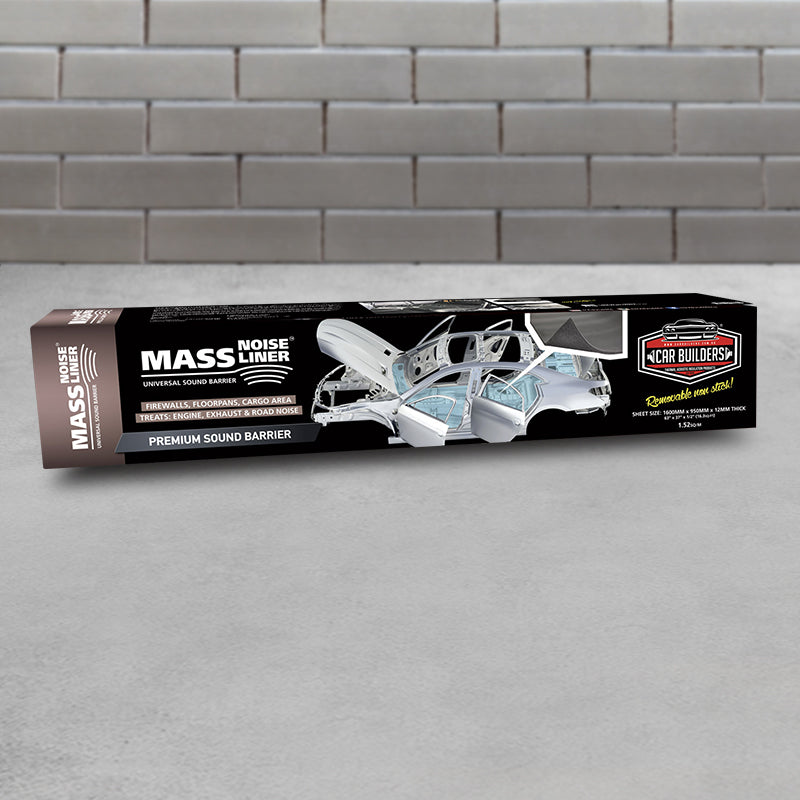

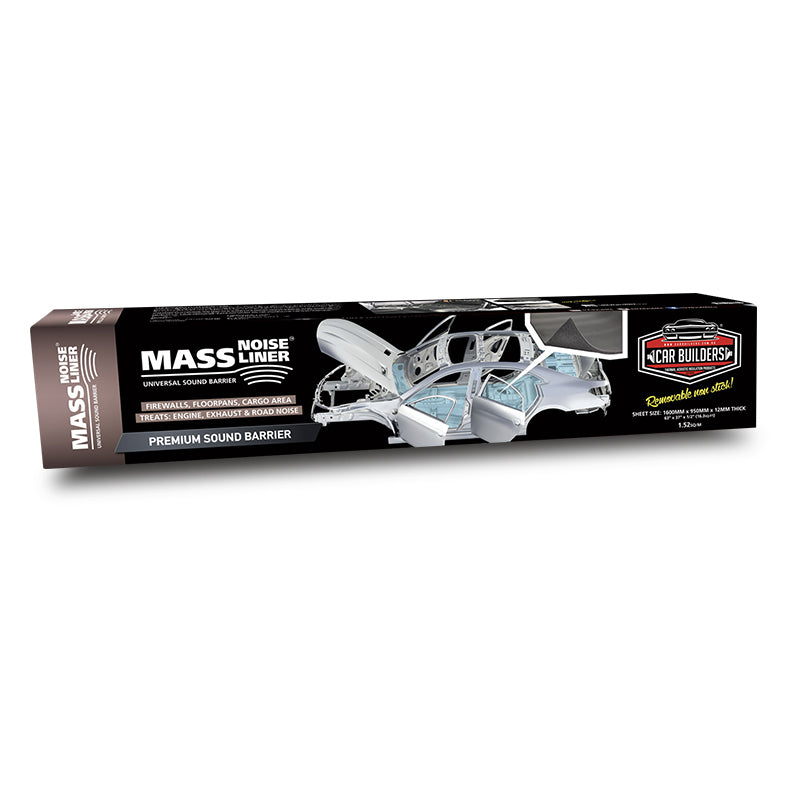

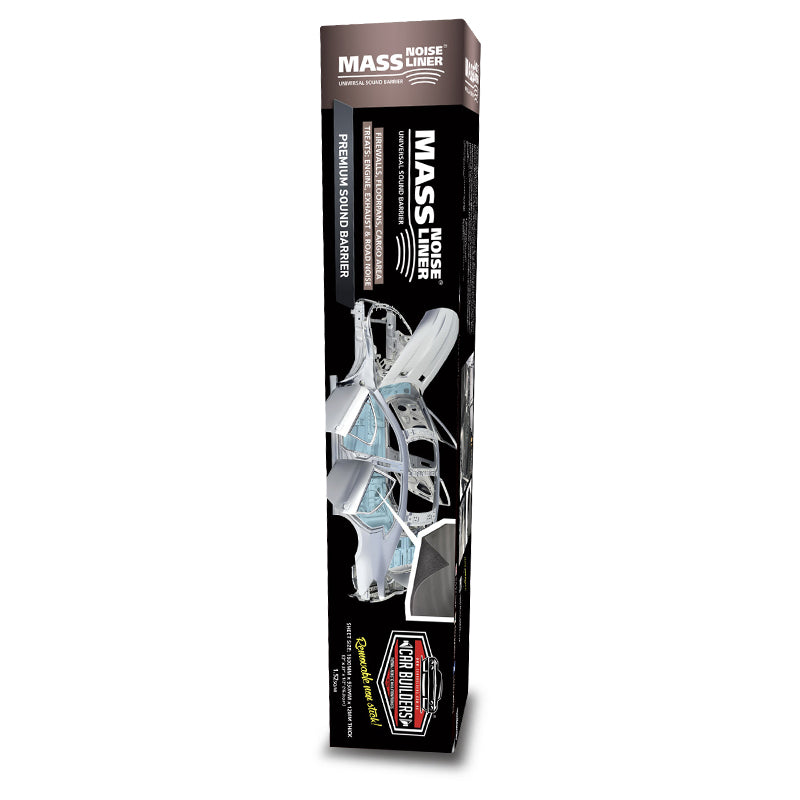

Mass Noise Liner sheet rolled with retail box
Mass Noise Liner sheet rolled with retail box

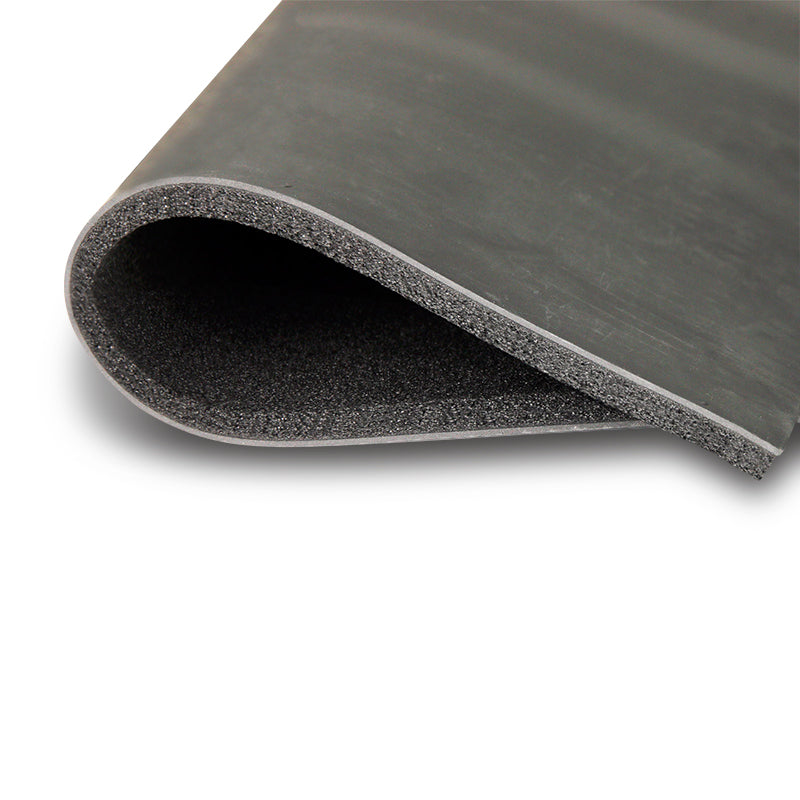

Rolled edge of Mass Noise Liner showing vinyl and foam
Rolled edge of Mass Noise Liner showing vinyl and foam
Mass Noise Liner corner over printed backing
Mass Noise Liner corner over printed backing
Mass Noise Liner being laid in a 4x4 rear
Mass Noise Liner being laid in a 4x4 rear

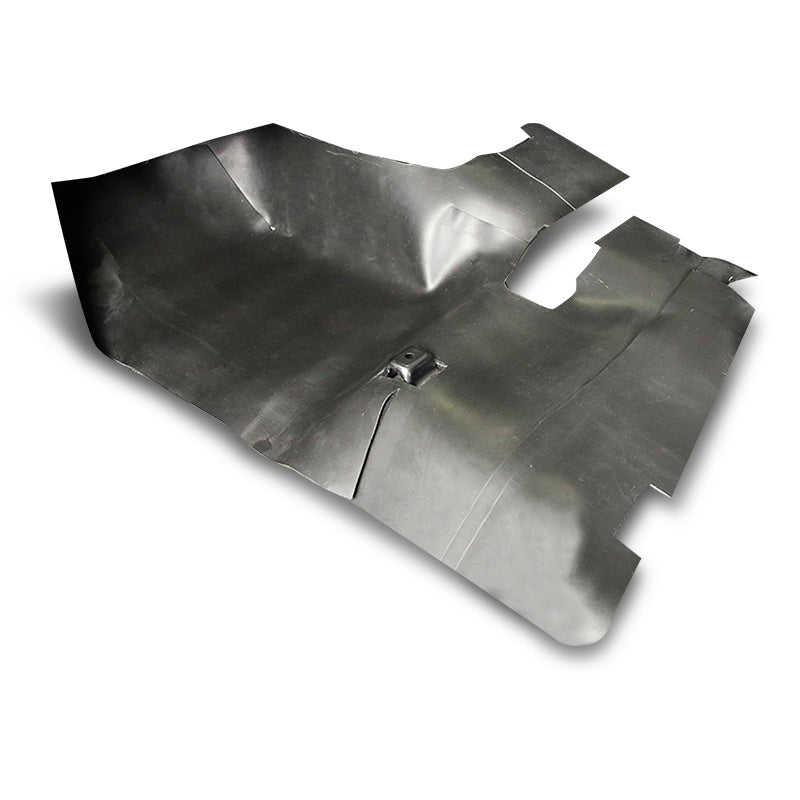

Mass Noise Liner covering a 4x4 rear floor
Mass Noise Liner covering a 4x4 rear floor
Mass Noise Liner floor in a 4x4 cargo area
Mass Noise Liner floor in a 4x4 cargo area
Click to open expanded view

Car Builders Mass Noise Liner, 12mm Mass Loaded Vinyl Underlay

SKU: MNL
Price
$130
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Mass Noise Liner sheet rolled with retail box

Car Builders Mass Noise Liner, 12mm Mass Loaded Vinyl Underlay

$130

Product features

Quick answer: Car Builders Mass Noise Liner is a 12mm heavyweight acoustic barrier: a 2mm mass loaded vinyl layer bonded to 10mm closed cell foam. It goes over Stage 1 deadener to block airborne noise from the engine, road and exhaust. It is water resistant and removable, which is why it suits 4x4s that see river crossings.

What problems does the Car Builders Mass Noise Liner fix?

  • Exhaust drone. Laid in the boot as a liner, it reduces drone that Car Builders say is common in 6 cylinders, V8s and flat fours.
  • Engine noise through the firewall. Used as a firewall barrier in 4WDs and muscle cars.
  • Flooded 4x4 cabins. The closed cell foam does not absorb water. Lift it out, clean the floor and refit it.
  • Road noise in vans and trucks. It works on rigid ribbed floors even without Stage 1 underneath.

How it works

Stage 1 deadener stops vibration. Mass Noise Liner is Stage 2: the dense vinyl layer blocks airborne noise, and the foam decouples it from the floor and insulates against heat.

What is in the box

  • 1 sheet of Mass Noise Liner, 1600 x 950mm, 12mm thick

How much do I need?

This listing is 1 sheet, 1600 x 950mm, about 1.5 square metres. Measure the floor or firewall you want to cover and order one sheet for every 1.5 square metres, plus a little extra for trimming.

Will it fit my vehicle?

It is sold by the sheet, not cut for a model. Car Builders list firewalls, cargo areas, van floors and boot floors in 4WDs, muscle cars, trucks and vans.

How to install

Difficulty: Moderate. It is heavy, so it lays on floors and firewalls rather than sticking to ceilings.

  1. Apply Stage 1 Sound Deadener to the floor or firewall. On ribbed van or cargo floors this is optional.
  2. Cut the Mass Noise Liner to shape with scissors or a knife.
  3. Lay it in place of the factory carpet underlay and refit the carpet.

Mistakes to avoid

  • Fitting it to the underside of horizontal surfaces. It is too heavy. Use Acoustic Liner, Waterproof Carpet Underlay or Insul-Layer there instead.

Specifications

Sheet size 1600 x 950mm
Thickness 12mm (2mm vinyl, 10mm foam)
Weight 4.5kg per square metre
Temperature resistance 130°C
Flammability UL94 V0
Foam flame retardant Grade B2
Tensile strength 2.65MPa or more

FAQ

Does Mass Noise Liner do the same job as deadener?

Sound deadener goes on the metal to stop vibration. Mass Noise Liner sits over it and blocks airborne noise.

Do I need deadener underneath?

It maximises the result, but on rigid ribbed van or cargo floors Mass Noise Liner works well on its own.

Can I remove it if the cabin floods?

Yes. Lift it out, clean the floor and put it back.

Can I stick it under the roof?

Car Builders do not recommend it on the underside of horizontal surfaces because of its weight. Use a light foam such as Insul-Layer there.
