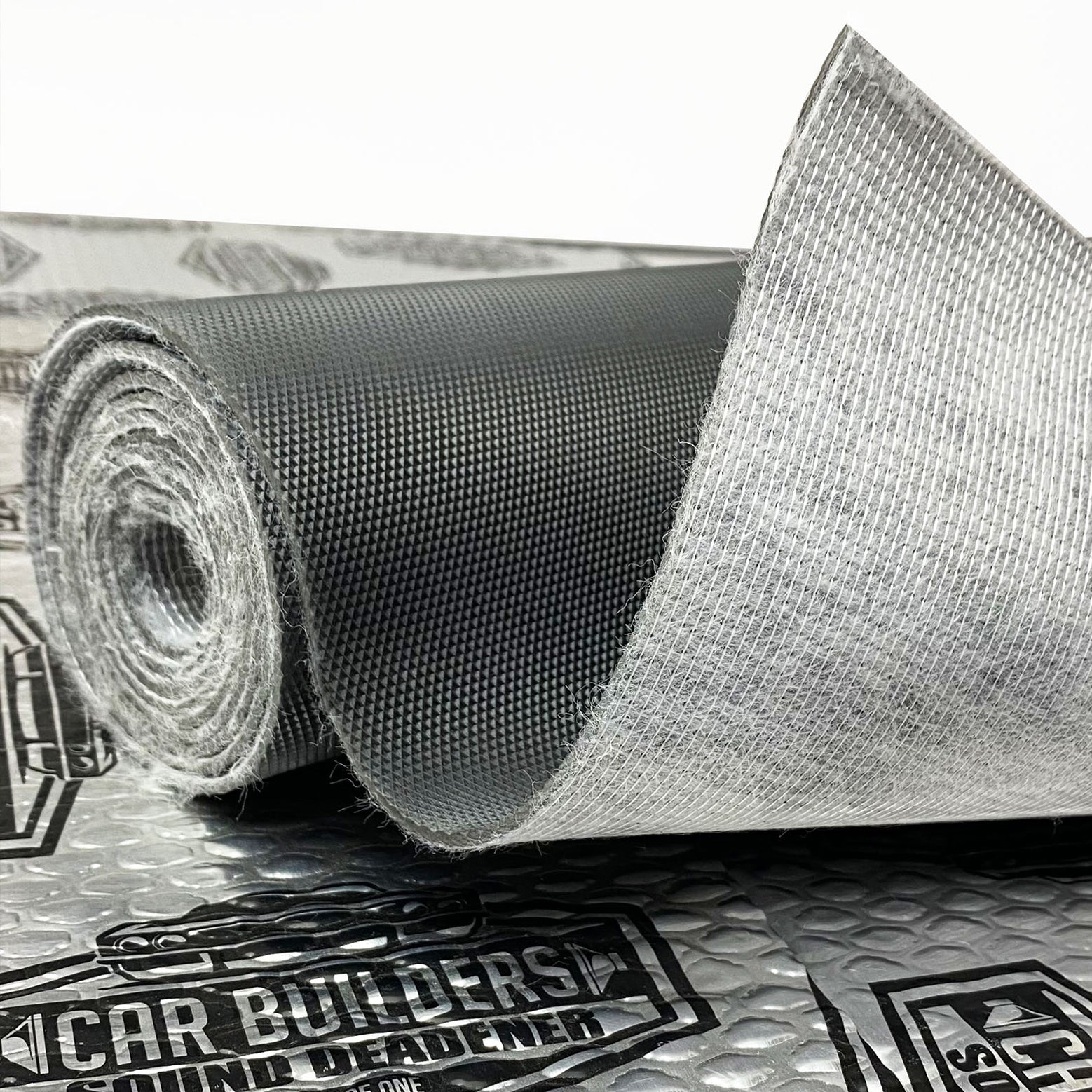

Roll of Car Builders Mass Loaded Vinyl showing the grained face and textile back
Roll of Car Builders Mass Loaded Vinyl showing the grained face and textile back

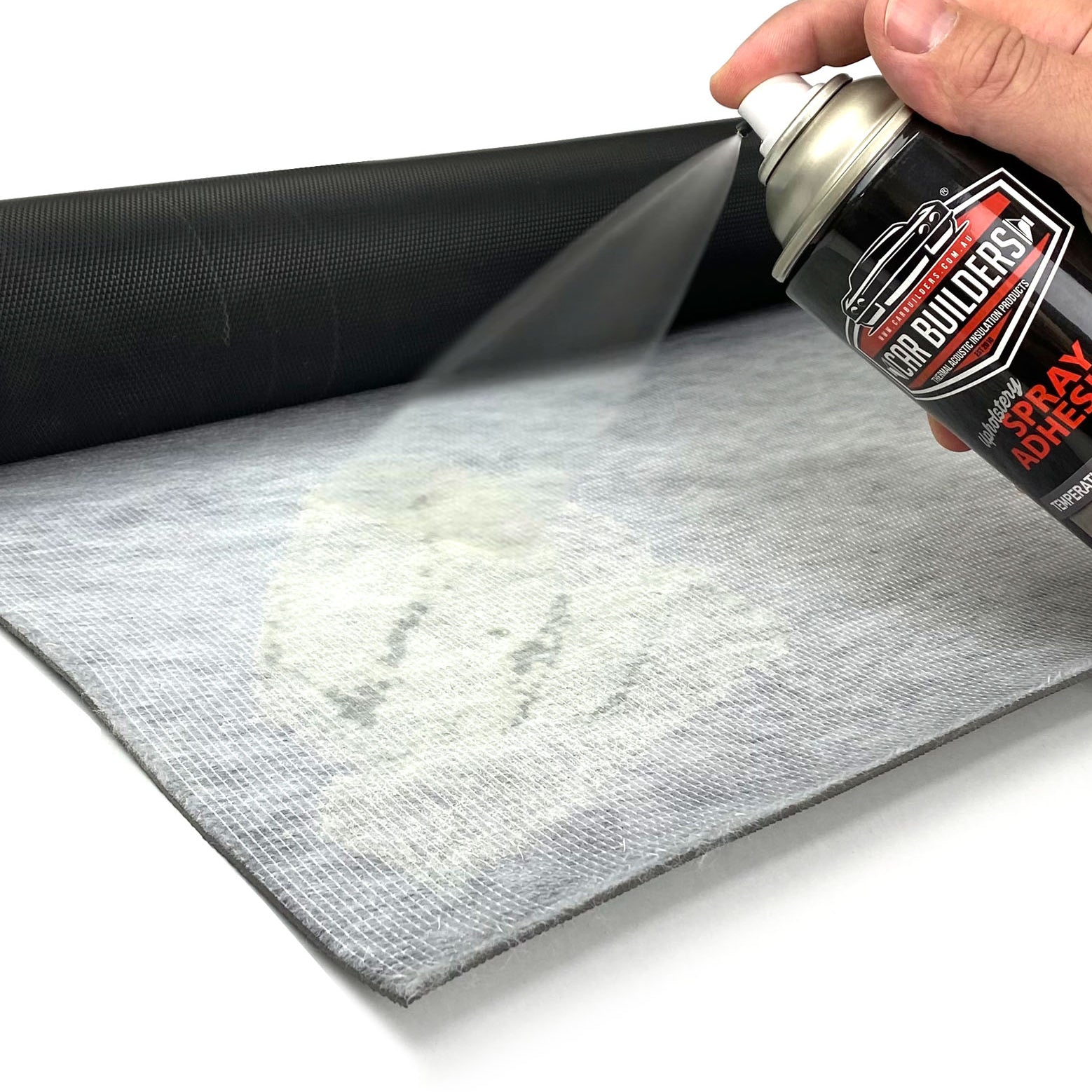

Spray adhesive applied to the textile back of Mass Loaded Vinyl
Spray adhesive applied to the textile back of Mass Loaded Vinyl

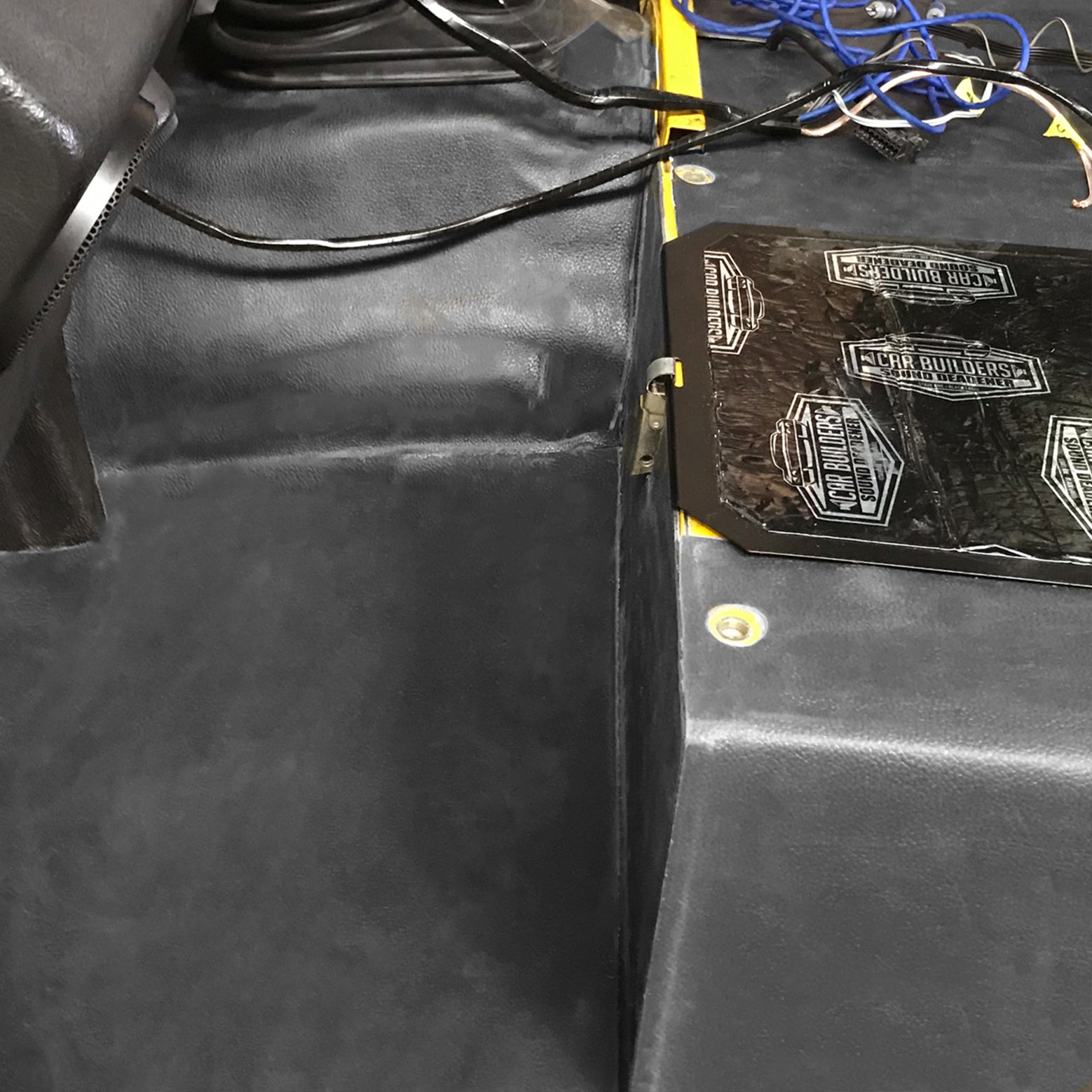

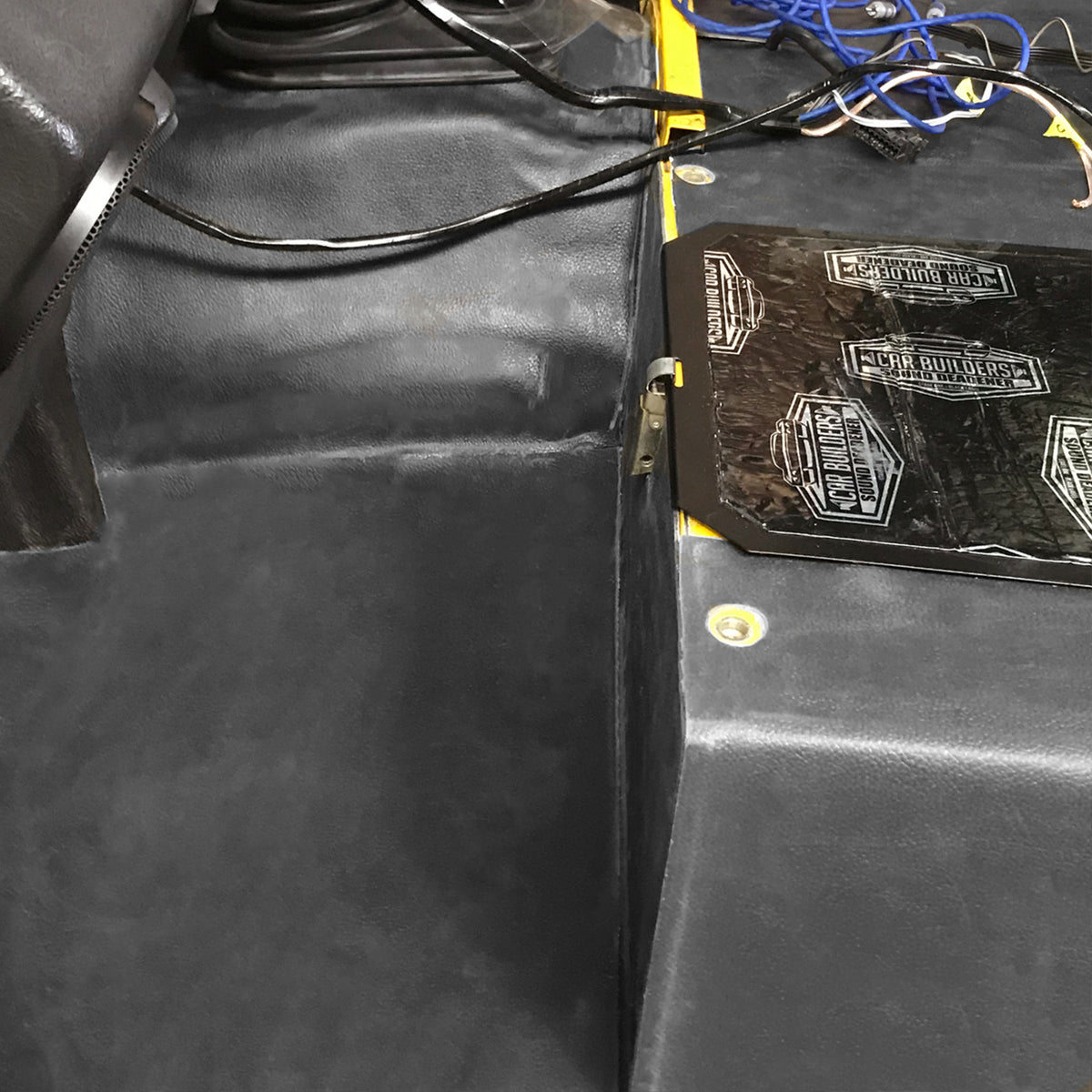

Mass Loaded Vinyl fitted over the floor pan of a vehicle
Mass Loaded Vinyl fitted over the floor pan of a vehicle
Click to open expanded view

Car Builders Mass Loaded Vinyl Sound Barrier, 2mm Sheet

SKU: MLV_2M
Price
$109.99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Roll of Car Builders Mass Loaded Vinyl showing the grained face and textile back

Car Builders Mass Loaded Vinyl Sound Barrier, 2mm Sheet

$109.99

Product features

Quick answer: Engine noise through a firewall and exhaust drone in the boot get past foam alone. Mass Loaded Vinyl is a heavy, limp barrier sheet that blocks that sound like a blanket. It weighs 4kg per square metre, is 2mm thick and comes in a 1.35m x 1.95m sheet. The woven textile back lets you glue it with contact adhesive, and it works best over a decoupling layer such as Insul-Layer foam.

What problems does the Mass Loaded Vinyl fix?

  • Motor noise coming through a 4WD or truck firewall. Car Builders list it as a firewall barrier for 4WDs and trucks.
  • Boot drone from the exhaust on sixes, V8s and flat fours. Laid in the boot as a liner, it cuts that drone.
  • MLV that will not glue. The woven textile back takes contact adhesive, so no toxic vinyl cement.
  • Needing to get back to the panel later. Use it as a removable sound blanket where peel and stick is not wanted.

How it works

Sound needs to move mass to get through a barrier. MLV is heavy and limp, so it soaks up airborne noise instead of passing it on. Separate it from the vibrating panel with a decoupling foam so the panel does not drive the vinyl.

What is in the box

  • 1 x Mass Loaded Vinyl sheet, 1.35m x 1.95m, 2mm

How much do I need?

One sheet is 1.35m x 1.95m. Measure the floor, firewall or boot area and template your pieces before cutting.

Will it fit my vehicle?

No vehicle list is given; Car Builders sell it by the sheet for floor pans, wheel arches, under back seats, firewalls, engine rooms and compressors.

How to install

Difficulty: Moderate. Heavy to handle, and every join needs sealing.

  1. Fit Stage 1 Sound Deadener to the panel first if needed.
  2. Lay a decoupling layer such as Insul-Layer foam.
  3. Template the area and cut the MLV to shape.
  4. Glue it down with contact adhesive on the textile back, or leave it loose as a removable blanket.
  5. Seal every join and relief cut with the Mass Noise Liner Joining Kit.
  6. Refit carpet or trim over the top.

Mistakes to avoid

  • Gluing MLV straight to a bare vibrating panel with no decoupling layer.
  • Leaving gaps at joins.
  • Using it as a finished surface. It will mark and discolour.

Specifications

Weight 4kg per square metre
Sheet width 1.35m
Sheet length 1.95m
Thickness 2mm
Face Grained
Backing Woven textile, suits contact adhesive
Supplier code MLV_2M

FAQ

Can I use it as a floor covering?

No. It is not a durable finished surface and will mark. Cover it with carpet or vinyl.

Do I need foam under it?

Yes. Car Builders say a decoupling layer is important. Insul-Layer foam suits it.

What glue do I use?

Contact adhesive on the woven textile back.

How heavy is it?

4kg per square metre.

Warranty: Your rights under the Australian Consumer Law apply. Contact our team for warranty help.

Also for your build: mass noise liner, Car Builders sound deadener, acoustic liner underlay
