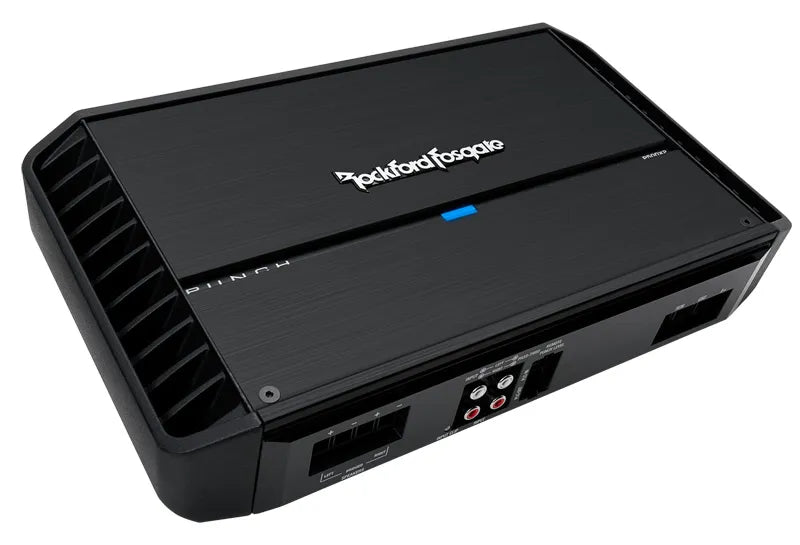

Rockford Fosgate P500X2 Punch 500 Watt 2-Channel Amplifier

An Excellent Way to Punch Up Your Sound System Without Monopolizing Your Entire Trunk - That Way You Have More Room for Subs!

The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.

The P500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

Features:

• High level input capable with Auto Turn-On circuit
• RCA pass-thru outputs
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on
• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection

Specifications:

• CEA-2006 Compliant
• Number of Channels 2
• Total Power (Sum of Rated Power) 500 Watts
• Rated Power (RMS Continuous Power) 150 Watts x 2 @ 4-Ohm, 250 Watts x 2 @ 2-Ohm, 500 Watts x 1 @ 4-Ohm Bridged
• Dynamic Power (PVC/PowerCube®) 223 Watts x 2 @ 4-Ohms 0° Res, 365 Watts x 2 @ 2-Ohms 0° Res
• Bridgeable Yes
• Frequency Response 20Hz to 20kHz +/- 1.0dB
• Input Sensitivity 150 mV - 12 V
• Circuit Topology Class Class A/B
• Efficiency (average) 73% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%
• Signal Input Hi/Low level: 1 RCA pair
• Signal Output Low level: 1 RCA pair
• Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or, Punch EQ2 Treble: 0dB to +12dB @ 12kHz, Function depends upon LP/AP/HP switch position
• Remote Controls Optional Punch Level Control (PLC2) Ready
• Visual Indicators Power/Protect/Thermal LED, Input Clip LED3, Output Clip LED1,2,3/LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD
• Power Wire Gauge 4 AWG
• Power Input Connector Captive C-Clamp
• Speaker Wire Gauge 8 AWG to 18 AWG
• Speaker Output Connector Captive C-Clamp
• Cooling Convection
• Operating Voltage 9 - 16 VDC
• Recommended Fuse (not included) 80 A
• Average Current Draw (13.8V Music) 40 A
• Max. Current Draw (13.8V Sinewave) 80 A
• Suggested Alternator 75 A
• Dimensions (H x W x D) 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
• Shipping Weight 12.3 lbs. (5.57 Kg.)
