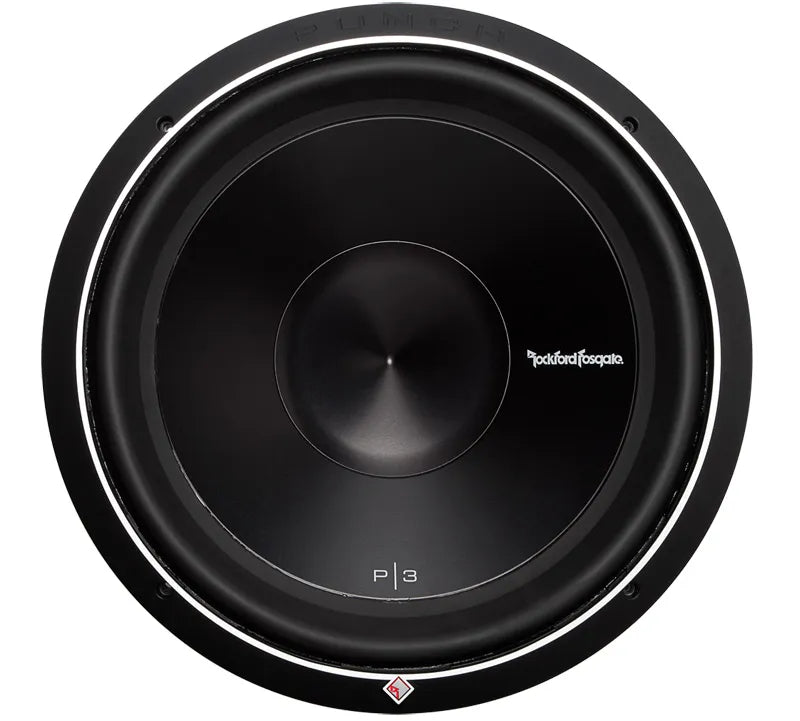

Rockford Fosgate P3D4-15 Punch 15" P3 4-Ohm DVC Subwoofer

15" P3 4-Ohm DVC Subwoofer 600W RMS, Anodised Aluminium Cone, VAST, Dual Spider, Hybrid StampCast FlexFit Basket. Largest Punch P3 Format.

Product Overview

The Rockford Fosgate Punch P3D4-15 is a 15" 4-Ohm Dual Voice Coil (DVC) subwoofer rated at 600W RMS the largest format in the Punch P3 range and the 4-Ohm variant of the 15" P3 platform. The 15" aluminium cone moves the most air of any driver in the Punch P3 catalogue, producing the greatest bass output and lowest frequency extension suited to high-output builds with the installation space to accommodate a 15" driver and its required enclosure. The 4-Ohm DVC provides wiring options of 2-Ohm (parallel), 8-Ohm (series), or 4-Ohm per coil for bi-amplification. Sold as an individual unit.

All confirmed Punch P3 construction applies: anodised aluminium cone and dustcap, VAST (up to 25% increased cone area), high-temperature voice coil with Nomex® reinforcement collar, dual linear spider, extended pole piece with bumped vented backplate, hybrid StampCast basket with FlexFit and integrated spider venting, 10-AWG compression terminals (features list states "push" confirmed compression on P3D2-10 spec), diamond-cut cast aluminium trim ring, and protective PVC textured magnet cover.

Key Specifications

• Subwoofer size: 15 inch
• Voice coil configuration: Dual Voice Coil (DVC)
• Impedance: 4-Ohm per coil (2-Ohm parallel / 8-Ohm series / 4-Ohm biamp)
• Power handling (RMS): 600W (confirmed)
• Peak power: Not specified — confirm with Rockford Fosgate
• Sensitivity: Not specified — confirm with Rockford Fosgate
• Fs / Xmax / Qts: Not specified — confirm with Rockford Fosgate
• Cutout diameter: Not specified — confirm with Rockford Fosgate
• Mounting depth: Not specified — confirm with Rockford Fosgate
• Sealed enclosure volume: Not specified — confirm with Rockford Fosgate
• Vented enclosure volume: Not specified — confirm with Rockford Fosgate
• Cone: Anodised aluminium ✓
• Dustcap: Anodised aluminium ✓
• Voice coil: High-temp, Nomex® reinforcement collar ✓
• Spider: Dual linear with embedded 16 AWG tinsel leads ✓
• Basket: Hybrid StampCast, FlexFit, spider venting ✓
• Pole piece: Extended ✓
• Backplate: Bumped and vented ✓
• Input terminals: Features: push — confirmed compression on P3D2-10 spec
• Trim ring: Diamond-cut cast aluminium (grille insert compatible) ✓
• Magnet cover: Protective PVC textured ✓
• Enclosure compatibility: Sealed and vented ✓
• CEA-2031 compliant: Not confirmed for this SKU
• Sold as: Individual unit
• Warranty: Confirmed (authorised dealer) — terms TBC

Features & Benefits

• 15" Format — Maximum P3 Air Movement — The 15" cone moves the most air of any driver in the P3 range, producing maximum bass output and the lowest frequency extension. Requires the largest enclosure — confirm installation space before purchasing.
• 600W RMS — 600W sustained at the selected wiring impedance. A high-output mono amplifier is required.
• 4-Ohm DVC — No 1-Ohm Requirement:
  • 2-Ohm (parallel): Compatible with most 2-Ohm mono amplifiers
  • 8-Ohm (series): For amplifiers with higher minimum impedance
  • 4-Ohm per coil (biamp): Separate amplifier channels
• Anodised Aluminium Cone and Dustcap — Rigid aluminium resists cone breakup at high excursion. Anodising hardens the surface and assists with heat conduction.
• Dual Linear Spider — Two spiders for improved compliance linearity at the high excursion levels a 600W, 15" driver produces.
• VAST — Up to 25% increased effective radiating cone area.
• Nomex® Voice Coil Collar — Thermal and mechanical reinforcement — essential for 600W sustained operation on a 15" driver.
• Hybrid StampCast Basket with FlexFit — Structural rigidity, reduced resonance, non-standard cavity compatibility.
• Extended Pole Piece and Bumped Vented Backplate — Maximum Xmax; air spring prevention.
• Diamond-Cut Cast Aluminium Trim Ring — Premium finish with optional grille.

Technical Specs

Compatible With / Goes Well With

Suitable enclosure types:

• Sealed and vented — both confirmed

Wiring:

• 2-Ohm → parallel
• 8-Ohm → series
• 4-Ohm per coil → biamp

Pairs well with:

• Rockford Fosgate T2500-1BDCP — confirm RMS output at selected impedance matches 600W

Frequently Asked Questions

Is a 15" P3 suited to a standard car boot installation?

A 15" driver and its required sealed or vented enclosure occupy significantly more space than 10" or 12" installations. The P3D4-15 is best suited to vehicles with generous dedicated boot space, custom builds, utes, vans, or trucks. Confirm enclosure dimensions and installation space before purchasing.

What amplifier does the P3D4-15 require?

600W RMS at 2-Ohm (parallel), 8-Ohm (series), or 4-Ohm (biamp). The Rockford Fosgate T2500-1BDCP is the appropriate candidate — confirm its RMS output at the selected impedance matches 600W before purchasing.

What enclosure size is required?

Not confirmed in the supplier data. A 15" driver requires considerably more net internal volume than 10" or 12" formats. Pull the official Rockford Fosgate P3D4-15 datasheet for sealed and vented recommendations.

Is a grille available?

The diamond-cut cast aluminium trim ring accommodates an optional grille insert. Confirm the SKU with Rockford Fosgate.

Does the P3D4-15 have the same construction as the P3 12" models?

Yes — the P3D4-15 uses the same anodised aluminium cone, dual spider, hybrid StampCast FlexFit basket, and 600W RMS rating as the P3D2-12 and P3D4-12. The 15" format provides maximum cone area and air movement for the highest bass output in the P3 range.
