Small chassis. Full range. Punch power for sub or centre channel builds.

Product Overview

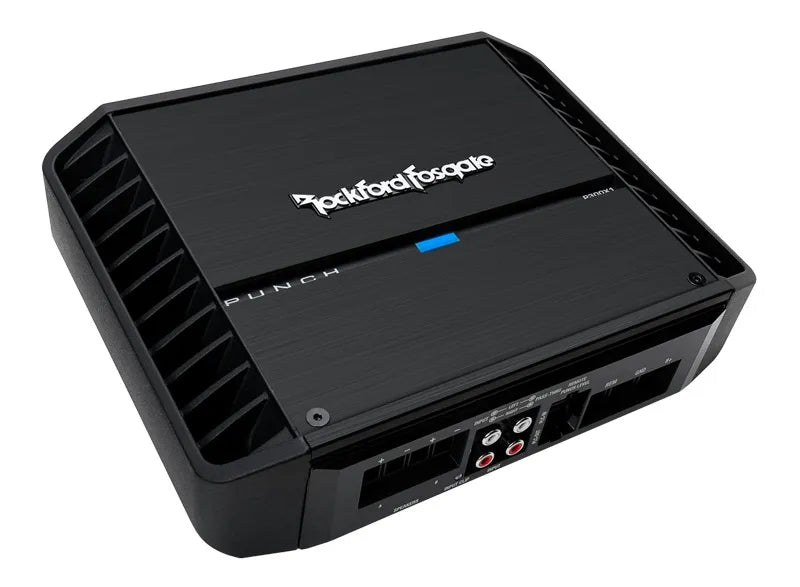

The Rockford Fosgate P300X1 is a 300W mono amplifier from the Punch series, built around a compact chassis capable of fitting where conventional amplifiers cannot. Unlike dedicated subwoofer-only mono amplifiers, the P300X1 features a full-range frequency response making it equally suited to powering a dedicated subwoofer system or a single centre channel speaker. Whether you're running one driver or multiple speakers off a single channel, the 2-ohm capable design delivers 300W of Punch-series output with headroom to spare.

The P300X1 is a feature-rich unit for its class. The built-in C.L.E.A.N. setup system simplifies gain calibration, reducing the risk of clipping and distortion from a poorly set amplifier. High-level inputs with an Auto Turn-On circuit allow direct integration with factory head units without requiring a dedicated remote turn-on wire. RCA pass-through outputs enable daisy-chaining to additional amplifiers, and the stealth top-mounted control panel keeps all adjustments accessible without removing the amplifier from its install location. An optional PLC2 remote Punch Level Control (sold separately) connects to add driver-accessible output adjustment and an input clip indicator for real-time gain monitoring.

Key Specifications

• Channels: 1 (mono)
• Output power: 300W @ 2 ohms (power at other impedances — not specified)
• Frequency response: Full-range (exact Hz range — not specified)
• Circuit topology: Not specified
• Crossover: 12dB/octave Butterworth (frequency range — not specified)
• Punch EQ: +18dB boost @ 45Hz (see Red-flags)
• Signal input: High level with Auto Turn-On
• Signal output: RCA pass-through
• Remote control: Optional PLC2 (not included — sold separately)
• Clip indicator: Yes (active when PLC2 is connected)
• Control panel: Top-mounted (stealth)
• Setup system: C.L.E.A.N.
• Input sensitivity: Not specified
• Nominal impedance load: Not specified
• CEA compliance: Not specified in provided data
• Power wire gauge: Not specified
• Speaker wire gauge: Not specified
• Operating voltage: Not specified
• Recommended fuse: Not specified
• Dimensions: Not specified

Features & Benefits

• Full-Range Frequency Response — Sub or Centre Channel — Most compact mono amplifiers are subwoofer-only units with a fixed low-pass filter. The P300X1's full-range response opens up a second use case: powering a dedicated centre channel speaker in a vehicle with a more complex audio setup. One amplifier, two legitimate applications.
• C.L.E.A.N. Setup System — Rockford Fosgate's C.L.E.A.N. (Clean Level Efficient Amplifier Noise) setup process uses an on-board indicator to guide accurate gain calibration between the head unit and amplifier. Setting gain by ear or by eye is a common cause of distortion and clipping — C.L.E.A.N. removes the guesswork, protecting your speakers and ensuring the amplifier performs to its rated output without distortion.
• High-Level Input with Auto Turn-On — The P300X1 accepts high-level speaker wire inputs from factory or OEM head units and powers on automatically when it detects signal — no remote turn-on wire required. This significantly simplifies integration with factory audio systems, particularly in vehicles where accessing the head unit remote output is difficult or impractical.
• On-Board Punch EQ (+18dB @ 45Hz) — A bass boost centred at 45Hz is available directly from the amplifier, allowing low-end tuning without an external equaliser. The +18dB figure is sourced from the supplier features list — refer to Red-flags below for an important note on this specification.
• Optional PLC2 Remote Level Control with Clip Indicator — The P300X1 is wired ready for the optional Rockford Fosgate PLC2 remote level control (sold separately). When connected, the PLC2 adds driver-accessible output adjustment and activates an input clip indicator — a LED that warns when the incoming signal is clipping before it reaches the amplifier. This combination helps protect speakers and ensures clean output at all listening levels.
• RCA Pass-Through Outputs — Signal can be chained to a second amplifier via the RCA pass-through outputs, enabling clean multi-amp builds without splitters or Y-adaptors. Useful in systems running the P300X1 on a centre channel or sub with a separate amplifier on front and rear speakers.
• Stealth Top-Mounted Control Panel — All controls — gain, crossover, EQ — are located on the top surface of the amplifier rather than on the endplate. This allows access to adjustments after installation in boot floors, under-seat locations, or tight enclosures without the need to remove or reposition the unit.
• Compact Chassis — The P300X1 is specifically designed to fit installation locations where a conventional amplifier will not physically fit. Exact dimensions are not specified in supplier-provided data — confirm with Rockford Fosgate before planning a space-critical install.
• Muted Turn-On + Full Protection Circuit — Muted turn-on prevents startup thumps that can stress tweeters and subwoofer cones. Over-current and short-circuit protection safeguard the amplifier and connected drivers during fault conditions.

Technical Specs

Compatible With / Goes Well With

The P300X1 is confirmed for the following applications based on manufacturer-provided information:

• Dedicated subwoofer systems (single driver or multiple speakers on one channel)
• Dedicated centre channel speaker amplification (full-range frequency response confirmed)
• 2-ohm subwoofer or speaker loads (300W RMS — power at other impedances not confirmed)
• Factory head units without RCA outputs (via high-level Auto Turn-On input)

Goes well with:

• Rockford Fosgate Punch series subwoofers or centre channel drivers rated to 300W
• Rockford Fosgate PLC2 Remote Punch Level Control (optional — sold separately)
• Factory head units or OEM audio systems (via high-level auto turn-on)
• Aftermarket head units with RCA preamp outputs

Frequently Asked Questions

Can the P300X1 power a centre channel speaker as well as a subwoofer?

Yes. Unlike most compact mono amplifiers, the P300X1 features a full-range frequency response — making it suitable for a dedicated centre channel speaker or a subwoofer system. The exact frequency range is not confirmed in the provided data; verify with Rockford Fosgate for your specific application.

What is the C.L.E.A.N. setup system?

C.L.E.A.N. is Rockford Fosgate's on-board gain calibration system. It uses an indicator to guide correct gain matching between the head unit and amplifier, preventing clipping and distortion that commonly results from gain set too high — protecting speakers and maximising clean output.

Is the Punch Level Control included with the P300X1?

No. The PLC2 remote Punch Level Control is an optional accessory and is sold separately. The P300X1 is wired and ready to accept the PLC2, and when connected it adds driver-accessible level control and an active input clip indicator.

Does the Auto Turn-On circuit require a remote wire from the head unit?

No. The high-level Auto Turn-On circuit powers the amplifier when it detects signal at the speaker-level inputs — no dedicated remote turn-on wire is needed. This simplifies installation with factory head units where accessing the remote output is difficult.

Can I chain another amplifier off the P300X1?

Yes. RCA pass-through outputs allow signal to be routed to a second amplifier cleanly, without splitters or Y-adaptors. This is useful in systems running the P300X1 alongside a separate full-range or multichannel amplifier.
