Rockford Fosgate P1000X2 1000 Watts, Two Channels, Zero Trunk Compromise

Product Overview

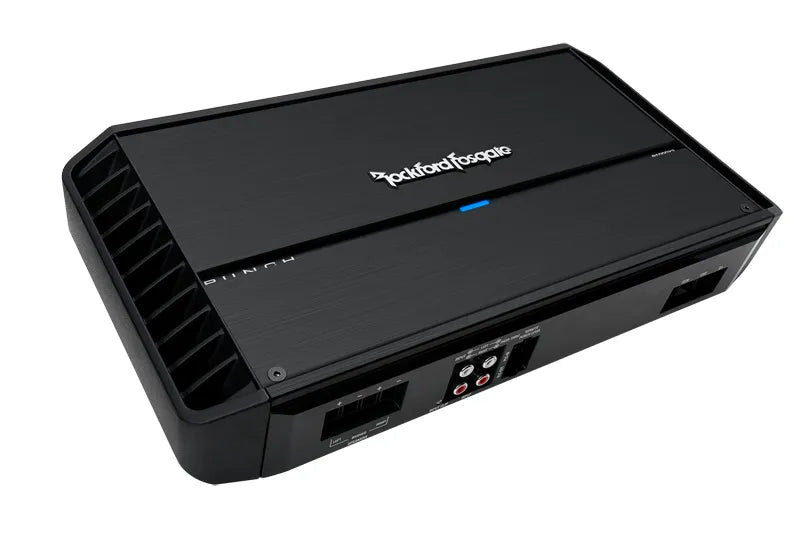

The Rockford Fosgate P1000X2 is a Punch Series 2-channel stereo amplifier built for car audio enthusiasts who demand serious output without sacrificing boot space. Rated at 500 watts RMS per channel at 2 ohms or bridged to deliver the full 1000 watts into a single mono load this amplifier is equally at home powering full-range and component speaker systems as it is driving a dedicated subwoofer configuration.

Where the P1000X2 earns its place in a serious build is in its flexibility. It's optimally matched to a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers when bridged, and its onboard Punch EQ with +18dB boost at 45Hz means you can dial in the low-end punch you're after without reaching for an external processor. The stealth top-mounted control panel keeps the setup clean, and the cast aluminium heatsink handles the heat critical in Australian climates where cabin temperatures can push gear hard on a summer run.

Key Specifications

• Total RMS Output: 1000 watts
• Per-Channel Output: 500W x 2 at 2 ohms
• Channels: 2 (stereo or bridged mono)
• Bridgeable: Yes — 1000W mono
• Crossover: 12dB/octave Butterworth
• Onboard EQ: Punch EQ — +18dB boost at 45Hz
• Inputs: High-level (speaker-level) and RCA
• RCA Pass-Thru Outputs: Yes
• Auto Turn-On: Yes — via high-level input detection
• Remote Control: Optional PLC2 Punch Level Control (with input clip indicator)
• Turn-On Behaviour: Muted (no thump on startup)
• Heatsink: Cast aluminium
• Control Panel Position: Stealth top-mounted
• Protection: Short circuit and over-current

Features & Benefits

• High-Level Input with Auto Turn-On — Connects directly to your factory head unit's speaker outputs, no RCA cables required. Ideal for OEM upgrades where aftermarket decks aren't an option.
• RCA Pass-Thru Outputs — Daisy-chain a second amplifier for subs or additional channels without signal loss back at the head unit. Keeps your wiring tidy in multi-amp builds.
• C.L.E.A.N. Setup (Clip Level Elimination Audio Notify) — Rockford Fosgate's built-in gain-setting tool takes the guesswork out of calibration, helping you maximise output without introducing distortion. Especially useful if you're setting up without a multimeter or test tone.
• Optional PLC2 Remote Punch Level Control — Mount a dash-accessible remote volume control for the amp's output. The input clip indicator lights up to show when you're pushing the signal too hard — real-time feedback without looking at the amp.
• 12dB/Octave Butterworth Crossover — Clean roll-off characteristics let you configure the amp for full-range, high-pass, or low-pass duties depending on your system layout, without phase issues at the crossover point.
• Onboard Punch EQ (+18dB @ 45Hz) — Targets the sub-bass frequencies that give music its physical impact. Tune the low-end to taste directly on the amp — no separate bass processor needed for most builds.
• Muted Turn-On — Eliminates the pop and thump on startup that can stress tweeters and give away a sloppy install. A small detail that separates a clean build from an amateur one.
• Stealth Top-Mounted Control Panel — All controls sit on top of the amp for easy access during setup and tuning, while keeping the side profile clean for tight mounting locations.
• Cast Aluminium Heatsink — Dissipates heat efficiently during extended listening sessions. In Australian conditions — long highway runs, hot car parks, summer road trips — thermal management matters more than most spec sheets suggest.
• Short Circuit & Over-Current Protection — Onboard protection circuits guard both the amplifier and your speakers against wiring faults or load mismatches.

Technical Specs

Compatible With / Goes Well With

Speaker Configurations:

• Full-range speaker systems (2-channel stereo)
• Component speaker systems (2-channel stereo)
• Pair of 8-ohm SVC subwoofers (bridged mono)
• Four 2-ohm DVC subwoofers (bridged mono)

Accessories:

• Rockford Fosgate PLC2 Remote Punch Level Control (optional, sold separately)
• Recommended: use manufacturer-specified power and speaker cables to optimise power delivery (cable spec not provided — confirm with supplier)

Head Unit Compatibility:

• Factory/OEM head units (via high-level input)
• Aftermarket head units with RCA pre-outs

Frequently Asked Questions

How much power does the P1000X2 actually produce per channel?

In stereo mode, the P1000X2 delivers 500 watts RMS into each channel at 2 ohms — 1000 watts total. Always match speaker RMS ratings accordingly.

Can the P1000X2 be bridged to run a single subwoofer?

Yes. Bridged, the P1000X2 outputs 1000 watts mono. It's best matched to a pair of 8-ohm SVC subs or four 2-ohm DVC subwoofers in this configuration.

Does the P1000X2 work with a factory head unit that has no RCA outputs?

Yes. The high-level input allows direct connection to speaker-level outputs from an OEM or factory head unit, and the Auto Turn-On circuit eliminates the need for a remote turn-on wire.

What does C.L.E.A.N. setup mean and do I need extra equipment to use it?

C.L.E.A.N. (Clip Level Elimination Audio Notify) is Rockford Fosgate's onboard gain-calibration system. No additional tools are required — it guides you to the correct gain level without a multimeter or test equipment.

Is the PLC2 remote punch level control included in the box?

No. The PLC2 is an optional accessory sold separately. It adds a dash-mountable remote volume knob and a real-time input clip indicator — useful for daily-driver builds where you adjust bass on the fly.
