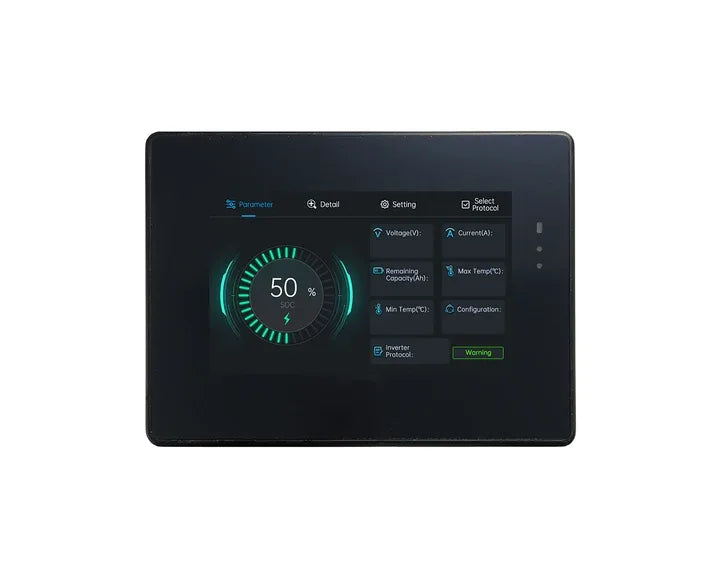

Invicta SNLXMTSOC Xero Touch Interface Battery Monitor
Invicta SNLXMTSOC Xero Touch Interface Battery Monitor
Click to open expanded view

Click and Collect

Invicta SNLXMTSOC Xero Touch Interface Battery Monitor

📍 Available for Pick-Up Only
SKU: SNLXMTSOC
Price
$325
Buy now, pay later
  • image
  • image
  • image
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Invicta SNLXMTSOC Xero Touch Interface Battery Monitor

The SNLXMTSOC is a wired touchscreen battery monitor designed specifically for use with Invicta Xero batteries. Operating via RS485/CAN/RS232 communication, it displays voltage, current, remaining capacity, temperature, and configuration settings on a 5.0-inch IPS LCD screen with 800x480 resolution. IP65 rated at the front panel and compliant with AS/NZS 3004.2 (2014) lithium marine standards.

Product overview

The Invicta SNLXMTSOC connects directly to Invicta Xero batteries using a simple wiring harness, or via the Invicta I-Hub, without requiring a connection to a diverter. This direct connection method reduces wiring harness cost and speeds up installation compared to traditional battery monitoring setups.

The 5.0-inch IPS LCD panel with 262K true-colour display and high-reliability capacitive touch panel provides clear, detailed visibility over battery status in a range of lighting conditions. A built-in photosensitive sensor adjusts screen brightness automatically, while a built-in speaker and LED lamp provide audible and visual alerts when alarm, protection, or low state-of-charge conditions are detected.

The housing features anti-UV properties and conformal coating for durability in exposed installations, with an IP65-rated front panel and rubber gasket separator providing protection against water and dust ingress. The SNLXMTSOC is suitable for marine installations requiring compliance with AS/NZS 3004.2 (2014) lithium marine standards.

Features and benefits

5.0-inch IPS LCD with 800x480 resolution: The 5.0-inch IPS display delivers a 262K true-colour image at 800x480 pixel resolution, providing clear visibility over battery status data in a range of ambient lighting conditions.

RS485, CAN, and RS232 communication: Supports multiple communication protocols, allowing direct connection to Invicta Xero batteries or integration via the Invicta I-Hub for more complex system configurations.

Direct battery connection via simple wiring harness: Connects directly to Invicta Xero batteries without requiring a diverter connection, reducing wiring harness cost and simplifying the installation process.

IP65 rated front panel with rubber gasket separator: The front panel carries an IP65 ingress protection rating with a rubber gasket separator, providing resistance to water and dust in exposed installation environments.

Capacitive touch panel: A high-reliability capacitive touch panel provides responsive, accurate input for navigating battery status screens and configuration settings.

Built-in speaker, LED lamp, and photosensitive sensor: The integrated speaker and LED lamp emit audible and visual alarms when specified alarm, protection, or low SOC conditions are detected. The photosensitive sensor adjusts screen brightness automatically based on ambient light.

Anti-UV housing with conformal coating: The protective shell features anti-UV properties and conformal coating, providing long-term durability in exposed outdoor and marine installations.

AS/NZS 3004.2 (2014) compliant: Helps end-users comply with Australian and New Zealand lithium marine standards, making it suitable for marine installations requiring regulatory compliance.

Technical specs

Specification Detail
SKU SNLXMTSOC
Display 5.0-inch IPS LCD
Resolution 800 x 480 pixels
Colour Depth 262K true colour
Touch Panel Capacitive, high-reliability
Communication CAN / RS485 / RS232
IP Rating IP65 (front panel)
Compatibility Invicta Xero (SNLX) batteries
Connection Direct to battery or via Invicta I-Hub
Alerts Audible alarm, LED lamp
Compliance AS/NZS 3004.2 (2014)

Frequently asked questions

Is the SNLXMTSOC compatible with all Invicta Xero batteries?
The SNLXMTSOC is designed for use with Invicta Xero batteries in the SNLX range. Contact us to confirm compatibility with your specific Invicta Xero battery model before purchasing.

Does the SNLXMTSOC require a connection to a diverter?
No. The SNLXMTSOC connects directly to the Invicta Xero battery using a simple wiring harness, eliminating the need for a diverter connection and reducing installation complexity and cost.

Can the SNLXMTSOC be used in a marine installation?
Yes. The SNLXMTSOC is designed to help end-users comply with AS/NZS 3004.2 (2014) lithium marine standards, making it suitable for marine installations requiring regulatory compliance. The IP65 front panel rating provides additional protection against water ingress in marine environments.

What information does the SNLXMTSOC display?
The SNLXMTSOC displays voltage, current, remaining capacity, temperature, and configuration settings for the connected Invicta Xero battery. Audible and visual alarms are triggered when alarm, protection, or low state-of-charge conditions are detected.

What is the Invicta I-Hub and do I need one?
The Invicta I-Hub is an optional hub that allows the SNLXMTSOC to connect to Invicta Xero batteries in more complex system configurations. For simple single-battery installations, the SNLXMTSOC can connect directly to the battery without an I-Hub. Contact us for guidance on whether an I-Hub is required for your specific setup.
