Invicta SNLX12V200BT Xero 12V 200Ah LiFePO4 Bluetooth Battery

SKU: SNLX12V200BT
Price
$2,099
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Invicta Xero 12V 200Ah lithium Bluetooth Battery product photo

Invicta SNLX12V200BT Xero 12V 200Ah LiFePO4 Bluetooth Battery

$2,099

Product features

Touring for more than a few days without mains power puts real demand on your battery, especially with an inverter. The Invicta Xero 12V 200Ah is built for that load, with CAN and Bluetooth communication so you can see exactly what is happening inside it.

Inside is LiFePO4 chemistry, the same type Invicta uses across its range, rated at 12.8V and 200Ah. It weighs 23.0kg, and Invicta rates it for 2000+ cycles at 100% depth of discharge, which is a big step up from lead acid in daily use.

What you get

  • CAN bus and Bluetooth communication, which can run on their own or together
  • IP67 water resistant case with self venting port
  • High performance BMS with laser welded busbars and secured prismatic cells
  • Can be built into a larger bank (see the series and parallel row below)
  • Aluminium encased prismatic cells

Specifications

Model SNLX12V200BT
Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal voltage 12.8V
Nominal capacity 200Ah
Terminal M8
Dimensions (L x W x H / terminal height) 485 x 172 x 231/247mm (± 2mm)
Weight 23.0kg
Max charge voltage 14.5 ± 0.1V
Float (standby) voltage 13.8 ± 0.1V
Discharge cut off voltage 11V
Max continuous discharge 200A
Max pulse discharge (3 sec) 800A
Max charge current 200A
Cycle life 2000+ cycles at 100% depth of discharge
Operating temperature, charge 0°C to 60°C
Operating temperature, discharge -20°C to 55°C
Short circuit release Load release
Max series / parallel 4S/16P/4S+4P
Certification IEC62619
IP rating IP67
Communication Bluetooth and CAN/RS485
Warranty Seven year full replacement (Invicta Xero range)

Figures are from the Invicta specification sheet for this model. Dimensions and weight can vary slightly, so measure your space before ordering.

Questions we get asked

What size inverter can this battery run?
Invicta works this out by multiplying nominal voltage by max continuous discharge. For this battery that is 12.8V x 200A = 2,560W. Allow some headroom and check the inverter's own surge figures before you buy.

Can it be mounted on its side?
Yes. Invicta says its batteries can be mounted on their side, just not upside down.

Can I charge it from solar?
Yes, as long as your solar regulator is set to a lithium charging profile. The max charge voltage on the Invicta specification sheet is 14.5 ± 0.1V.

Can I connect more than one together?
Yes, within the limits on the Invicta specification sheet: 4S/16P/4S+4P (S is series, P is parallel). Use matching batteries and ask us if you are planning a larger bank.

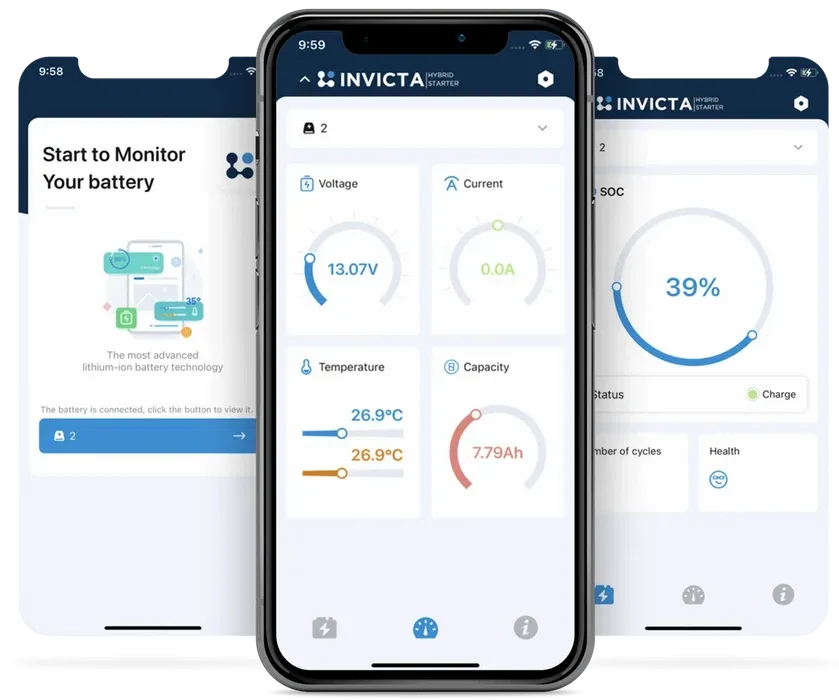

How do I check the charge level?
Download the free Invicta app on Apple or Android. It shows state of charge, voltage, current and temperature, which is handy when the battery is in a box or behind a seat.

What warranty does it come with?
Invicta lists seven years for this range. Keep your receipt, and contact us if you ever need to make a claim.
