Hertz DBA 201 F Dieci Series 8
Click to open expanded view
HERTZ logo

Out of stock

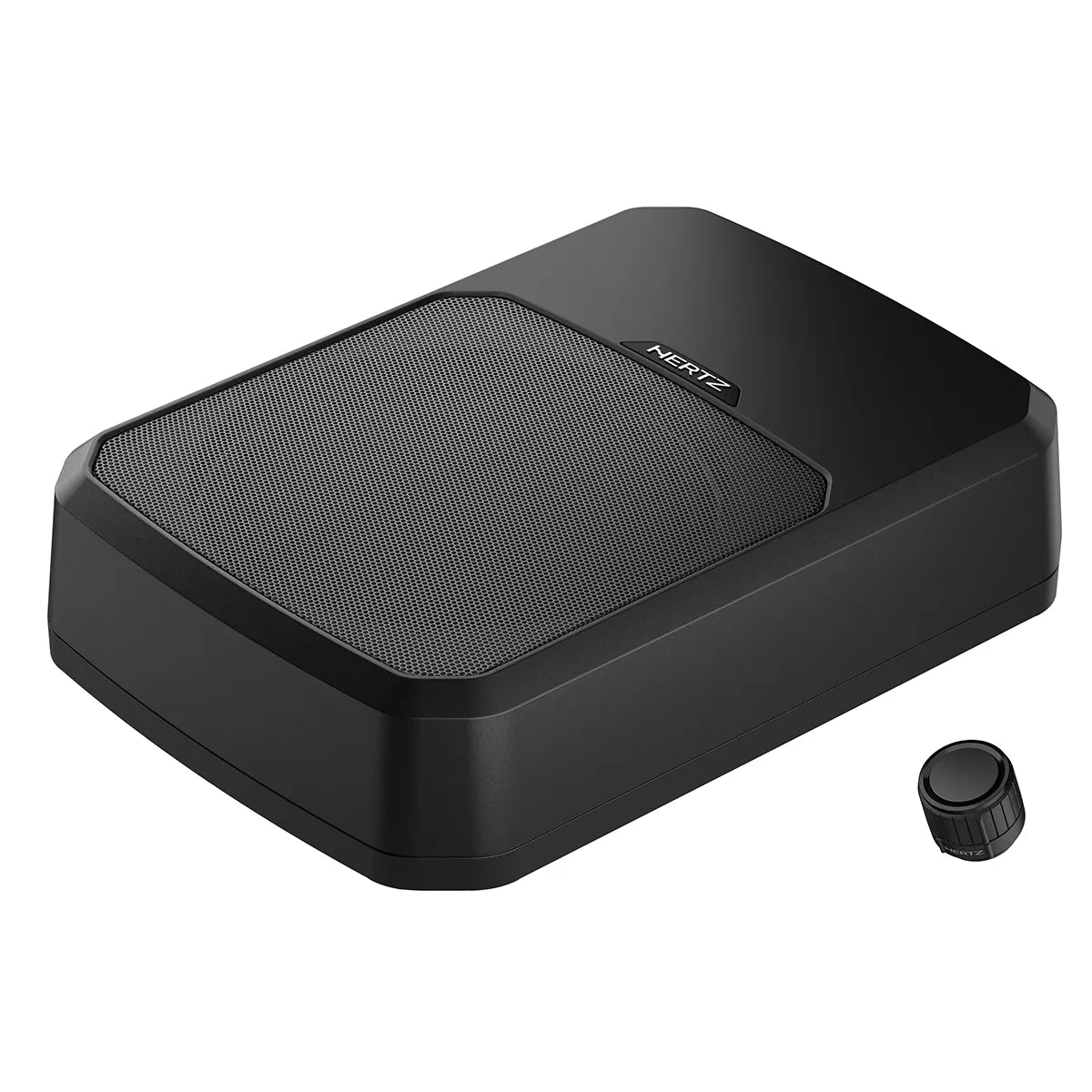

Hertz DBA 201 F Dieci Series 8" 440W Flat Active Underseat Subwoofer Enclosure

SKU: DBA201F
Regular price
$600
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Ensures Superior Performance, Maximizing the Subwoofer Output With Super Flat Size!

HIGH PERFORMANCE IN A SUPER FLAT DESIGN
The DBA 201 F (Order Code DBA201F) Flat Active Subwoofer Enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8-inch driver provides optimal control during the highest cone excursion.

EXTRA FULL SET OF CONTROLS TO FINE-TUNE THE IN-CAR PERFORMANCE
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car.

The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

AUTO TURN-ON & STANDBY MODE
The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

Features:

  • High performance in a super flat design
  • Internal 440-watt peak Class D amplifier
  • Compatible with every car audio system
  • Plug & Play connection
  • Extra full set of controls to fine-tune the in-car performance
  • Auto turn-on and standby mode
  • Provided remote-level control

Specifications:

  • Size: 200mm (8")
  • Power Handling - Continuous: 220W
  • Power Handling - Peak: 440W
  • Impedance: 0.4Ω
  • Voice Coil: 38.6mm (1.5")
  • Frequency Response: 32 ~ 400Hz
  • Magnet Size: (D) 110mm x (D) 45mm x (H) 17mm (4.3" x 1.78" x 0.67")
  • Magnet: High-Density Flux Ferrite
  • Cone: Polycarbonate
  • Power Supply Voltage: 6.5 ~ 18V DC
  • Idling Current (Power ON/OFF): 260mA/1mA
  • Consumption @ 14.4V DC (Max Musical Power): 8.5A
  • Remote-In: 4 ~ 15V DC - 1mA
  • Distortion - THD (100Hz @ 4Ω): 0.15%
  • Bandwidth: 15 ~ 150Hz
  • S/N Ratio (A-Weighted @ 1V): 100dB
  • Pre-ln Sensitivity: 0.2 ~ 5V RMS
  • Lo-Pass: 50 ~ 150Hz
  • Phase Switch: Yes
  • Remote Control: 0 ~ -15dB
  • Dimensions: (L) 345mm x (W) 245mm x (H) 79mm (13.58" x 9.64" x 3.11")
  • Component Weight: 4.30kg
