Pioneer TS-WX140DA 8" Space-Saving Amplified Compact Active Subwoofer

Pioneer 8" Space-Saving Amplified Compact Active Subwoofer: Space Saving Active Subwoofer With Built-In Class-D Amplifier!

TS-WX140DA Compact Active Subwoofer

The New Pioneer TS-WX140DA is extremely compact, measuring only 280mm wide x 200mm deep with a height of only 70mm. It’s designed to be installed in various small, tight spaces where conventional subwoofers cannot fit. With the ability to fit under seats, behind seats or inside small storage compartments, the TS-WX140DA allows for a wide range of vehicle applications.

The subwoofer includes a built-in 170-watt Class-D amplifier, deep throw woofer with aluminium cone, a specially designed reinforced enclosure, and Digital Bass Control, a proprietary technology developed by Pioneer to tailor frequency response and increase the performance. As a result the TS-WX140DA is compact while still able to produce deep, solid bass response.

Built-In Amplifier

Combines a built-in 170-watt Class D amplifier, aluminium cone specially designed acoustic suspension enclosure, and Digital Bass Control, a technology developed by Pioneer to tailor frequency response and increase the performance, is compact while producing deep, powerful bass.

Digital Bass Control

Digital Bass Control now provides three selectable listening modes, “Deep”, “Natural” and “Dynamic”, enhancing system optimization and tuning the output to complement various musical styles and vehicle types.

Ultra-Compact Design

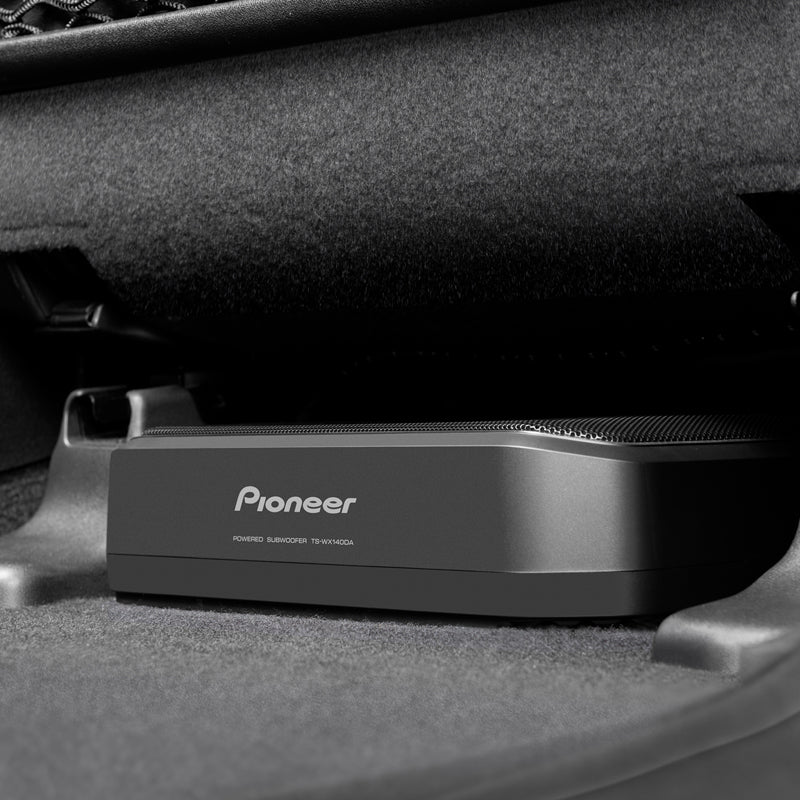

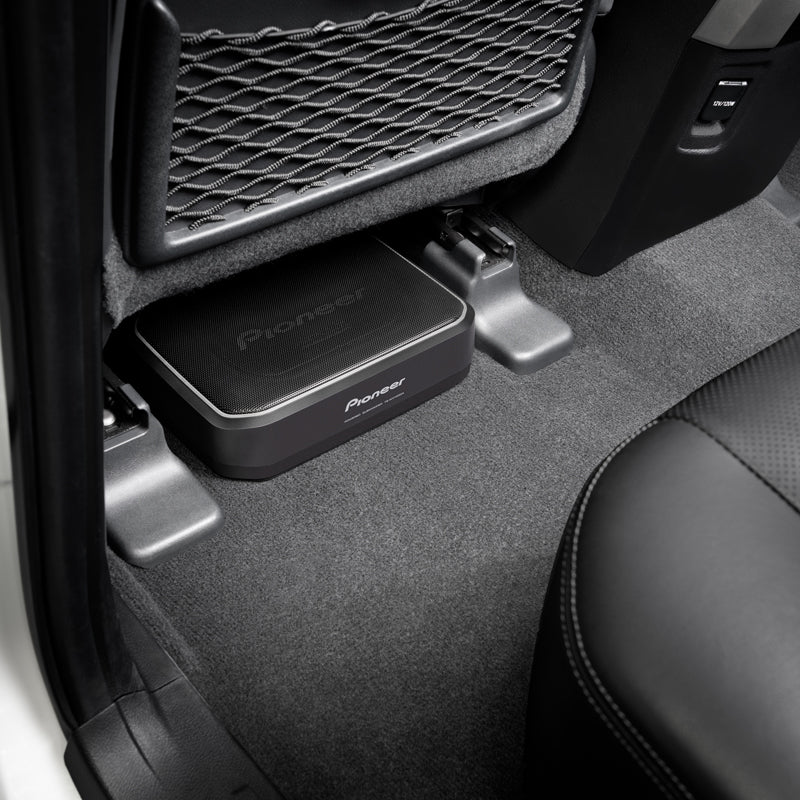

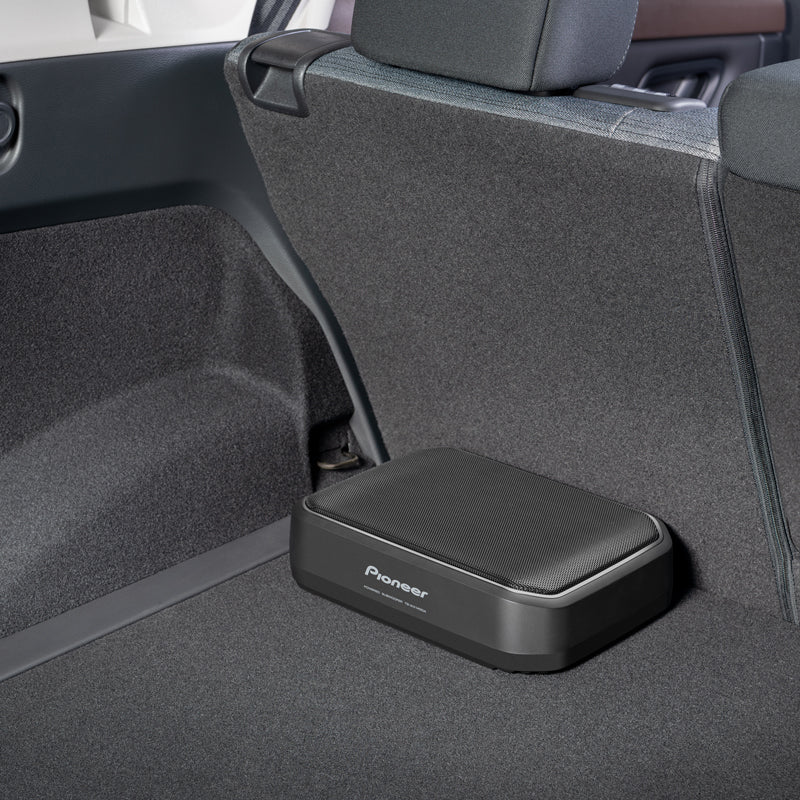

The TS-WX140DA is extremely compact measuring 280mm wide x 200mm deep with a height of only 70mm. It’s designed to be installed in various small, tight spaces with the ability to fit under seats, behind seats or inside small storage compartments allowing a wide range of vehicle applications.

Pioneer TS-WX140DA Features:

• Aluminium Cone Designed for Compact Body
• Built-In 170 Watts Output Class-D Amplifier
• Updated Digital Bass Control (Selectable Bass Modes: Deep, Natural or Dynamic)

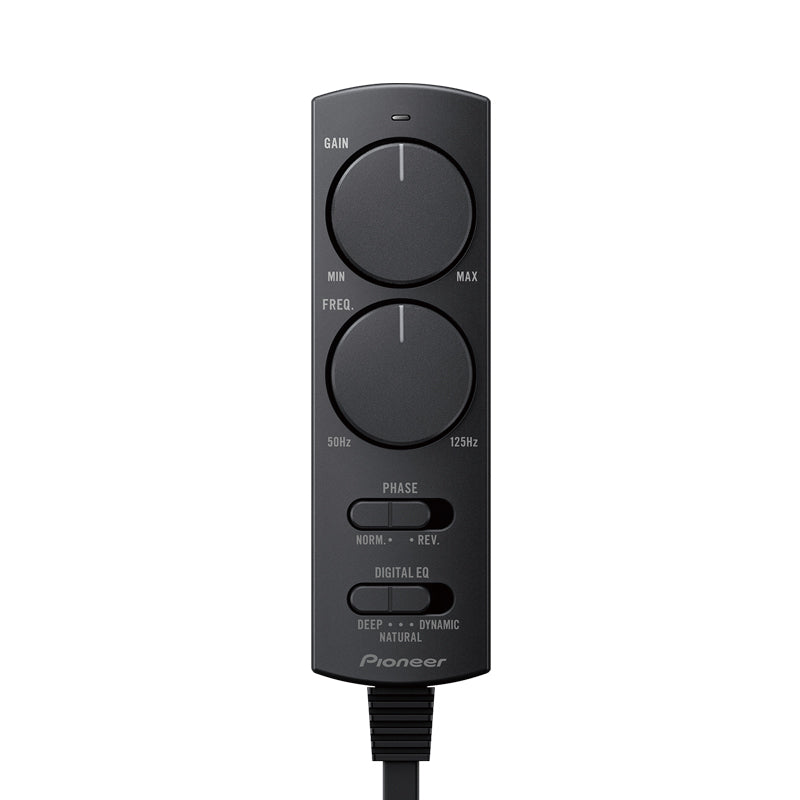

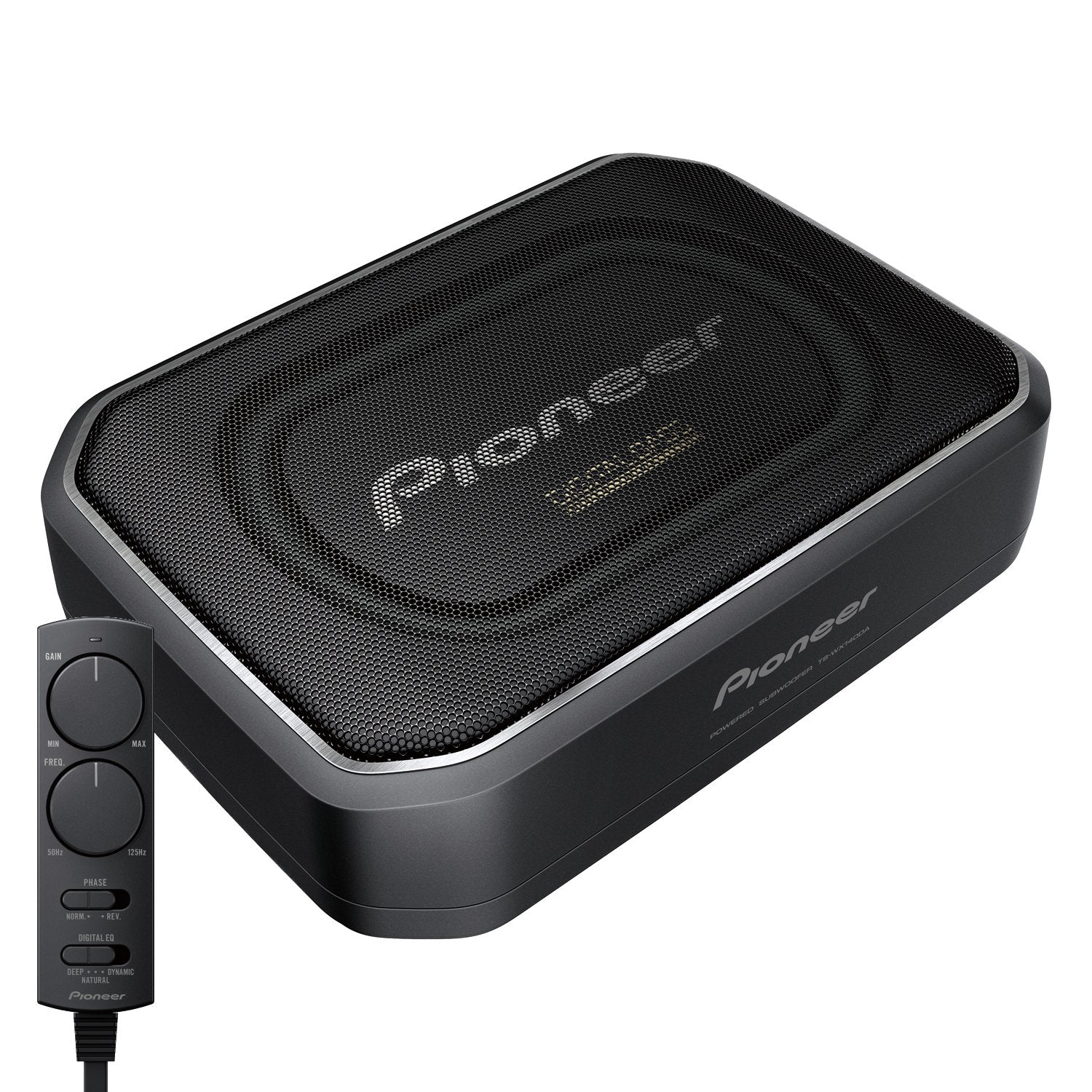

• Wired Remote Control (Gain, LPF, Phase, Bass Mode)

Pioneer TS-WX140DA Specifications:

• Size: 8" (20cm)
• Power Handling:
  • Maximum Power: 170W
  • Continuous Power Output: 50W
• Frequency Response:
  • DEEP Bass Mode: 20 - 200Hz
  • NATURAL Bass Mode: 40 - 200Hz
  • DYNAMIC Bass Mode: 40 - 160Hz
• Sensitivity:
  • DEEP Bass Mode: 95dB
  • NATURAL Bass Mode: 98dB
  • DYNAMIC Bass Mode: 100dB
• Woofer Material: Aluminium
• Surround: Urethane
• Voice Coil Type: Copper Round Wire 4-Layer
• Voice Coil Bobbin Type: Glass Imide
• Magnets: Strontium
• Dimensions: (W) 280mm x (H) 200mm x (D) 70mm
• Weight: 3.10kg
