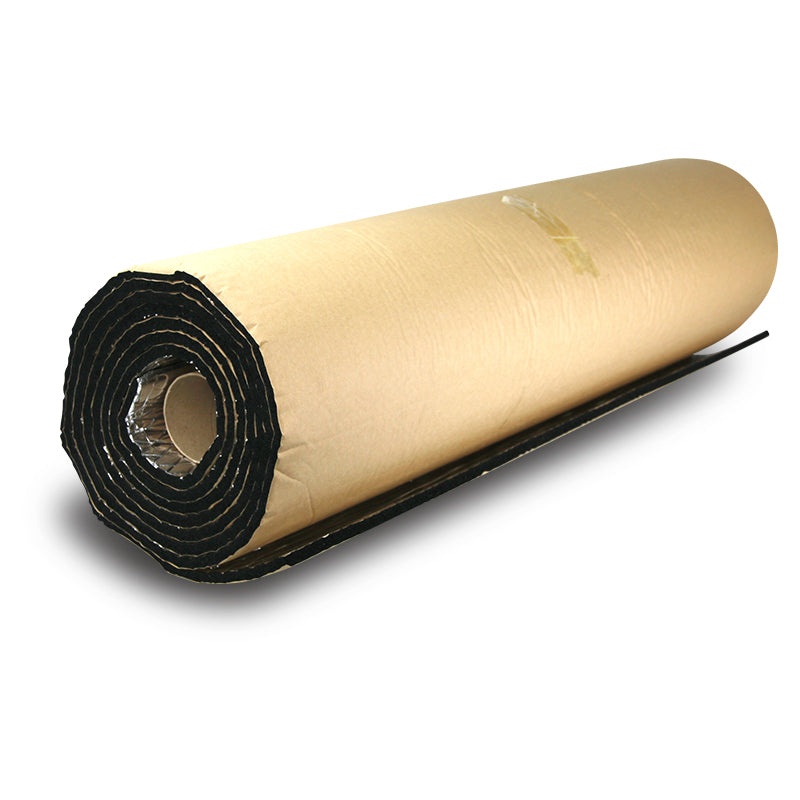

Roll of silver faced foam insulation
Roll of silver faced foam insulation
Ruler held against the 10mm foam edge
Ruler held against the 10mm foam edge

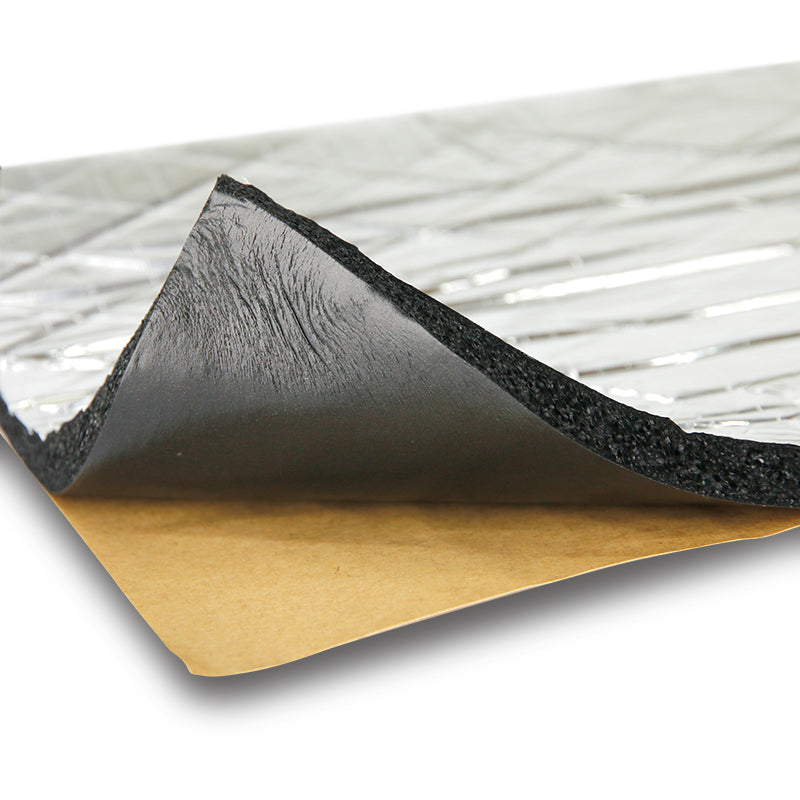

Backing peeled from the foam to expose the adhesive
Backing peeled from the foam to expose the adhesive
Installer pressing a foam panel onto a van wall
Installer pressing a foam panel onto a van wall

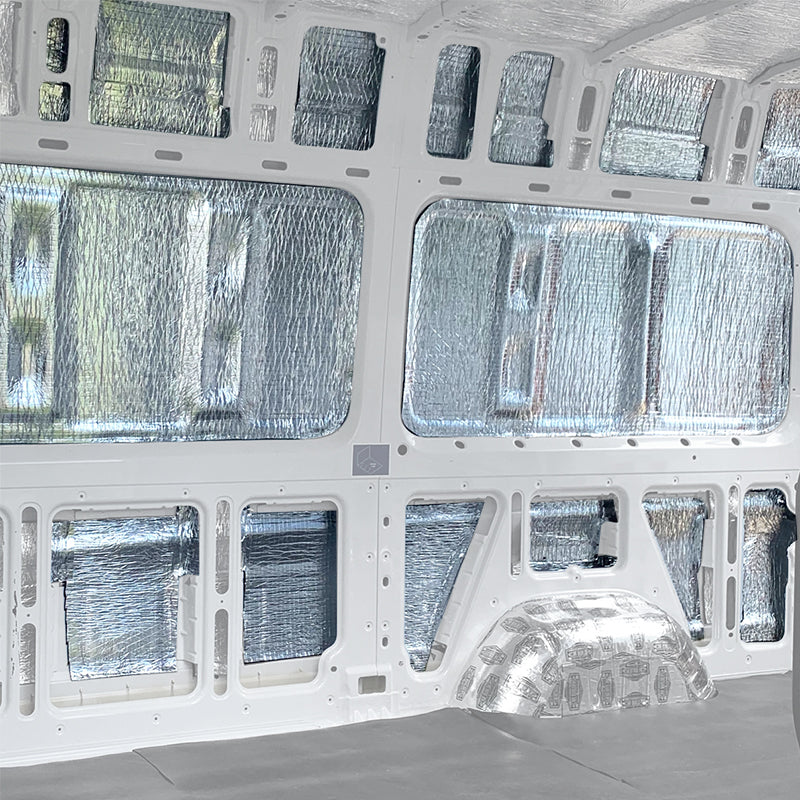

Silver insulation over a van wall and wheel arch
Silver insulation over a van wall and wheel arch
Lined van load area looking towards the cab
Lined van load area looking towards the cab
Van side wall covered in silver foam from floor to roof
Van side wall covered in silver foam from floor to roof
Van roof and upper walls lined with silver insulation
Van roof and upper walls lined with silver insulation
Close view of the silver face on a lined van panel
Close view of the silver face on a lined van panel
Diagram of deadener, Van Liner and Van Seal layers with an air gap
Diagram of deadener, Van Liner and Van Seal layers with an air gap
Click to open expanded view

Car Builders Van Liner 10mm Thermal Acoustic Insulation, 5m Roll

SKU: VL5M
Price
$160
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Roll of silver faced foam insulation

Car Builders Van Liner 10mm Thermal Acoustic Insulation, 5m Roll

$160

Product features

Quick answer: Van Liner is the Stage 2 layer for a van fit out: 10mm closed cell foam with a silver PET face and a peel and stick back. It goes over Stage 1 Sound Deadener on single skin sheet metal to keep heat and noise out of the load area, and it will not rot or attract moisture. One roll is 5m x 1m, or 5 square metres.

Why line a van with it?

  • A load area like an oven. Thermal conductivity is 0.034 W/m.K, and the silver PET face further stops heat radiating into the van.
  • Booming bare walls. The foam is an acoustic barrier as well as thermal insulation, so it also quietens big flat panels.
  • Damp in a camper. Van Liner will not rot, attract moisture or grow mould.
  • Thick insulation eating space. Car Builders say this 10mm sheet outperforms much thicker insulation on the market.

How it works

Stage 1 deadener damps the vibration in the steel, then Van Liner goes over the top as the insulation. Building a camper with plywood or MDF walls? Add Van Seal as Stage 3, leaving an air gap between it and the Van Liner.

What is in the box

  • One 5m x 1m roll of 10mm Van Liner (5 square metres)

How many rolls do I need?

Each roll covers 5 square metres. Add up the wall and roof areas you want lined and divide by five, rounding up.

Will it fit my van?

It is cut from the roll to suit any van. Car Builders list van walls, roof skins, fender cavities, quarter panels and doors, plus campers, trucks and equipment.

How to install Van Liner

Difficulty: Moderate on a full van, because the roof is overhead work and needs adhesive.

  1. Fit Stage 1 Sound Deadener to the bare panels first.
  2. Wipe every surface with isopropyl alcohol wax and grease remover. Metho and turps leave a residue on the deadener and steel.
  3. Cut pieces from the roll to fill the bays between the body ribs.
  4. Place each piece without stretching it, so the foam does not pull back over time.
  5. Roll every piece firmly with an Application Roller, edges included.
  6. Overhead on the roof skin, Car Builders recommend their upholstery grade Spray Adhesive rated at 120°C as well as the backing.
  7. Burst any air bubble with a pin and roll it down again.

Mistakes to avoid

  • Skipping Stage 1 on bare single skin metal.
  • Fitting Van Seal hard against Van Liner with no air gap.
  • Leaving the adhesive off the roof.

Specifications

Roll size 5m x 1m
Coverage 5 square metres
Thickness 10mm
Weight 0.55kg per square metre
Material Closed cell foam with a polyethylene terephthalate (PET) silver face
Adhesive low limit minus 40°C
Adhesive high limit 110°C long term, 135°C briefly
Thermal conductivity 0.034 W/m.K
Flame retardant Yes, B2

FAQ

Do I need Van Seal on top?

Only if you are fitting internal walls such as plywood or MDF. Van Seal then goes over the Van Liner with an air gap between them.

Does Van Liner need glue on the walls?

On clean metal the peel and stick back holds it. Overhead on roof skins, add Spray Adhesive.

Is Spray Adhesive needed on factory bitumen pads?

Yes, with Spray Adhesive, because bitumen is a rough, porous surface.

Is it fire rated?

Yes, B2 flame retardant.

Warranty: Your rights under the Australian Consumer Law apply. Contact our team for warranty help.

Also for your build: van liner tape, Van Seal reflective foam, high temp spray adhesive
