Transform your Tiguan with enhanced bass performance through German-engineered 8" components front and rear with professional 4-channel DSP amplification

Product Overview

The HELIX Ci3 Extra Bass DSP Package for VW Tiguan delivers superior audio performance with enhanced low-frequency response through premium 8" component speakers in both front and rear positions, powered by an advanced 4-channel DSP amplifier. This professionally curated package combines HELIX COMPOSE technology with advanced DSP processing to create a comprehensive upgrade that maximizes bass response and system dynamics while maintaining all original Tiguan functionality and aesthetics through complete plug & play integration.

Key Specifications

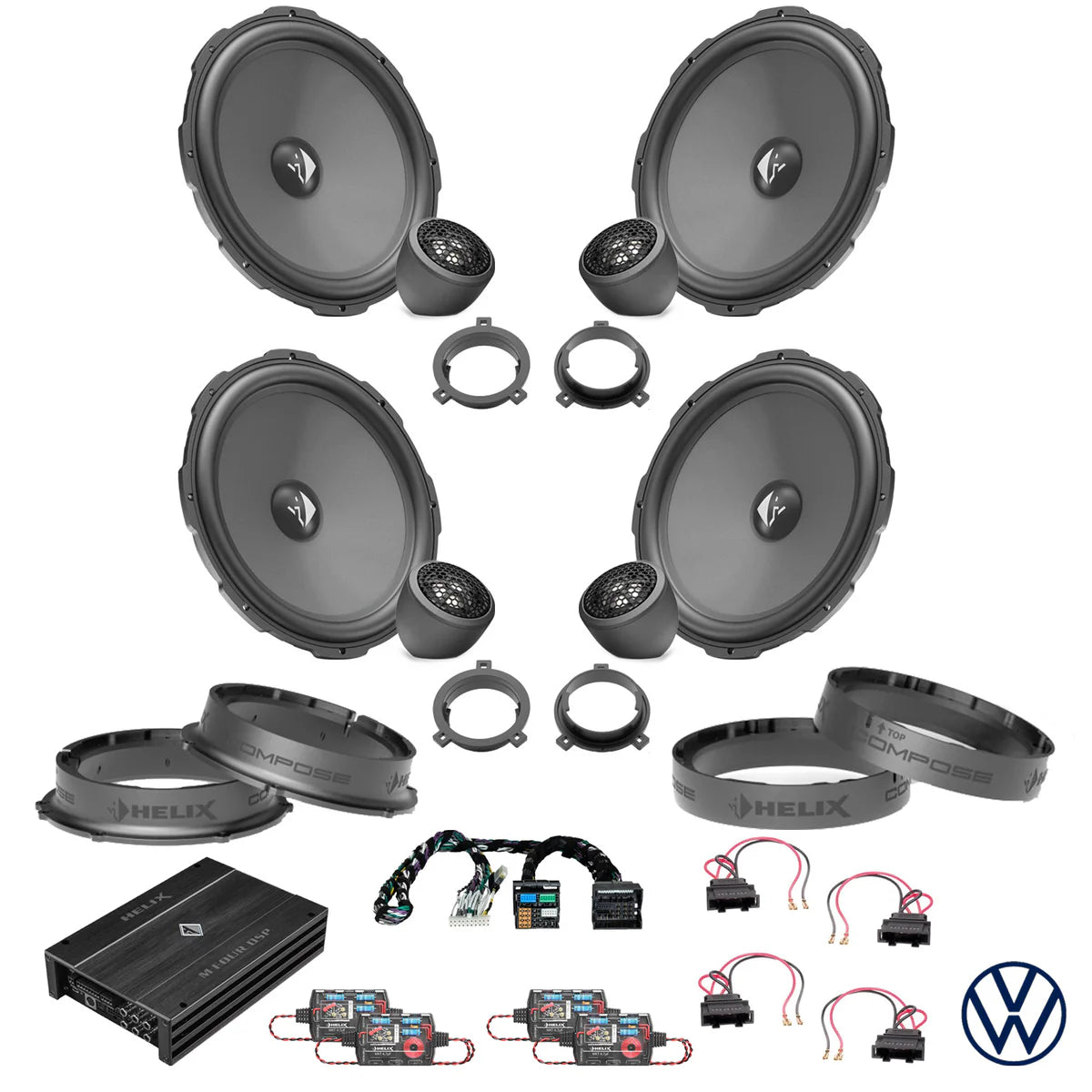

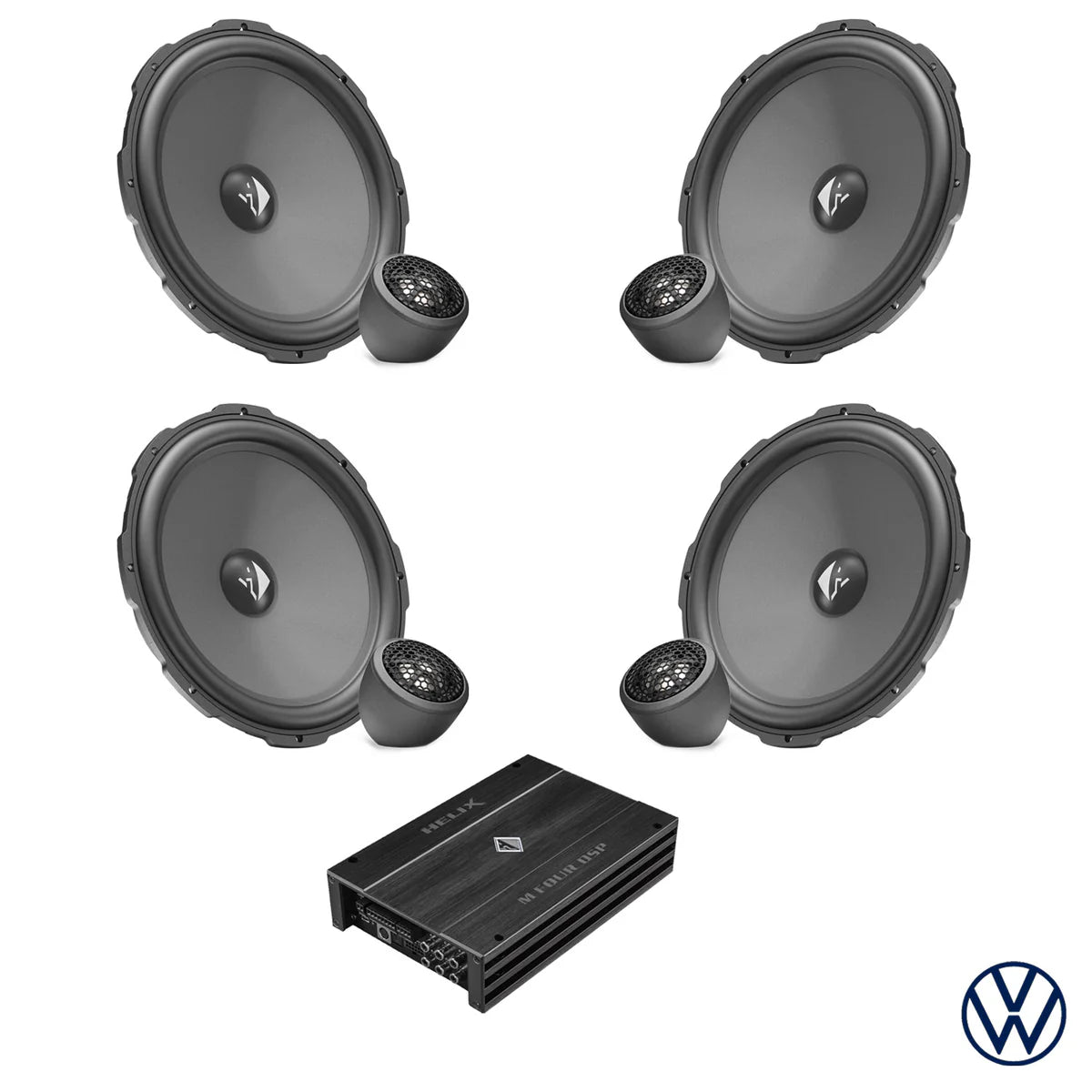

Package Contents:

• HELIX Ci3 K200.2FM-S3 - 8" 2-Way Component Speaker Set with FlexMount x2 Items
• HELIX M FOUR DSP - 4 Channel Amplifier with 10ch DSP (400W RMS total output)
• MATCH PP-PAM 92b - VAG Quadlock T-Harness for VW-Audi Group integration
• HELIX FlexMount CFMK200 VW.2 - 8" 3D Printed Speaker Adapter (1 pair for front doors)
• HELIX FlexMount CFMK165 VW.1 - 6.5" 3D Printed Speaker Adapter (1 pair for rear doors)
• HELIX FlexMount CFMK25 VW.1 - 1.1" 3D Printed Tweeter Adapter x2 Items
• AERPRO APS56 - Speaker Plug Adaptors for Volkswagen x2 Items

System Specifications:

• Front speakers: 8" (200mm) component system with enhanced bass response
• Rear speakers: 8" (200mm) component system for consistent full-range coverage
• Total amplifier power: 400W RMS (4 x 100W RMS per channel)
• DSP processing: 64-bit resolution with 10-channel Virtual Channel Processing
• Vehicle compatibility: VW Tiguan specific engineering with complete integration

Features & Benefits

• Enhanced Bass Performance Throughout – Dual sets of premium 8" component speakers deliver superior low-frequency response with 50Hz-25kHz range and 94dB sensitivity, providing deeper, more powerful bass than standard systems while maintaining exceptional midrange clarity front and rear
• German HELIX Engineering Excellence – All four component speakers feature titanium dome tweeters, Cenosphere-coated drivers, and 3Ω high-efficiency design for maximum power transfer and audiophile-quality sound reproduction throughout the Tiguan cabin
• Professional 4-Channel DSP Integration – HELIX M FOUR DSP provides 100W RMS per channel with advanced 64-bit processing, Virtual Channel Processing, and proprietary sound effects including Augmented Bass Processing for optimized system tuning and enhanced bass management
• Complete FlexMount Integration System – Multiple FlexMount adapter variants (CFMK200, CFMK165, CFMK25) ensure perfect speaker positioning and acoustic sealing in all Tiguan locations without modifications to factory trim or panels
• Advanced DSP Features Suite – Includes Input Signal Analyzer, InputEQ compensation, StageXpander, RealCenter processing, and comprehensive crossover control for professional-grade acoustic tuning and bass enhancement capabilities throughout the vehicle
• Plug & Play Professional Installation – MATCH T-harness and AERPRO connectors enable complete system integration without wire cutting, preserving warranty while adding professional amplification and advanced DSP capabilities

Technical Specs

• Component speakers: 100W RMS / 150W Peak per channel, 50Hz-25kHz frequency response
• Front/rear configuration: 8" woofers with +/- 3.8mm excursion, 94dB sensitivity
• DSP amplifier: 4 x 100W RMS @ 4Ω & 2Ω, 64-bit processing, 295 MHz DSP power
• Frequency response: 20Hz - 22,000Hz complete system coverage with extended low-end
• Signal-to-noise ratio: 105dB digital, 102dB analog (A-weighted)
• Total harmonic distortion: <0.03% at rated output
• Operating voltage: 10.5-16V with Start-Stop capability
• System impedance: 3Ω throughout for maximum efficiency and power transfer
• Tweeter specifications: 32mm titanium dome with neodymium magnet throughout system

Frequently Asked Questions

How does having 8" components front and rear improve bass performance?

The dual HELIX Ci3 K200.2FM-S3 sets provide 8" woofers in all four positions with enhanced +/- 3.8mm excursion and extended 50Hz-25kHz frequency response. This configuration delivers significantly deeper bass response and higher output levels throughout the Tiguan cabin while maintaining exceptional clarity.

Will the 8" components fit properly in my Tiguan's doors?

Yes, the CFMK200 VW.2 and CFMK165 VW.1 FlexMount adapters are specifically designed for Tiguan applications to accommodate the 8" HELIX components. They provide perfect mounting, acoustic sealing, and professional appearance without modifications to factory trim.

How does the HELIX M FOUR DSP manage four 8" component speakers?

The M FOUR DSP provides 100W RMS per channel with advanced Virtual Channel Processing enabling individual tuning for each speaker position. The DSP includes Augmented Bass Processing and comprehensive crossover control to optimize the enhanced bass performance from all four 8" woofers.

Does this system maintain compatibility with my Tiguan's factory electronics?

Yes, the MATCH PP-PAM 92b T-harness provides complete plug & play integration maintaining steering wheel controls, navigation, and all factory functions. The AERPRO connectors eliminate wire cutting while the DSP amplifier includes Auto Remote switching for seamless operation.

What makes this "Extra Bass" package special for the Tiguan?

This package provides 8" woofers in all four positions instead of the typical front-only upgrade, creating enhanced bass response throughout the larger Tiguan cabin. The HELIX M FOUR DSP includes specific bass enhancement features optimized for this configuration.

Compatible With / Goes Well With

System Enhancement: HELIX subwoofers for ultimate bass extension, sound deadening materials for doors, professional calibration services for optimal DSP tuning and acoustic performance

Professional Services: Complete installation and comprehensive DSP tuning packages available through authorized dealers for optimal system calibration and acoustic setup

Future Expansion: Additional amplifiers via RCA outputs, upgraded power cables, custom installation solutions for enhanced performance and integration capabilities
