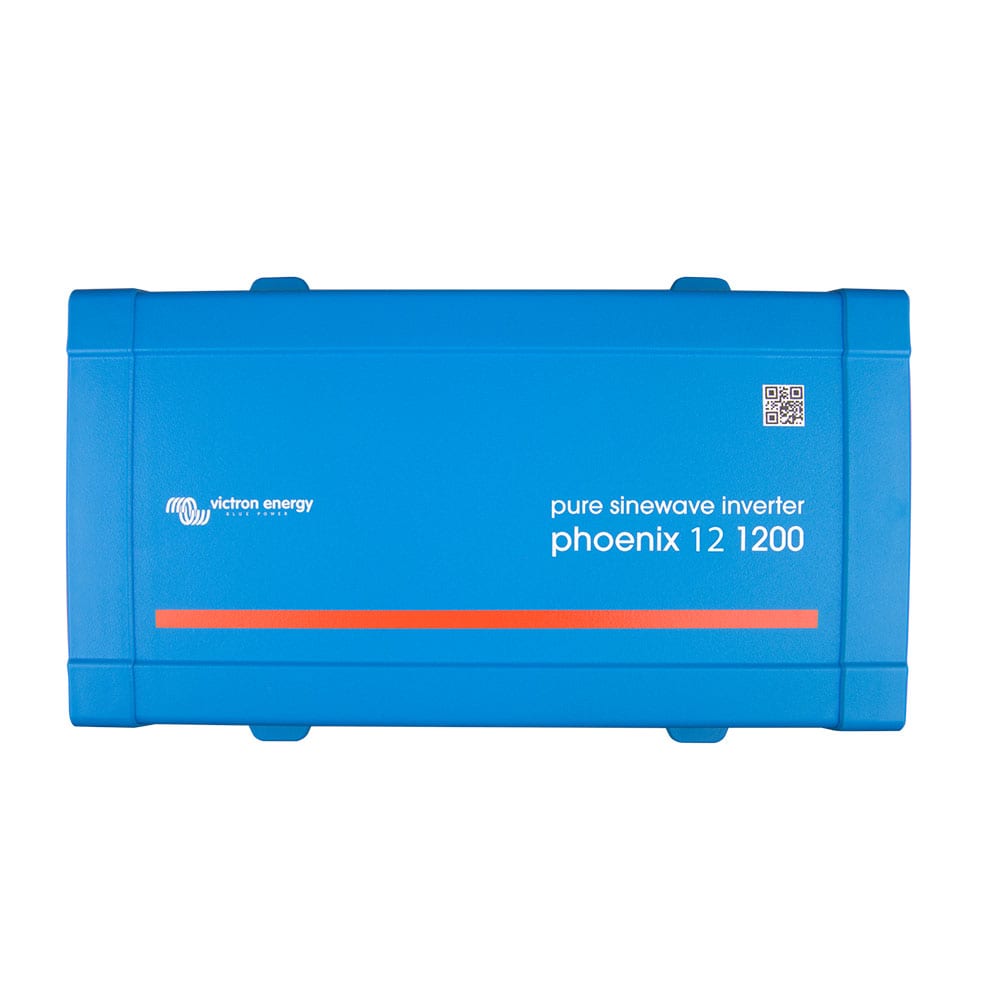

Victron PIN121220300 - Phoenix Inverter 12V 1200W Pure Sine Wave

VICTRON PIN121220300 - Phoenix Inverter 12V 1200W Pure Sine Wave

Professional-grade pure sine wave inverter delivering 1200W continuous power from 12V DC batteries featuring fully configurable settings including adjustable low voltage alarm, cut-off and restart levels, dynamic load-dependent cut-off, output voltage 210-245V, frequency 50Hz or 60Hz, ECO mode with adjustable sense level, high peak power capability, combined high frequency and line frequency technologies for superior efficiency, Bluetooth compatibility via optional dongle enabling remote monitoring and configuration from smartphone or tablet, monitoring of input/output voltage and alarms, lightweight compact design, ideal for 4WD vehicles, caravans, motorhomes, boats, mobile workshops, and off-grid applications requiring reliable AC power from 12V battery systems.

Product Overview

The Victron PIN121220300 Phoenix Inverter is a professional-duty pure sine wave inverter engineered to deliver reliable 1200W AC power from 12V DC battery systems without compromise in performance or quality. Combining high frequency and line frequency technologies, the Phoenix achieves superior efficiency and high peak power capability while maintaining lightweight compact construction suitable for mobile and off-grid applications. The inverter is fully configurable with adjustable low voltage alarm trip and reset levels, low voltage cut-off and restart levels, dynamic cut-off providing load-dependent protection, selectable output voltage from 210-245V, frequency selection between 50Hz or 60Hz, and ECO mode with adjustable sense level for power-saving operation. Bluetooth compatibility via optional dongle enables complete remote monitoring and configuration from smartphones or tablets, displaying input and output voltages, alarms, and allowing setting adjustments without accessing the unit. Developed for professional duty in demanding environments including 4WD touring, caravan systems, marine vessels, and mobile workshops where reliable pure sine wave AC power is essential for running sensitive electronics, power tools, appliances, and equipment from 12V battery banks.

Important Notes:

12V Battery System Required: Inverter operates from 12V DC battery bank - adequate battery capacity essential based on intended AC loads and runtime requirements.

Bluetooth Dongle Sold Separately: Bluetooth monitoring and configuration requires optional Victron Bluetooth Smart Dongle purchased separately - unit does not include built-in Bluetooth.

Pure Sine Wave Output: Produces clean sine wave AC suitable for all equipment including sensitive electronics - not modified sine wave which can damage some devices.

Professional Installation Recommended: Installation involves DC battery connections and AC wiring requiring proper cable sizing, fusing, and grounding for safe reliable operation.

ECO Mode Configuration: ECO mode reduces standby power consumption but requires configuration of sense level to match connected loads - improper settings may prevent activation with small loads.

Key Features

Pure Sine Wave Output - Clean AC power suitable for sensitive electronics, computers, medical equipment, and all household appliances.

1200W Continuous Power - Reliable 1200W output handles most common appliances, power tools, and equipment from 12V batteries.

High Peak Power - Superior peak power capability manages motor startup surges and brief high-current demands exceeding continuous rating.

Fully Configurable - Adjustable low voltage alarms, cut-off levels, restart voltages, output voltage, frequency, and ECO mode settings.

Dynamic Cut-Off - Load-dependent voltage cut-off protects batteries by adjusting shutdown voltage based on current draw preventing excessive discharge.

Bluetooth Compatible - Optional Bluetooth dongle enables remote monitoring and configuration via VictronConnect smartphone app.

Voltage Monitoring - Real-time display of input DC voltage and output AC voltage plus alarm notifications via Bluetooth interface.

Adjustable Output Voltage - Selectable output from 210-245V accommodates different regional requirements and equipment specifications.

Frequency Selection - Switch between 50Hz or 60Hz output frequency matching connected equipment and regional standards.

ECO Mode - Power-saving mode with adjustable sense level reduces standby consumption when loads are minimal or disconnected.

High Efficiency - Combined high and line frequency technologies maximize conversion efficiency minimizing battery drain and heat generation.

Professional Duty - Engineered for demanding applications with robust construction and proven reliability in harsh environments.

Lightweight Design - Compact construction suitable for mobile installations where weight and space are critical considerations.

12V DC Input - Compatible with standard 12V automotive, marine, and RV battery systems including AGM, gel, and lithium batteries.

Proven Reliability - Victron's 30+ years engineering experience delivers dependable performance in critical power applications.

VICTRON Quality - Premium European design and manufacturing ensuring long-term reliability and performance.

Technical Specifications

Frequently Asked Questions

Q: What's the difference between pure sine wave and modified sine wave inverters?

A: Pure sine wave inverters like the Phoenix produce clean AC identical to grid power, suitable for all equipment including sensitive electronics, variable speed tools, medical devices, and appliances with electronic controls. Modified sine wave produces stepped approximation causing issues with some equipment, potential damage to sensitive devices, reduced efficiency in motors, and interference in audio/video equipment.

Q: How do I enable Bluetooth monitoring on this inverter?

A: Bluetooth monitoring requires the optional Victron Bluetooth Smart Dongle (sold separately) which plugs into the VE.Direct port on the inverter. Once installed, download the VictronConnect app to your smartphone or tablet, pair with the dongle, and access real-time monitoring, alarms, and configuration settings remotely.

Q: What size battery bank do I need for a 1200W inverter?

A: For 1200W continuous draw, inverter pulls approximately 100A from 12V batteries (accounting for inefficiency). Battery sizing depends on runtime needs - for 2 hours operation you'd need 200Ah usable capacity. With lead-acid batteries limited to 50% discharge, you'd need 400Ah battery bank. Lithium batteries allow deeper discharge requiring smaller capacity.

Q: What is ECO mode and when should I use it?

A: ECO mode reduces standby power consumption by shutting down the inverter when loads fall below the configured sense level, automatically restarting when loads increase. Useful for installations where inverter runs continuously but loads are intermittent, saving battery power during idle periods. Requires proper sense level configuration to match your typical loads.

Q: Can I run my laptop, TV, and fridge from this inverter?

A: Yes, the Phoenix pure sine wave output is safe for all electronics. Verify total wattage doesn't exceed 1200W continuous - typical laptop (60W), TV (100W), and small 12V fridge on AC adapter (150W) totals ~310W well within capacity. Consider startup surge for compressor-based appliances when calculating peak requirements.
