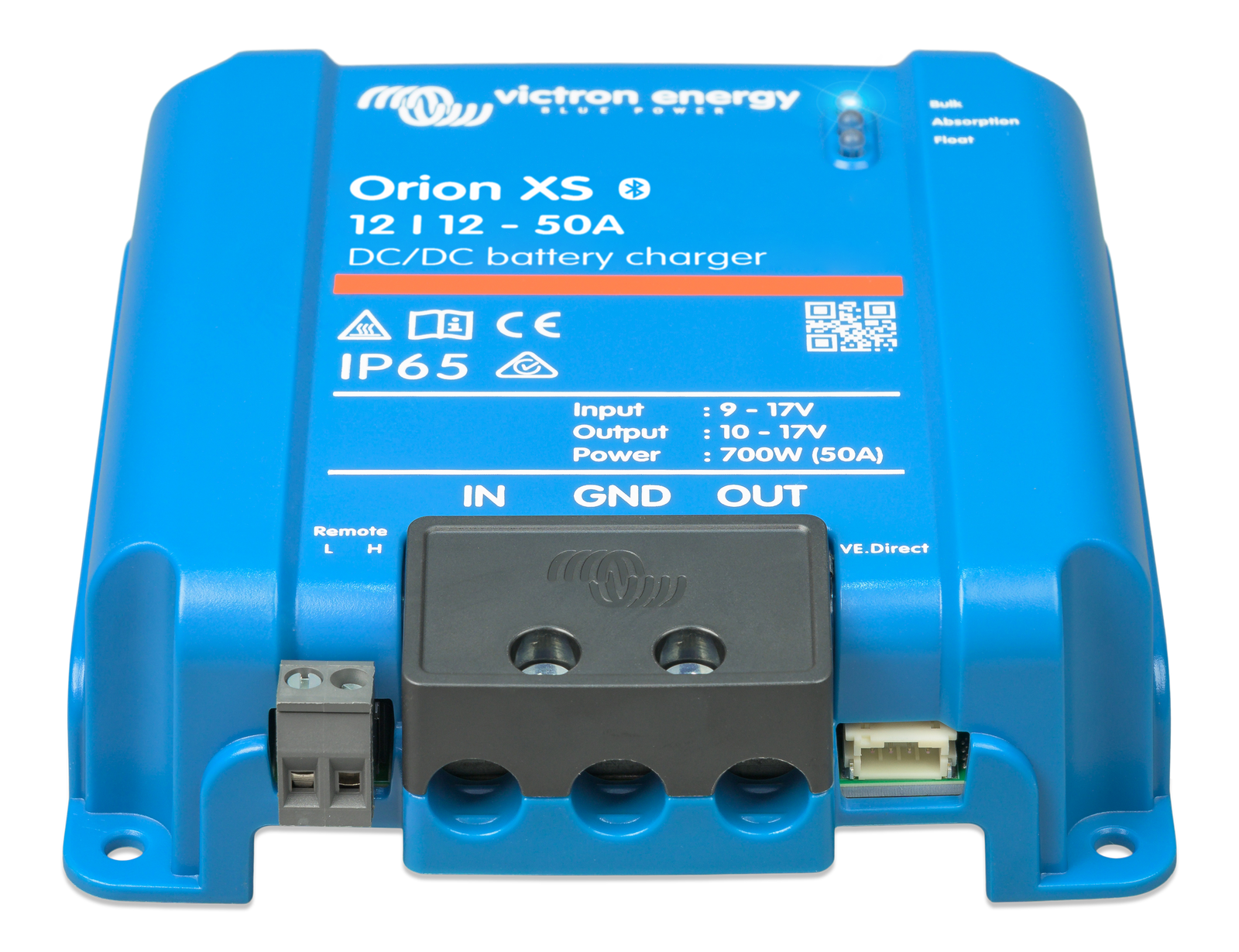

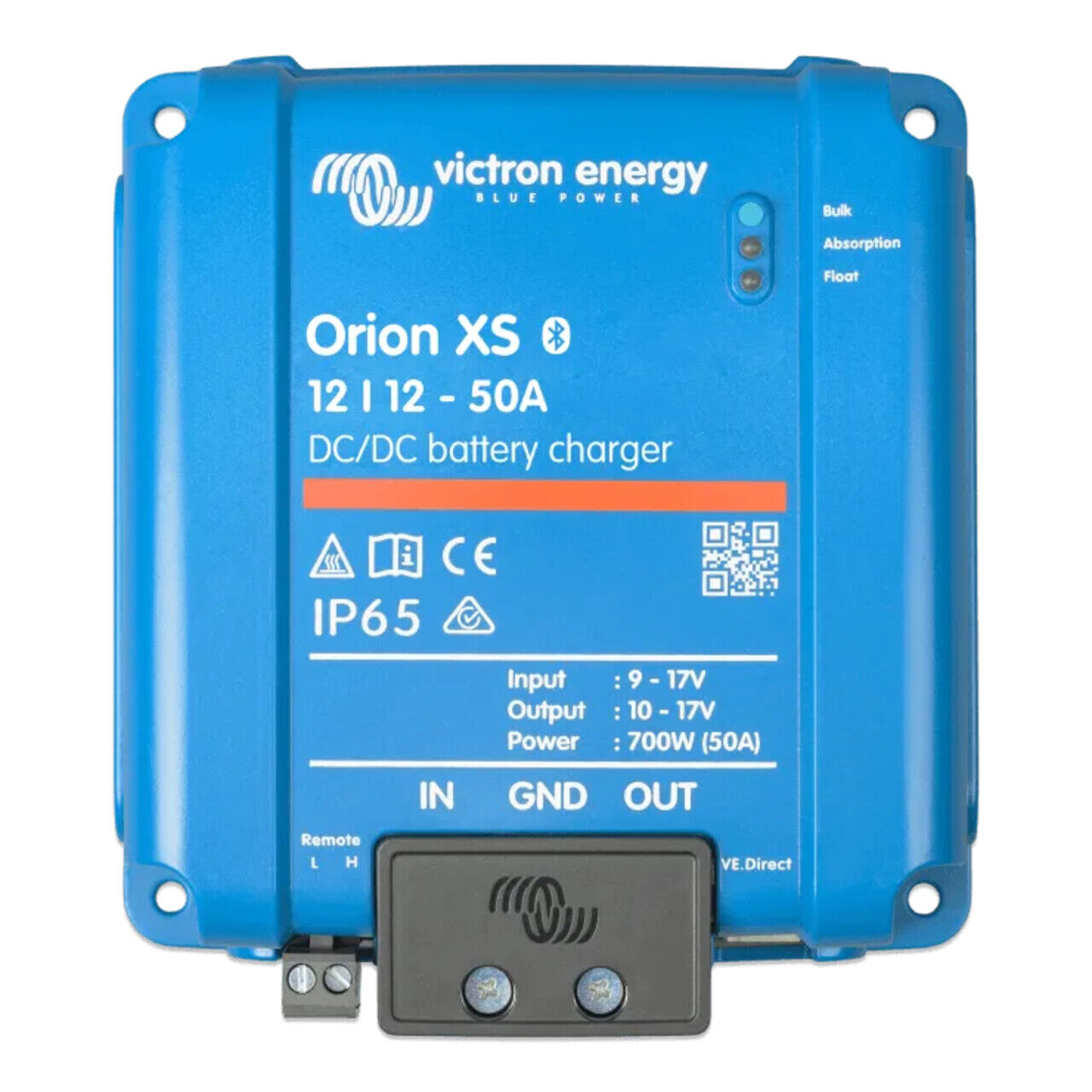

Victron Orion XS 12/12-50A - Ultimate Dual Battery Charging for Modern Vehicles
Running a dual battery setup in your 4WD, caravan, or marine vessel? The Victron Orion XS 12/12-50A redefines DC-DC battery charging with engineering that's built from the ground up for intelligent alternator compatibility and maximum system safety. This isn't just another battery isolator – it's a complete charging solution that safely combines any alternator with any battery type.
Delivering 700W of continuous power at an industry-leading 98.5% efficiency, the Orion XS 12/12-50A protects your starter battery, prevents alternator overload, and ensures your auxiliary battery receives the perfect charge voltage – even from Euro 5 and Euro 6 engines with smart alternators that don't provide consistent high voltage. With VE.Direct connectivity, full remote monitoring via the VictronConnect App, and IP65 dust and waterproof protection. This is professional-grade DC-DC charging that works flawlessly in the toughest Australian conditions.
Victron Orion XS 12/12-50A Features & Benefits
- Engine Running Detection - Automatically isolates your service battery when the engine is off, protecting your starter battery from parasitic drain and ensuring reliable engine starts every time.
- Smart Alternator Compatibility - Purpose-built for Euro 5 and Euro 6 engines with intelligent alternators that vary output voltage, the Orion XS boosts inconsistent 10.4V alternator output to optimal 14.2V charging levels for complete battery charging.
- 98.5% Efficiency Rating - Five times more efficient than previous generation DC-DC chargers, the ultra-efficient aluminium circuit board design minimizes heat generation and maximizes power transfer without requiring cooling fans.
- Configurable Input & Output Current - Fully adjustable charge current from 1-50A allows you to tailor charging to your specific alternator capacity, battery size, and system requirements for optimal performance and safety.
- Adaptive Charging Algorithm - Eight preset battery modes plus customizable algorithms ensure perfect charging for AGM, Gel, Flooded, Lithium, and other battery chemistries with optimized absorption times for both shallow and deep discharges.
- VictronConnect App Integration - Full remote monitoring and control via Bluetooth Smart on iOS and Android devices, allowing you to view real-time performance data, adjust settings, and monitor system health from anywhere.
- VE.Direct Communication Port - Integrates seamlessly into complete Victron Energy systems for centralized monitoring, data logging, and control through Color Control GX, Cerbo GX, or VRM Portal online monitoring.
- Comprehensive Electronic Protection - Advanced safeguards against overload, short circuit, and excessive temperatures with automatic power reduction when maximum operating temperature is reached, ensuring long-term reliability.
- Low Temperature & Undervoltage Protection - Automatically shuts down at low temperatures to prevent lithium battery damage, plus user-configurable input voltage lockout prevents deep discharge of your starter battery.
- IP65 Dust & Waterproof Rating - Sealed construction withstands harsh environments including dust, mud, water spray, and salt air, making it perfect for 4WD touring, marine applications, and commercial vehicles.
- Compact Aluminium Construction - Measuring just 137.3 x 123.3 x 40mm and weighing only 0.73lb, the lightweight design allows flexible mounting options under bonnet, under seat, or in limited-space installations.
- Maximum 40°C Continuous Operation - Runs at full 700W output capacity even in extreme Australian heat up to 40°C (derating only 1.5% per °C above 40°C), ensuring consistent performance in outback conditions.
- Can Be Used as Power Supply - Versatile functionality allows operation as a stable DC power supply when output voltage is set via VictronConnect App, adding flexibility beyond battery charging applications.
- Screw Terminal Connections - Professional-grade DC connections ensure secure, vibration-resistant wiring with maximum cable cross-section of 4AWG (21.2mm²) for reliable high-current performance.
Technical Specifications:
-
Type: DC-DC Battery-to-Battery Charger
-
Input Voltage Range: 9-17V DC
-
Output Voltage Adjust Range: 10-17V DC (configurable)
-
Output Voltage Tolerance: +/- 0.25% maximum
-
Output Voltage Noise: 10mV RMS
-
Input & Output Current Setting Range: 1-50A (adjustable)
-
Maximum Constant Short-Circuit Current: 50A
-
Continuous Output Power (up to 40°C): 700W
-
Maximum Efficiency: 98.5%
-
No-Load Current Consumption: < 100mA
-
Standby Current Consumption: < 1.5mA
-
Operating Temperature Range: -20 to +60°C (derating 1.5% per °C above 40°C)
-
Humidity: 95% non-condensing
-
Maximum Altitude: 2000m
-
Pollution Degree: PD2
-
Overvoltage Category: OVC II
-
DC Connection: Screw terminals (4AWG / 21.2mm² max)
-
Maximum Cable Cross-Section: 4AWG (21.2mm²)
-
Protection Category: IP65 (dust and waterproof)
-
Communication: VictronConnect App (Bluetooth Smart), VE.Smart Networking, VE.Direct
-
Safety Standards: IEC-62477-1
-
EMC Compliance: EN 300 328, EN 301 489-1, EN 301 489-17, FCC (47 CFR part 15, class B, IES-001)
-
Automotive Directive: ECE R10-6
-
Applications: Dual battery systems, 4WD vehicles, caravans, campers, marine vessels
- Environment: Harsh outdoor, dust, water spray, salt air environments
Compatible With / Goes Well With
- Victron SmartShunt Battery Monitors - Complete system monitoring with state of charge tracking
- Victron Color Control GX / Cerbo GX - Centralized system display and control panel
- Victron LiFePO4 Smart Batteries - Optimized charging profiles for Victron lithium batteries
- AGM & Gel Deep Cycle Batteries - Perfect charging for auxiliary battery banks
- Solar Charge Controllers - Integrate with solar systems for complete off-grid power
- Battery Protect Units - Additional load disconnect protection for auxiliary circuits
- Smart Battery Sense - Remote voltage and temperature sensing for precise charging
- BMV Battery Monitors - Track battery performance and charging efficiency
- Anderson Plug Connectors - Professional DC connection systems
- Circuit Breakers & Fuses - Essential overcurrent protection for installation
- Marine Switchboards - Complete electrical distribution in boats and yachts
- 4WD Dual Battery Systems - Foundation component for auxiliary power systems
- Caravan & Motorhome Electrical Systems - Reliable house battery charging while driving
- Work Vehicle Auxiliary Power - Commercial and fleet vehicle battery management
Installation Applications:
- 4WD Dual Battery Systems: Essential for touring 4WDs with auxiliary battery setups, protecting your starter battery while ensuring your house battery charges properly from modern smart alternators, enabling extended off-grid camping with fridges, lights, and accessories running reliably.
- Caravan & Camper Trailer Charging: Provides efficient alternator charging for caravan house batteries while towing, eliminating the limitations of basic VSR isolators and ensuring your batteries arrive at camp fully charged and ready for off-grid power demands.
- Marine Dual Battery Applications: Perfect for boats requiring isolated house and starter battery systems, the IP65 waterproof rating and salt-air resistant construction handle harsh marine environments while preventing alternator overload from hungry lithium house banks.
- Commercial & Fleet Vehicle Power: Ideal for work vehicles, utilities, and service trucks requiring auxiliary power for tools, equipment, and accessories, providing reliable battery management that reduces downtime and extends battery life in demanding commercial applications.
- Euro 5/6 Vehicle Conversions: Specifically engineered for modern vehicles with intelligent alternators that don't provide consistent charging voltage, the Orion XS voltage boost ensures proper charging of auxiliary batteries where traditional isolators fail completely.
Frequently Asked Questions
- Why do I need a DC-DC charger instead of a battery isolator? Modern vehicles with Euro 5/6 smart alternators don't provide consistent high voltage needed to fully charge auxiliary batteries.
- Will this work with lithium (LiFePO4) batteries? Absolutely! The Orion XS includes dedicated lithium charging profiles and critical low-temperature shutdown protection that prevents charging lithium batteries below freezing (which causes permanent damage).
- How does it protect my alternator from being overloaded? The configurable output current (1-50A adjustable) allows you to limit the charge current to match your alternator's capacity.
- Can I monitor and control it from my phone? Yes! The built-in Bluetooth Smart connects to the free VictronConnect App (iOS and Android) for complete remote monitoring and control.
- Will it charge my house battery when the engine is off? No – and that's a good thing! The engine running detection automatically disconnects your house battery when the engine stops, preventing it from draining your starter battery.
