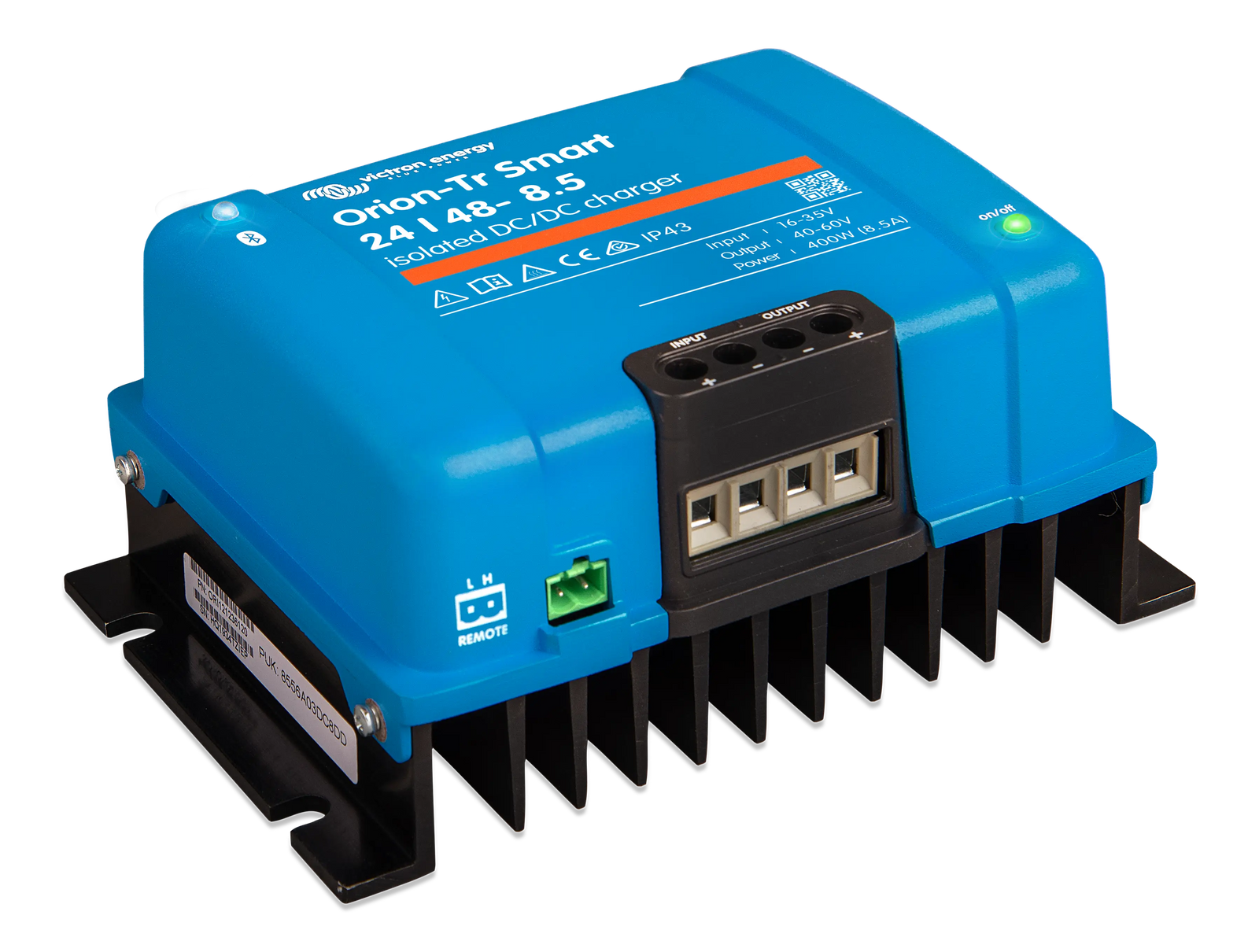

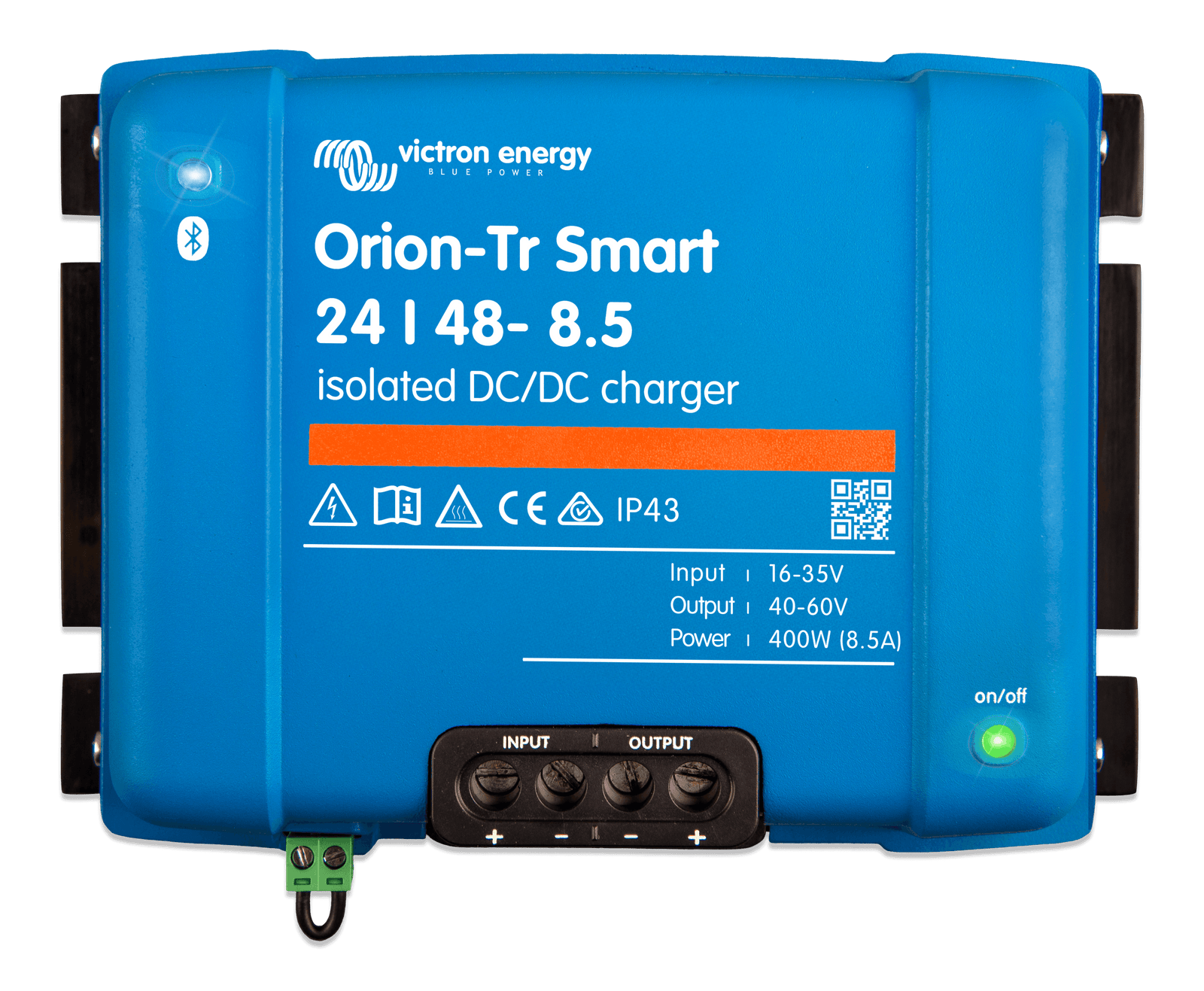

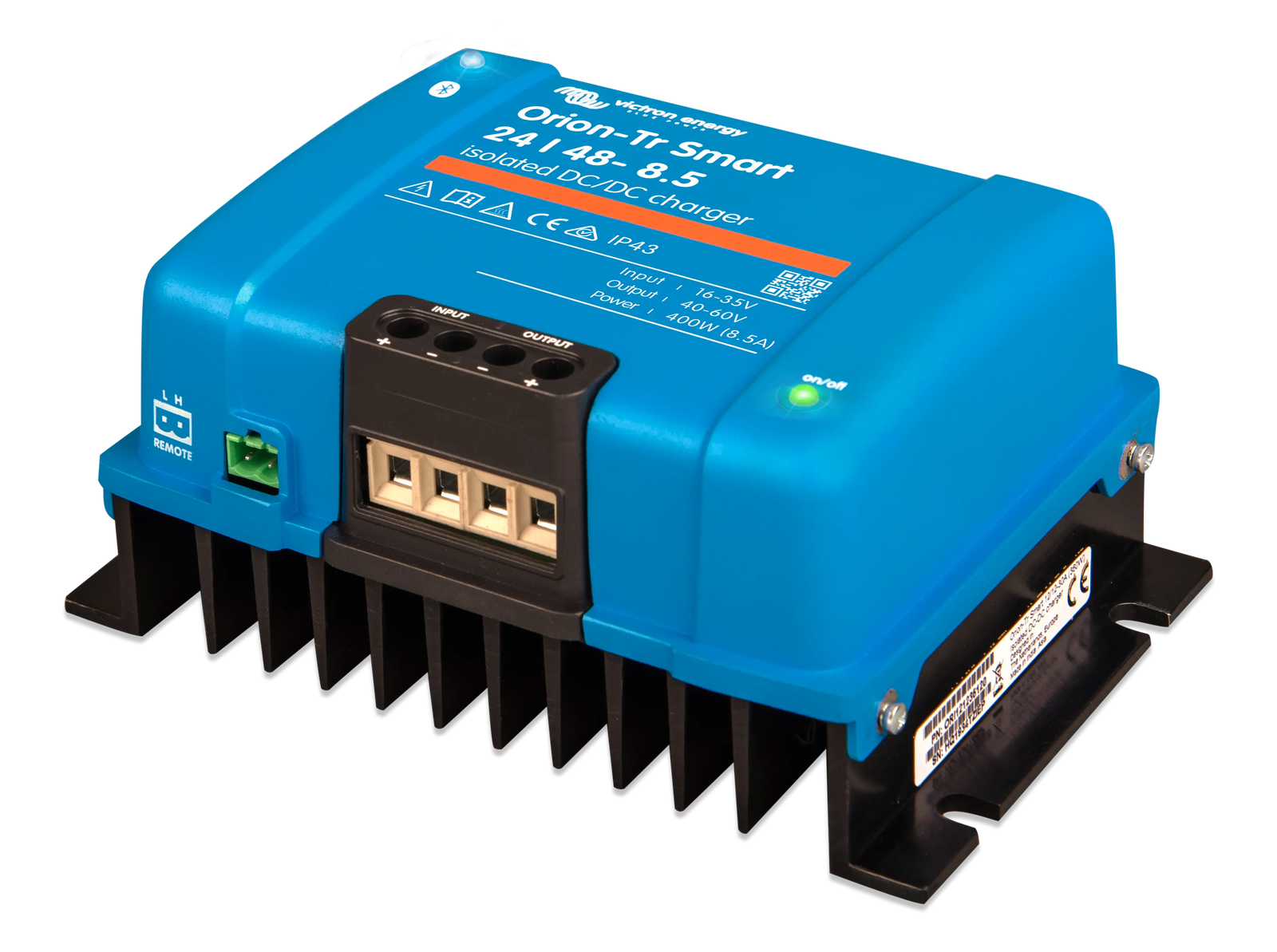

Victron Energy ORI244840120 Orion-Tr Smart 24/48-8.5A 400W Isolated DC-DC Charger

Smart Power Conversion: Intelligent DC-DC Charging for Advanced Vehicle Systems

The Victron Energy Orion-Tr Smart DC-DC Charger is a sophisticated power management solution designed for modern vehicles with complex electrical systems. Engineered to work seamlessly with smart alternators, this isolated DC-DC converter provides intelligent charging and power supply across multiple voltage configurations, ensuring optimal battery performance and system protection.

Victron Energy ORI244840120 Features & Benefits:

• Smart Alternator Compatibility: Intelligent engine-running detection prevents starter battery discharge in modern ECU-controlled vehicles

• Advanced Charging Algorithm: Three-step charging (Bulk-Absorption-Float) maximizes battery life and performance

• Comprehensive Protection: Built-in safeguards against overload, short circuit, and temperature variations

• Flexible Configuration: Eight preprogrammed battery settings with customizable charging profiles

• Remote Monitoring: Configure and track performance via VictronConnect app on smartphone or tablet

Technical Specifications:

• Efficiency: 87%

• Operating Temperature: -20°C to +55°C

• No-load Input Current: < 80mA

• Standby Current: <1 mA

• Maximum Cable Cross-section: 16 mm² (AWG6)

• Humidity: Max 95% non-condensing

Compatible With / Goes Well With

• 12V, 24V, and 48V battery systems

• Smart alternator vehicles

• Marine and recreational vehicle installations

• Solar power systems

• Battery management systems

• Victron energy monitoring products

Frequently Asked Questions

• Will this work with my vehicle's electrical system?
  Compatible with multiple input voltage ranges and vehicle types, including those with smart alternators.

• How complex is the installation?
  Designed for straightforward integration with screw terminals and no additional sensors required.

• Can I customize the charging profile?
  Yes, eight preset battery modes and full VictronConnect app configuration available.

• Is it protected against electrical issues?
  Comprehensive protection includes over-temperature, overload, and short circuit safeguards.
