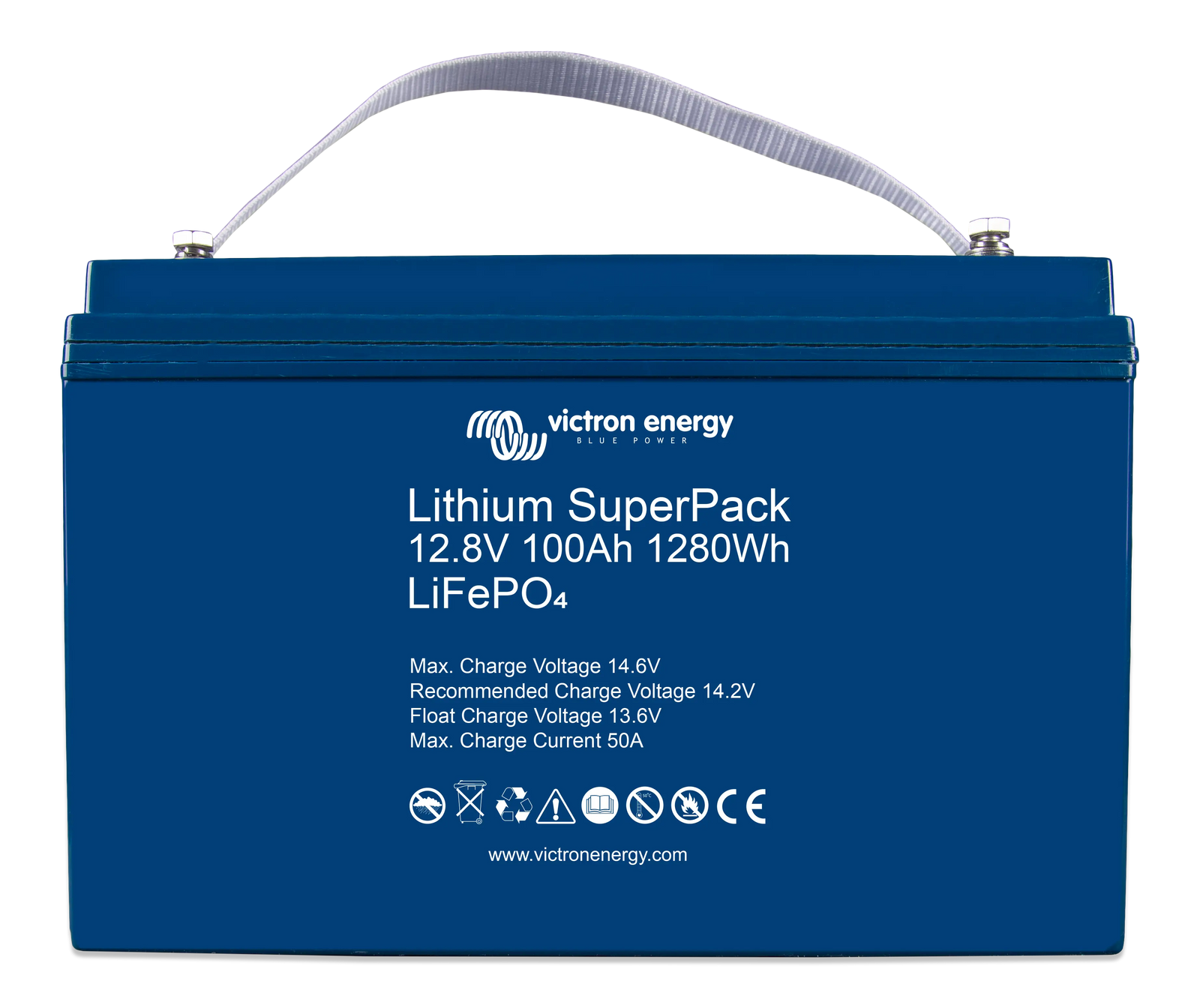

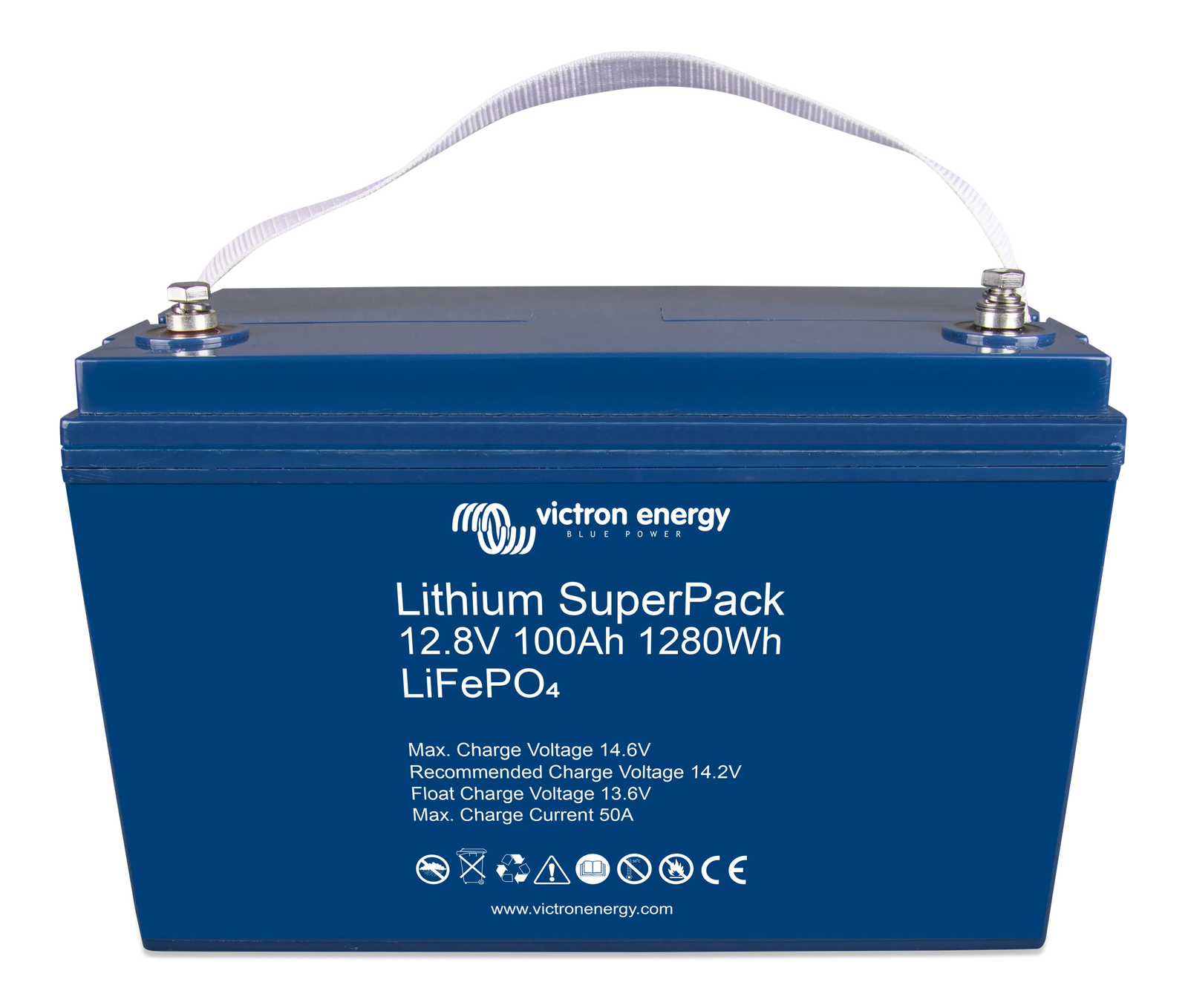

Victron Energy BAT512110712 12.8V 100Ah Lithium SuperPack Battery | M8 Terminal

Advanced Lithium Power Solution for Demanding Applications

The Victron Energy Lithium SuperPack 12.8V/100Ah battery represents the pinnacle of portable power technology. Designed for off-grid solar, marine, RV, and professional vehicle applications, this LiFePO4 battery delivers exceptional performance, safety, and reliability with an integrated Battery Management System (BMS) that simplifies installation and protects your investment.

Key Specifications

• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12,8V
• Capacity: 100Ah
• Nominal Energy: 1280Wh
• Cycle Life: 2500 cycles at 80% Depth of Discharge
• Parallel Configurable: Yes (Unlimited)

Victron Energy BAT512110712 Features & Benefits

• Integrated Safety Switch: Automatic disconnection during over/undercharge or temperature extremes
• Abuse-Proof Design: Prevents premature battery failure from sulfation
• High Efficiency: 92% round-trip energy efficiency
• Flexible Deployment: Easily connectable in parallel configurations
• Wide Operating Range: Discharge from -20°C to +50°C
• Low Maintenance: No additional components required for installation

Technical Specs

• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 150A
• End of Discharge Voltage: 10V
• Charge Voltage Range: 14,2V-14,4V
• Max Charge Current: 100A
• Protection Rating: IP43
• Dimensions: 220 x 330 x 172 mm


Compatible With / Goes Well With

• Off-Grid Solar Systems
• Marine Electrical Setups
• RV Power Installations
• Backup Power Solutions
• Renewable Energy Projects
• Professional Vehicle Electrical Systems

Frequently Asked Questions

• Can I connect multiple batteries? Yes, unlimited parallel connection is supported.
• What makes this battery different from lead-acid? Superior efficiency, longer lifespan, and advanced safety features.
• Is it suitable for solar applications? Ideal for off-grid and solar energy storage systems.
• How long will the battery last? Up to 2500 cycles at 80% depth of discharge.
• Can it handle extreme temperatures? Operates reliably from -20°C to +50°C.
