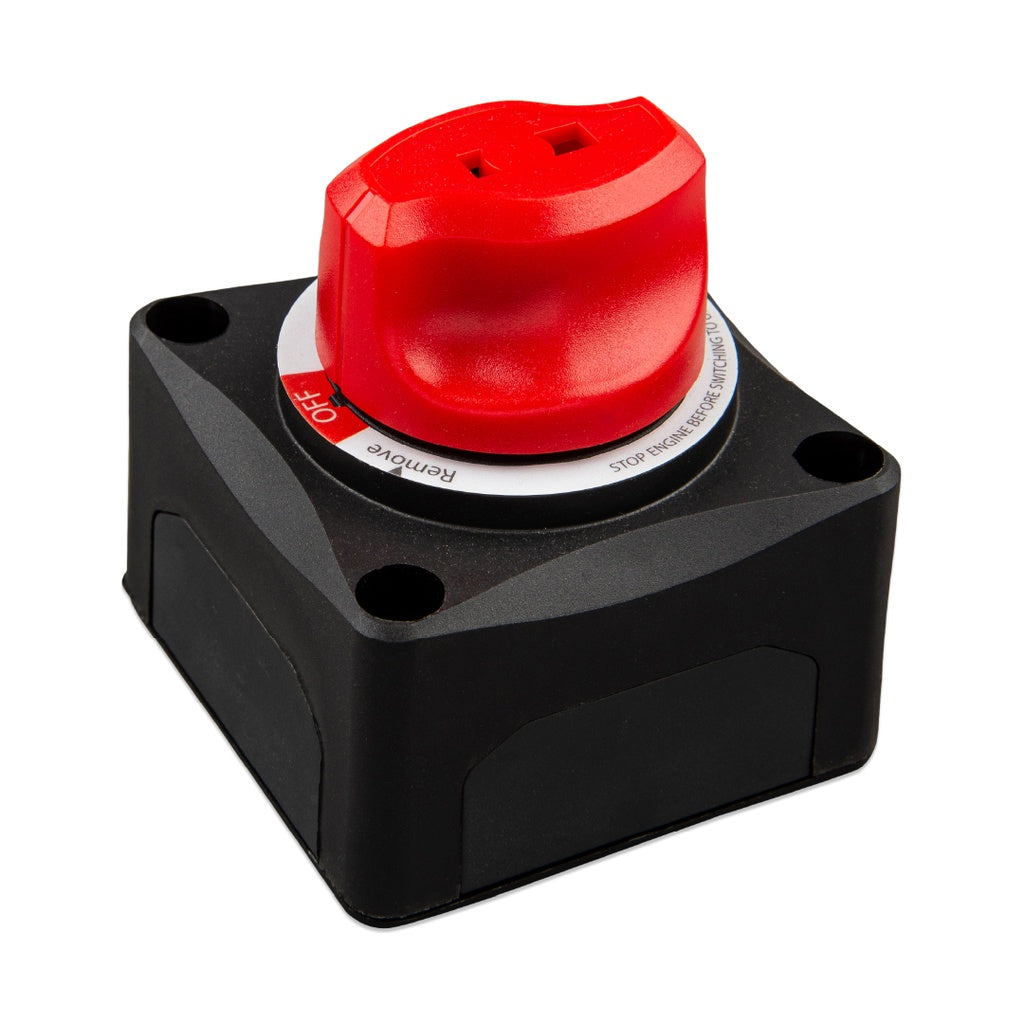

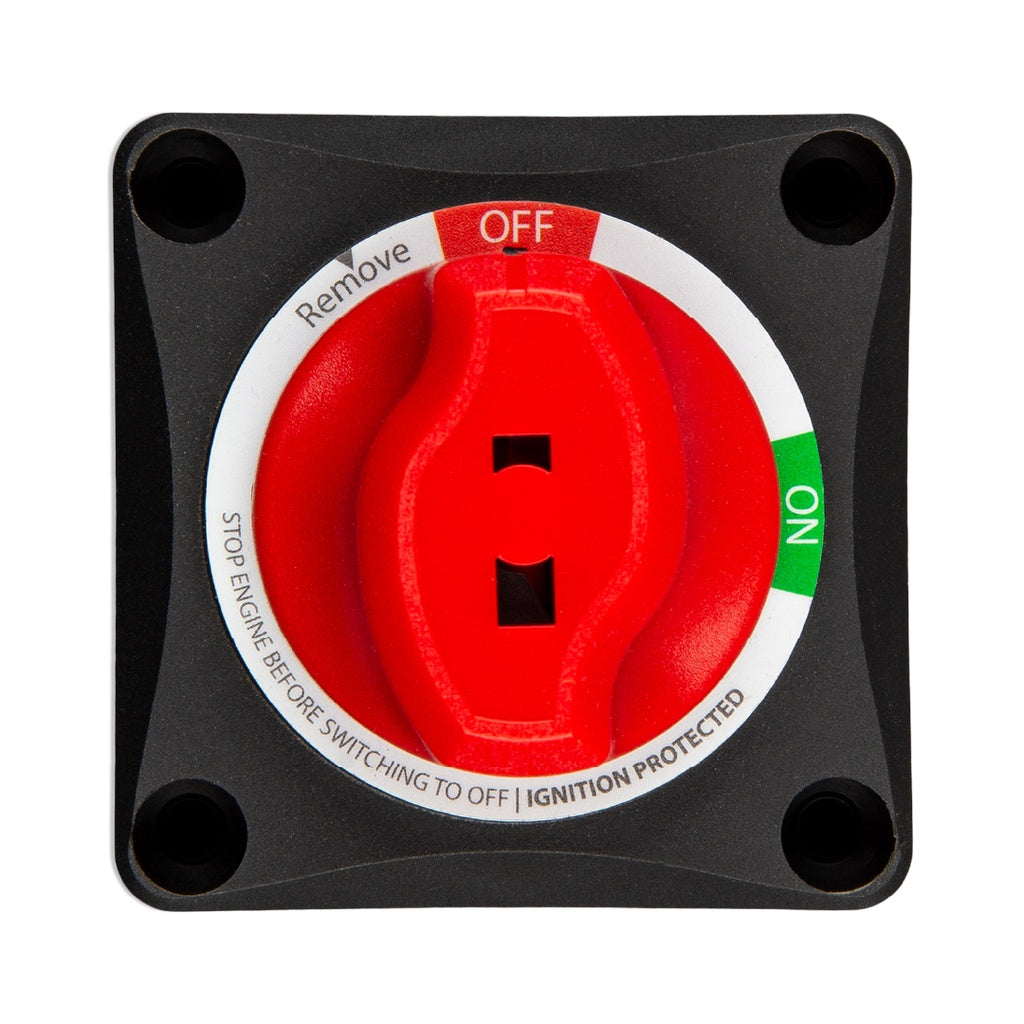

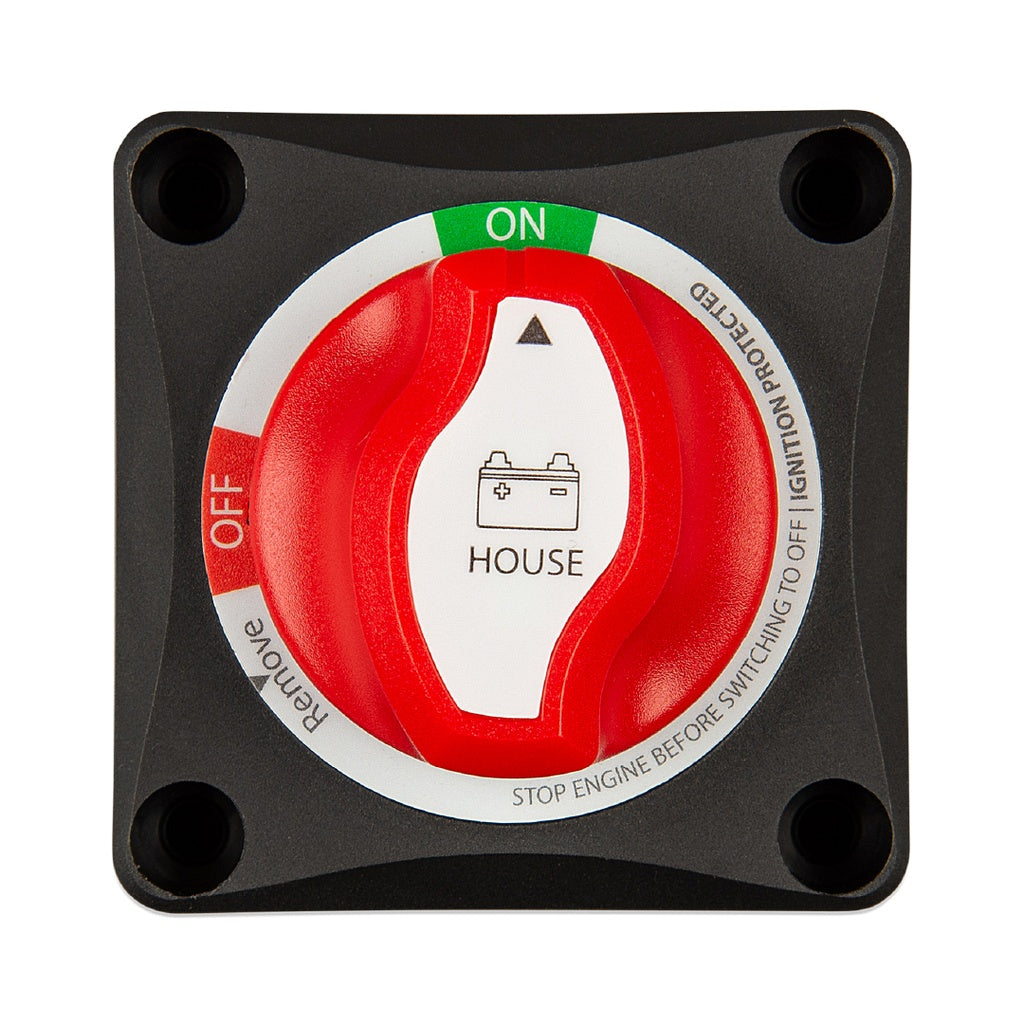

Victron Energy VBS127010010 Battery Switch ON/OFF 275A

Victron Energy Battery Switch ON/OFF 275A: Battery Switch ON/OFF 275A is Suitable For Battery Systems Up to 48V!

Battery Switch 275A
The Battery Switch has a continuous current rating and is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design for easy operation.

Usages
The Battery Switch can be used to isolate a battery from DC loads and/or DC charge sources. It is used to preserve battery charge in case a system is unattended, for system maintenance or in an emergency. It can also be used to parallel connect the house battery to the starter battery to supplement a flat starter battery or a flat house battery in case of an emergency.

Installation
The Battery Switch can be either surface or panel-mounted, providing flexibility during install. It features 4 easily removable side panels for cable access. It ships with 16 different label stickers, for customization of the Battery Switch.

Safety
The knob is removable for isolation or safety purposes. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

Victron Energy VBS127010010 Specifications:

• Max. Continuous Current: 275 A
• One Minute Rating: 455A
• Cranking Rating: 1250A
• Maximum Operating Voltage: 60V
• Terminal Material: Tin-Plated Copper
• Hex Nut Material: Tin-Plated Copper
• Terminal Diameter: M10 (3/8" | 9.53mm)
• Recommended Torque: 70 lbf·inch / 8 N·m
• Base Material: Glass Fiber Reinforced Nylon
• Mounting: Surface/Rear Panel Mount
• Ignition Protected: ISO8846 / SAE J1171
• Dimensions: (L) 69.5mm x (W) 76.3mm x (H) 69.5mm
• Weight: 0.20kg
