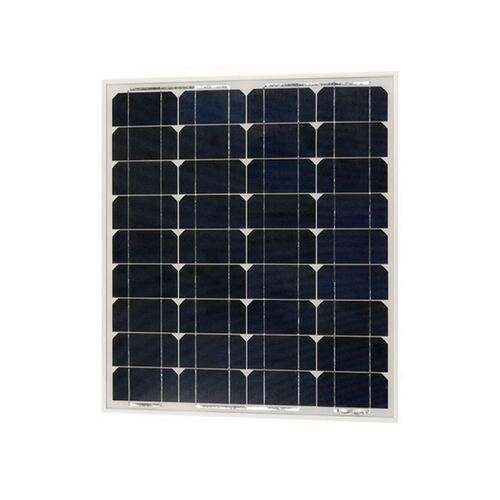

Victron Energy SPM041301200 Solar Panel 130W-12V Mono 1200x668x30mm Series 4A

Victron Energy Solar Panel 130W-12V Mono 1200x668x30mm Series 4A

Victron Energy SPM041301200 Features:

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-year limited warranty on power output and performance.
• 5 Year Limited warranty on materials and workmanship.
• The sealed, waterproof, multi-functional junction box gives a high level of safety.
• High-performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• The highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre-wired quick-connect system with MC4 (PV-ST01) connectors

Victron Energy SPM041301200 Specifications:

• Nominal Power (Pmpp): 130W
• Max Power Voltage (Vmpp): 18.64V
• Max Power Current (Impp): 6.98A
• Open Circuit Voltage (Voc): 22.83V
• Short Circuit Current (Isc): 7.35A
• Cell Type: Monocrystalline
• Number of cells in series: 36
• Max. system voltage: 1000V
• Temperature Range: -40°C to +85°C
• Surface Maximum Load Capacity: 200 kg/m²
• Allowable Hail Load: 23 m/s, 7.53 g
• Frame: Aluminium
