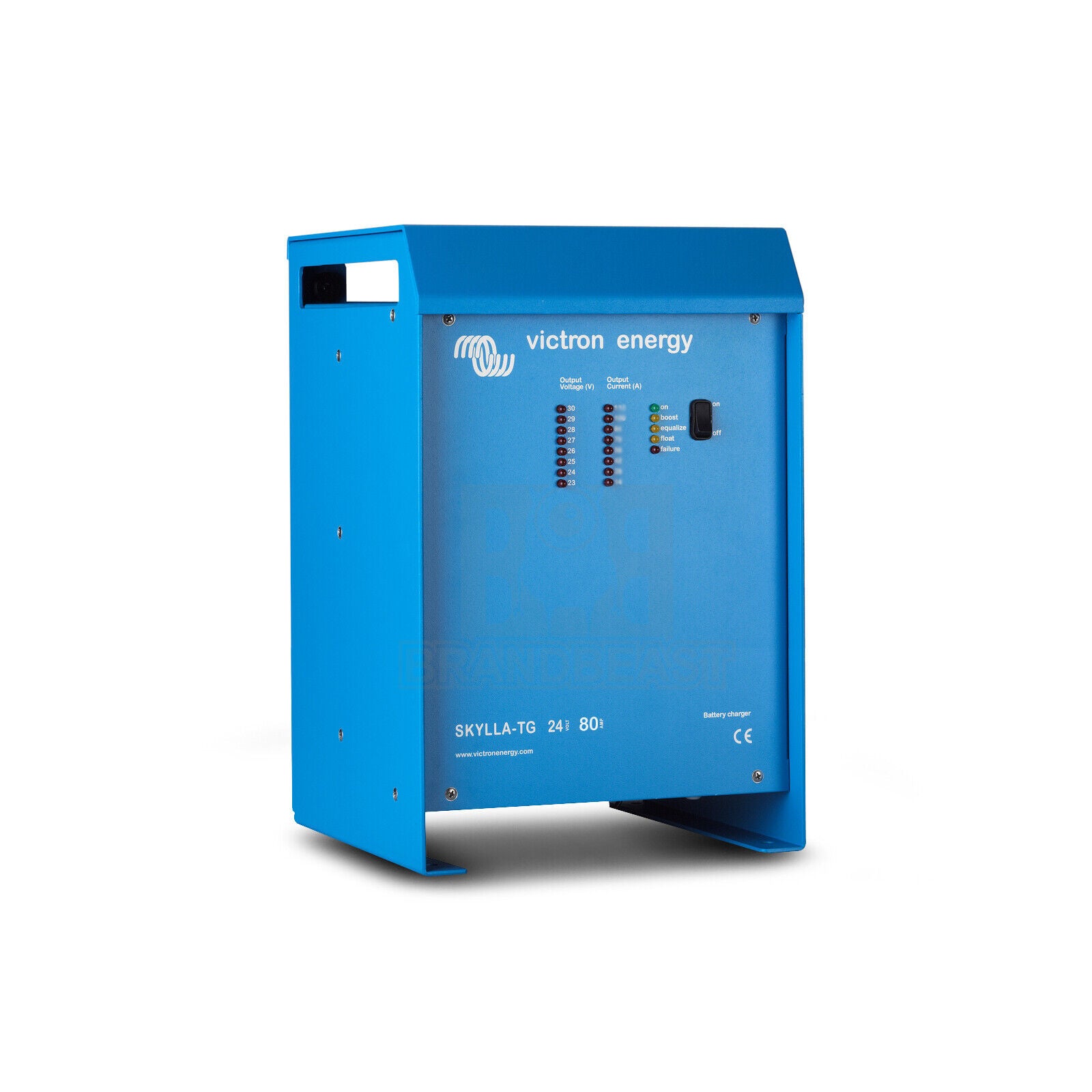

Victron Energy SDTG2400801 Skylla Battery Charger 24V 80A 2C

Victron Energy Skylla Battery Charger 24V 80A 2C: Perfect Chargers for Any Type of Battery

Suitable for AC and DC supply (AC-DC and DC-DC operation)

Except for the 3 phase input models, the chargers also accept a DC supply.

Controlled charging

Every TG charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.

Use of TG chargers as a power supply

As a result of the perfectly stabilized output voltage, a TG charger can be used as a power supply if batteries or large buffer capacitors are not available.

Two outputs to charge 2 battery banks (24V models only)

The TG chargers feature 2 isolated outputs. The second output, limited to approximately 4 A and with a slightly lower output voltage, is intended to top up a starter battery.

To increase battery life: temperature compensation

Every Skylla TG charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, TG chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Victron Energy SDTG2400801 Specifications:

• Dimensions (L x W x H): 365 x 250 x 257mm
• Part Number: SK24/80
• Charging Current: 80 Amps
• Type Of Charger: 5 step battery charger
• Insulation: IP21
• Type Of Battery: Flooded, AGM, GEL
• Battery Capacity: 400-800 Ah
• Charging Voltage: 24 -33V DC
