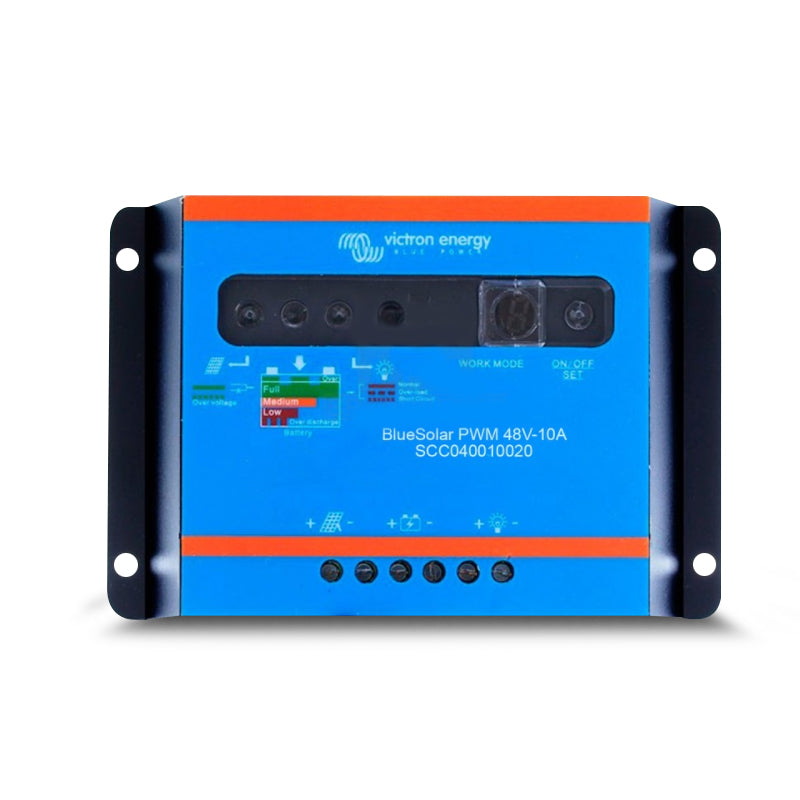

Victron Energy SCC040010020 Blue Solar Charge Controller PWM-Light 48V-10A

Victron Energy Blue Solar Charge Controller PWM-Light 48V-10A: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Victron Energy SCC040010020 Features:

• • Load output with low battery voltage disconnect function.
  • Lighting control function, one timer only.
  • Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
  • Three stage battery charging (bulk, absorption, float), not programmable.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.

Victron Energy SCC040010020 Specifications:

• Battery Voltage: 48V
• Rated charge current: 10A
• Automatic load disconnect: Yes
• Maximum solar voltage: 100 V
• Self-consumption: < 10 mA
• Load output: Manual control + low voltage disconnect
• Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
• Grounding: Common positive
• Operating temp. range: -20 to +50°C (full load)
• Humidity (non-condensing): Max 95%
