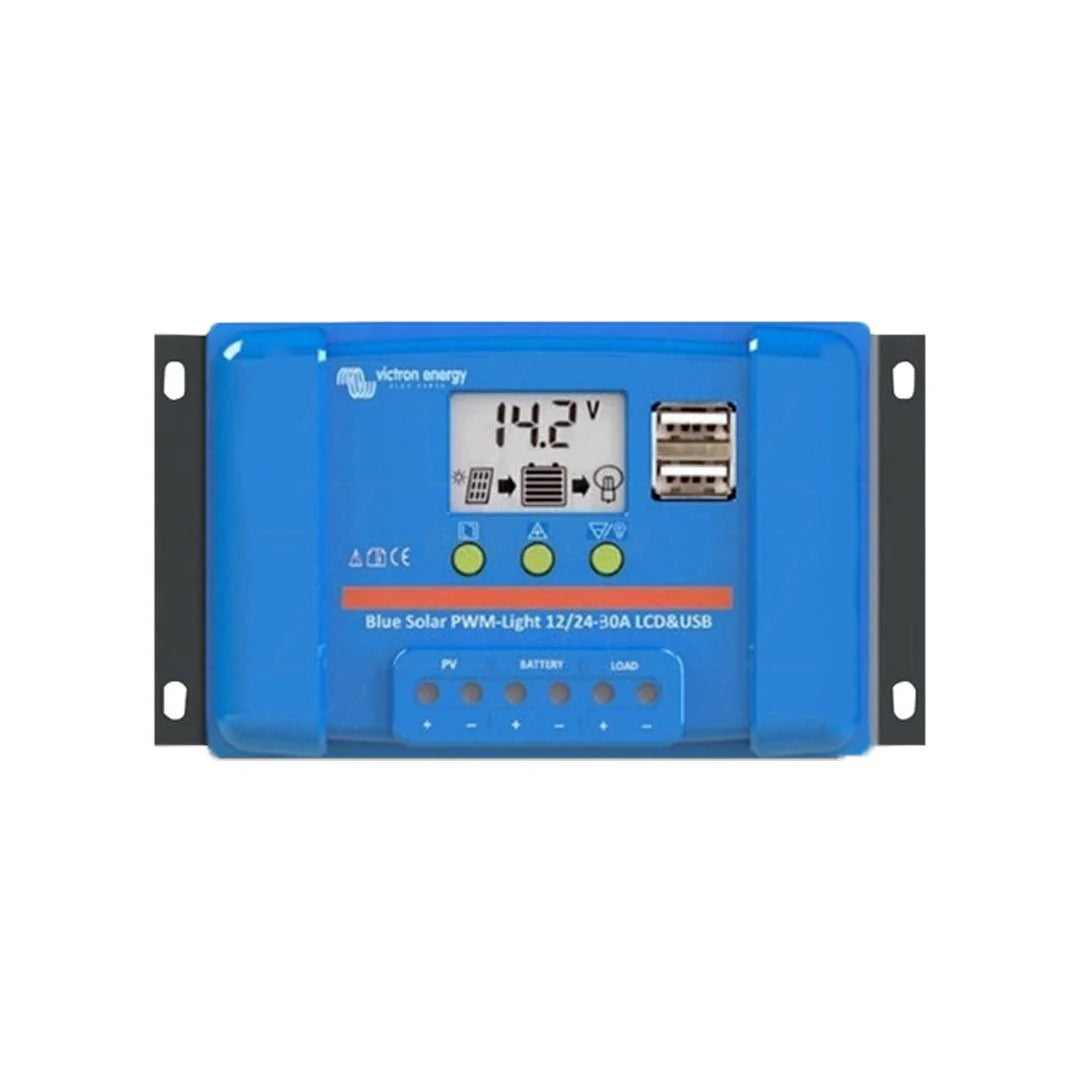

Victron Energy SCC010030050 Blue Solar Charge Controller PWM-LCD&USB 12/24V-30A
Click to open expanded view
VICTRON ENERGY logo

Victron Energy SCC010030050 Blue Solar Charge Controller PWM-LCD&USB 12/24V-30A

SKU: SCC010030050
Sale price
$62.95
Regular price
$106
You save
41%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Victron Energy Blue Solar Charge Controller PWM-LCD&USB 12/24V-30A: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Liquid crystal display for status monitoring and set-up load output. Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.

Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed. The connect and disconnect voltages are adjustable.

Day/night timing of the load output

  • This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm

  • Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs

  • Maximum current (both outputs combined): 2A

Victron Energy SCC010030050 Specification:

  • Battery Voltage: 12/24 V with automatic system voltage detection
  • Rated charge current: 30A
  • Automatic load disconnect: Yes
  • Maximum solar voltage: 28V / 55V
  • Self-consumption: < 10 mA
  • Load output: Manual control + low voltage disconnect +timer
  • Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
  • Grounding: Common positive
  • Operating temp. range: -35 to +60°C (full load)
  • Humidity (non-condensing): Max 95%
