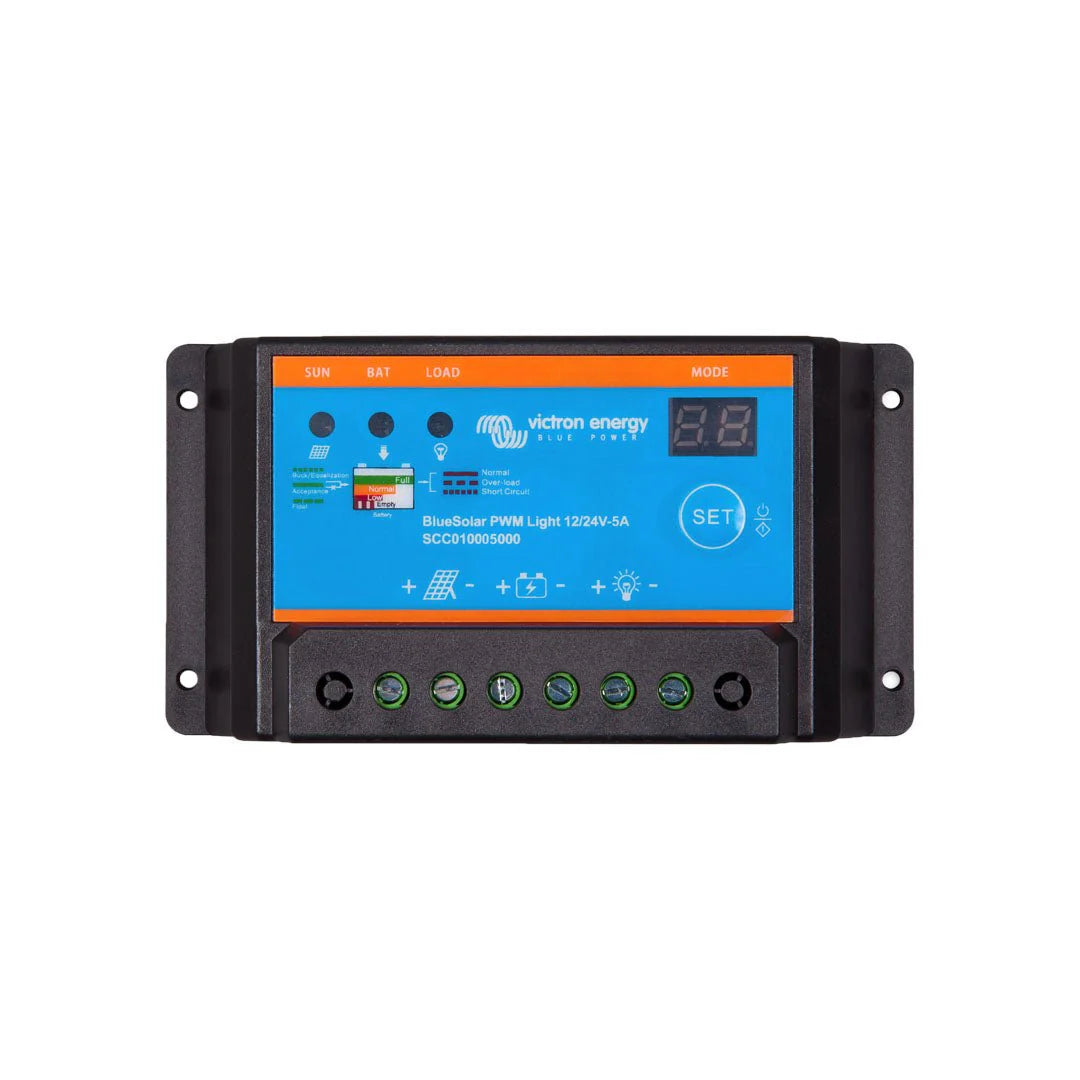

Victron Energy SCC010005000 Blue Solar Charge Controller PWM-Light 12/24V-5A
Click to open expanded view
SKU: SCC010005000

Victron Energy SCC010005000 Blue Solar Charge Controller PWM-Light 12/24V-5A

Sale price
$26.04
Regular price
$44
You save
41%
Buy now, pay later
  • image
  • image
In stock
Linkimage
Product features

Victron Energy Blue Solar Charge Controller PWM-Light 12/24V-5A: The Solar Charge Controller from Victron Energy

Victron Energy SCC010005000 Features:

  • Load output with low battery voltage disconnect function.
  • Lighting control function, one timer only.
  • Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
  • Three stage battery charging (bulk, absorption, float), not programmable.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.

Victron Energy SCC010005000 Specifications:

  • Battery Voltage: 12/24 V with automatic system voltage detection
  • Rated charge current: 5A
  • Automatic load disconnect: Yes
  • Maximum solar voltage: 28V / 55V
  • Self-consumption: < 10 mA
  • Load output: Manual control + low voltage disconnect
  • Grounding: Common positive
  • Operating temp. range: -20 to +50°C (full load)
  • Humidity (non-condensing): Max 95%
