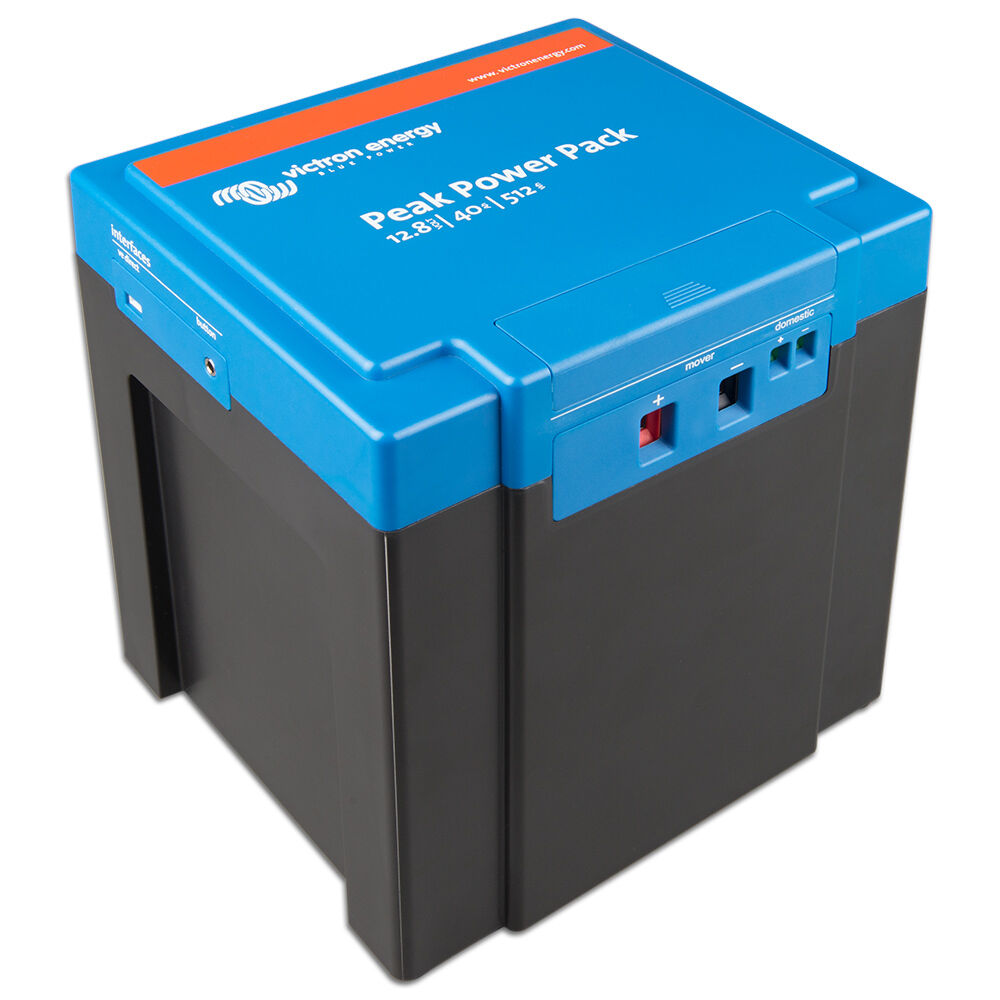

Victron Energy PPP012040000 Peak Power Pack Batteries 12.8V/40Ah 512Wh

Victron Energy Peak Power Pack Batteries 12.8V/40Ah 512Wh: The Peak Power Battery From Victron Energy Have Been Designed to Be a True Worldwide Product

Lightweight and easy to install
Ideal for mobile applications.

Effective protection against improper use

Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid
batteries

Output 1 “mover”: high capacity output for caravan manoeuvring and other applications that are energy-intensive

• Ideal for caravan manoeuvring (caravan movers).
• The 8Ah version is meant for lighter caravans. 20Ah or more is recommended for caravans above 1000kg.
• Short-circuit proof.
• Protected against excessive battery discharge.

Output 2 “domestic”: for low DC loads (not available for the 8Ah model)

• Intended for lighting, audio and video, pumps, fridges.
• Short-circuit proof.
• Protected against excessive battery discharge.

Input 1 “car/solar”: charging while driving or charging with a solar panel
Equipped with voltage and current control for safe charging of the lithium-ion battery. In fact, any source of electric power can be connected to this input (e.g. an alternator or a battery charger), as long as 11V < Vin < 25V.
The current limit is automatically set to a safe value.

Input 2 “adapter”: the adapter supplied with the Peak Power Pack can be connected to this input
Battery charging current: 3A, and suitable for 110/230V power supply.

Rapid charging is possible via output 1 (high capacity output and 30Ah/40Ah models only)
A battery charger or inverter/charger can be connected to the high capacity output. The maximum charging current
is 15A and 20A respectively and the recommended charging voltage is 14V (maximum 14.2V).

Storage mode
Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during
storage.

Remote control with status indicator
Push button (supplied) with a dual-colour LED status indicator:

• Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED.
• Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
• Hold down for 5 seconds: storage mode, blue LED flashes 10 times.
• Battery is charged via input 1:slow flashing blue LED.
• Battery fully charged: blue LED.
• Overload or overheating: flashing red LED.

Victron Energy PPP012040000 Specification:

• Capacity: 40Ah
• Stored energy: 512Wh
• Battery type: Lithium-ion (LiFePO4)
• Nominal voltage: 12.8V
• Self-discharge when activated: < 13 Ah /year (< 1.4 mA)
• Self-discharge in storage mode: < 6.5 Ah /year (< 0.7 mA)

Output 1: high capacity “mover”

• Continuous output current: 150A
• Maximum output current (10 seconds): 200A
• Short-circuit current: 300A
• Safety features: Overload / short-circuiting / temperature / excessive discharge
• Maximum charging current: 20A (no protection)
• Recommended charging voltage: 14V (no protection)
• Maximum charging voltage: 14.2V (no protection)
• Maximum cable diameter: 16mm² (screw clamps)

Output 2: on-board power network “domestic”

• Continuous output current: 30A
• Maximum output current (10 seconds): 50A
• Short-circuit current: 80A
• Safety features: Overload / short-circuiting / temperature / excessive discharge
• Maximum charging current: 10A (no protection)
• Recommended charging voltage: 14V (no protection)
• Maximum charging voltage: 14.2V (no protection)
• Maximum cable diameter: 6mm²(screw clamps)

Input 1: “car/solar”

• Input voltage range: 11 V < Vin < 25 V
• Current limitation: 7A

Input 2: “adapter”

• Output voltage: 15V
• Output current: 3A
• Input voltage: 110 / 230 V 50 / 60 Hz
