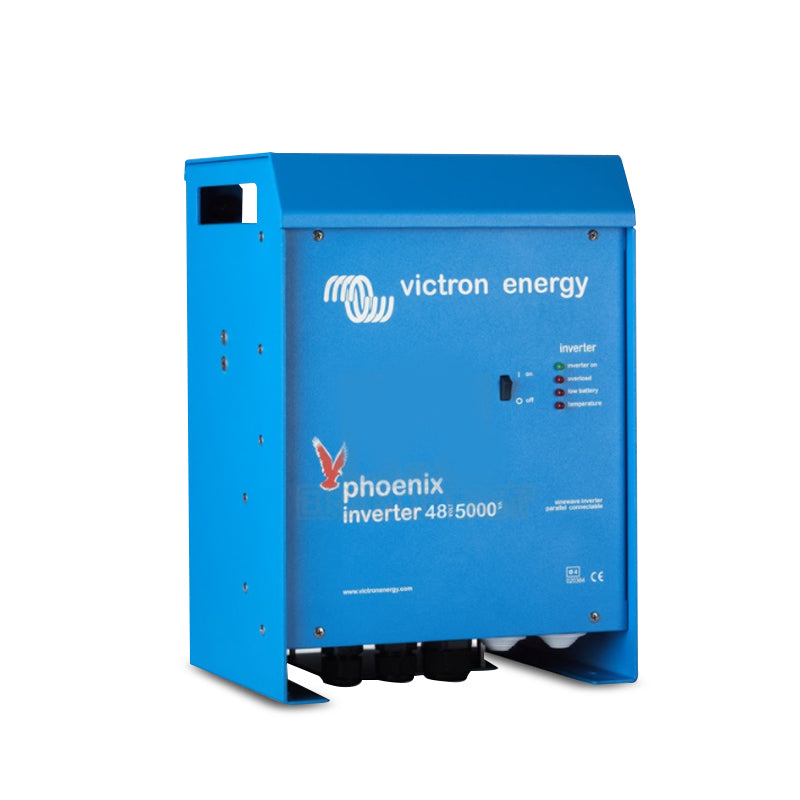

Victron Energy PIN485020000 48/5000 Phoenix Inverter
Click to open expanded view
VICTRON ENERGY logo

Out of stock

Victron Energy PIN485020000 48/5000 Phoenix Inverter

SKU: PIN485020000
Regular price
$2,763.20
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Victron Energy 48/5000 Phoenix Inverter: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface
All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface.

Together with our VEConfigure software, which can be downloaded free of charge from
our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over
and under voltage settings and programming the relay. This relay can for example be used to signal several
alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control
network of Victron Energy, or to other computerized monitoring and control systems.

Victron Energy PIN485020000 Specifications:

  • Input voltage range (V DC): 38 – 66V
  • Output:
    • Output voltage: 230 VAC ±2%
    • Frequency: 50 Hz ± 0,1% (1)
  • Cont. output power at 25ºC (VA) (2): 5000
  • Cont. output power at 25ºC (W): 4000
  • Cont. output power at 40ºC (W): 3700
  • Cont. output power at 65ºC (W): 3000
  • Peak power (W): 10000
  • Max. efficiency 12/ 24 /48 V (%): 95
  • Zero load power 12 / 24 / 48 V (W): 35
  • Zero load power in AES mode (W): 30
  • Zero load power in Search mode (W): 15

Note: Must be installed by a licensed electrician
