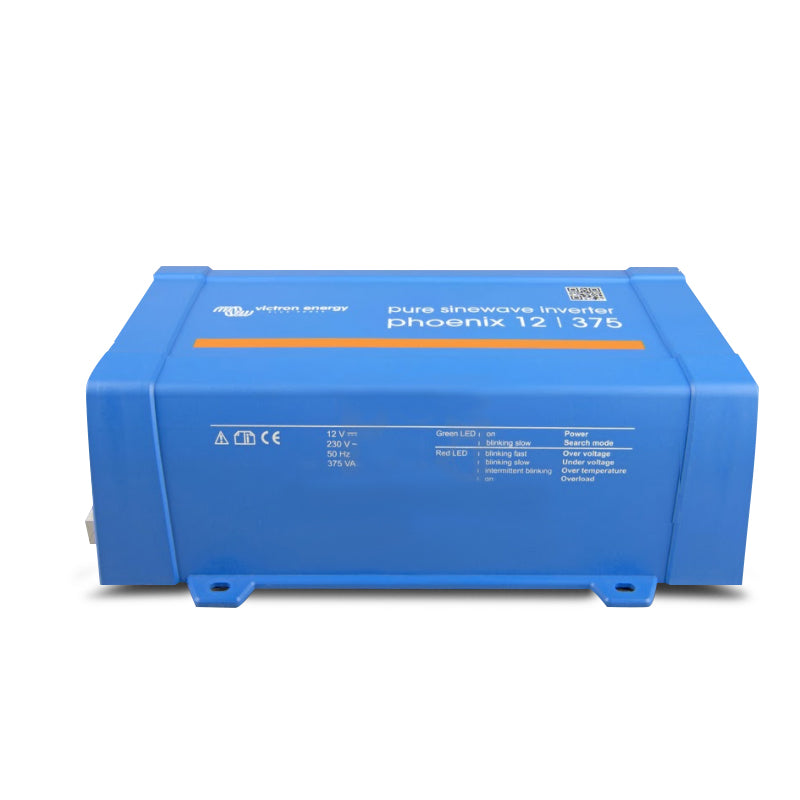

Victron Energy PIN123750200 12/375 Phoenix Direct Schuko Inverter

Victron Energy 12/375 Phoenix Direct Schuko Inverter: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

Victron Energy PIN123750200 Specifications:

Fully configurable

• Low voltage alarm trip and reset levels
• Low voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage: 210 – 245V
• Frequency: 50Hz or 60Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage and alarms
