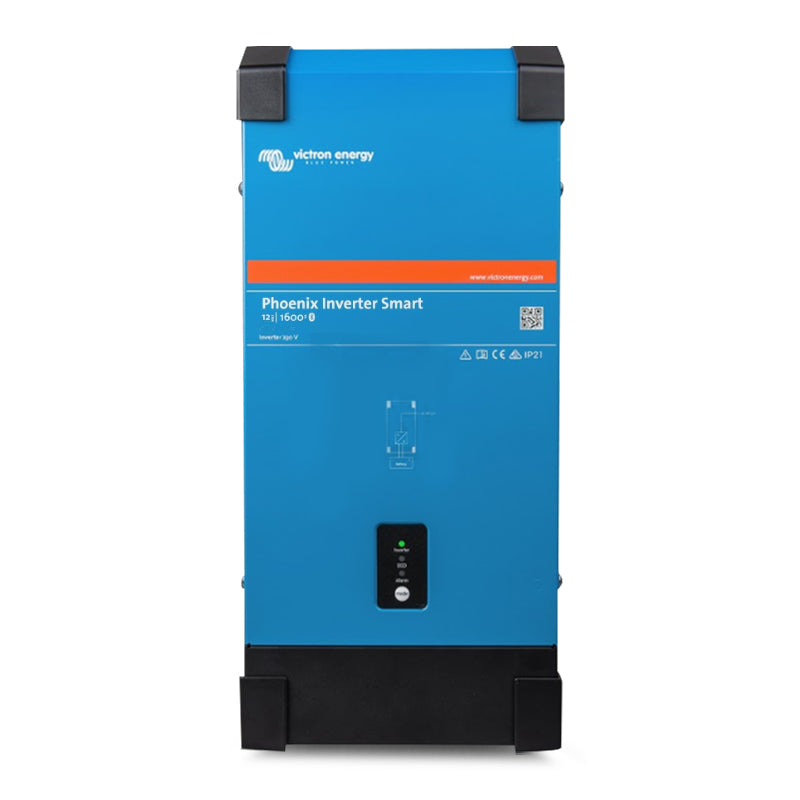

Victron Energy PIN122160000 12/1600 Phoenix Inverter Smart

Victron Energy 12/1600 Phoenix Inverter Smart: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems.

It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.

Computer interface
All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface.

Together with our VEConfigure software, which can be downloaded free of charge from
our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over
and under voltage settings and programming the relay. This relay can for example be used to signal several
alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control
network of Victron Energy, or to other computerized monitoring and control systems.

Victron Energy PIN122160000 Specifications:

• Input voltage range (V DC): 9,3 – 17V
• Output:
  • Output voltage: 230 VAC ±2%
  • Frequency: 50 Hz ± 0,1% (1)
• Cont. output power at 25ºC (VA) (2): 1600VA
• Cont. output power at 25ºC (W): 1300W
• Cont. output power at 40ºC (W): 1200W
• Cont. output power at 65ºC (W): 800W
• Peak power (W): 3000VA
• Max. efficiency 12/ 24 /48 V (%): 92
• Zero load power 12 / 24 / 48 V (W): 8
• Zero load power in ECO mode (W): 0.6
