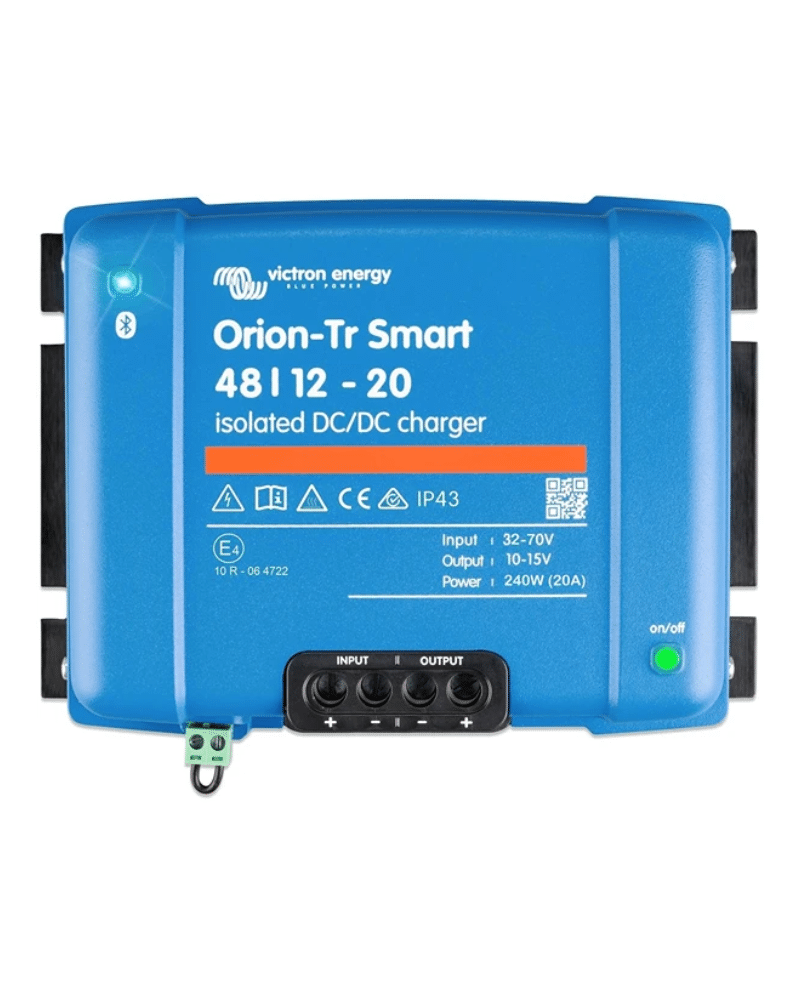

Victron Energy ORI481224120 Orion-Tr Smart 48/12 DC-DC Charger | 240W Isolated

Power Your Journey: Smart Charging, Anywhere

The Victron Energy Orion-Tr Smart 48/12-20A is a cutting-edge DC-DC charger designed for serious off-grid enthusiasts and marine adventurers. This advanced isolated charger seamlessly bridges 48V and 12V electrical systems, providing reliable power management for complex vehicle and boat setups.

Victron Energy ORI481224120 Features & Benefits

• Intelligent 3-Stage Charging: Ensures optimal battery health and longevity

• Bluetooth Connectivity: Configure and monitor your charging system remotely

• Isolated Design: Prevents electrical interference between battery systems

• High-Temperature Performance: Full rated output up to 40°C

• Versatile Compatibility: Works with 12V, 24V, and 48V systems

Technical Specs

• Input Voltage Range: 32-70V

• Output Voltage: 10-15V

• Maximum Continuous Output: 20A (240W)

• Bluetooth Configuration Enabled

• Suitable for Lead Acid and Lithium Batteries
• Dimensions: 130 x 186 x 70 mm

• Weight: 1.3 kg

• Protection Rating: IP43 (electronic components) IP22 (connection area)

• Operating Temperature: -20 to +55°C (derate 3% per °C above 40 °C)

• DC Connection: Screw Terminals

• Maximum Cable Cross-section: 16 mm² AWG6

Compatible With / Goes Well With

• 4WD Dual Battery Systems

• Marine Electrical Setups

• Caravans and RVs

• Solar Power Installations

• Auxiliary Battery Systems

Frequently Asked Questions

• Will this charger work with my lithium battery setup? Absolutely, it's compatible with both lead-acid and lithium battery technologies.

• Can I monitor the charger remotely? Yes, the built-in Bluetooth allows complete configuration and monitoring via smartphone.

• Is this suitable for marine environments? Designed for harsh conditions, it performs excellently in marine and off-road applications.

• How does the smart charging work? Uses an adaptive 3-stage charging process: bulk, absorption, and float for optimal battery care.

• Can multiple units be connected? Yes, unlimited units can be paralleled to increase output power.
