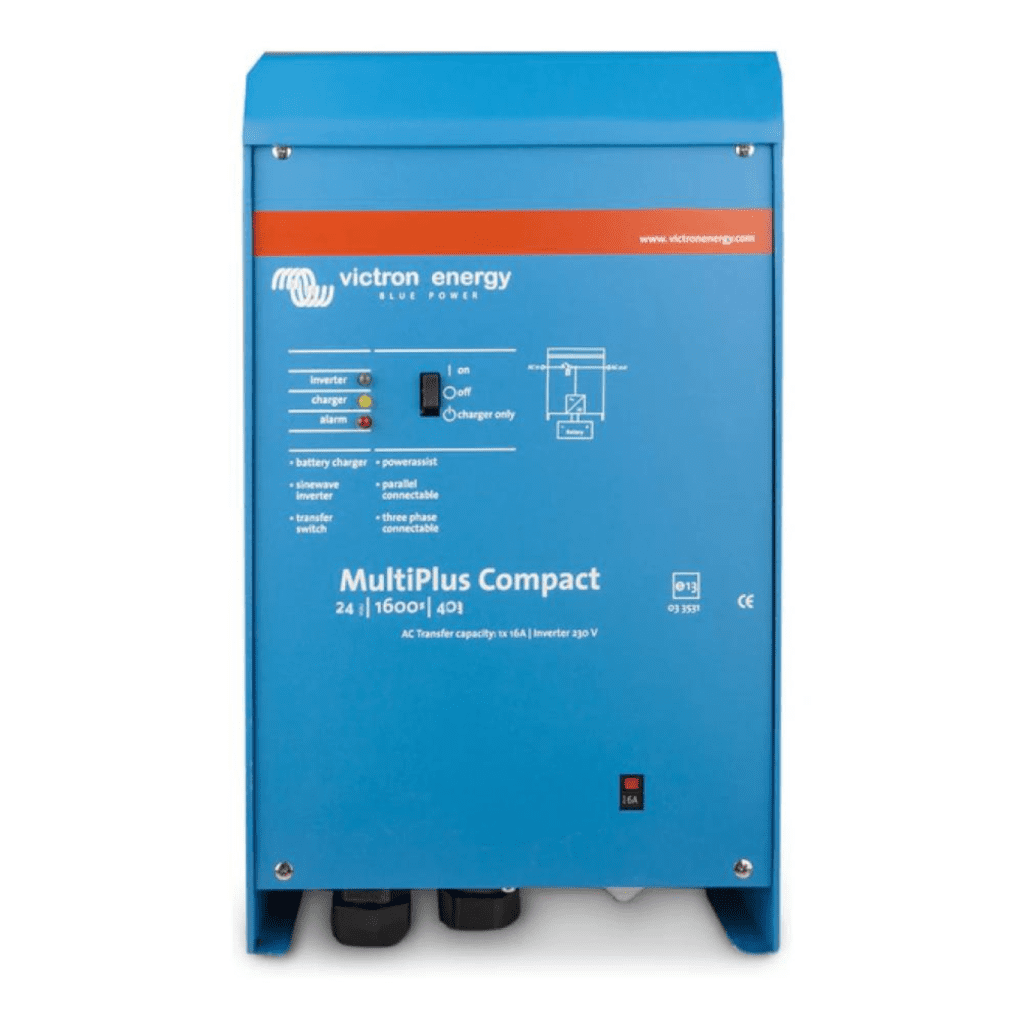

Victron Energy CMP242160000 MultiPlus Compact 24/1600/40-16 230V VE.Bus | Reliable Off-Grid Inverter Charger

The Victron Energy MultiPlus Compact 24/1600/40-16 230V VE.Bus is a professional-grade inverter and charger in one compact, efficient package.

Perfect for off-grid homes, boats, RVs, and hybrid energy systems, it delivers reliable, uninterrupted AC power with advanced energy management features.

Featuring PowerAssist technology, the MultiPlus Compact prevents overloads of limited AC sources such as shore power or generators by intelligently combining battery and AC supply. Its built-in UPS functionality ensures that in the event of a grid failure or AC disconnection, your electronics and appliances continue running without interruption, switching over in less than 20 milliseconds.

With the ability to parallel multiple units (up to 6), and support for three-phase or split-phase operation, this inverter charger can scale to meet virtually unlimited power requirements. Additionally, the MultiPlus Compact integrates with GX devices for full remote monitoring and control, giving you access to your energy system locally or anywhere in the world via the free VRM portal or app.

Victron Energy CMP242160000 Key Benefits & Features:

• Hybrid PowerAssist Technology – Avoids overloads by intelligently combining battery and AC supply.

• Uninterrupted AC Power (UPS Function) – Maintains seamless operation for computers and sensitive electronics.

• Scalable Power Output – Up to 6 units in parallel; supports three-phase and split-phase setups.

• Remote Monitoring & Control – Full system visibility and control via GX devices, VRM app, or portal.

• True Sine Wave Inverter – Ensures safe operation of all sensitive electronics.

• Adaptive Charging – Optimizes battery charging for longer life and efficiency.

• Compact & Durable Design – Space-saving, professional-grade build ideal for off-grid and mobile applications.


Tech Specifications:

General Features

• Nominal Battery Voltage: 24 V
• PowerControl & PowerAssist: Yes – prevents overload of shore or generator supply by intelligently combining battery power.
• Transfer Switch: 50 A – automatic switching between AC sources.
• AC Input Voltage Range: 187–250 V
• AC Input Frequency: 50/60 Hz, Power Factor >0.8

Inverter Specifications

• Input Voltage Range (VDC): 9.5–17 V / 19–33 V / 38–66 V
• Output Voltage: 230 VAC ± 2 %
• Frequency: 50 Hz ± 0.1 %
• Continuous Output Power (25°C): 1600 VA / 1300 W
• Continuous Output Power (40°C): 1200 W
• Continuous Output Power (65°C): 800 W
• Peak Power: 3000 W – handles high-startup loads from appliances and electronics
• Maximum Efficiency: 93–94% – reduces energy loss and extends battery life
• Zero Load Power: 8–10 W | AES Mode: 5–8 W | Search Mode: 2–3 W

Charger Specifications

• AC Input Voltage: 187–265 VAC
• AC Input Frequency: 45–65 Hz, Power Factor 1
• Charge Voltage (Absorption): 14.4 / 28.8 / 57.6 V
• Charge Voltage (Float): 13.8 / 27.6 / 55.2 V
• Storage Mode Voltage: 13.2 / 26.4 / 52.8 V
• Charge Current (House Battery): 70 / 40 A
• Charge Current (Starter Battery): 4 A (12 V & 24 V models)
• Battery Temperature Sensor: Yes – ensures safe, efficient charging

Connectivity & Control

• Programmable Relay: Yes – for alarms, load control, or generator auto-start
• Protection: Comprehensive (overload, short-circuit, overtemperature, incorrect voltage)
• VE.Bus Communication Port: Supports parallel and three-phase operation, remote monitoring, and system integration
• Remote On-Off: Yes

Environmental & Operating Conditions

• Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
• Humidity (Non-Condensing): Max 95%
• Maximum Altitude: 2000 m

Enclosure & Build

• Material & Colour: Aluminium, Blue (RAL 5012) – durable, professional-grade design
• Protection Category: IP20, Pollution Degree 2, OVCIII, Icw 6kA 30ms
• Battery Connection: Battery cables 1.5 m included
• AC Connection: G-ST18i plug

Compliance & Safety Standards

• Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
• EMC Standards (Emission & Immunity): EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1/2/3
• Road Vehicle Compliance: ECE R10-4 (12 V & 24 V models)

Frequently Asked Questions

• What is the Victron Energy MultiPlus Compact used for?
  The MultiPlus Compact is a combined inverter and charger ideal for off-grid homes, boats, RVs, and hybrid energy systems. It delivers uninterrupted, reliable AC power and advanced energy management.
• Can this inverter handle high loads?
  Yes. With 1600 VA / 1300 W continuous power and a peak power of 3000 W, it can support household appliances, electronics, and sensitive devices safely.
• What is PowerAssist and how does it work?
  PowerAssist prevents overloads of limited AC sources such as shore power or generators. It intelligently combines battery and AC supply to maintain continuous power without tripping breakers.
• Does the MultiPlus Compact have UPS functionality?
  Yes. It switches to inverter power in less than 20 milliseconds during grid failure or AC disconnection, keeping sensitive electronics running without interruption.
• Can multiple units be used together for higher power?
  Yes. The MultiPlus Compact supports parallel operation and three-phase setups, allowing scalable power for larger installations.
• Can I monitor and control the system remotely?
  Yes. With a GX device and the free VRM portal/app, you can monitor and control your MultiPlus Compact locally or from anywhere in the world.
• What protections are built into the MultiPlus Compact?
  It includes overload, short-circuit, overtemperature, and incorrect voltage protections, ensuring safe and reliable operation.
• What are the installation requirements?
  The unit includes 1.5 m battery cables and a G-ST18i AC connector and supports fan-assisted cooling for operation between -40°C and +65°C.
