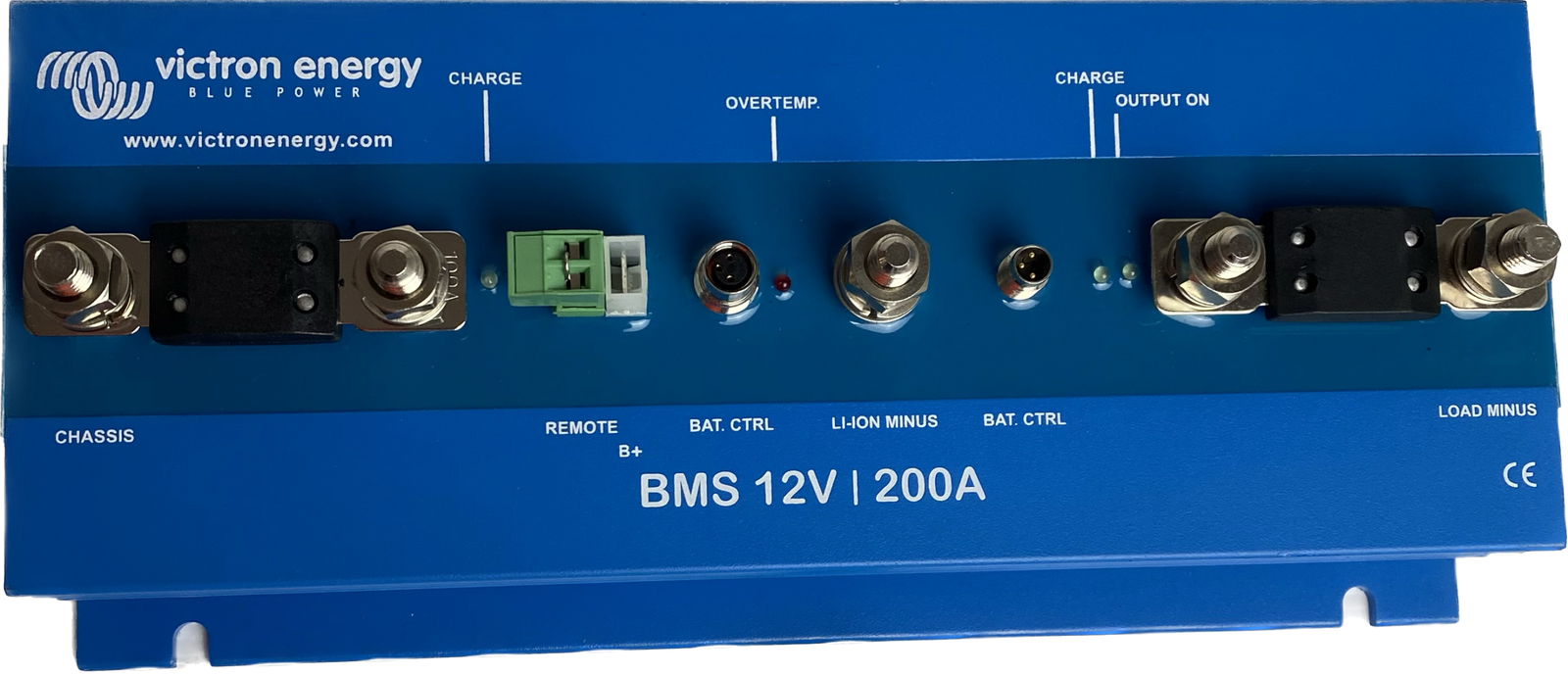

VICTRON ENERGY BMS012201000 Battery Management System 12/200 - Alternator Protection and Battery Management for Lithium Battery Systems

VICTRON ENERGY BMS012201000 Battery Management System 12/200 - Alternator Protection and Battery Management for Lithium Battery Systems

Protect your alternator and manage lithium battery charging with the Victron Energy Battery Management System 12/200—featuring intelligent alternator protection preventing overheating from excessive charging current to lithium batteries, 200A maximum current rating suitable for large alternator installations and high-current charging systems, integrated current limiting based on fuse rating preventing cable and alternator damage, lithium battery management coordinating multiple battery modules through daisy-chained control cables, remote on/off control enabling system shutdown for maintenance or emergency situations, load disconnect capability protecting batteries from over-discharge during excessive load conditions, bi-directional current control managing both charging and load currents, temperature-compensated operation maintaining safe charging parameters across temperature ranges, compact design suitable for engine bay or battery compartment installation with vertical mounting for optimal cooling, and essential component for caravan lithium upgrades, boat house battery systems, 4WD auxiliary lithium installations, motorhome electrical systems, and applications requiring safe alternator charging of lithium batteries while protecting alternator from damage caused by lithium batteries' high charge acceptance rates.

Product Overview

The Victron Energy BMS 12/200 addresses critical challenge of charging lithium batteries from vehicle alternators—lithium batteries' ability to accept high charging currents (often 1C or higher) can overload alternators designed for lead-acid batteries with lower charge acceptance, causing alternator overheating, reduced lifespan, and premature failure particularly in vehicles with undersized alternators or long cable runs. BMS 12/200 acts as intelligent current limiter positioned between alternator and lithium battery bank monitoring charging current and limiting input current based on fuse rating selected during installation preventing alternator overload while still enabling effective lithium battery charging. System supports up to 200A maximum current suitable for large alternator installations (typically 150-200A alternators) and high-capacity lithium battery banks requiring substantial charging current. Fuse-based current limiting provides simple adjustable protection—installer selects fuse rating (typically 50-200A) matching alternator capacity, cable sizing, and desired charging current with BMS automatically limiting current to fuse rating preventing overload without complex programming or adjustment. Battery control cable daisy-chaining enables coordination between multiple lithium battery modules—BMS communicates with individual battery BMS units (battery management systems within each lithium battery or module) receiving status information and coordinating charging/discharging based on battery condition, temperature, and cell balance requirements. Remote on/off control provides emergency shutdown capability—enables disconnecting system for maintenance, emergency situations, or when lithium batteries require isolation from charging sources with simple connector removal deactivating BMS and interrupting charging current. Load disconnect capability protects batteries from over-discharge—BMS can disconnect load output when batteries reach minimum voltage protecting lithium cells from damage caused by excessive discharge below manufacturer specifications. Bi-directional current control manages both alternator charging input and load output—monitors current in both directions ensuring neither charging nor load currents exceed safe limits for batteries, wiring, and connected equipment. Vertical mounting recommended for optimal cooling—BMS generates heat during high-current operation requiring adequate ventilation and heat dissipation with vertical orientation promoting natural convection cooling and preventing heat buildup in enclosed installations. Installation involves strategic fuse selection, proper cable routing, battery control cable connections, and system commissioning following manufacturer procedures ensuring reliable protection and battery management. Compatible with Victron lithium batteries and other lithium battery systems with appropriate BMS communication protocols—enables integrated system operation with coordinated charging, load management, and protection functions across multiple system components.

Key Features

Alternator Protection Through Current Limiting: Prevents alternator damage from lithium batteries' high charge acceptance by limiting charging current based on installed fuse rating. Lithium batteries can accept charging current up to their full C-rating (1C or more) potentially overloading alternators designed for lead-acid batteries accepting only 0.2-0.3C. BMS limits current to safe level preventing alternator overheating and premature failure. Fuse selection determines current limit—install 50A fuse for 50A limit, 100A fuse for 100A limit, up to 200A maximum matching alternator capacity and cable sizing.

200A Maximum Current Rating: Supports high-current charging systems with 200A maximum rating suitable for large alternators and substantial lithium battery banks. Appropriate for vehicles with 150-200A alternators, marine installations with high-output alternators, or systems requiring rapid lithium battery charging. Rating accommodates both charging current from alternator and load current to accessories ensuring adequate capacity for typical caravan, boat, or 4WD electrical systems without current limiting interference during normal operation.

Fuse-Based Current Adjustment: Simple current limiting through fuse selection eliminates complex programming or adjustment. Installer selects appropriate fuse rating during installation based on alternator capacity, cable cross-section, and desired charging current. BMS automatically detects fuse rating and limits current accordingly. Fuse serves dual purpose—provides overcurrent protection and current limiting reference. Changing fuse rating adjusts current limit enabling system optimization without additional configuration.

Battery Control Cable Daisy-Chaining: Coordinates multiple lithium battery modules through daisy-chained control cables enabling integrated battery management. BMS communicates with individual battery BMS units receiving cell voltage, temperature, and balance status. Coordinates charging and discharging based on battery condition—suspends charging if any battery reaches maximum voltage or temperature, disconnects loads if any battery reaches minimum voltage, and ensures balanced operation across multiple battery modules. Essential for multi-battery installations maintaining system-wide protection.

Remote On/Off Control: Provides convenient system shutdown through remote connector enabling maintenance access or emergency disconnection. Simple connector removal deactivates BMS interrupting charging current and load supply. Useful for winterizing stored vehicles, performing battery maintenance, emergency situations requiring system isolation, or troubleshooting electrical problems. Reinsert connector to reactivate system—no programming or reset required. Remote cable extension (if required) enables convenient switch mounting in accessible location.

Load Disconnect Protection: Protects lithium batteries from over-discharge by disconnecting load when batteries reach minimum voltage. Prevents cell damage from excessive discharge below manufacturer specifications—critical for lithium battery longevity as over-discharge causes permanent capacity loss or cell failure. Automatic reconnection when batteries recharged above safe voltage. Load disconnect threshold typically set by battery BMS communication—BMS responds to battery protection signals rather than fixed voltage preventing false disconnects from voltage sag during high loads.

Bi-Directional Current Management: Monitors and controls current in both directions—charging input from alternator and load output to accessories. Ensures neither direction exceeds safe limits for batteries, wiring, or equipment. Input current limiting prevents alternator overload. Output current monitoring enables load disconnect when required. Bi-directional capability provides comprehensive system protection rather than single-direction charging-only protection found in simpler devices.

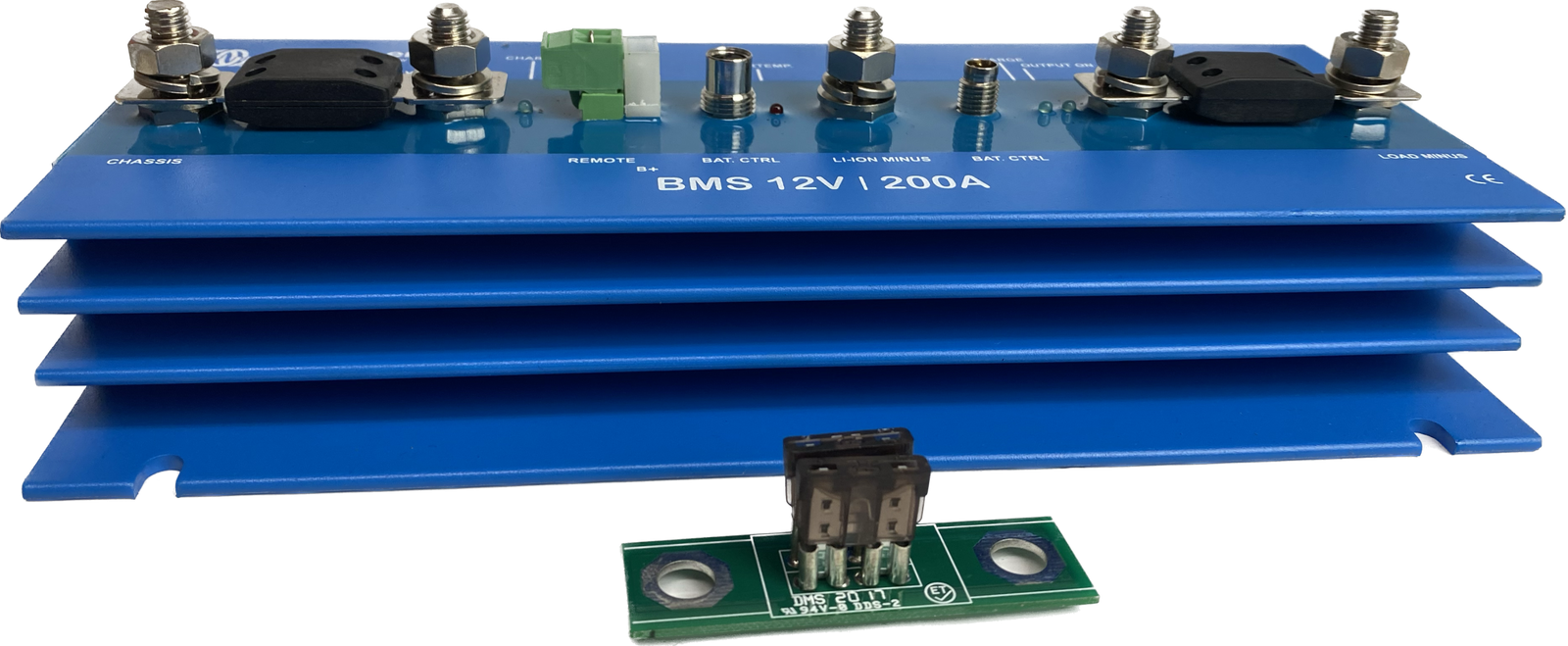

Vertical Mounting for Cooling: Designed for vertical surface mounting promoting optimal cooling through natural convection. BMS generates heat during high-current operation particularly near 200A rating. Vertical orientation allows hot air to rise away from unit preventing heat buildup. Mounting in engine bay or battery compartment requires adequate ventilation—avoid enclosed spaces without airflow, position away from exhaust components or other heat sources, and ensure cooling fins or heat sink (if equipped) have clear air circulation.

Victron Energy Quality and Integration: Genuine Victron product designed for reliable lithium battery management and alternator protection. Integrates with Victron lithium batteries, Battery Monitors, and other Victron components providing coordinated system operation. Victron reputation for quality marine and automotive electrical equipment ensures reliable performance in demanding applications. Technical support available through Victron dealers and extensive online documentation assists with installation, configuration, and troubleshooting.

Technical Specifications

Frequently Asked Questions

Q: Why do I need a BMS when my lithium batteries already have built-in BMS?

A: Battery-internal BMS protects individual battery cells but doesn't protect alternator from overload. Lithium batteries accept high charging current (often 1C or more) potentially overloading alternators designed for lead-acid. This BMS limits charging current to safe level preventing alternator damage while coordinating with battery BMS for comprehensive system protection.

Q: How do I select the correct fuse rating for my installation?

A: Choose fuse rating based on alternator capacity and cable sizing. General guideline: use 50-70% of alternator rating for continuous charging. Example: 140A alternator use 70-100A fuse. Consider cable sizing—ensure cables rated for selected fuse current. Consult vehicle specifications and cable ampacity tables. Lower fuse rating provides more alternator protection but slower charging.

Q: Can I use this with any lithium battery or only Victron batteries?

A: Primarily designed for Victron lithium batteries with compatible BMS communication. Some other lithium batteries with similar communication protocols may work but verify compatibility before installation. Battery control cable communication essential for coordinated protection—batteries must support this protocol. Consult manufacturer specifications or contact Victron support for compatibility confirmation.

Q: Where should I mount the BMS and does orientation matter?

A: Mount on vertical surface for optimal cooling—vertical orientation promotes natural convection allowing hot air to rise away from unit. Install in location with adequate ventilation—engine bay or battery compartment with airflow. Avoid enclosed spaces trapping heat, proximity to exhaust components, or areas exposed to direct water spray. Ensure mounting surface can support unit weight and provides secure attachment.

Q: What happens if the BMS disconnects the load or charging—how do I reset it?

A: BMS automatically reconnects once fault condition resolved. Load disconnect from low battery resets when batteries recharged above threshold voltage. Current limiting releases when current demand decreases below fuse rating. No manual reset typically required—system resumes normal operation automatically. If repeated disconnects occur, investigate underlying cause (undersized fuse, excessive loads, battery problems, or alternator issues).
