Ultra Vision UV-FNGR-KIT Ford Next-Gen Ranger Light Bar Behind Grille Kit

UltraVision Next-Gen Ranger Light Bar Behind Grille Kit: Designed and Made LED Light Bars to Your Ranger without Having to Invest in A Bull Bar

Specifically designed for the Next Gen Ranger XL, XLS, XLT, Sport, Wildtrak & Wildtrak X models, this behind grille kit has everything you need to integrate the power of Ultra Vision with your vehicle, and there’s no cutting or drilling required!

This kit allows you to easily conceal Ultra Vision, Australian designed and made LED Light Bars to your Ranger without having to invest in a bull bar. The light bars mount to existing points behind the grille providing a very solid fitment that doesn’t vibrate on rough roads.

The bracket system is cleverly engineered so that it mounts to existing points behind the grille. Only the grille shroud beneath the bonnet needs to be removed temporarily for access.

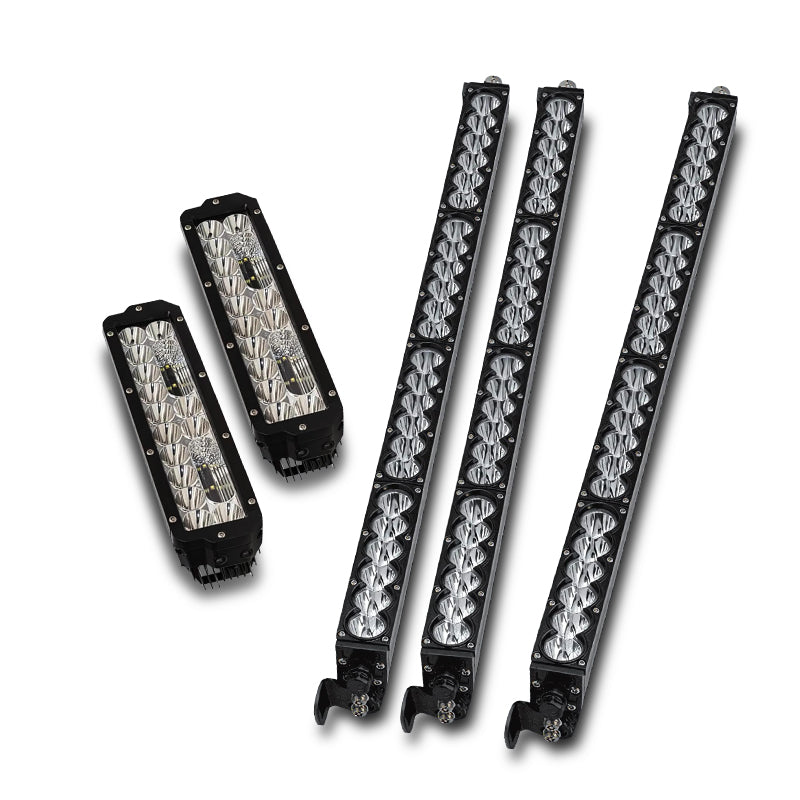

Choose from Light Bar options below (all 5700K colour temperature):

• 2 x Nitro Maxx 105w 13-Inch LED Light Bars
• 2 x Raptor 165w 26.5-Inch LED Light bar
• 1 x Raptor 165w 26.5-Inch LED Light bar

Ultra Vision UV-FNGR-KIT Features:

• Custom fit for Next-Gen Ford Ranger 2022-on, XL, XLS, XLT, Sport, Wildtrak & Wildtrak X Models
• No bull bar required
• No cutting or drilling required
• Includes choice of Raptor or Nitro Maxx light bars
• Nitro Maxx Light Bars Include the Widr® Optic – This unique reflector delivers market leading output, achieving huge distance with excellent spread
• Solid fitment that doesn’t vibrate on rough roads
• 3 or 5-year warranty
• Designed and made in Australia

Ultra Vision UV-FNGR-KIT Specifications:

Nitro Maxx 105

• Wattage: 100 Watts
• Light Source: 20 x 5w LED's
• Light Output – Raw: 12,320 Lumens
• Light Output – Effective: 8,865 Lumens
• Voltage: 9-36V
• Current Draw: 8A
• Operating Temperatur:e -40 to 80 Deg C
• Waterproof Rating: IP68
• Connector Type Plugs: 2 Pin std Deutsch
• Housing 6063 T5: Aluminium
• Lens Construction: Polycarbonate
• Brackets: Sliding Base / Side Mounts
• Colour Temperature: 5700K
• Lifespan: 50,000 Hours
• Dimensions: 324 x 92 x 84mm
• Net Weight: 1.9 kg
• Beams Available: Combo and Widr
• Warranty: 5 Years

Raptor 165w

• Wattage: 165 Watts
• Light Source: 24 High Power LEDs
• Light Output – Raw: 18,609 Lumens
• Light Output – Effective: 15,240 Lumens
• Voltage: 9-36V
• Current Draw: 13A
• Operating Temperature: -40 to 80 Deg C
• Waterproof Rating: IP67
• Connector Type: Plugs 2 Pin heavy duty Deutsch
• Housing: 6063 T5 Aluminium
• Lens Construction: Polycarbonate
• Brackets: Side Mount Brackets
• Colour Temperature: 5700K
• Lifespan: 50,000 Hours
• Dimensions: 679 x 45 x 73mm
• Net Weight: 2.3kg
• Beams Available: Spot
• Warranty: 3 Years

What's In The Box:

• Choice of Nitro Maxx or Raptor Light Bars (5700K)
• 1x Wiring harness to suit
• 1x Purpose-built Next-Gen behind-grille black powder-coated bracket kit
• 1x High-beam wiring harness adaptor
• 1x High-beam plug kit for Wildtrak models only
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions
