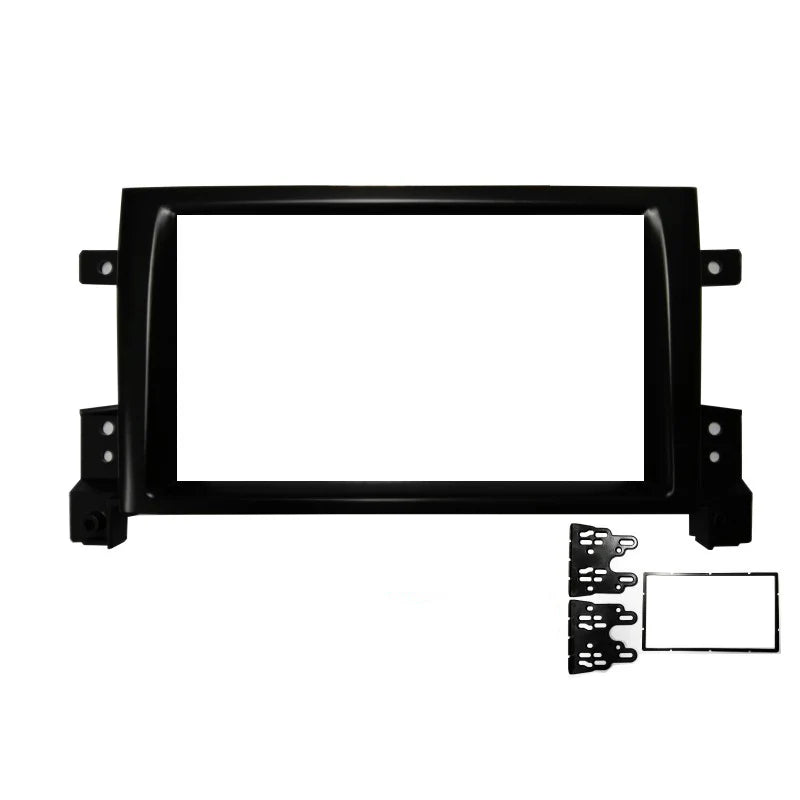

CAC FASUZUKIGRANDVITARA200520137 (F7SZ3) Double DIN Fascia Kit for Suzuki Grand Vitara 2005-2013

Professional dashboard integration for your Suzuki Grand Vitara's aftermarket head unit upgrade.

Product Overview

The CAC FASUZUKIGRANDVITARA200520137 is a complete double DIN fascia kit engineered specifically for Suzuki Grand Vitara models (JT chassis) manufactured between 2005 and 2013. This adapter panel converts your factory head unit opening to accept standard aftermarket double DIN receivers while maintaining your dashboard's rugged 4WD aesthetic. Manufactured from high-quality black ABS plastic with precision moulding, the kit includes all essential components for professional installation: fascia panel, double DIN trim ring, side mounting brackets, and installation hardware. Compatible with all Grand Vitara variants including 3-door and 5-door body styles across the entire 2005-2013 model range.

Key Specifications

• Vehicle compatibility: Suzuki Grand Vitara 2005-2013 (JT chassis, all body styles)
• Opening dimensions without trim ring: 178mm W × 101mm H
• Opening dimensions with trim ring: 173mm W × 98mm H
• Material: High-quality ABS plastic in black finish
• Installation type: Double DIN aftermarket head unit adapter
• Complete kit includes panel, trim ring, side brackets, and screws
• Manufactured to factory specifications for precise dashboard integration

Features & Benefits

Factory-Matched Black Finish - OEM-specification black ABS plastic construction ensures the fascia blends seamlessly with your Grand Vitara's dashboard design, maintaining the authentic 4WD aesthetic expected in a serious off-road SUV. The finish resists fading from sun exposure during extended touring and outback adventures.

Universal Double DIN Compatibility - The standardised 178×101mm opening accepts virtually all aftermarket double DIN head units from Pioneer, Kenwood, Sony, JVC, and other major manufacturers. Upgrade to modern Apple CarPlay and Android Auto systems for navigation, communication, and entertainment during remote 4WD touring.

Complete Installation Kit - Every essential component for professional installation is included: precision-cut fascia panel, double DIN trim ring for clean edges, side mounting brackets for secure fitment, and all required screws. This complete solution eliminates the need for additional adapter purchases.

Durable ABS Construction - High-grade automotive ABS plastic resists UV degradation, temperature extremes, vibration, and daily wear. The material maintains structural integrity across Australia's harshest 4WD conditions from corrugated outback tracks to coastal sand driving, where lesser plastics would crack, warp, or fade.

Multi-Body Style Compatibility - Engineered to fit both 3-door and 5-door Grand Vitara variants without modification, providing versatility across the entire JT chassis range. This universal fitment eliminates compatibility concerns whether you're upgrading a compact 3-door or family-friendly 5-door model.

Off-Road Proven Design - Purpose-built to withstand the vibration and shock loads common in serious off-road use. The robust side bracket mounting system and quality materials prevent cracking during articulation over rocks, deep ruts, and extreme terrain that would compromise inferior adapters.

Technical Specs

• Product code: FASUZUKIGRANDVITARA200520137
• Brand: CAC
• Fitment: Suzuki Grand Vitara 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• Chassis code: JT
• Body style compatibility: 3-door and 5-door variants
• Head unit size: Double DIN (2-DIN)
• External opening (no trim): 178mm × 101mm
• Internal opening (with trim): 173mm × 98mm
• Material composition: Automotive-grade ABS plastic
• Colour: Black (factory-matched)
• Mounting: Side bracket system included
• Trim requirement: Minor trimming may be needed for larger screen units
• Weight: Approximately 0.5kg (complete kit)
• Package contents: Fascia panel, trim ring, side brackets, installation screws

Frequently Asked Questions

Does this fit both 3-door and 5-door Grand Vitara models Yes, this fascia kit is compatible with all Suzuki Grand Vitara variants from 2005-2013, including both 3-door and 5-door body styles with the JT chassis code.

Will I need to modify the fascia for installation Minor trimming may be required to accommodate larger screen aftermarket head units, particularly modern multimedia receivers with screens exceeding 7 inches, though standard double DIN units typically require no modification.

What size head units does this accept This accepts standard double DIN (2-DIN) aftermarket head units with dimensions up to 178mm wide × 101mm high, which includes most major brands like Pioneer, Kenwood, Sony, Alpine, and JVC.

Does the kit include all mounting hardware Yes, the complete kit includes the fascia panel, double DIN trim ring, side mounting brackets for secure installation, and all necessary screws for professional fitment.

Is this suitable for serious off-road use Yes, the high-grade ABS plastic construction and robust side bracket mounting system are designed to withstand vibration, shock loads, and extreme temperature variations common in Australian outback and serious off-road conditions without cracking or failing.

Compatible With / Goes Well With

Recommended Aftermarket Head Units:

• Pioneer double DIN receivers with Apple CarPlay/Android Auto
• Kenwood DMX series multimedia receivers
• Sony XAV double DIN head units
• Alpine iLX series digital media receivers
• JVC multimedia receivers with off-road navigation features

Installation Accessories:

• Suzuki Grand Vitara ISO wiring harness adapter (2005-2013 specific)
• Suzuki antenna adapter (if required for your head unit)
• Steering wheel control retention interface (for models with factory controls)
• Double DIN cage (typically supplied with aftermarket head unit)
• Panel removal tools for safe dashboard disassembly
• Cable ties and wire loom for clean installation

Note: Verify your specific head unit dimensions before purchase. Some multimedia receivers with screens exceeding 7 inches may require minor fascia trimming for proper fitment. The included trim ring helps accommodate minor dimensional variations and ensures a clean finished appearance.

Weight

Approximately 0.5kg (complete kit with all components)
