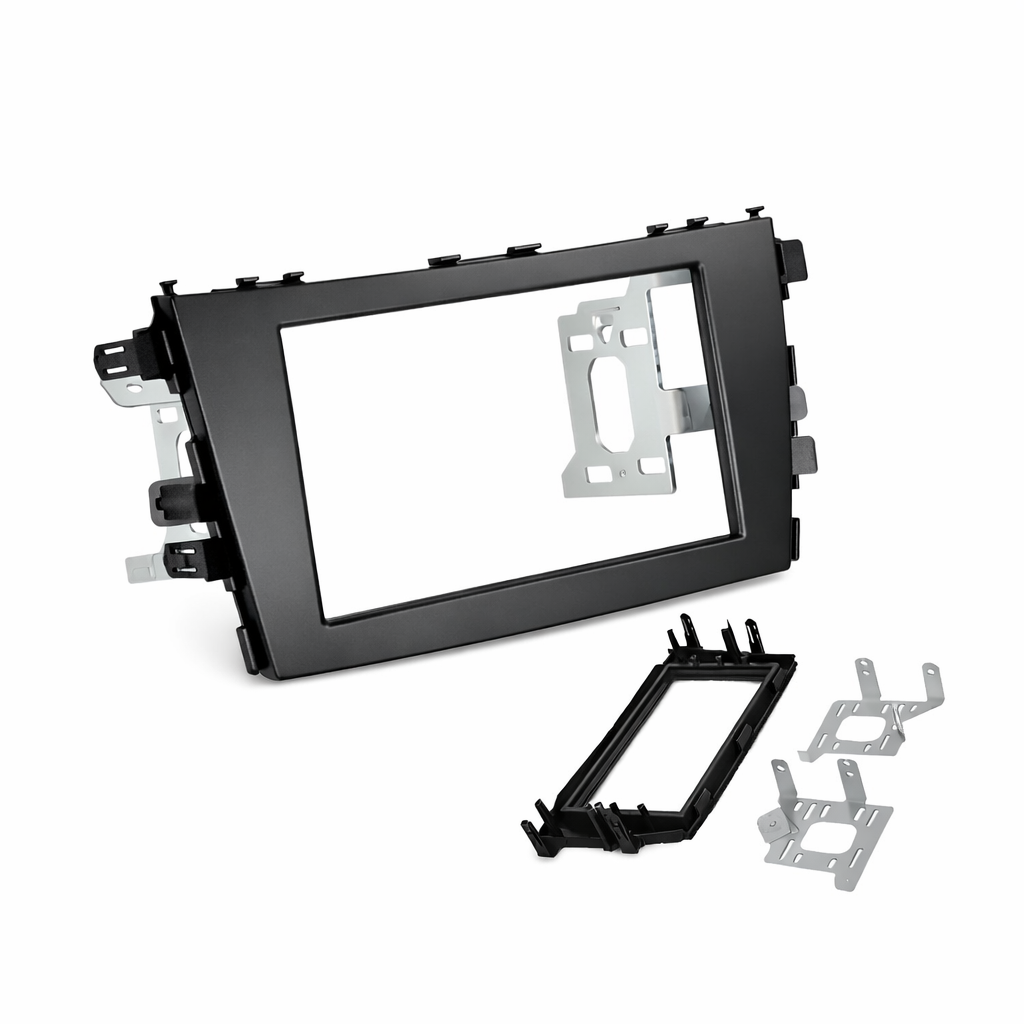

CAC FASUZUKICELERIO2014ON7 (F7SZ2) Double DIN Fascia Kit for Suzuki Celerio 2014 Onwards

Professional dashboard integration for your Suzuki Celerio's aftermarket head unit upgrade.

Product Overview

The CAC FASUZUKICELERIO2014ON7 is a complete double DIN fascia kit engineered specifically for Suzuki Celerio models manufactured from 2014 onwards. This adapter panel converts your factory head unit opening to accept standard aftermarket double DIN receivers while maintaining your dashboard's modern compact car aesthetic. Manufactured from high-quality black ABS plastic with OEM-matched design, the kit includes all necessary components for professional installation: fascia panel, double DIN trim ring, mounting brackets, rubber ring seal, and installation hardware. Compatible with both automatic and manual transmission variants across all Celerio model years from 2014 to current production.

Key Specifications

• Vehicle compatibility: Suzuki Celerio 2014 onwards (all transmission types)
• Opening dimensions without trim ring: 183mm W × 103mm H
• Opening dimensions with trim ring: 173mm W × 98mm H
• Material: High-quality ABS plastic in black finish
• Installation type: Double DIN aftermarket head unit adapter
• Complete kit includes panel, trim ring, mounting brackets, rubber ring, and hardware
• Manufactured to factory specifications for precise dashboard integration

Features & Benefits

Factory-Matched Black Finish - OEM-specification construction with black ABS plastic ensures the fascia blends seamlessly with your Celerio's modern dashboard contours and texture, maintaining the clean aesthetic of this efficient city car while eliminating the aftermarket appearance common with generic adapters.

Generous Opening Dimensions - The 183×103mm opening (without trim ring) provides slightly larger clearance than standard double DIN specifications, accommodating a wider range of aftermarket head units including those with larger bezels or extended screens, reducing the need for modification in most installations.

Complete Installation Kit - Every component needed for professional installation is included: precision-cut fascia panel, double DIN trim ring for clean edges, mounting brackets for secure fitment, rubber ring seal to eliminate rattles, and all required hardware. No additional parts necessary for standard installations.

Durable ABS Construction - High-grade automotive ABS plastic resists UV degradation, temperature extremes, and daily wear. The material maintains structural integrity across Australia's diverse climate conditions from urban heat islands to coastal humidity, preventing warping or fading over the vehicle's lifetime.

Transmission-Universal Design - Engineered to accommodate both automatic and manual transmission Celerio variants without modification, eliminating compatibility concerns across all model years from 2014 onwards. This universal fitment covers both domestic and imported variants.

Professional Finish with Rattle Prevention - Precision moulding with included rubber ring seal eliminates gaps and alignment issues that compromise appearance and create annoying rattles over speed bumps or rough urban roads. The seal ensures a tight, professional fit that maintains quality even after years of daily commuting.

Technical Specs

• Product code: FASUZUKICELERIO2014ON7
• Brand: CAC
• Fitment: Suzuki Celerio 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 onwards
• Generation: First generation (2014-present)
• Head unit size: Double DIN (2-DIN)
• External opening (no trim): 183mm × 103mm
• Internal opening (with trim): 173mm × 98mm
• Material composition: Automotive-grade ABS plastic
• Colour: Black (factory-matched)
• Mounting: Bracket system with rubber ring seal included
• Special features: Oversized opening for enhanced head unit compatibility
• Weight: Approximately 0.5kg (complete kit)
• Package contents: Fascia panel, trim ring, mounting brackets, rubber ring, installation hardware

Frequently Asked Questions

Does this fit both manual and automatic Celerio models Yes, this fascia kit is designed to fit all Suzuki Celerio variants from 2014 onwards regardless of transmission type or market specification.

Will I need to modify the fascia for installation The generous 183×103mm opening accommodates most aftermarket double DIN head units without modification. Minor trimming may only be required for unusually large multimedia receivers, though this is rare compared to standard-sized fascia kits.

What size head units does this accept This accepts standard double DIN (2-DIN) aftermarket head units with dimensions up to 183mm wide × 103mm high without trim ring, or 173mm × 98mm with trim ring installed, providing excellent compatibility with major brands.

Does the kit include all mounting hardware Yes, the complete kit includes the fascia panel, double DIN trim ring, mounting brackets for secure installation, rubber ring seal for rattle prevention, and all necessary hardware for professional fitment.

Will this work with factory steering wheel controls The fascia itself is compatible with vehicles that have steering wheel controls, but you'll need a separate steering wheel control harness adapter to retain that functionality with your new aftermarket head unit.

Compatible With / Goes Well With

Recommended Aftermarket Head Units:

• Pioneer double DIN receivers with Apple CarPlay/Android Auto
• Kenwood DMX series multimedia receivers
• Sony XAV double DIN head units
• Alpine iLX series digital media receivers
• JVC multimedia receivers with smartphone integration

Installation Accessories:

• Suzuki Celerio ISO wiring harness adapter (2014+ specific)
• Suzuki antenna adapter (if required for your head unit)
• Steering wheel control retention interface (to maintain factory controls)
• Double DIN cage (typically supplied with aftermarket head unit)
• Panel removal tools for safe dashboard disassembly
• Cable ties and wire loom for clean installation

Note: The generous opening dimensions of this fascia kit reduce the need for trimming compared to standard-sized adapters. The rubber ring seal included helps accommodate dimensional variations and ensures a rattle-free installation. Verify your specific head unit dimensions before purchase for optimal fitment.

Weight

Approximately 0.5kg (complete kit with all components)
