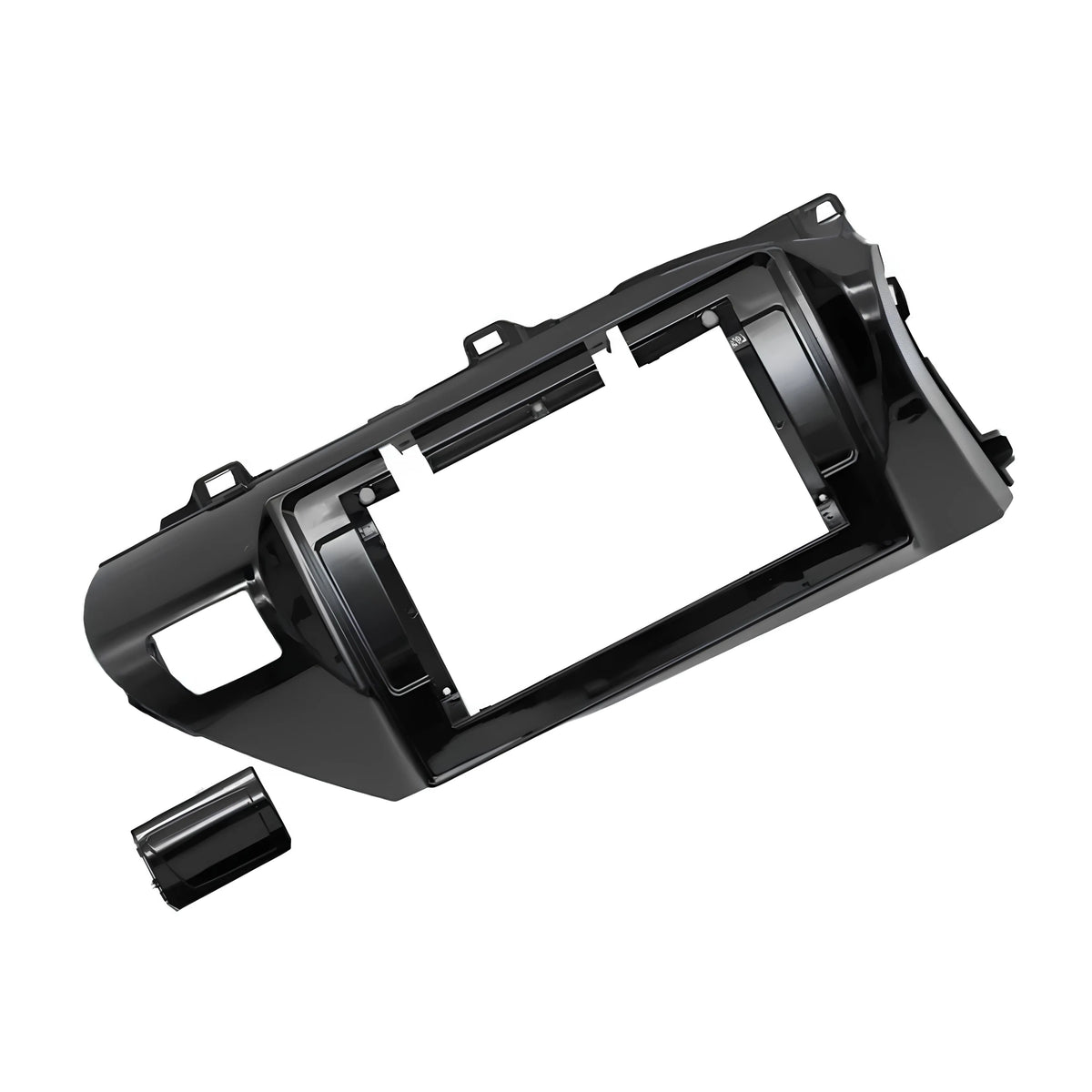

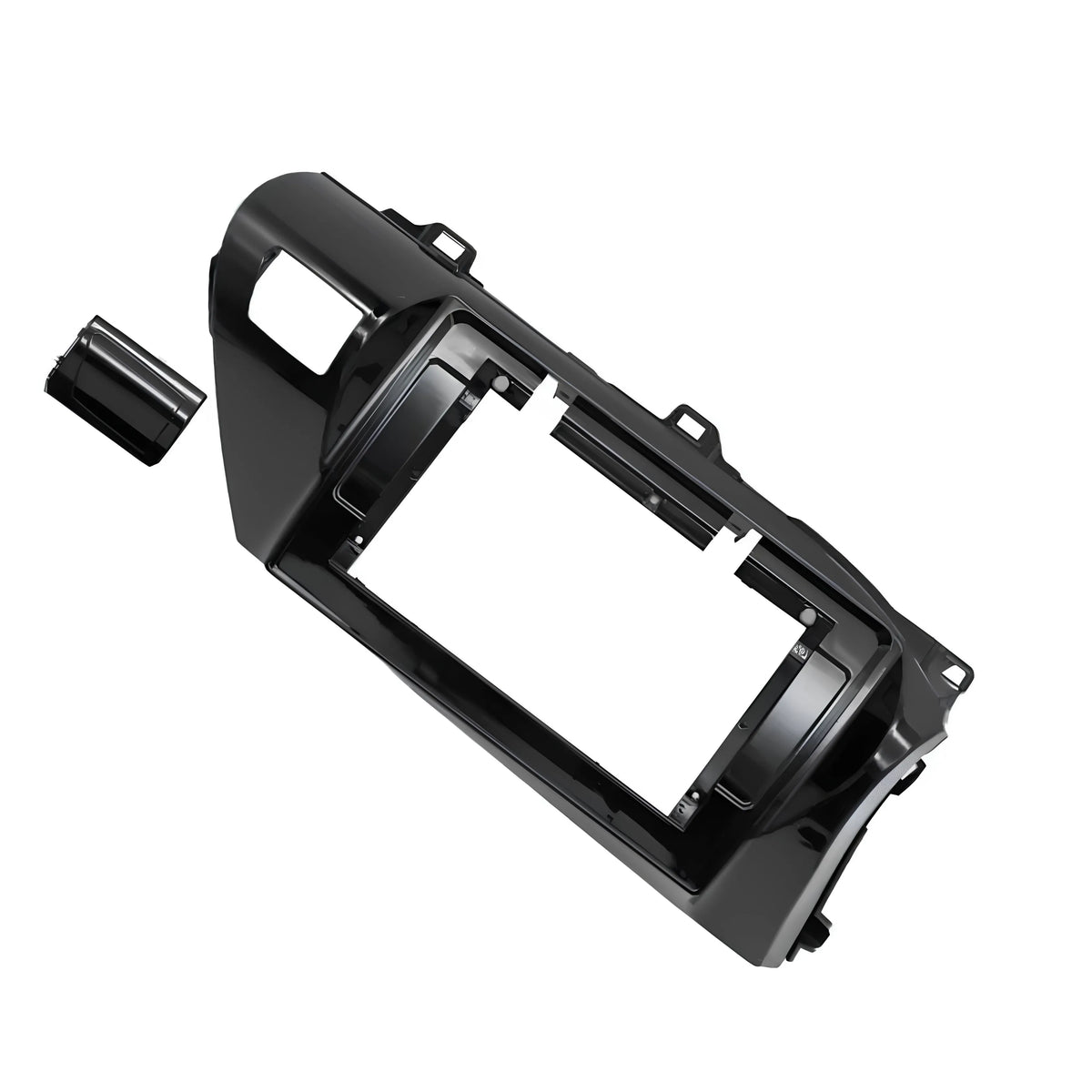

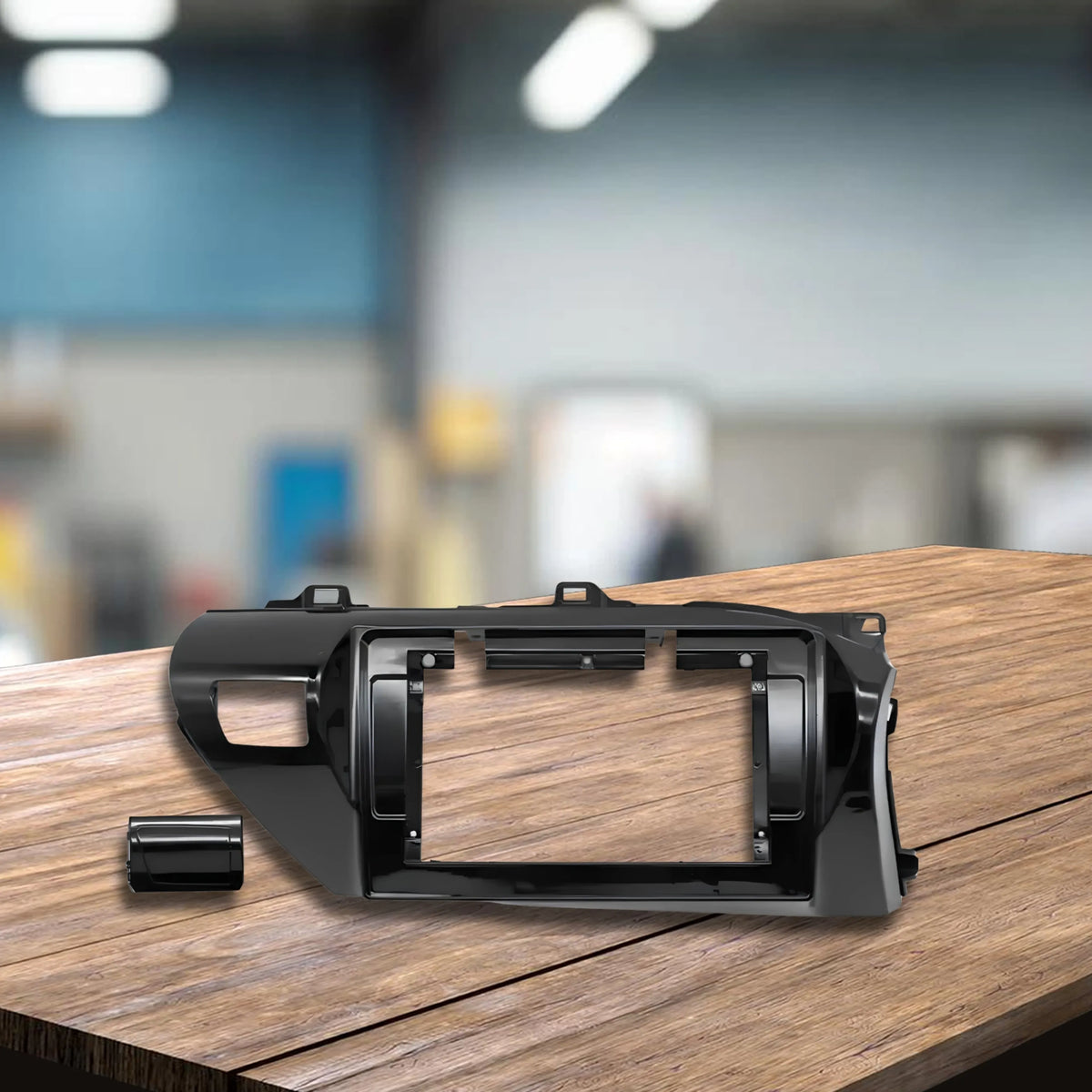

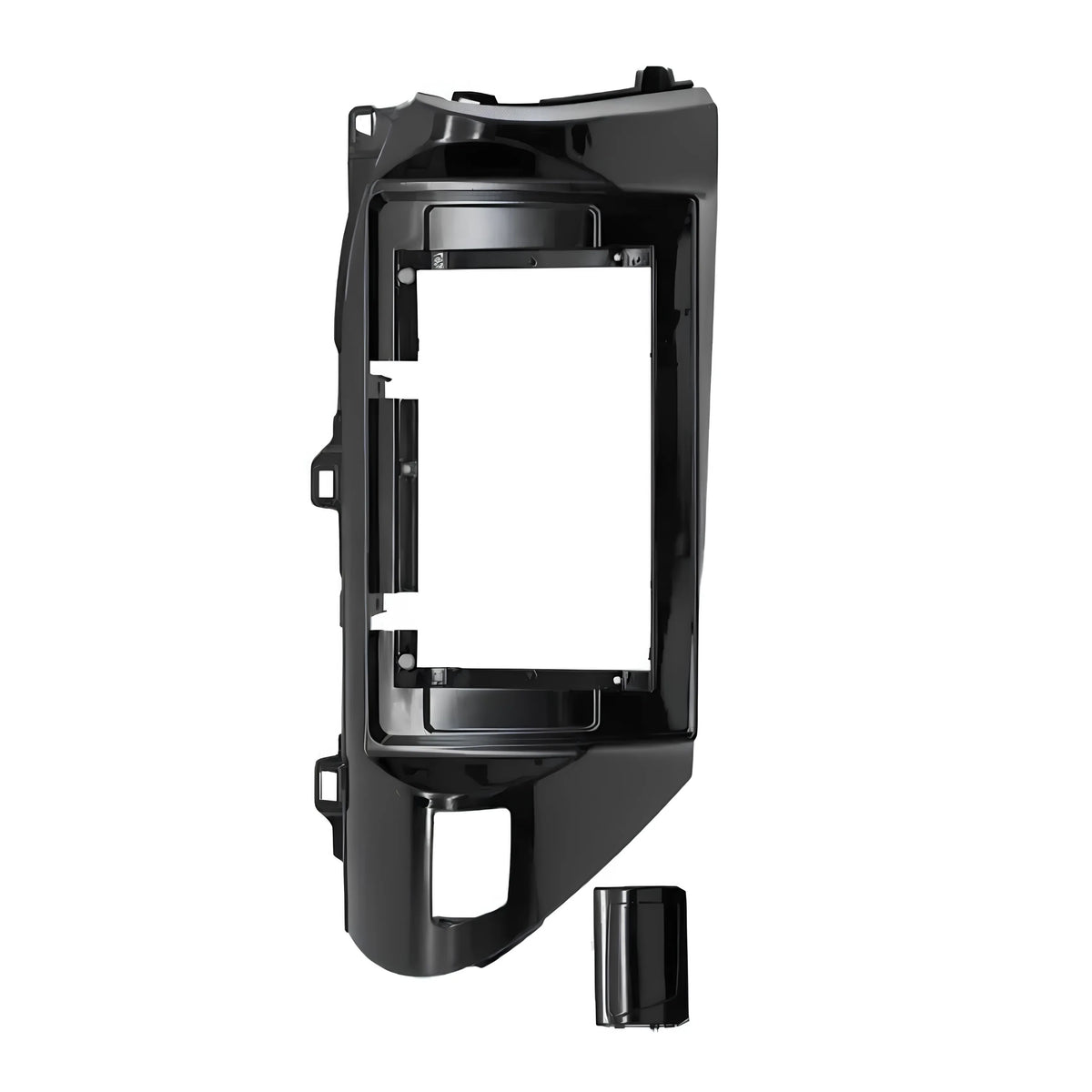

Stinger SF9-TY05 9" & 10" Trapezoid Fascia for Toyota Hilux AN120-AN130 (2015-2020)

Dual-screen-size fascia engineered for eighth-generation Hilux with included 10" to 9" reducer panel

Product Overview

The Stinger SF9-TY05 is a versatile fascia panel designed for Toyota Hilux AN120-AN130 Series models (2015-2020) featuring trapezoid-shaped factory dash apertures. This unique fascia distinguishes itself by accommodating both 9" and 10" trapezoid-geometry head units through an included reducer panel, providing maximum installation flexibility across Alpine, Kenwood, Pioneer, and Aerpro's expanding range of floating-screen receivers. Engineered to OEM specifications for the eighth-generation Hilux, the SF9-TY05 addresses the non-standard trapezoid dash geometry while offering future-proofing—install a 9" unit today and upgrade to 10" later using the same fascia, or specify 10" screens immediately for maximum screen real estate. Compatible with both standard and wide-cab Hilux variants including SR, SR5, Rogue, and Rugged X models, this fascia maintains the Hilux's workhorse aesthetic while enabling wireless Apple CarPlay, Android Auto, and advanced navigation features critical for remote work, touring, and commercial applications.

Key Specifications

• Vehicle fitment: Toyota Hilux AN120-AN130 Series (2015-2020 models only)
• Dual screen size accommodation: 9" and 10" trapezoid-geometry head units
• Included reducer panel: 10" to 9" adapter for screen size flexibility
• Compatible head units: Alpine INE-AW4095/INE-AX809/INE-AW4095-10/INE-AX809-10, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X/AM10X
• Manufacturer: Stinger Electronics
• Part number: SF9-TY05
• Material: injection-moulded ABS plastic (colour-matched to factory trim)
• Installation type: fascia panel with reducer (additional harnesses and brackets sold separately)
• Year range: 2015, 2016, 2017, 2018, 2019, 2020
• Chassis codes: AN120, AN130 Series (eighth-generation Hilux)

Features & Benefits

Dual screen size compatibility with included 10" to 9" reducer panel enables installation of either 9" or 10" head units using a single fascia—eliminates the need to purchase different fascias when upgrading screen sizes, providing long-term flexibility as head unit technology evolves and larger screens become preferred.

AN120-AN130 trapezoid-specific geometry precisely matches the unique non-rectangular aperture shape of the eighth-generation Hilux dash, where standard double-DIN fascias leave visible gaps or fail to mount—this vehicle-specific design ensures flush, factory-quality panel alignment that maintains the Hilux's robust, functional aesthetic valued by tradies and touring enthusiasts.

2015-2020 eighth-generation coverage encompasses the complete AN120-AN130 span including SR, SR5, Rogue, and Rugged X variants across both standard and wide-cab configurations—provides multimedia upgrade path for pre-facelift and post-facelift models purchased before Toyota integrated wireless smartphone connectivity as standard equipment.

Compatible with expanding 9" and 10" head unit ranges including Alpine's latest iLX-AW4095/AX809 in both 9" and 10" variants, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro's AM9X/AM10X—enables wireless CarPlay/Android Auto, high-resolution navigation, and advanced audio processing in Australia's best-selling ute platform.

Injection-moulded construction matches factory dashboard material quality and UV resistance, withstanding the demanding environments Hilux vehicles routinely encounter—mining sites, construction zones, remote stations, and corrugated outback tracks where dashboard components face extreme temperature cycling, vibration, and UV exposure.

Factory colour-matching maintains the Hilux's utilitarian interior appearance critical to commercial operators, fleet managers, and tradies where visible aftermarket modifications may reduce trade-in value, violate fleet policies, or detract from the professional image that makes the Hilux Australia's commercial workhorse.

Future-proof investment through the included reducer panel—install a 9" head unit now to meet current budget or availability constraints, then upgrade to a 10" screen later without purchasing a new fascia, protecting your installation investment as technology and preferences evolve.

Wide variant coverage across SR entry-level work utes, SR5 dual-cab lifestyle vehicles, Rogue sports models, and Rugged X adventure editions—one fascia serves the entire Hilux lineup from bare-bones fleet vehicles to premium touring rigs, simplifying inventory for installers and fleet operators.

Technical Specs

• Part number: SF9-TY05
• Vehicle application: Toyota Hilux AN120-AN130 Series (eighth generation)
• Year compatibility: 2015-2020 inclusive
• Chassis codes: AN120, AN130 (standard and wide-cab variants)
• Screen accommodation: 9" and 10" trapezoid-geometry floating-screen head units
• Reducer panel: 10" to 9" adapter included in package
• Material: injection-moulded ABS plastic
• Finish: factory-matched colour (typically black or charcoal depending on interior trim)
• Installation hardware: fascia panel with reducer (mounting brackets, harnesses, and adapters sold separately)
• Compatible 9" head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Compatible 10" head units: Alpine INE-AW4095-10, Alpine INE-AX809-10, Aerpro AM10X
• Trim variants: SR, SR5, Rogue, Rugged X (all covered 2015-2020)

Frequently Asked Questions

Does this fascia work with both 9" and 10" head units?

Yes, the SF9-TY05 includes a reducer panel that adapts the fascia opening from 10" to 9". Install the reducer for 9" head units, or omit it for 10" head units—one fascia accommodates both screen sizes, providing flexibility to choose based on budget, preference, or future upgrade plans.

Does this include wiring harnesses or mounting brackets?

No, the SF9-TY05 is the fascia panel and reducer only. Complete installation requires a separate Toyota-specific primary wiring harness (connects head unit to factory loom), antenna adapter, steering wheel control interface, and potentially reverse camera retention harness depending on your Hilux variant. These components are available separately.

Will this fit 2021 or newer Hilux models?

No, this fascia is specifically engineered for AN120-AN130 Series (2015-2020) only. The 2021+ facelift Hilux features updated dashboard trim and potentially different aperture dimensions requiring verification—confirm compatibility with your specific model year before purchasing if you have a 2021 or newer vehicle.

Which head units are confirmed compatible?

Confirmed 9" units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X. Confirmed 10" units: Alpine INE-AW4095-10, Alpine INE-AX809-10, Aerpro AM10X. These feature trapezoid mounting patterns matching the Hilux aperture. Standard double-DIN or universal units will not fit.

Why can't I use a standard double-DIN fascia in my Hilux?

The AN120-AN130 Hilux features a trapezoid-shaped dash aperture—wider at the top than bottom—which standard rectangular double-DIN fascias cannot accommodate. The SF9-TY05's trapezoid geometry is essential for proper fitment, eliminating gaps and ensuring secure head unit mounting in this specific Toyota chassis.

Compatible With / Goes Well With

• Alpine INE-AW4095 9" multimedia receiver (Apple CarPlay/Android Auto)
• Alpine INE-AX809 9" multimedia receiver (wireless CarPlay/Android Auto)
• Alpine INE-AW4095-10 10" multimedia receiver (larger screen variant)
• Alpine INE-AX809-10 10" multimedia receiver (wireless, larger screen)
• Kenwood DMX80AXS 9" multimedia receiver (wireless connectivity)
• Pioneer DMH-AP6650BT 9" multimedia receiver (floating screen design)
• Aerpro AM9X 9" multimedia receiver (Toyota-specific integration)
• Aerpro AM10X 10" multimedia receiver (larger Toyota-specific option)
• Toyota-specific primary wiring harnesses (ISO to factory connector)
• Toyota antenna adapters (aftermarket to factory antenna connection)
• Steering wheel control retention interfaces (maintain factory controls)
• Reverse camera retention harnesses (preserve factory camera functionality)
• GPS antenna adapters for head units with navigation
