STINGER SF9-TY12 9-Inch Trapezoid Fascia for 2005-2014 Toyota Hilux

9-Inch Trapezoid Head Unit Fascia Toyota Hilux AN10/AN20/AN30 2005–2015. Three Alternate Climate Control Trim Configurations Included. OEM-Style Finish. Fascia Panel Only.

Product Overview

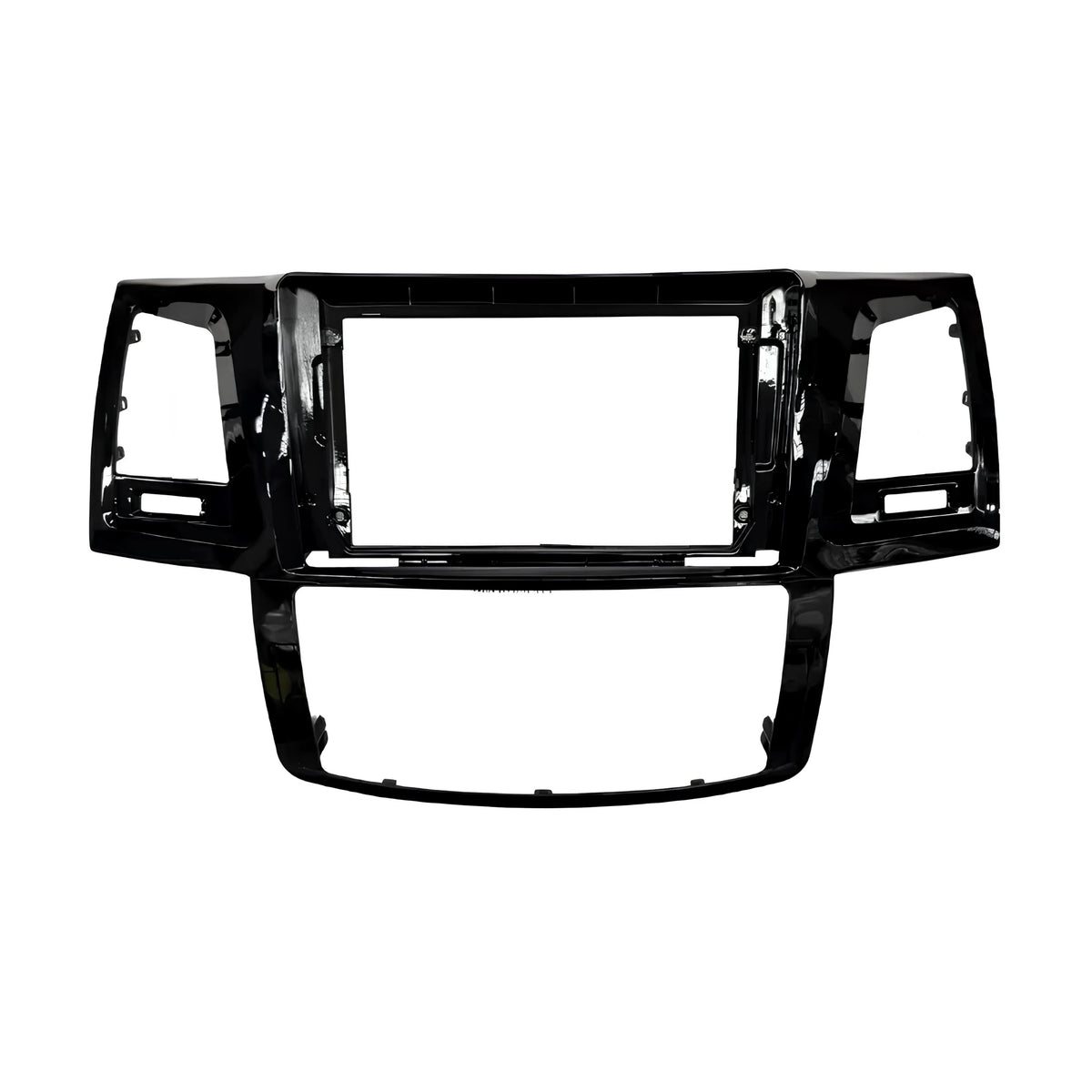

The Stinger SF9-TY12 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Toyota Hilux spanning AN10, AN20, and AN30 series production from 2005 to 2015. It is the only fascia in the Stinger range that includes three interchangeable climate control trim panels covering variations in Hilux dashboard layouts across model years, trim levels, and air conditioning configurations (manual air conditioning, automatic climate control, and different control button arrangements). During installation, the correct climate control trim is selected and fitted to match the vehicle's specific dashboard layout, ensuring a professional, gap-free result across the full Hilux production range. Confirmed compatible head units include Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and AM10X.

The SF9-TY12 is precision-moulded to match the Toyota Hilux factory dashboard finish textured grain, factory colour match for a result that integrates the head unit as a factory-style component. Wiring harness, antenna adaptor, and steering wheel control interface are not included and must be purchased separately. Hilux models from approximately 2011 onwards may also be equipped with a factory reverse camera confirm the vehicle's configuration and source a camera retention harness separately if required.

Key Specifications

• Part number: SF9-TY12
• Brand: Stinger
• Product type: 9-inch trapezoid head unit fascia
• Compatible head unit format: 9-inch trapezoid
• Climate control trims: Three alternate configurations included
• Finish: Toyota factory colour match with textured grain
• Vehicle: Toyota Hilux AN10/AN20/AN30 Series 2005–2015
• Confirmed compatible head units: Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X, AM10X

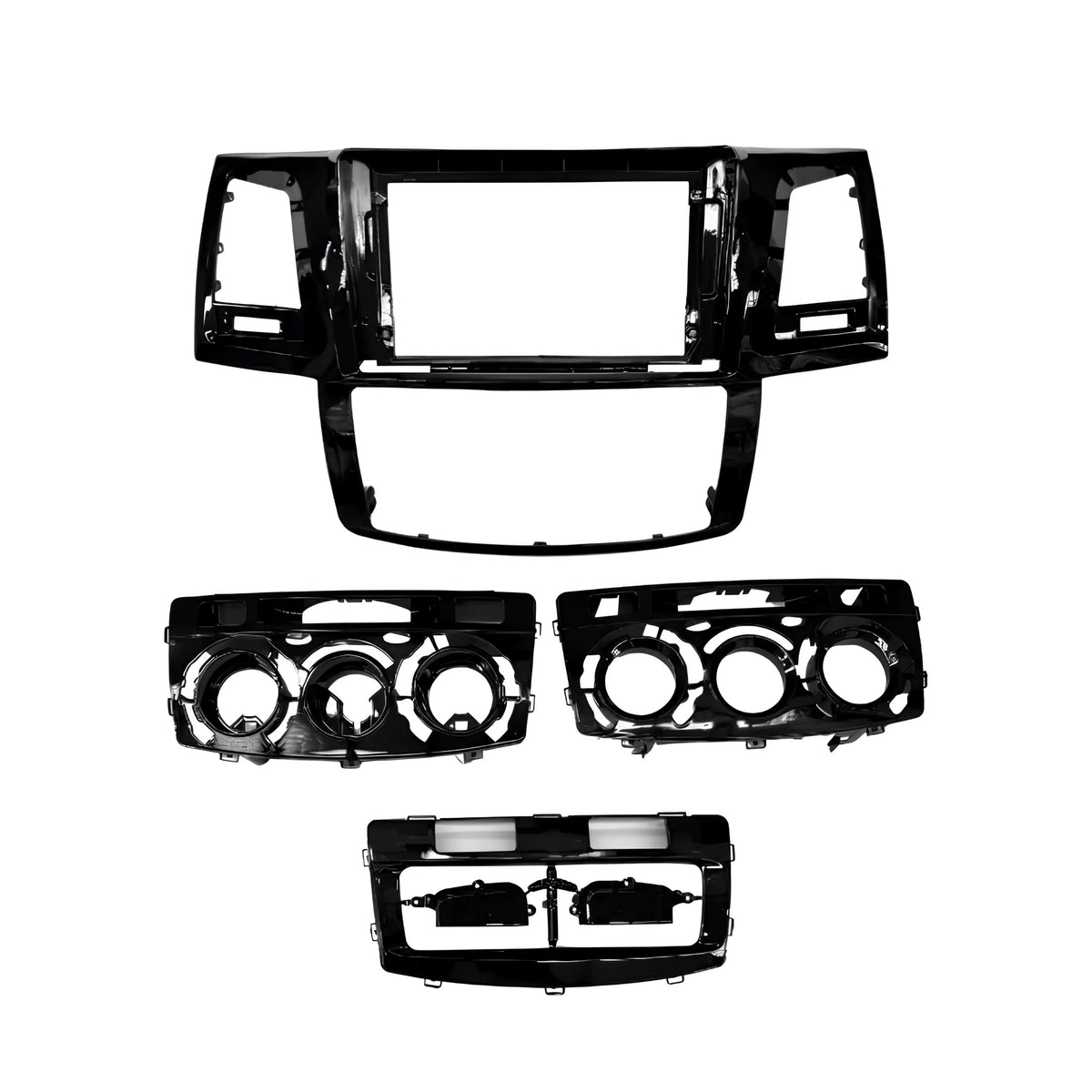

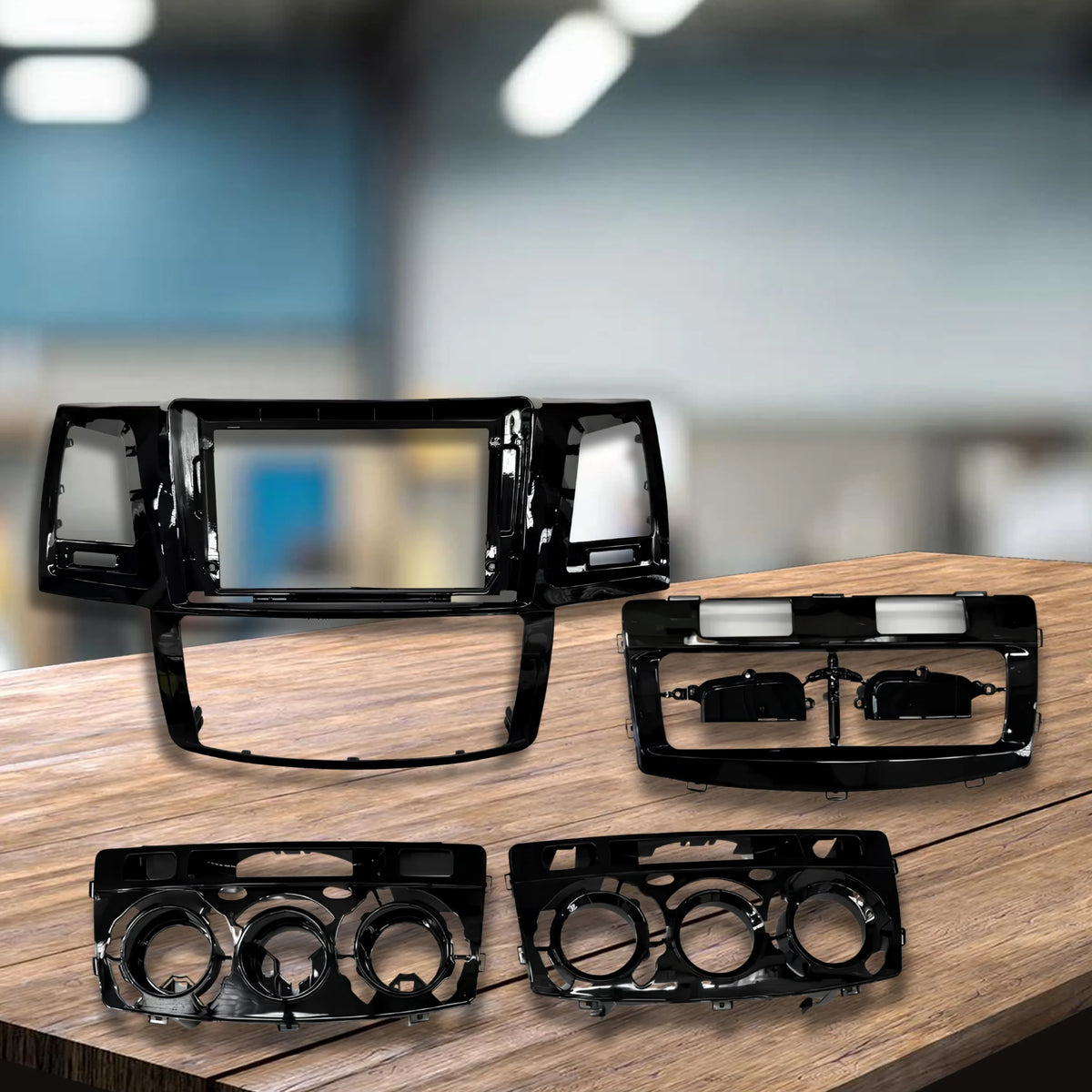

• Includes: Fascia panel and three alternate climate control trim panels
• Wiring harness: Not included — sold separately
• Antenna adaptor: Not included — sold separately
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — confirm if required for vehicle

Features & Benefits

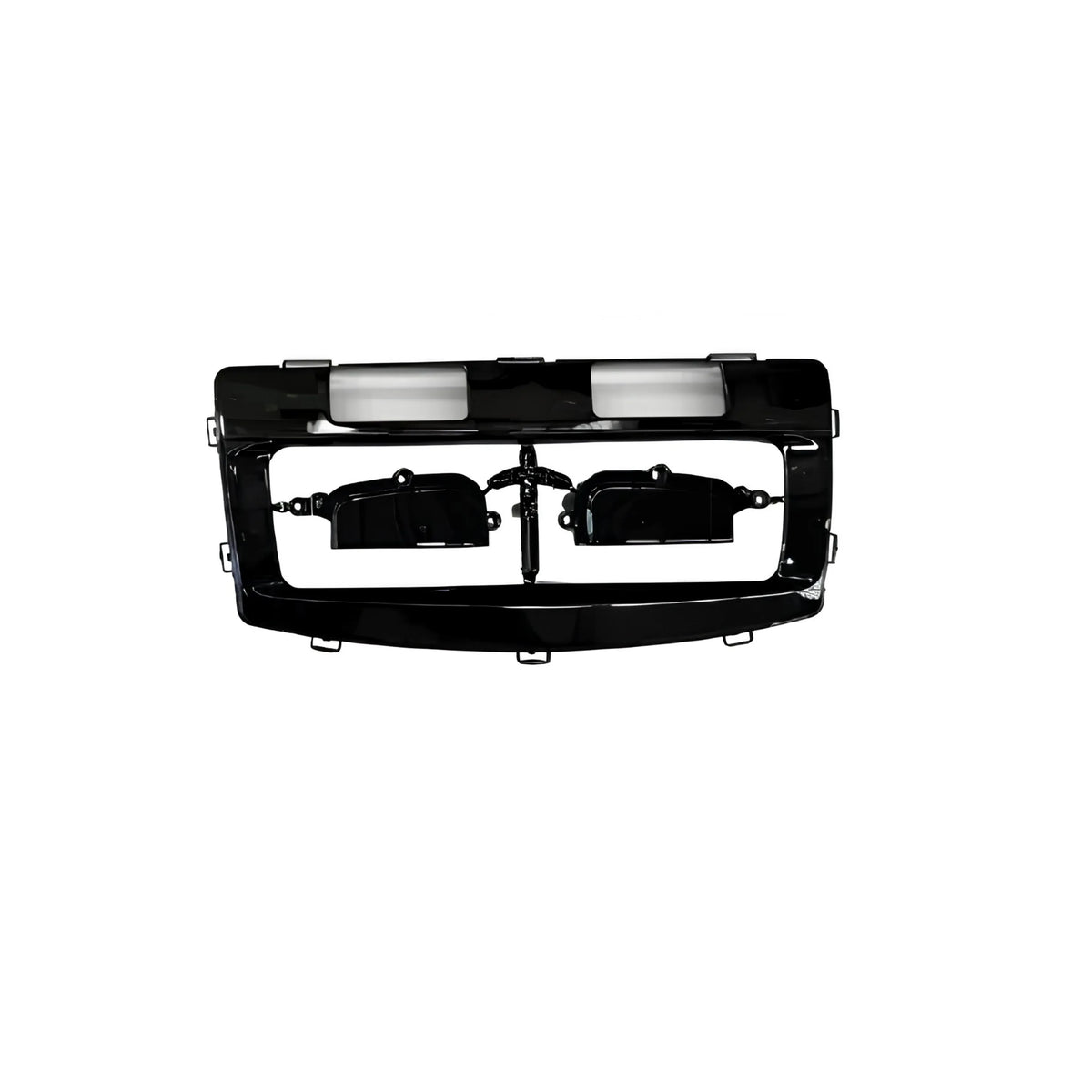

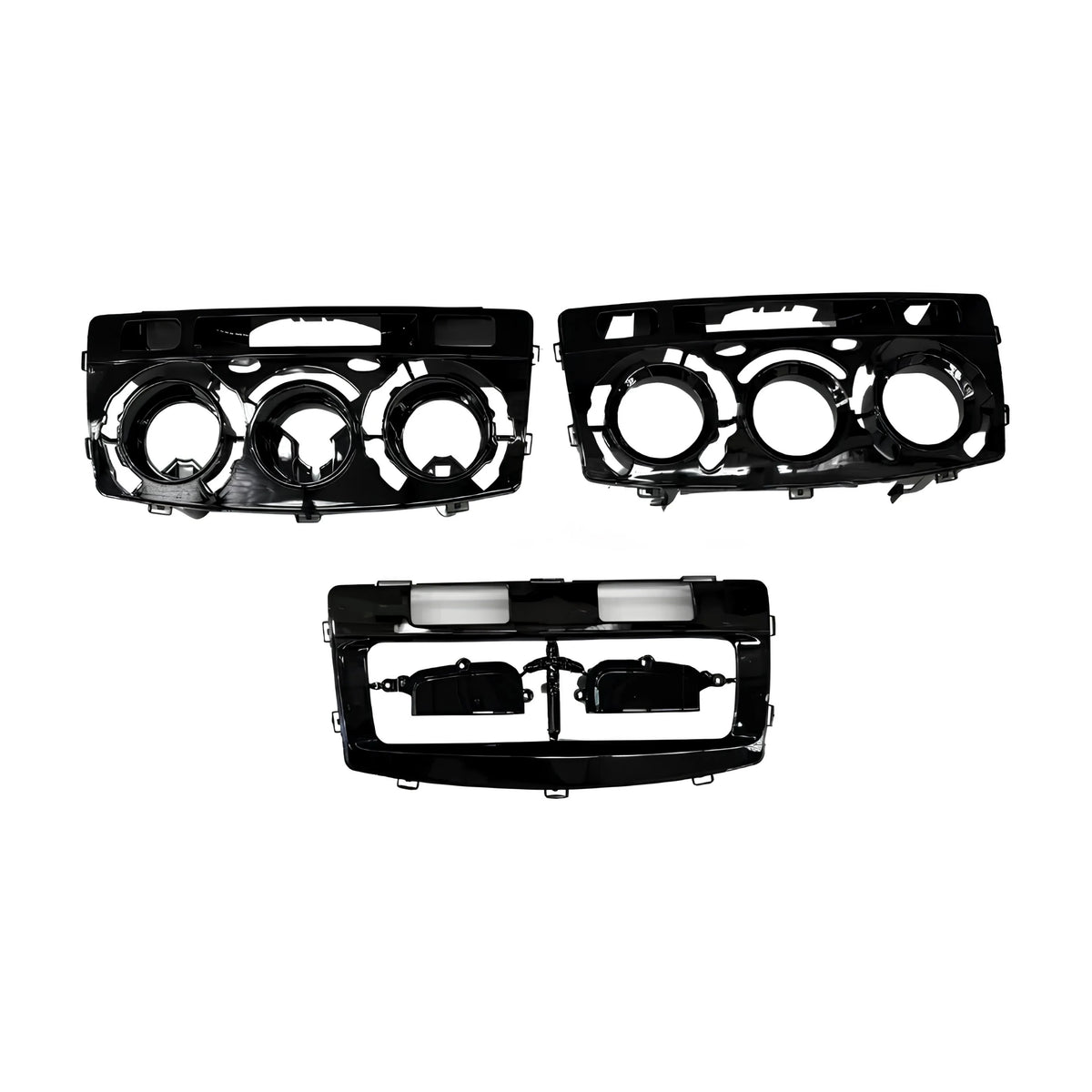

• Three Alternate Climate Control Trim Panels — Unique in the Range The SF9-TY12 is the only fascia in the Stinger range that ships with three alternate climate control trim configurations. The Toyota Hilux was produced across multiple trim levels and years with variations in climate control button layouts, knob positions, and display arrangements — a single fixed trim panel cannot accommodate all variants. The three included options cover manual air conditioning, automatic climate control, and varying control button arrangements. During installation, the correct trim is selected to match the specific vehicle's dashboard layout.
• AN10, AN20, and AN30 Coverage — 2005 to 2015 A single fascia SKU covers the Toyota Hilux across three series codes and a decade of production, making the SF9-TY12 the broadest-coverage single-SKU fascia in the range.
• 9-Inch Trapezoid — Confirmed Across Multiple Head Unit Models The spec table confirms compatibility with both 9-inch units (Alpine INE-AW409S, INE-AX809, Aerpro AM9X) and the larger-screen 10-inch variants (Alpine INE-AW409S-10, INE-AX809-10, Aerpro AM10X) alongside Kenwood DMX80AXS and Pioneer DMH-AP6650BT — despite the fascia being 9-inch trapezoid format, the 10-inch Alpine and Aerpro models are listed as confirmed. Verify with the official product page which format these 10-inch units use with the SF9-TY12.
• Toyota Factory Finish — Textured Grain Precision moulding matches the Hilux factory dashboard texture and colour for a factory-integrated appearance.
• Fascia Panel Only — Installer Flexibility Supplied with the fascia and three climate trims, allowing installers to source the correct wiring harness, SWC interface, and accessories for the specific vehicle configuration.

Technical Specs

Compatible With / Goes Well With

Vehicle compatibility:

Confirmed compatible head units:

• Alpine INE-AW409S / INE-AX809 (9-inch)
• Alpine INE-AW409S-10 / INE-AX809-10 (10-inch — confirm format compatibility with SF9-TY12)
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Aerpro AM9X (9-inch) / AM10X (10-inch — confirm format compatibility with SF9-TY12)

Required accessories (sold separately):

• Toyota Hilux AN10/AN20/AN30 wiring harness (Toyota-to-ISO)
• Antenna adaptor (Toyota proprietary to standard)
• Steering wheel control interface
• Camera retention harness (if factory camera equipped — confirm vehicle configuration)

Frequently Asked Questions

Why does the SF9-TY12 include three alternate climate control trims?

The Toyota Hilux was produced across multiple trim levels and years with different climate control configurations — manual air conditioning, automatic climate control, and varying button arrangements. A single fixed trim panel cannot accommodate all variants. The three included panels allow the installer to select the correct configuration for the specific vehicle's dashboard layout, ensuring a gap-free, factory-integrated result.

How do I select the correct climate control trim during installation?

Compare the three included trim panels to the vehicle's existing climate control layout. Each panel features different cutout patterns, button positions, and control arrangements corresponding to specific Hilux configurations. If uncertain, photograph the dashboard climate control area before disassembly and compare with the trim options. A professional installer familiar with Hilux variants can quickly identify the correct trim during a pre-installation assessment.

Does the SF9-TY12 include wiring harnesses or installation accessories?

No — the SF9-TY12 includes the fascia panel and three alternate climate control trim panels only. A Toyota Hilux-specific wiring harness, antenna adaptor, and steering wheel control interface are all required separately. Hilux models with a factory reverse camera also require a camera retention harness.

Which Toyota Hilux series does the SF9-TY12 cover?

The SF9-TY12 covers the AN10, AN20, and AN30 series Hilux from 2005 to 2015 — spanning the majority of the 7th-generation Hilux/Vigo platform sold in Australia during this period.

Is professional installation recommended for the SF9-TY12?

Professional installation is recommended to ensure correct climate control trim selection, precise fascia fitment, correct wiring harness connections, and steering wheel control programming. Hilux work truck environments involve elevated vibration and temperature cycling — a securely and correctly installed fascia will perform reliably across these conditions.
