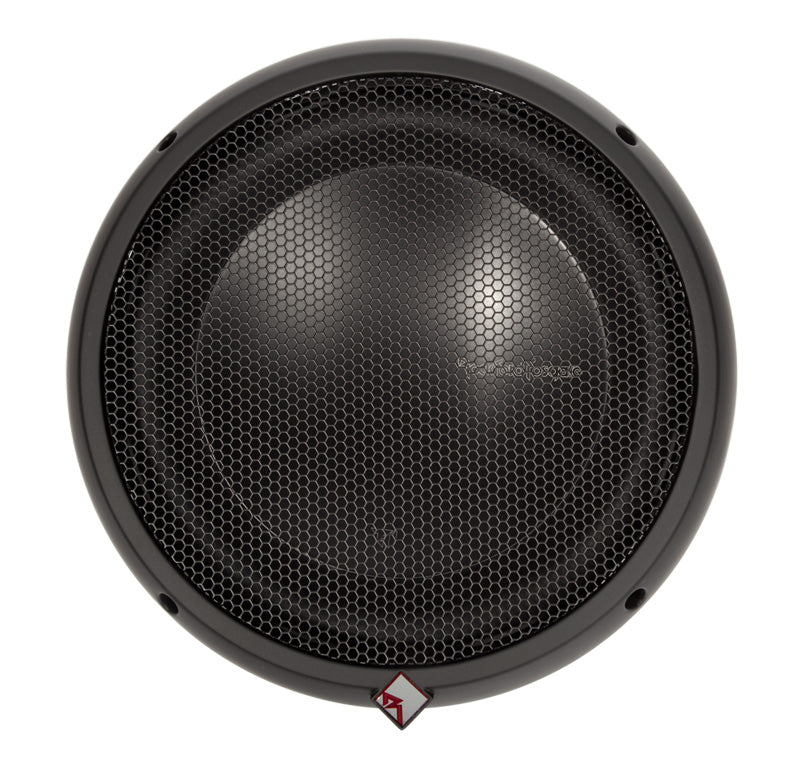

Rockford Fosgate T1D412 Power 12" T1 Dual 4-Ohm Subwoofer 800 Watts, VAST Technology, T1 Performance in 12"

Product Overview

The Rockford Fosgate T1D412 is a 12" dual 4-ohm voice coil subwoofer from the flagship Power T1 series, rated at 800 Watts RMS and 1600 Watts peak. Bringing the full suite of Power T1 technologies to the 12" format, the T1D412 delivers the same patented VAST cone technology, FlexFit die-cast aluminium basket, Kevlar fibre reinforced paper cone, Nomex-reinforced high-temp voice coil, and anodized aluminium construction as the T1 15" range in the more universally applicable 12" driver size suited to a wider range of enclosures and Australian vehicle builds.

Patented VAST (Vertical Attach Surround Technique) technology increases the effective cone surface area by up to 25% over a conventional surround attachment, allowing the T1D412 to move more air and produce more bass output per watt than a standard 12" driver performing, in Rockford Fosgate's own terms, like a much larger woofer. The dual 4-ohm configuration wires in parallel to a 2-ohm load for maximum power delivery from a compatible high-output mono amplifier, or in series for an 8-ohm load for specific system configurations. Grille and integral trim ring included.

Key Specifications

• Driver size: 12"
• Voice coil configuration: Dual 4-ohm (DVC)
• Wiring options: 2 ohm (parallel) / 8 ohm (series)
• Power handling: 800W RMS / 1600W peak
• Technology: Patented VAST up to 25% increased cone surface area
• Basket: FlexFit rigid die-cast aluminium
• Cone: Kevlar fibre reinforced paper
• Voice coil former: Anodized aluminium with copper-clad aluminium wire
• Voice coil reinforcement: Spun-laced Nomex collar (high-temp)
• Dust cap: Anodized aluminium heat-sinking
• Input terminals: Proprietary 8 AWG insulated all-metal spring terminals
• Spiders: Symmetrical dual progressive roll tear-resistant poly-cotton
• Tinsel leads: Periodic-stitched fatigue-resistant
• Grille: Included with integral trim ring
• Frequency response: Confirm with supplier
• Sensitivity: Confirm with supplier
• Xmax: Confirm with supplier
• Mounting depth: Confirm with supplier
• Cutout diameter: Confirm with supplier

Features & Benefits

• Patented VAST technology up to 25% more cone surface area: VAST (Vertical Attach Surround Technique) repositions the surround attachment point to reclaim up to 25% of the cone area traditionally covered by the surround, delivering more effective piston area than a conventional 12" driver moving more air and producing more bass output per watt from the same basket diameter.
• FlexFit rigid die-cast aluminium basket: Precision-cast for structural rigidity with installation geometry flexibility for custom fabrication and extreme builds where standard basket angles create clearance issues with the enclosure or vehicle structure. Purpose-built for serious Australian car and truck audio installations.
• 800W RMS / 1600W peak power handling: The T1D412 handles 200W RMS less than the T1 15" models, reflecting the smaller cone area, while remaining firmly in high-output territory suited to the most powerful 12"-oriented mono amplifiers in the Rockford Fosgate Power series.
• Dual 4-ohm voice coils 2-ohm parallel or 8-ohm series wiring: Wired in parallel, the T1D412 presents a 2-ohm load for maximum power delivery from a 2-ohm stable mono amplifier. Wired in series, it presents an 8-ohm load for specific bridged or multi-driver configurations. Choose the T1D412 when a 2-ohm stable amplifier pairing is the system target.
• High-temp voice coil with spun-laced Nomex reinforcement collar: Nomex reinforcement at the critical former-to-cone junction prevents delamination and separation under sustained high-power, high-excursion use at 800W RMS continuous input a key reliability differentiator from lesser 12" drivers at this power level.
• Anodized aluminium voice coil former with copper-clad aluminium wire: Superior heat dissipation versus paper or plastic formers, extending voice coil life under sustained high-power use in the high-temperature boot environments common in Australian vehicles during summer. Copper-clad aluminium winding reduces moving mass while maintaining conductivity, improving transient response and efficiency.
• Kevlar fibre reinforced paper cone: Kevlar adds stiffness and break-up resistance without excessive weight, maintaining accurate pistonic motion across the full excursion range at 800W RMS where an unreinforced paper cone would begin to flex and distort.
• Anodized aluminium heat-sinking dust cap: Acts as an active heat sink during sustained high-power use, drawing thermal energy away from the pole piece and voice coil gap directly contributing to long-term reliability at the power levels the T1D412 is rated to handle.
• Optimised pole piece and spider venting: Internal air channels reduce compression behind the cone at high excursion levels, improving linearity and bass accuracy at the displacement levels an 800W RMS 12" driver routinely operates at.
• Proprietary 8 AWG insulated all-metal spring input terminals: Heavy-gauge terminals appropriate for the high current demands of an 800W RMS, 2-ohm system. All-metal construction ensures reliable, corrosion-resistant connections over the long term.
• Symmetrical dual progressive roll poly-cotton spiders: Dual spider configuration provides linear restoring force symmetry across the full excursion range, reducing harmonic distortion and maintaining voice coil alignment at high displacement levels.
• Periodic-stitched fatigue-resistant tinsel leads: Periodic stitching distributes flex stress along a longer lead length, significantly extending tinsel lead fatigue life at the sustained high-excursion levels the T1D412 is designed to operate at.
• Grille and integral trim ring included: Ships complete with protective grille and trim ring for a finished, professional installation appearance without requiring a separately purchased grille.

Technical Specs

Compatible With

• High-output mono amplifiers stable at 2 ohms (parallel wiring) rated at or near 800W RMS
• Mono amplifiers stable at 8 ohms (series wiring) for specific system configurations
• Rockford Fosgate Power T1 and T2 series mono amplifiers
• Custom ported and sealed enclosures designed for the T1D412 confirm recommended enclosure specifications with Rockford Fosgate documentation before building
• Rockford Fosgate 8 AWG and heavy-gauge wiring kits for high-current 2-ohm installations
• Rockford Fosgate RCA cables and signal processors for high-output system integration
• Competition and show car audio builds requiring a flagship 12" 2-ohm stable driver
• Australian vehicles where 12" driver diameter fits available enclosure space more practically than 15"

Frequently Asked Questions

What is the difference between the T1D412 and the T1 15" models? The T1D412 shares the same VAST technology, FlexFit basket, Kevlar cone, Nomex voice coil, and construction standard as the T1D415 and T1D215. The key differences are driver size (12" vs 15") and power handling (800W RMS vs 1000W RMS). The T1D412 suits builds where a 12" format is preferred for enclosure size, vehicle fitment, or system balance reasons.

What is the difference between the T1D412 and T1D212? Both are 12" Power T1 subwoofers with identical 800W RMS power handling, VAST technology, FlexFit basket, and construction. The T1D412 has dual 4-ohm coils (2-ohm parallel / 8-ohm series), while the T1D212 has dual 2-ohm coils (1-ohm parallel / 4-ohm series). Choose the T1D412 for 2-ohm stable amplifier pairings; choose the T1D212 for 1-ohm stable amplifier pairings.

What impedance does the T1D412 present to the amplifier? The T1D412 has dual 4-ohm voice coils. Wired in parallel, it presents a 2-ohm load the standard configuration for maximising power from a 2-ohm stable high-output mono amplifier. Wired in series, it presents an 8-ohm load. Confirm your amplifier's stable impedance rating before wiring.

What enclosure does the T1D412 require? The T1D412 requires a custom or aftermarket enclosure. Rockford Fosgate publishes recommended sealed and ported enclosure specifications for the T1D412 confirm these with official documentation or a qualified installer before designing or building an enclosure.

Does the T1D412 include a grille? Yes. The T1D412 ships with a grille and integral trim ring included, providing a finished, professional installation appearance without requiring a separately purchased grille.
