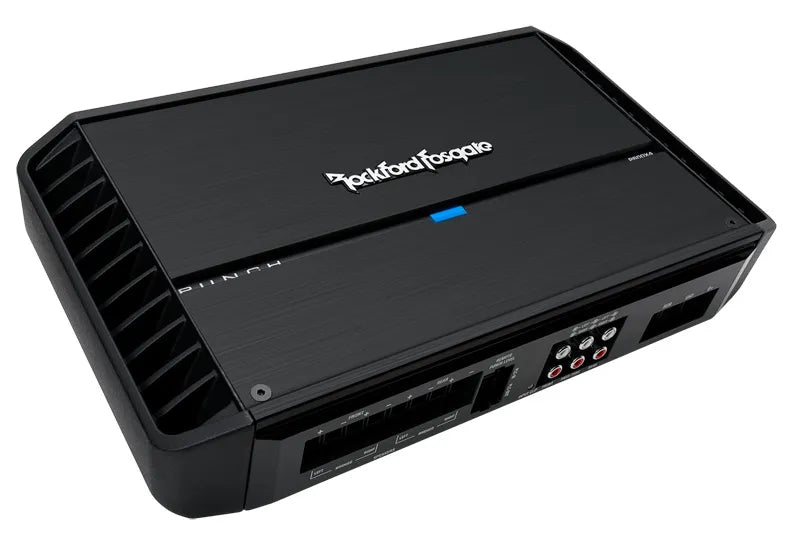

Rockford Fosgate P600X4 Punch 600 Watt 4-Channel Amplifier

Rockford Fosgate P600X4 600 Watts, Four Channels, Built for Any System You Throw at It

Product Overview

The Rockford Fosgate P600X4 is a Punch Series 4-channel amplifier rated at 150 watts RMS per channel at 2 ohms 600 watts total engineered to adapt to virtually any car audio system layout. Run it in full 4-channel stereo for front and rear speakers, bridge both channel pairs into a high-power 2-channel configuration, or operate it in 3-channel mode with stereo speakers up front and a subwoofer on the bridged rear channels. The P600X4 handles all three without compromise.

What sets the P600X4 apart from entry-level 4-channel options is its expanded feature set. RCA pass-thru outputs let you chain additional amplifiers as your system grows without resorting to Y-adapters that degrade signal quality. The optional PLC2 remote Punch Level Control adds a dash-mounted bass adjustment knob with a real-time clip indicator, and the variable HP/LP Butterworth crossover gives you precise per-channel tuning for speakers and subwoofers alike. For Australian builds dealing with heat, corrugations, and long-distance touring, the cast aluminium heatsink and onboard protection circuits keep everything running cleanly.

Key Specifications

• Total RMS Output: 600 watts
• Per-Channel Output: 150W x 4 at 2 ohms
• Channels: 4 (stereo, 3-channel, or bridged 2-channel)
• Bridgeable: Yes — bridge both channel pairs for high-power 2-channel operation
• Crossover: Variable HP/LP, 12dB/octave Butterworth
• Onboard EQ: Punch EQ — +18dB boost at 45Hz
• Inputs: High-level (speaker-level) and RCA
• RCA Pass-Thru Outputs: Yes
• Auto Turn-On: Yes — via high-level input detection
• Remote Control: Optional PLC2 Punch Level Control (with input clip indicator)
• Turn-On Behaviour: Muted (no thump on startup)
• Heatsink: Cast aluminium
• Control Panel Position: Stealth top-mounted
• Protection: Short circuit and over-current

Features & Benefits

• High-Level Input with Auto Turn-On — Connects directly to factory head unit speaker outputs with no RCA cables required. The Auto Turn-On circuit fires the amp when it detects a signal, eliminating the need for a dedicated remote turn-on wire. Ideal for OEM upgrades across any vehicle.
• RCA Pass-Thru Outputs — Extend your system by daisy-chaining a subwoofer amplifier or additional channels without Y-adapters. Keeps signal integrity intact and your wiring clean as your build evolves.
• C.L.E.A.N. Setup (Clip Level Elimination Audio Notify) — Rockford Fosgate's onboard gain-calibration system takes the guesswork out of setup. Dial in maximum clean output without a multimeter or test tone — useful for installers and enthusiasts alike.
• Optional PLC2 Remote Punch Level Control — Adds a dash-mountable knob for real-time bass level adjustment. The input clip indicator lights up before distortion sets in — live feedback that protects your speakers and keeps your tune dialled in on the road.
• Variable HP/LP 12dB/Octave Butterworth Crossover — Independently configure each channel pair for high-pass (speakers) or low-pass (subwoofers) operation. The variable crossover point gives you precision tuning without an external processor.
• Onboard Punch EQ (+18dB @ 45Hz) — Adds controlled sub-bass punch directly from the amp. No separate bass EQ or processor required for most builds — tune to taste from the top-mounted control panel.
• 3-Channel Operating Mode — Run full-range or component speakers on the front two channels and bridge the rear pair for a subwoofer — one amp, complete system. Particularly useful in utes and wagons where boot space is at a premium.
• Muted Turn-On — No startup thump, no tweeter stress, no giveaway of a poorly executed install. Keeps your system sounding professional from the moment the ignition fires.
• Stealth Top-Mounted Control Panel — All gain, crossover, and EQ controls are accessible on the top face of the amp for easy tuning during setup, without cluttering the amp's profile once mounted.
• Cast Aluminium Heatsink — Handles extended thermal loads during long listening sessions. In Australian conditions — outback runs, summer road trips, confined boot spaces — heat management is a real-world spec that matters.
• Short Circuit & Over-Current Protection — Onboard protection circuits guard the amplifier and your speakers against wiring faults and impedance mismatches.

Technical Specs

Compatible With / Goes Well With

System Configurations:

• 4-way full-range speaker system (front + rear, 4-channel stereo)
• 3-channel mode — stereo component speakers (front) + bridged subwoofer (rear)
• Bridged 2-channel mode — high-power output for two subwoofers or speaker pairs
• Front-stage only (component speakers, 2 channels active)

Head Unit Compatibility:

• Factory/OEM head units (via high-level input with Auto Turn-On)
• Aftermarket head units with RCA pre-outs

Accessories:

• Rockford Fosgate PLC2 Remote Punch Level Control (optional, sold separately)
• Recommended: use manufacturer-specified power and speaker cables to optimise power delivery (cable spec not provided — confirm with supplier)

Frequently Asked Questions

Can the P600X4 run speakers and a subwoofer at the same time?

Yes. In 3-channel mode, the front two channels power stereo speakers while the rear channels are bridged to drive a subwoofer — a complete system from a single amplifier.

What is the RCA pass-thru and why does it matter?

The RCA pass-thru outputs let you connect an additional amplifier downstream — such as a dedicated subwoofer amp — without using signal-splitting Y-adapters, preserving audio quality as your system grows.

Does the P600X4 work with a factory head unit?

Yes. The high-level input accepts speaker-level signals from any OEM head unit, and the Auto Turn-On circuit activates the amplifier automatically — no remote turn-on wire required.

Is the PLC2 remote punch level control included in the box?

No. The PLC2 is an optional accessory sold separately. It adds a dash-mountable remote bass control knob and a real-time input clip indicator to help you tune on the go without touching the amp.

What does C.L.E.A.N. setup mean and do I need extra tools?

C.L.E.A.N. (Clip Level Elimination Audio Notify) is Rockford Fosgate's built-in gain-setting system. No multimeter or external tools are needed — it guides you to the optimal gain level to maximise output while keeping distortion out of your signal chain.
