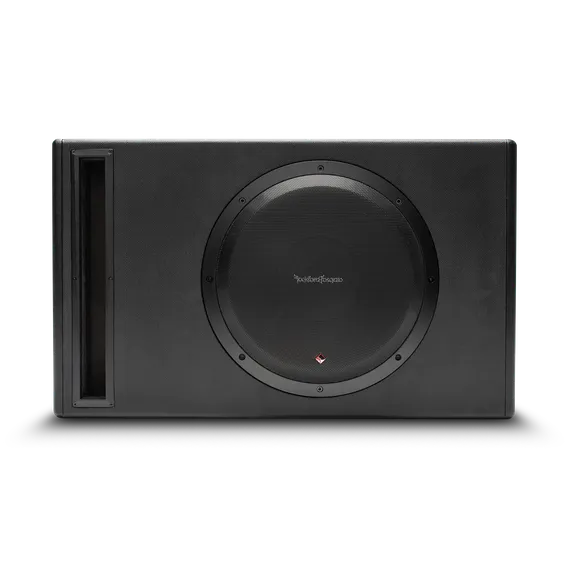

Rockford Fosgate P500-12P Punch 12" 500-Watt Powered Enclosure

Rockford Fosgate P500-12P Punch 12" 500 Watt Powered Sub Enclosure

When you need serious bass in a single self-contained package, the P500-12P combines a high-output 12" Punch woofer, a 500-watt Class D amplifier, and a precision vented MDF enclosure into one plug-and-play solution.

Product Overview

The P500-12P is Rockford Fosgate's all-in-one powered subwoofer enclosure, designed to deliver genuine low-end performance in hatchbacks, sedans, and SUVs without the complexity of a separate amplifier, enclosure, and wiring build. The 12" proprietary woofer is impedance-optimised specifically for the integrated 500-watt Class D amplifier in a closed-loop design, ensuring the driver and amplifier work together as a matched system from the factory. The vented slot-port enclosure is precision tuned for powerful output at lower frequencies, enhancing bass reproduction across the 30-200 Hz operating range. Control is straightforward: a variable Low-Pass crossover (50-200 Hz), an onboard Bass EQ with 0 to +12 dB of boost at 45 Hz, and a 0-180 degree phase switch sit on the amplifier plate, while the included Punch Level Control remote puts bass adjustment in the driver's hand. An intelligent auto turn-on/off circuit with three selectable modes (Remote Trigger, DC Offset Sense, and Audio Sense) eliminates the need for a dedicated remote turn-on wire in OEM installations. Quick-release input and power connectors allow the enclosure to be removed quickly when cargo space is needed. The MDF enclosure is precision constructed from 5/8" board and covered with a heat-activated vinyl finish to resist marks and scuffs. CEA-2006 (amplifier) and CEA-2031 (woofer) compliant, Klippel verified, with a 1-year warranty.

Features & Benefits

500-Watt Class D Amplifier with Closed-Loop Design: The integrated amplifier is an impedance-matched, closed-loop Class D design tuned specifically for the P500-12P's proprietary 12" woofer, ensuring maximum efficiency and control over the driver at all output levels.

Klippel Verified Woofer: The 12" proprietary woofer has been verified through the Klippel certification programme, which measures and corrects non-linear distortion parameters to deliver the best possible transient accuracy and low-frequency output from a compact, optimised driver.

Intelligent Auto Turn-On/Off: Three selectable turn-on modes (Remote Trigger, DC Offset Sense, and Audio Sense) allow the P500-12P to power on automatically in any installation scenario, including factory head units without a dedicated remote output, eliminating additional wiring complexity.

Variable Low-Pass Crossover: Continuously variable from 50 to 200 Hz at 12 dB/octave Butterworth, the onboard crossover integrates cleanly with full-range speakers at virtually any crossover point set by the main system amplifier or head unit.

Onboard Bass EQ: 0 to +12 dB of bass boost at 45 Hz corrects for acoustic deficiencies in the vehicle interior and adds presence and depth to the low-frequency output without an external equaliser.

Phase Switch: A 0 to 180 degree phase control allows the subwoofer to be time-aligned with the main speakers acoustically, compensating for physical placement and enclosure tuning differences to produce a coherent, integrated bass response.

Included Punch Level Control Remote: The Punch Level Control is included in the box, allowing bass output to be adjusted from the driver's seat in real time without accessing the amplifier plate directly.

Quick-Release Input and Power Connectors: Input and power connections use quick-disconnect fittings, allowing the entire enclosure to be removed from the vehicle quickly when cargo space is required, without tools or cable stripping.

High and Low-Level Inputs: Separate RCA (low-level, 150mV-6V) and speaker-level (high-level, 300mV-12V) inputs are provided via a single RCA pair summed L/R, supporting both aftermarket and OEM head unit installations from the same unit.

Precision MDF Enclosure with Vinyl Finish: The enclosure is constructed from 5/8" Medium Density Fiberboard, which provides optimal acoustic properties for subwoofer applications. The heat-activated vinyl finish resists marks and wear in daily cargo area use.

Thermal and Over/Under Voltage Protection: Onboard protection monitors both operating temperature and supply voltage, shutting the amplifier down safely before damage occurs under fault conditions.

CEA-2006 and CEA-2031 Compliant: Amplifier power ratings conform to CEA-2006 industry standards at 14.4V with 1% or less THD. Woofer power handling conforms to CEA-2031, confirming both ratings are real, tested figures.

Technical Specs

Goes Well With

The P500-12P is designed as a standalone bass solution and requires no separate subwoofer amplifier or enclosure. For vehicles where the factory head unit is retained, the high-level speaker inputs and Audio Sense auto turn-on allow direct connection without any additional interface. For systems running an aftermarket head unit, the RCA input connects directly from the head unit's subwoofer pre-out. To complement the P500-12P with front and rear speaker amplification, the PBR400X4D or R2-300X4 pair naturally using a standard RCA pre-out from the head unit. An 8-gauge power and ground cable run to the battery is required, along with the 30A fuse protection provided by the two included 15A ATO fuses.

Frequently Asked Questions

Does the P500-12P need a separate amplifier or subwoofer enclosure?

No. The P500-12P is a fully self-contained system that includes the 12" proprietary woofer, a 500-watt Class D amplifier, and a precision-tuned vented MDF enclosure in one unit. All that is required for installation is a power and ground connection, an audio input (RCA or speaker level), and optionally a remote turn-on wire depending on the auto turn-on mode selected.

Can the P500-12P be connected directly to a factory head unit?

Yes. The high-level speaker inputs accept signal from the factory head unit's speaker outputs, and the Audio Sense or DC Offset Sense auto turn-on modes allow the enclosure to power on automatically without a dedicated remote turn-on wire. This makes the P500-12P a direct plug-in upgrade for OEM systems without requiring head unit replacement.

What does the quick-release connector system allow?

The quick-release input and power connectors allow the entire P500-12P enclosure to be disconnected and removed from the vehicle quickly without tools or cable work. This is particularly useful in hatchbacks and sedans where the boot floor is frequently used for cargo, allowing the subwoofer to be temporarily removed and reinstalled without disturbing the permanent wiring.

What is Klippel Verification, and why does it matter for a subwoofer?

Klippel is an independent speaker measurement and certification programme that identifies and corrects non-linear distortion parameters in speaker drivers, including suspension non-linearities and motor force variation across the cone's travel range. A Klippel-verified woofer has been measured, characterised, and optimised to minimise distortion at high excursion levels, producing cleaner, more accurate bass output at the power levels the P500-12P is designed to deliver.

What are the three auto turn-on modes, and which should I use?

Remote Trigger mode powers the amplifier on when a 12V signal is received at the remote input terminal, requiring a remote turn-on wire from the head unit. DC Offset Sense mode detects a DC voltage change on the high-level speaker input to trigger turn-on, suitable for OEM systems where the speaker output changes state when the head unit powers on. Audio Sense mode detects an incoming audio signal on the input and triggers turn-on automatically, making it the most universal option for both OEM and aftermarket installations without a remote output.
