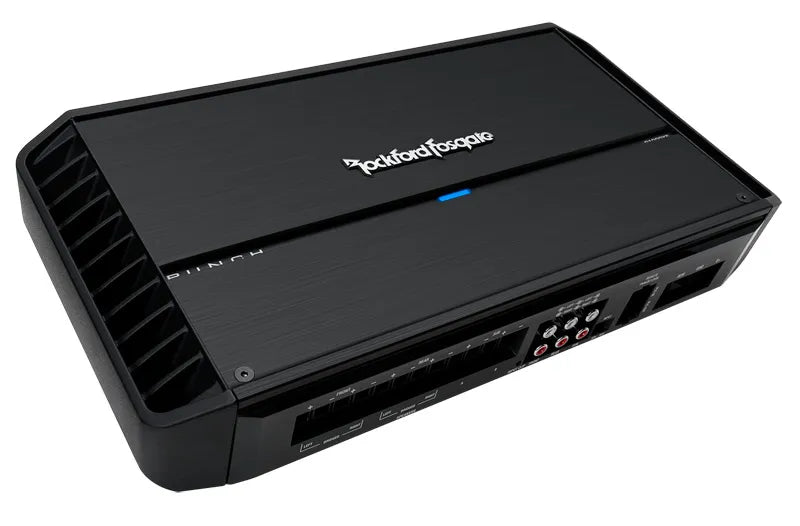

Rockford Fosgate P1000X5 — One Amplifier. Your Entire System. Done.

Product Overview

The Rockford Fosgate P1000X5 is a Punch Series Class-bd 5-channel amplifier built to power a complete car audio system from a single unit. With 1,000 watts of total output across five channels four full-range channels for front and rear speakers, plus a dedicated high-power fifth channel for your subwoofer the P1000X5 eliminates the need for multiple amplifiers in most builds without sacrificing output or efficiency.

Class-bd topology means the P1000X5 draws less current from your charging system than a conventional Class AB equivalent at the same power output important in daily drivers and touring vehicles where alternator load matters. The infrasonic filter on the subwoofer channel protects your woofer from damaging ultra-low frequencies, while the 2/4 channel input switch provides compatibility with both basic and advanced head unit setups. Add the C.L.E.A.N. gain-setting system and optional PLC2 remote Punch Level Control, and this is an amplifier you can tune precisely and live with confidently from Perth suburbs to remote outback roads.

Key Specifications

• Total RMS Output: 1,000 watts
• Channels: 5 (4 full-range + 1 dedicated subwoofer)
• Amplifier Class: Class-bd (full-range channels) / Class-bd (subwoofer channel)
• Crossover: 12dB/octave Butterworth
• Onboard EQ: Punch EQ — +18dB boost at 45Hz
• Infrasonic Filter: Yes (subwoofer channel)
• Input Switch: 2/4 channel input selector
• Inputs: High-level (speaker-level) and RCA
• Auto Turn-On: Yes — via high-level input detection
• Remote Control: Optional PLC2 Punch Level Control (with input clip indicator)
• Turn-On Behaviour: Muted (no thump on startup)
• Heatsink: Cast aluminium
• Control Panel Position: Stealth top-mounted
• Protection: Tri-stage — thermal, over-current, short circuit

Features & Benefits

• 5-Channel Architecture — Power dash speakers on channels 1 and 2, rear speakers on channels 3 and 4, and subwoofer(s) on the dedicated 5th channel. One amp handles your entire system — no second amplifier, no extra wiring runs, less complexity throughout.
• Class-bd Efficiency — Ultra-efficient amplifier topology reduces excessive drain on your vehicle's charging system. Especially valuable in daily drivers, 4WDs with accessories, and touring setups where alternator load is already a consideration.
• Infrasonic Filter — Blocks damaging ultra-low frequencies (below audible range) from reaching your subwoofer. Particularly important when playing music with large amounts of sub-bass or when the enclosure produces port noise — protects cone excursion and extends driver life.
• 2/4 Channel Input Switch — Accommodates both single-zone (2-channel) and dual-zone (4-channel) head unit outputs. No adapters or signal processors required to match different source units — flick the switch and go.
• High-Level Input with Auto Turn-On — Connects directly to factory head unit speaker outputs with no RCA cables required. Auto Turn-On activates the amplifier on signal detection — no remote wire needed for OEM integration.
• C.L.E.A.N. Setup (Clip Level Elimination Audio Notify) — Rockford Fosgate's onboard gain-calibration system. Set your gains correctly the first time without a multimeter or test tones — maximise output while keeping distortion out of the signal chain.
• Optional PLC2 Remote Punch Level Control — Dash-mounted bass level knob with real-time input clip indicator. Adjust subwoofer output on the fly without touching the amp — useful on Australian highways where volume preferences change between town and open road.
• 12dB/Octave Butterworth Crossover — Smooth, predictable crossover roll-off lets you configure each channel group for high-pass (speakers) or low-pass (subwoofer) duties with precision.
• Onboard Punch EQ (+18dB @ 45Hz) — Dials in sub-bass punch directly from the amp. No separate bass processor or equaliser needed for most builds.
• Tri-Stage Protection (Thermal / Over-Current / Short Circuit) — Three independent protection circuits guard the amplifier and your speakers. Thermal protection shuts the amp down before heat causes damage — critical in confined boot spaces during Australian summers.
• Muted Turn-On — Eliminates startup thump across all five channels. No tweeter stress, no subwoofer pop, no signs of a rushed install.
• Stealth Top-Mounted Control Panel — All controls on the top face for easy access during setup, clean profile once installed.
• Cast Aluminium Heatsink — Efficient thermal dissipation for sustained high-output use. Handles long outback runs, hot car parks, and extended listening sessions without throttling performance.

Technical Specs

Compatible With / Goes Well With

System Configurations:

• Full 5-channel system: front speakers (ch. 1–2) + rear speakers (ch. 3–4) + subwoofer (ch. 5)
• 4-channel speaker system with dedicated mono subwoofer channel
• 2-channel head unit output (via 2/4 channel input switch)
• 4-channel head unit output (via 2/4 channel input switch)

Head Unit Compatibility:

• Factory/OEM head units (via high-level input with Auto Turn-On)
• Aftermarket 2-channel head units (via input switch)
• Aftermarket 4-channel head units with RCA pre-outs (via input switch)

Accessories:

• Rockford Fosgate PLC2 Remote Punch Level Control (optional, sold separately)
• Recommended: use manufacturer-specified power and speaker cables to optimise power delivery (cable spec not provided — confirm with supplier)

Frequently Asked Questions

Can the P1000X5 really run my entire car audio system on its own?

Yes. The P1000X5 is designed as a complete single-amplifier solution — four channels for front and rear speakers, plus a dedicated fifth channel for a subwoofer or subwoofers.

What does the 2/4 channel input switch do?

It allows the amplifier to accept either a 2-channel or 4-channel signal from your head unit. This means the P1000X5 works with both basic and advanced source units without adapters or additional processing.

What is the infrasonic filter and why does my subwoofer need it?

The infrasonic filter blocks ultra-low frequencies below the audible range from reaching your subwoofer. These frequencies cause excessive cone movement without producing usable sound and can damage the driver over time — particularly relevant in ported enclosures.

Does the P1000X5 work with a factory head unit?

Yes. The high-level input accepts speaker-level signals from any OEM head unit, and the Auto Turn-On circuit activates the amplifier automatically when a signal is detected — no remote turn-on wire needed.

Is the PLC2 remote punch level control included in the box?

No. The PLC2 is an optional accessory sold separately. It mounts in the dash and provides real-time bass level control plus an input clip indicator — useful for adjusting subwoofer output without reaching into the boot.
