Product Overview

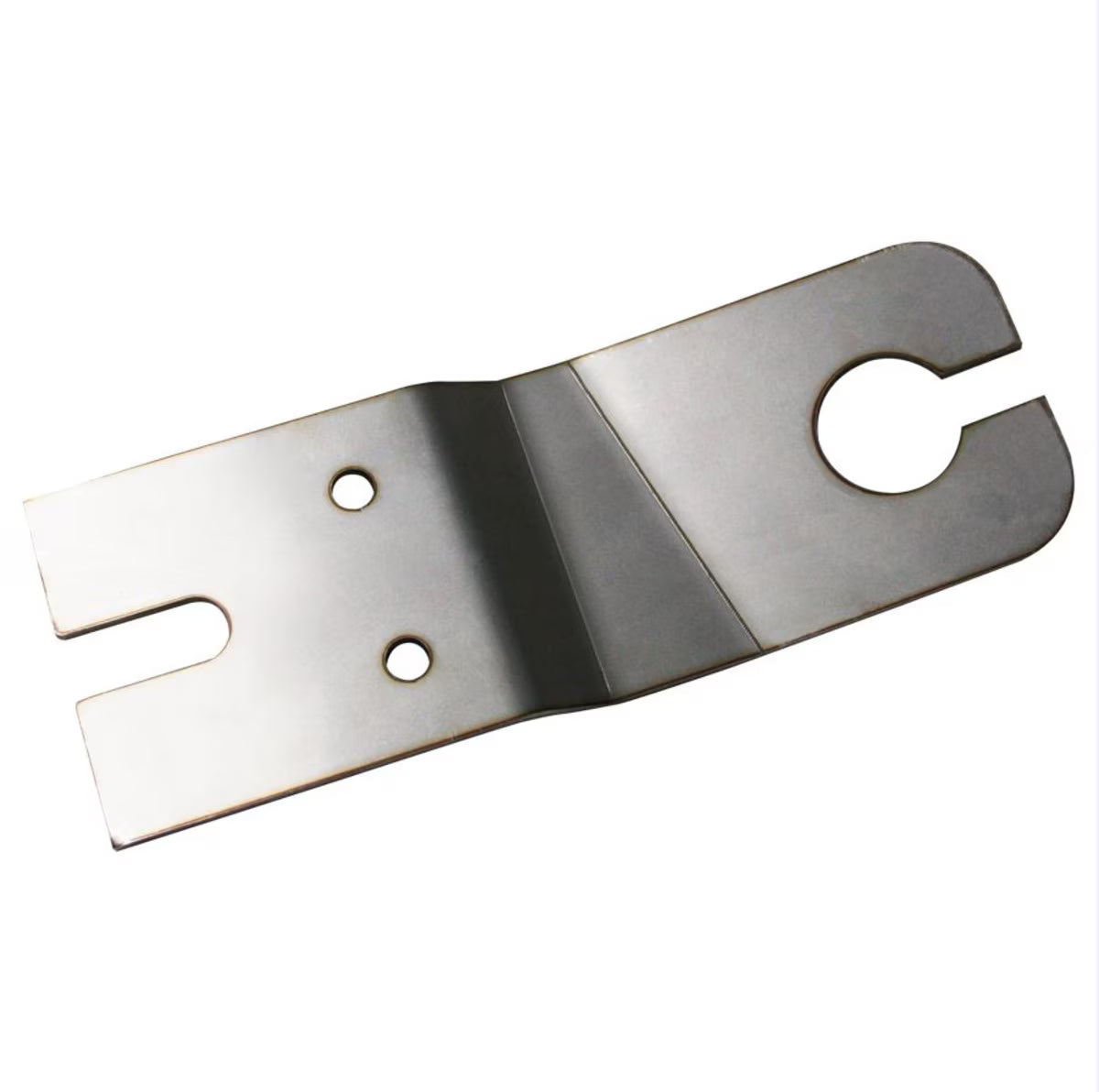

Stainless steel fender mount bracket. Unique design to allow fitment on the left front guard of new 2016 Toyota Hilux.

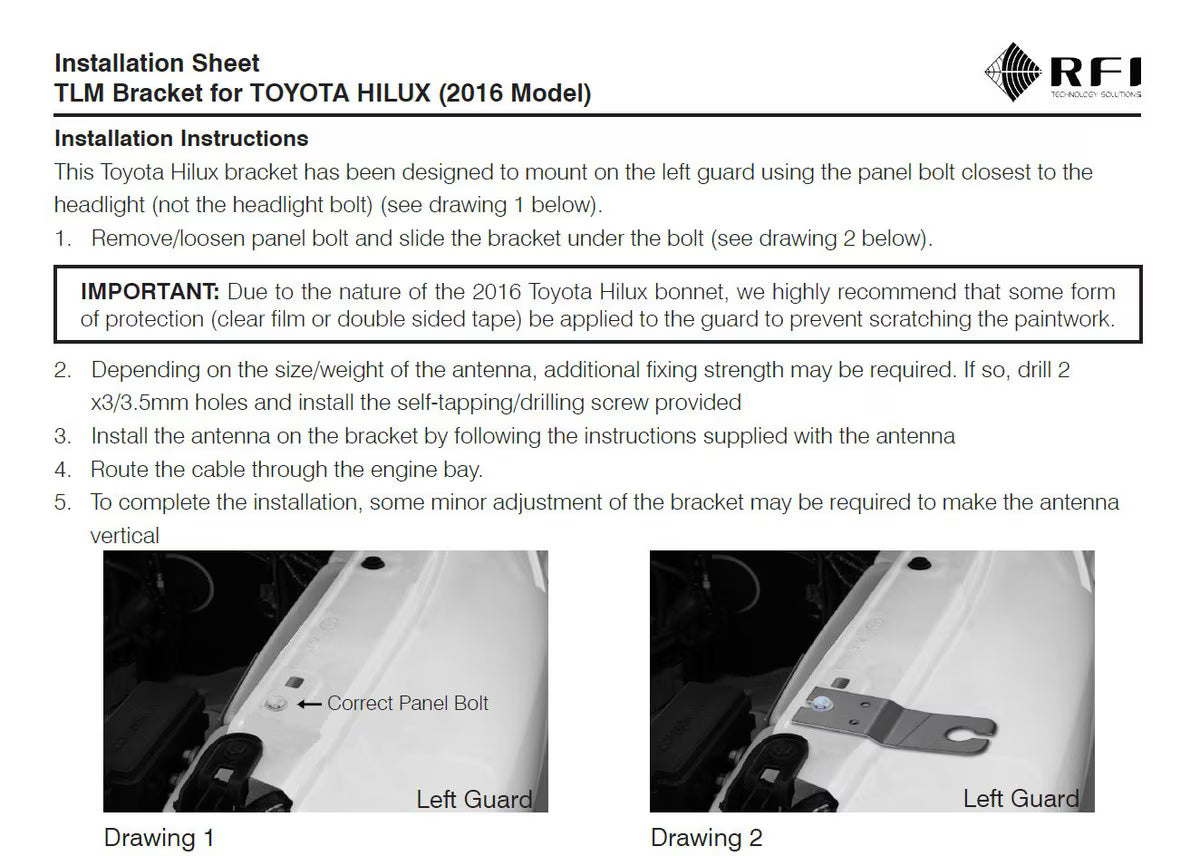

This 1.6mm stainless steel guard mount bracket is designed to fit the new 2016 Toyota Hilux. It is designed to mount on the left guard using the panel bolt closest to the headlight (not the headlight bolt) (see mounting instructions). Slight custom bending of the bracket is recommended to suit the antenna being installed. Due to the nature of the 2016 Toyota Hilux bonnet, we highly recommends that some form of protection (clear film or double-sided tape) be applied to the guard to prevent scratching the paintwork.

Key Features

Vehicle-Specific 2016+ Toyota Hilux Fitment - Precision-engineered design exclusively for eighth-generation Toyota Hilux (GUN series 2015/2016 onwards) left front guard ensuring proper fitment, optimal antenna positioning, and reliable mounting on Australia's best-selling 4WD ute. Vehicle-specific engineering advantages: bracket contours match Hilux left guard geometry, mounting hole positions align with factory panel bolt locations, Z Guard offset dimension optimized for Hilux bodywork clearance, bracket length and width proportioned for Hilux fender area without interference with headlight, grille, or bonnet operation. Left guard installation provides driver-side antenna mounting: convenient for driver access to antenna base connections, optimal positioning for in-cab UHF radio installation with short coax cable run, traditional preferred mounting location for single-antenna installations. 2016+ Hilux generation specific: new-generation Hilux introduced redesigned bodywork requiring updated mounting bracket design, older Hilux generations (2005-2015) use different bracket models with alternative mounting configurations, verify your Hilux year before ordering ensuring TLM-HL-L compatibility. Professional vehicle-specific brackets eliminate fitment guesswork compared to universal brackets: no trial-and-error positioning, no custom fabrication required, proven installation method tested on actual Hilux vehicles, mounting instructions specific to Hilux installation procedure. TLM-HL-L popularity reflects Hilux market dominance: Australia's best-selling vehicle for 19 consecutive years (as of 2024), massive Hilux ownership base creates strong demand for dedicated accessories, proven bracket design with thousands of installations across commercial and recreational Hilux fleet.

Robust 1.6mm Stainless Steel Construction - Heavy-duty 1.6mm thickness stainless steel provides substantial mounting strength supporting tall UHF antennas during highway travel, off-road vibration, and wind loading conditions. Material thickness significance: 1.6mm represents heavy-duty construction compared to lightweight universal brackets (typically 1.0-1.2mm thickness), increased thickness provides rigidity preventing bracket flexing under antenna wind loads, robust construction minimizes vibration-induced movement maintaining secure antenna mounting, heavy-duty design suitable for long antennas (6-9 feet) common in outback communications requiring maximum range. Stainless steel material benefits: excellent corrosion resistance in coastal salt spray environments where Hilux commonly operated (fishing, beach access, marine industries), superior durability in outback dust and high-temperature conditions typical of mining, agricultural, and remote area applications, maintains structural integrity through Australian temperature extremes from tropical heat to alpine cold, resists degradation from vehicle washing chemicals, road salt, and environmental contamination. Professional-grade construction ensures long-term reliability: bracket withstands years of outdoor exposure without rust deterioration, maintains mounting security through repeated antenna installations and removals, supports antenna weight and dynamic loading during vehicle operation. Stainless steel also provides non-magnetic properties avoiding interference with compass navigation or antenna performance—critical for vehicles using magnetic compasses or GPS navigation systems requiring accurate heading information.

Innovative Z Guard Bracket Design with 6mm Mounting Slot - Unique Z-shaped bracket profile offsets antenna mounting position away from Hilux guard providing optimal antenna placement and preventing bodywork interference. Z Guard design advantages: offsets antenna base forward from guard surface creating clearance for antenna cable connections and mounting hardware, elevates antenna mounting point providing superior ground plane for improved radio performance, prevents antenna contact with painted guard surfaces during vibration or movement, positions antenna optimally for bonnet clearance when Hilux hood closed. Offset mounting particularly important for Hilux installation: new-generation Hilux features sculpted bodywork with complex guard contours, antenna mounted directly on guard surface may interfere with bonnet closing or contact painted surfaces, Z Guard offset creates necessary clearance maintaining proper antenna position. 6mm antenna mounting slot accommodates various antenna mounting configurations: through-bolt mounting with nut securing antenna base from bracket underside, stud mounting where antenna base threads into captive nut or bracket threading, coax cable pass-through where antenna cable routes through slot to connections below. Slot design provides flexibility: antenna position adjustable within slot length fine-tuning mounting location, slot accommodates antennas with different base diameters and mounting configurations, open slot enables easy installation without disassembling antenna from cable. 6mm slot width standard for UHF antenna installations: accommodates RG58 coax cable (5mm diameter typically), provides clearance for PL259 connectors or antenna base hardware, suitable for standard spring-base antennas and fixed-mount antennas common in Hilux installations.

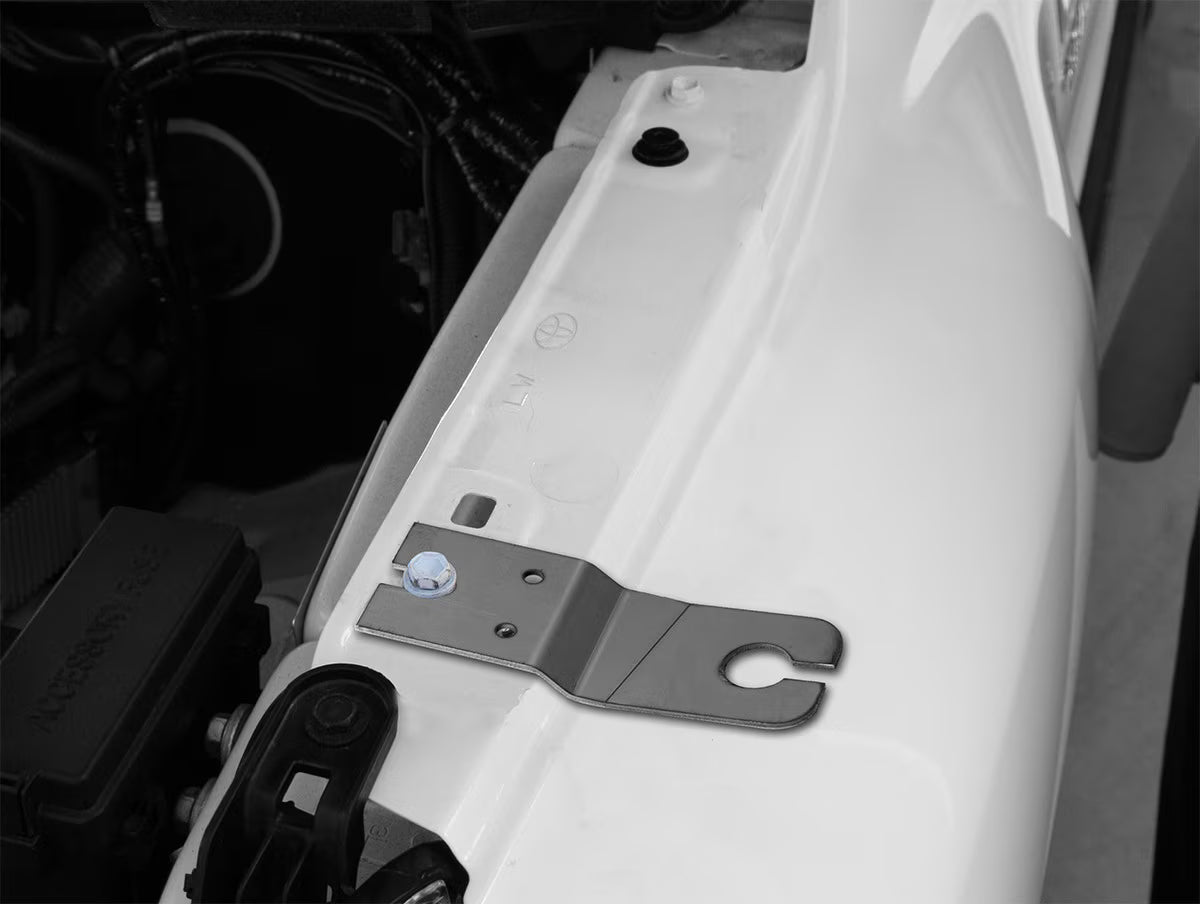

No-Drill Installation Using Factory Panel Bolt - Professional installation method utilizing existing Hilux factory panel bolt eliminating drilling holes in vehicle bodywork and maintaining vehicle structural integrity. Installation procedure: locate existing panel bolt on left front guard closest to headlight assembly (specifically NOT the headlight mounting bolt itself), remove factory panel bolt temporarily accessing mounting location, position TLM-HL-L bracket aligning bracket hole with factory bolt location, reinstall factory panel bolt through bracket hole securing bracket to guard, tighten bolt to factory torque specification ensuring secure mounting, install antenna on bracket 6mm slot completing installation. No-drill advantages: maintains vehicle warranty by avoiding bodywork modifications, preserves guard structural integrity without introducing new holes, completely reversible installation returning Hilux to factory condition by removing bracket and reinstalling factory bolt, eliminates corrosion risk from drilled holes exposing bare metal to environment, professional appearance using factory mounting points rather than added holes. Factory bolt location strategic: positioned on guard area providing stable mounting platform, located near headlight area offering convenient height for antenna base connections, accessible for installation without removing guard or major disassembly. Important installation note: use panel bolt closest to headlight, NOT headlight mounting bolt—headlight bolt serves critical lighting component mounting function, removing headlight bolt may affect headlight alignment or security, incorrect bolt selection could damage headlight mounting or bracket fitment. Professional installation recommended for owners unfamiliar with Hilux bodywork: experienced installer identifies correct panel bolt immediately, ensures proper bracket positioning and torque specifications, verifies antenna clearances with bonnet and surrounding components.

Custom-Bendable Design for Antenna-Specific Optimization - Malleable 1.6mm stainless steel construction enables slight custom bending matching specific antenna requirements and optimizing mounting geometry for individual installations. Custom bending benefits: adjust bracket angle matching antenna base orientation requirements, fine-tune antenna position for optimal bonnet clearance when hood closed, customize offset distance accommodating different antenna base sizes or cable routing preferences, optimize mounting geometry for specific UHF radio installation configurations. Bending procedure: use vice grips, adjustable wrench, or bending jig applying gradual pressure to bracket, make small incremental bends checking fitment frequently, avoid sharp bends or kinks that could weaken bracket material, test-fit antenna and bracket on vehicle verifying bonnet clearance before final installation. When custom bending recommended: antenna base larger or smaller than typical requiring bracket geometry adjustment, specific antenna cable routing requiring alternate bracket angle, bonnet clearance marginal requiring bracket position fine-tuning, installer preference for optimized antenna positioning. Bending locations typically: Z Guard offset angle can be adjusted slightly forward or rearward, bracket mounting flange can be bent adjusting vertical antenna height, minor tweaks to bracket geometry accommodating Hilux manufacturing tolerances or bodywork variations. Professional installers experienced with Hilux antenna installations develop expertise in optimal bracket bending: understand typical antenna requirements and Hilux clearances, make informed bending decisions based on specific installation scenario, achieve superior results through custom bracket optimization. DIY installers should approach bending conservatively: make minimal adjustments initially verifying improvement before additional bending, over-bending difficult to reverse and may weaken bracket, consult RFI mounting instructions or experienced installers for guidance on typical bending requirements.

Paintwork Protection Critical for Hilux Installation - Important installation recommendation: apply protective film or double-sided tape to Hilux guard preventing antenna or cable contact scratching paintwork during operation. Protection necessity: 2016+ Hilux bonnet design features specific geometry where bonnet closes in proximity to guard-mounted antenna, antenna movement during driving (vibration, wind loading) may cause antenna cable or base contacting guard surface, contact with painted surface over time creates scratches, scuffs, or paint damage visible on guard, protection layer prevents direct contact between antenna components and painted guard surface. Recommended protection methods: automotive clear paint protection film (PPF) applied to guard area beneath antenna providing durable transparent barrier, high-quality double-sided foam tape creating buffer between bracket/antenna and painted surface, self-adhesive felt or fabric pads positioned strategically where antenna cable may contact guard. Protection installation: clean guard surface thoroughly removing dirt, wax, contaminants, apply protection material to guard area beneath and around antenna mounting location, ensure protection extends adequately beyond antenna movement range, verify protection securely adhered before antenna installation. Additional protective measures: use cable ties or clips securing antenna coax cable preventing excessive movement, install cable snake or protective conduit over coax cable reducing stiffness and preventing guard contact, periodic inspection checking antenna movement and protection condition adjusting as needed. Paintwork damage prevention particularly important for: leased Hilux requiring return in original condition, show vehicles or prestige Hilux maintaining perfect appearance, commercial fleets avoiding vehicle damage costs, owners prioritizing resale value maintaining paintwork integrity. Protection materials readily available: automotive accessory stores stock paint protection film and installation supplies, hardware stores carry suitable foam tape and protective materials, professional tint and protection film installers can apply custom protection for premium results.

Technical Specifications

Frequently Asked Questions

Q: Will this bracket fit my 2015 or older Toyota Hilux?

A: No—TLM-HL-L specifically engineered for 2016+ eighth-generation Toyota Hilux (GUN series) with redesigned bodywork introduced in 2015/2016 model year. Earlier Hilux generations (2005-2015 seventh generation, pre-2005 models) feature different guard geometry, alternative panel bolt locations, and distinct bodywork contours requiring different bracket designs. Generation identification: eighth-generation Hilux introduced mid-2015 as 2016 model year in Australia featuring redesigned exterior, updated front-end styling, new guard and bonnet design. If your Hilux 2015 or older, contact RFI or automotive accessory specialist requesting bracket model suitable for seventh-generation Hilux—alternative brackets available for earlier generations using different mounting configurations. Vehicle compatibility critical: incorrect generation bracket may not align with panel bolt locations, Z Guard offset dimension inappropriate for older bodywork, bracket may interfere with headlight or bonnet operation on wrong generation. Verify your Hilux generation before ordering: check VIN plate confirming model year, examine styling identifying generation (eighth-gen features aggressive front styling, larger grille, sculpted guards), consult Hilux owner community or dealership confirming generation if uncertain. TLM-HL-L proven fitment on 2016+ Hilux across all trim levels: SR, SR5, Workmate, Rugged, Rugged X, Rogue—bodywork consistent across trim levels enabling universal eighth-generation compatibility.

Q: Why must I use the panel bolt and NOT the headlight bolt?

A: Critical installation distinction: headlight mounting bolt serves essential lighting system function securing headlight assembly to vehicle—removing or sharing headlight bolt for bracket mounting risks headlight security, alignment, or performance issues. Panel bolt advantages: dedicated structural bolt securing guard panel to vehicle body providing robust mounting point, adequate bolt length and thread engagement supporting bracket and antenna loading, removal for bracket installation does not affect critical vehicle components, factory panel bolt designed for potential accessory mounting applications. Headlight bolt risks: headlight bolt may have insufficient thread length accommodating bracket addition, sharing headlight bolt introduces potential headlight misalignment or looseness affecting lighting performance, headlight assembly may not seat properly with bracket interfering with mounting surfaces, incorrect bolt selection could damage expensive headlight housing or mounting hardware. Panel bolt identification: consult RFI mounting instructions for specific bolt location diagram, panel bolt typically located on guard panel near headlight but distinct from actual headlight mounting points, bolt may be marked in instructions with specific identification features, professional installer familiar with Hilux identifies correct bolt immediately. Installation verification: before removing any bolt, confirm it is panel bolt NOT headlight bolt, verify bolt removal does not affect headlight position or security, test-fit bracket ensuring proper alignment with identified panel bolt location. If uncertain about correct bolt: consult professional 4WD accessory installer experienced with Hilux antenna installations, contact RFI technical support requesting clarification on bolt identification, review Hilux service manual or online installation guides showing correct mounting location. Proper bolt selection ensures successful installation without affecting vehicle lighting or creating safety issues.

Q: How much custom bending is typically required for TLM-HL-L installation?

A: Custom bending requirements vary based on specific antenna being installed and individual Hilux tolerances—typically slight adjustment rather than major reshaping. Common bending scenarios: adjusting Z Guard offset angle forward or rearward by 5-10 degrees optimizing bonnet clearance, tweaking mounting flange angle matching guard contour for flush fitment, fine-tuning bracket geometry accommodating specific antenna base size or cable routing. Minimal bending usually sufficient: TLM-HL-L designed with typical Hilux geometry and standard antenna requirements considered, many installations succeed with zero bending using bracket as-supplied, custom bending provides optimization for specific scenarios rather than mandatory modification. Bending decision factors: test-fit bracket and antenna on vehicle before bending observing bonnet clearance and antenna positioning, if bonnet closes without antenna interference and antenna appears correctly positioned, bending unnecessary, if bonnet contacts antenna or clearance marginal, slight forward/rearward offset adjustment beneficial, if bracket doesn't sit flush against guard, minor mounting flange angle adjustment improves fitment. Bending technique: use smooth gradual bends rather than sharp kinks maintaining bracket strength, apply force across bracket width distributing stress evenly, make small incremental adjustments testing fitment between bending attempts, avoid over-bending requiring reverse adjustments potentially weakening material. Professional installer expertise: experienced installers familiar with Hilux quickly identify whether bending beneficial, understand typical antenna requirements and optimal bracket geometry, achieve ideal results through informed custom adjustment. DIY installer approach: install bracket initially without bending verifying functionality, observe any clearance issues or suboptimal positioning during test fitting, make conservative bending adjustments if truly necessary improving fitment. Excessive bending indicates potential issues: completely different bracket model may be more appropriate, antenna selection may be incompatible with guard mounting, installation approach may require reconsideration. Conservative approach recommended: bracket functions well as-designed for most installations, custom bending provides fine-tuning optimization rather than fundamental necessity.

Q: What type of paintwork protection should I use on my Hilux guard?

A: Several effective protection options available preventing antenna-induced paint damage on Hilux guard beneath bracket installation. Recommended protection materials: Automotive clear paint protection film (PPF): professional-grade transparent film applied to guard surface providing durable scratch-resistant barrier, available in various thicknesses (typically 6-8 mil), self-healing properties (minor scratches disappear with heat), professionally installed or DIY kits available, most effective protection option with invisible appearance. High-quality double-sided foam tape: 3M VHB (Very High Bond) tape or similar automotive-grade foam tape, creates cushioned barrier between bracket/antenna and painted surface, adequate thickness (1-3mm) preventing hard contact, weather-resistant adhesive maintaining bond in Australian conditions. Self-adhesive felt or fabric pads: automotive trim protection pads available from accessory retailers, stick-on application to guard areas where antenna cable may contact, softer surface preventing scratches from cable movement, economical protection option for budget installations. Protection application procedure: thoroughly clean guard surface with automotive degreaser or isopropyl alcohol removing wax, polish, contaminants, dry surface completely ensuring proper adhesion, cut protection material to size covering antenna contact areas plus margin, apply protection material smoothing out bubbles and ensuring complete adhesion, allow adhesive to cure (typically 24 hours) before antenna installation. Protection coverage area: install protection beneath antenna mounting location where bracket contacts guard, extend protection along cable routing path where coax may touch guard during movement, generous coverage better than minimal—extra protection costs little ensuring complete paint safeguarding. Professional application option: automotive tint and protection film installers can apply custom PPF for premium protection, professional application ensures proper coverage, smooth bubble-free installation, edges sealed preventing moisture ingress. Protection importance: new Hilux paint vulnerable to scratching from antenna movement, protection investment minimal compared to paint repair costs, maintains Hilux resale value by preventing visible damage, particularly critical for leased vehicles requiring return in original condition. Periodic inspection: check protection condition every few months or after severe off-road use, replace protection if showing wear or adhesion loss, adjust antenna cable routing if protection wearing in specific areas indicating excessive contact.

Q: Can I install this bracket on the right guard instead of left?

A: TLM-HL-L specifically designed for left front guard installation—right guard installation not recommended due to different panel bolt locations, mirror-image bodywork geometry, and mounting complications. Left guard design specificity: bracket contoured matching left guard panel geometry, mounting hole positioned for left guard factory panel bolt location, Z Guard offset dimension optimized for left-side bodywork and bonnet clearances. Right guard installation challenges: panel bolt locations may differ on right guard making bracket hole misalignment, bracket contour designed for left guard may not sit properly on mirror-image right surface, Z Guard offset may position antenna suboptimally or create bonnet clearance issues on right side, custom modifications likely required reducing bracket strength or reliability. Alternative for right guard mounting: RFI may offer right-guard-specific bracket (check product catalog for TLM-HL-R or similar right-side model), consider alternative mounting locations if right guard installation critical (bull bar mount, roof mount, rear guard mount), contact RFI technical support inquiring about right guard bracket availability. Left guard mounting advantages: driver-side installation convenient for cable routing to driver-area radio installation, traditional preferred location for single-antenna setups, optimal for right-hand-drive vehicles (driver has direct view of antenna). Dual antenna installations: some users install antennas on both guards using left bracket on left guard and right-specific bracket on right guard, dual-antenna setup common for vehicles with two UHF radios (convoy radio and scanning radio), consult RFI catalog for complete left/right bracket options. If right guard mounting absolutely necessary: professional fabricator could potentially modify TLM-HL-L creating right-side version, modification requires metalworking expertise and careful test-fitting, custom fabrication voids any warranty and success not guaranteed. Recommended approach: use TLM-HL-L on left guard as designed ensuring proven fitment and reliable mounting, investigate dedicated right guard bracket if right-side installation truly required.
