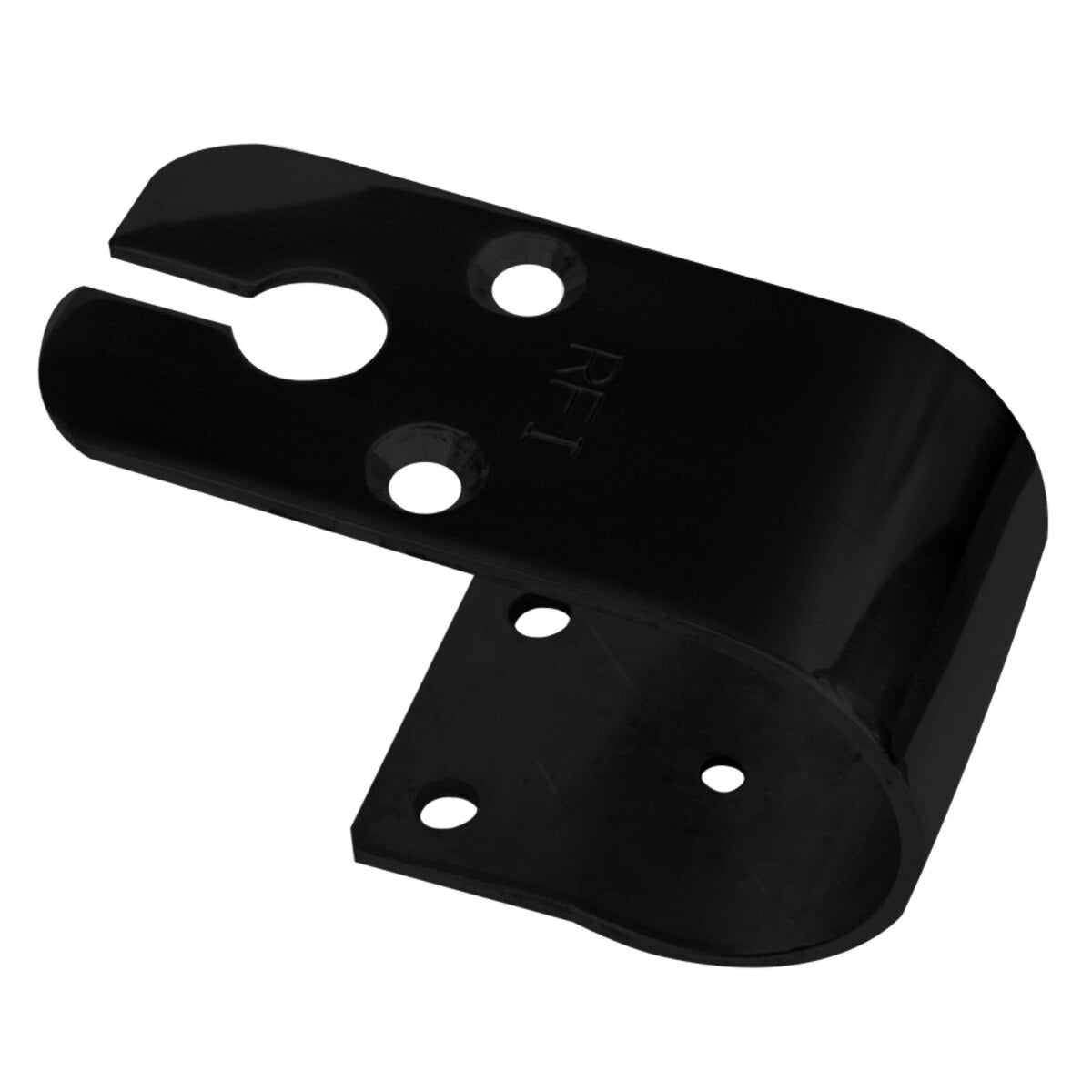

RFI BBWM-76-B Black Stainless Steel Wrap Around Bull Bar Bracket - Professional 76mm Diameter Bull Bar Antenna Mount with 6mm Cable Slot, Dual Bolt Installation, and Security Locking Screw
Achieve secure professional bull bar antenna mounting with RFI BBWM-76-B Black Stainless Steel Wrap Around Bracket—featuring vehicle-specific 76mm diameter bull bar compatibility ensuring precise fitment on standard Australian bull bar tubing, heavy-duty 3mm stainless steel construction providing exceptional mounting strength and long-term durability for demanding off-road and highway conditions, professional black powder-coated finish enhancing corrosion protection and complementing modern 4WD vehicle aesthetics, innovative wrap-around design encircling bull bar tube providing superior mounting security and load distribution compared to standard clamp brackets, integrated 6mm cable slot simplifying antenna installation and cable management eliminating separate routing requirements, dual installation bolts distributing mounting loads across wrap-around design ensuring stable secure attachment, security locking screw preventing unauthorized antenna removal or theft protecting valuable communication equipment, professional-grade stainless steel resisting rust and corrosion in Australian coastal and outback environments, universal UHF CB antenna compatibility accommodating spring bases and fixed-mount configurations, part of comprehensive BBWM range offering bull bar bracket options for 45mm, 50mm, 63mm, 73mm, and 76mm diameter applications, and proven RFI quality engineering delivering reliable purpose-built bull bar antenna mounting solution for 4WD touring, commercial vehicles, and off-road communication installations.
Product Overview
Black powder coated wrap around stainless steel bull bar bracket with 6mm cable slot for ease of antenna mounting.
Specifically manufactured to mount antennas onto 76mm diameter bull bars, the BBWM-76-B features black powder coated 3mm stainless steel construction, 6mm cable slot, dual installation bolts and security locking screw. The BBWM range cater for bars of 45, 50, 63 and 73mm diameters.
Key Features
Vehicle-Specific 76mm Bull Bar Diameter Compatibility - Precisely engineered for 76mm diameter bull bar tubes ensuring proper fitment on standard Australian 4WD bull bar configurations.
Heavy-Duty 3mm Stainless Steel Construction - Robust 3mm stainless steel material provides exceptional mounting strength and structural rigidity for demanding off-road and highway antenna installations.
Professional Black Powder-Coated Finish - Durable black coating enhances corrosion protection and provides discreet appearance complementing modern 4WD vehicle styling and dark-colored bull bars.
Wrap-Around Design for Superior Security - Innovative bracket encircles bull bar tube providing superior mounting stability and load distribution compared to standard clamp-style brackets.
Integrated 6mm Cable Slot with Dual Bolt Installation - Built-in cable slot simplifies antenna installation while dual installation bolts distribute mounting loads ensuring stable secure attachment to bull bar.
Security Locking Screw Anti-Theft Protection - Integrated security locking screw prevents unauthorized antenna removal protecting valuable UHF CB communication equipment from theft.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BBWM-76-B |
| SKU | BBWM-76-B |
| Brand | RFI |
| Product Type | Bull Bar Antenna Bracket (Wrap-Around Design) |
| Material | Stainless Steel |
| Material Thickness | 3mm (Heavy Duty) |
| Finish | Black (Powder-Coated) |
| Design | Wrap-around bull bar bracket with cable slot |
| Bull Bar Diameter Compatibility | 76mm |
| Cable Slot | 6mm |
| Installation Bolts | Dual installation bolts (2 included) |
| Security Feature | Security locking screw |
| Vehicle Compatibility | Universal (4WD vehicles, utes, trucks with 76mm bull bars) |
| Antenna Compatibility | Standard UHF CB antennas, Spring base antennas, Fixed mount antennas |
| Component Type | Bracket |
| Drilling Required | No drilling to bull bar (wrap-around clamp design) |
| Corrosion Protection | Black powder-coated finish over stainless steel |
| BBWM Range | Available in 45mm, 50mm, 63mm, 73mm, 76mm diameters |
| Application | Bull bar antenna mounting, 4WD communication installations, Off-road antenna mounting |
Frequently Asked Questions
Q: How do I determine if my bull bar is 76mm diameter?
A: Measure bull bar tube diameter using calipers or measuring tape—76mm represents outside diameter of bull bar tube. Common Australian bull bar sizes: 45mm, 50mm, 63mm, 73mm, 76mm. 76mm diameter typical for heavy-duty 4WD bull bars on larger vehicles (Landcruiser, Patrol, RAM trucks). Measure at proposed antenna mounting location as some bull bars feature different tube diameters at various positions. If uncertain, consult bull bar manufacturer specifications or measure existing bull bar. RFI BBWM range offers brackets for all common diameters ensuring proper fitment.
Q: What is the advantage of wrap-around design versus clamp-style brackets?
A: Wrap-around design encircles bull bar tube providing superior mounting security and stability. Benefits: distributes antenna loading across greater bull bar surface area, resists rotation and movement better than single-point clamps, enhanced security with dual bolts plus locking screw, integrated cable slot within wrap-around structure. Clamp-style brackets attach at single point potentially allowing rotation under antenna wind loads. Wrap-around design particularly beneficial for highway speeds and off-road conditions where antenna stability critical.
Q: How does the security locking screw prevent antenna theft?
A: Security locking screw requires special key or tool preventing removal with standard tools—deters opportunistic antenna theft. Standard installation bolts secure bracket to bull bar, security screw prevents antenna removal from mounted bracket. Benefits: protects valuable UHF CB antennas from theft, particularly important for commercial vehicles and urban parking, simple security measure without complex locking mechanisms. Security screw complements dual bolt installation providing theft deterrent while maintaining convenient authorized antenna removal when needed.
Q: Will BBWM-76-B fit bull bars slightly smaller or larger than 76mm?
A: BBWM-76-B specifically engineered for 76mm diameter—not recommended for significantly different sizes. Minor tolerance (±1-2mm) may work but compromises optimal fitment and mounting security. For other diameters: BBWM-73 (73mm), BBWM-63 (63mm), BBWM-50 (50mm), BBWM-45 (45mm). Measure bull bar accurately and select corresponding BBWM bracket ensuring proper wrap-around engagement and secure mounting. Using incorrect size risks inadequate clamping force, potential bracket slippage, or damage to bull bar finish from over-tightening attempting to compensate.
Q: Can BBWM-76-B mount antennas on horizontal or vertical bull bar tubes?
A: BBWM-76-B wrap-around design suitable for both horizontal and vertical 76mm bull bar tubes. Horizontal tube mounting (most common): positions antenna vertically on top horizontal bull bar tube providing elevated mounting position. Vertical tube mounting: attaches to vertical bull bar uprights if preferred positioning or horizontal tubes unavailable. Verify cable slot orientation allows proper cable routing regardless of tube orientation. Dual bolt installation and wrap-around design maintain secure mounting on either horizontal or vertical tubes. Choose mounting location optimizing antenna position and cable routing to vehicle interior.
