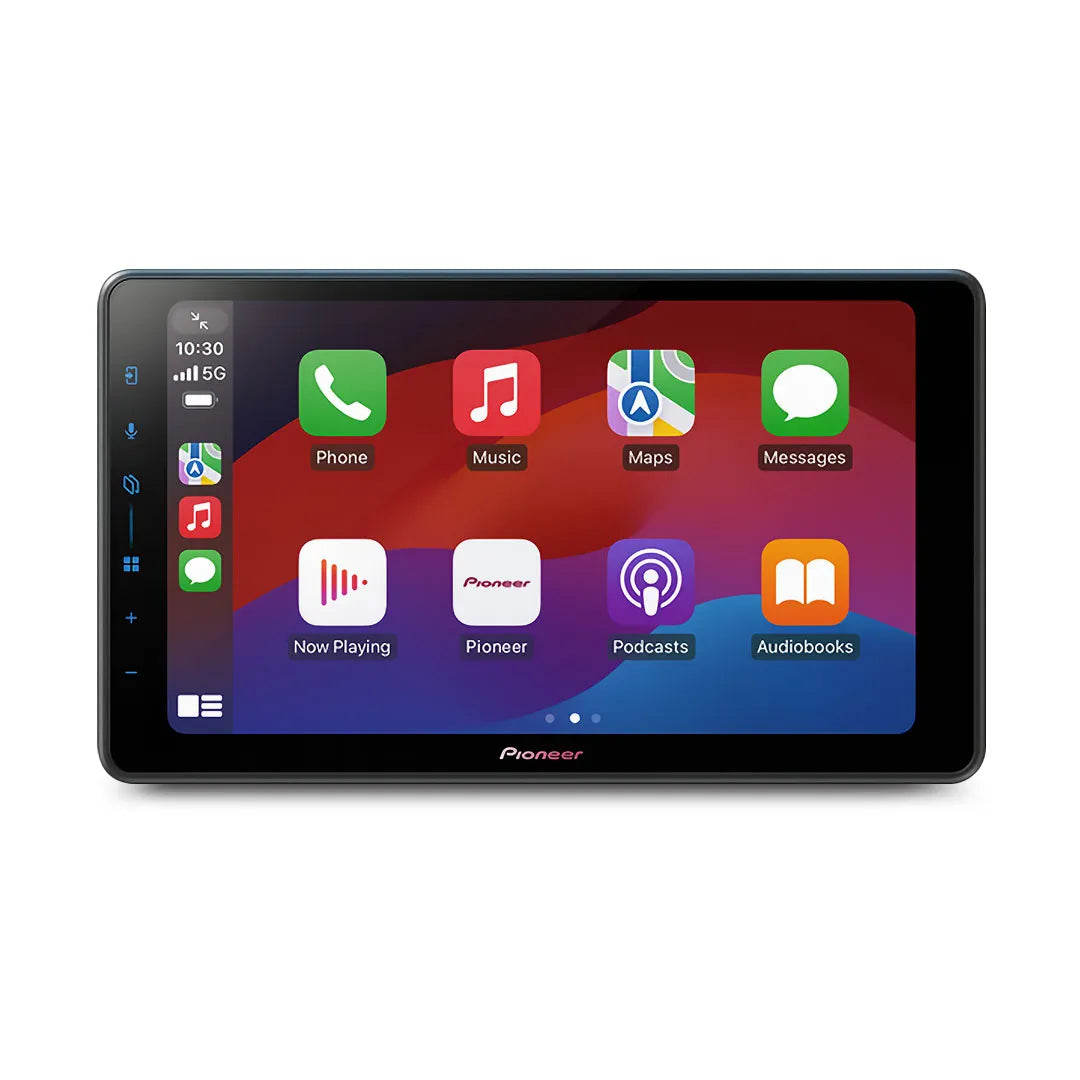

Pioneer SPH-EVO98DAB 9″ Wireless AV Receiver with CarPlay and Android Auto

Pioneer SPH-EVO98DAB - The Next Evolution in Car Entertainment

Experience the future of in-car technology with the Pioneer SPH-EVO98DAB 9" Wireless AV Receiver. This cutting-edge head unit combines a stunning floating touchscreen design with seamless wireless smartphone integration, delivering premium entertainment and connectivity for modern vehicles.

Wireless CarPlay & Android Auto Excellence Say goodbye to tangled cables with wireless Apple CarPlay™ and Android Auto™ connectivity. The SPH-EVO98DAB automatically connects to your smartphone when you enter your vehicle, providing instant access to navigation, music, calls, and messages through the crisp 9" WSVGA capacitive touchscreen.

Floating Screen Design Revolution The innovative "Floating/Separable" touchscreen offers flexible installation options that complement any dashboard design. With its 1,024 x 600 resolution display and capacitive touch technology, every interaction feels smooth and responsive, whether you're navigating maps or controlling your music.

Premium Audio Performance Engineered with Pioneer's legendary audio expertise, this receiver features a built-in MOSFET 4 x 50W amplifier, 13-band EQ, and Advanced Sound Retriever technology. The result is crystal-clear sound reproduction that brings your music to life, whether streaming from your phone or listening to DAB+ digital radio.

Advanced Connectivity Features

• Dual Bluetooth 5.2 - Connect and manage two phones simultaneously
• Wi-Fi Connectivity - Enables wireless CarPlay/Android Auto functionality
• DAB+ Digital Radio - Superior broadcast quality with 18 preset stations
• WebLink® Cast - Mirror iOS and Android devices for apps and navigation
• Split-Screen Support - Multitask with CarPlay and other functions simultaneously

Professional Installation Ready

• iDataLink Maestro Compatible - Retain factory steering wheel controls and vehicle settings
• Dual Camera Inputs - Supports HD reverse camera plus additional front/side camera
• 1-DIN Chassis - Compact design fits most vehicles (156mm depth)
• PxLink App Support - Remote control, OTA updates, and display customization

Key Features & Benefits

• 9" WSVGA Capacitive Touchscreen - High-resolution floating display (1,024 x 600)
• Wireless Smartphone Integration - CarPlay & Android Auto without cables
• Dual Device Support - Connect two smartphones via Bluetooth simultaneously
• Premium Audio Processing - 13-band EQ, HPF/LPF, and sound enhancement
• Flexible Media Playback - USB support for MP3, FLAC, AAC, WAV, MPEG-4, WMV
• Enhanced Safety Features - Dual camera inputs for comprehensive vehicle monitoring

Technical Specifications

• Model: Pioneer SPH-EVO98DAB
• Display: 9" WSVGA (1,024 x 600) Capacitive Touchscreen
• Smartphone Support: Apple CarPlay™, Android Auto™ (wireless/wired), WebLink® 3.0
• Bluetooth: Version 5.2 with dual phone, A2DP, AVRCP support
• Audio Output: Built-in MOSFET 4 x 50W amplifier
• Pre-outs: 3x RCA outputs (2V) - Front, Rear, Subwoofer
• Audio Processing: 13-band EQ, HPF/LPF, Advanced Sound Retriever
• Radio: DAB+ digital radio with 18 presets
• Media Formats: USB Audio (MP3, FLAC, AAC, WAV) | Video (MPEG-4, WMV, Full HD)
• Connectivity: Wi-Fi, USB-A (rear), HDMI (Type-A), composite video out
• Camera Support: Dual camera inputs (HD-TVI rear camera supported)
• Chassis: 1-DIN floating display mount
• Depth: 156mm
• Installation: iDataLink Maestro compatible for OEM integration

Compatible With / Goes Well With

• iDataLink Maestro integration modules
• HD reverse cameras and dash cameras
• Pioneer amplifiers and speakers
• Steering wheel control interfaces
• Vehicle-specific installation kits
• DAB+ antenna systems

Ideal Applications

• Modern dashboard upgrades for universal fitment
• OEM integration with factory feature retention
• Wireless smartphone connectivity solutions
• Premium audio systems requiring advanced EQ tuning
• Vehicles needing backup camera and driver assist integration
• Professional installations requiring split-screen functionality
