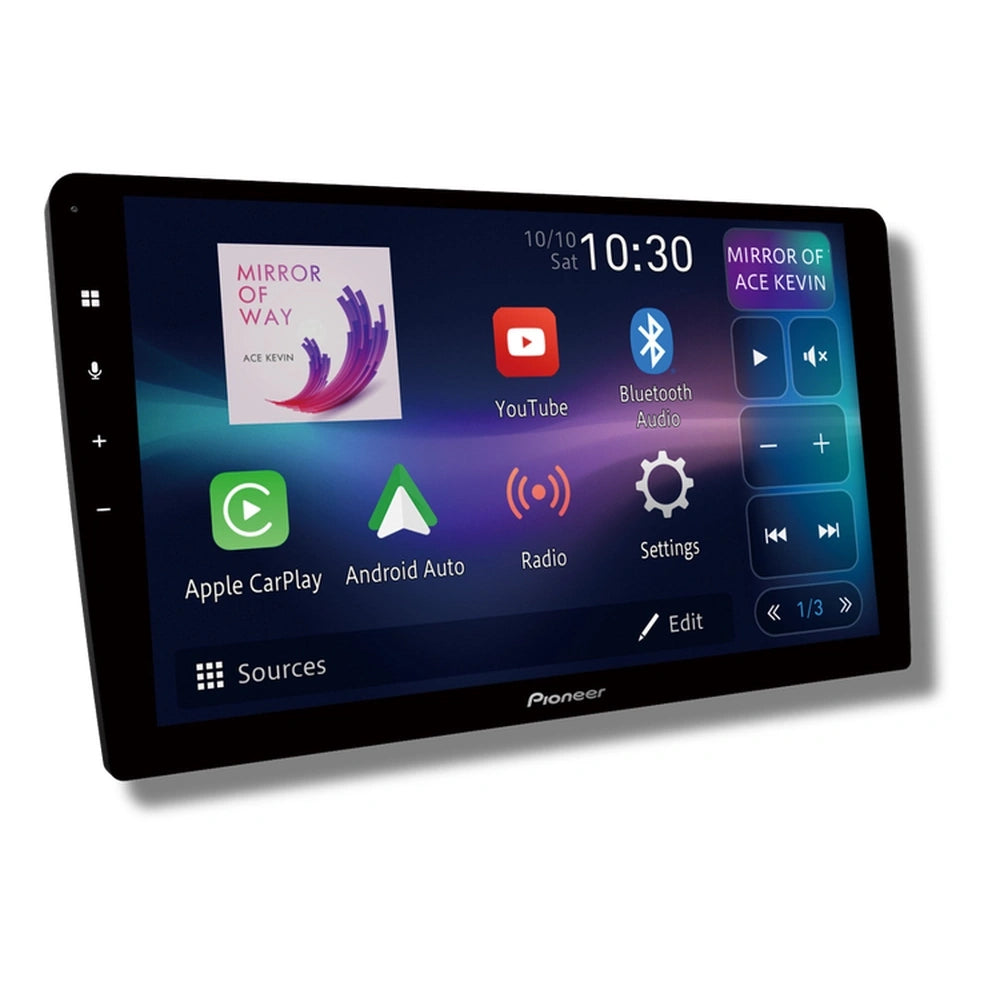

Pioneer DMH-AP8850BT 10" Trapezoid Wireless Apple CarPlay and Android Auto Head Unit with 64 Bit AKM DSP
A 10" trapezoid multimedia head unit from Pioneer, the DMH-AP8850BT features a 1024x600 WSVGA capacitive touchscreen with certified wireless and wired Apple CarPlay and Android Auto, wireless and wired WebLink and WebLink Cast smartphone mirroring, Bluetooth 5.4, dual camera inputs with AHD 1.0 support, full HD USB video playback, OEM CAN BUS support, MOSFET 50W x 4 amplifier, 64 bit AK7604 DSP from Asahi Kasei Microdevices (AKM), manual time alignment, 3-way network mode, high-pass and low-pass filters, subwoofer control, three 4V RCA preouts, AM/FM with RDS, and a Perfect Fit panel design with ultra-shallow chassis.
Product Overview
The Pioneer DMH-AP8850BT is a 10" trapezoid multimedia head unit designed for flexible vehicle installation using Pioneer's Perfect Fit panel design, compatible with a wide range of vehicle-specific dash fascia kits. The 1024x600 WSVGA capacitive touchscreen with capacitive touch buttons and Pioneer shortcut keys provides a responsive and intuitive interface for daily driving.
Certified wireless and wired Apple CarPlay and Android Auto provide full smartphone integration without requiring a cable on every drive. Wireless and wired WebLink, WebLink Cast smartphone mirroring for compatible iOS and Android devices, and WebLink Browser for Android extend smartphone mirroring capability beyond CarPlay and Android Auto. Bluetooth 5.4 provides wireless calling and audio streaming.
The audio platform is built around a premium 64 bit AK7604 DSP from AKM, with manual time alignment, 3-way network mode, high-pass and low-pass filters, and subwoofer control, with three 4V RCA preouts for external amplifier connection. The MOSFET 50W x 4 amplifier powers speakers directly. Dual camera inputs with AHD 1.0 support connect front and rear cameras. OEM CAN BUS compatibility covers HiWorld, Raise, SimpleSoft, and Pioneer CAN BUS systems. The ultra-shallow chassis enables installation in vehicles with limited depth behind the dash.
Features & Benefits
Certified Wireless and Wired Apple CarPlay and Android Auto: Certified wireless and wired CarPlay and Android Auto provide full smartphone integration, with wireless connection eliminating the need to connect a cable on every drive.
Wireless and Wired WebLink and WebLink Cast: WebLink and WebLink Cast extend smartphone mirroring to compatible iOS and Android devices beyond CarPlay and Android Auto, including WebLink Browser for Android.
Bluetooth 5.4 for Wireless Calling and Audio Streaming: Bluetooth 5.4 provides hands-free calling and wireless audio streaming with improved connectivity reliability over previous Bluetooth versions.
64 Bit AKM AK7604 DSP with Manual Time Alignment and 3-Way Network Mode: The 64 bit AK7604 DSP from AKM provides professional-grade audio processing with manual time alignment for precise driver-position imaging, 3-way network mode for active speaker system configurations, and high-pass and low-pass filters for complete crossover control.
Three 4V RCA Preouts with Subwoofer Control: Three 4V RCA preouts (front, rear, subwoofer) provide a high-voltage signal foundation for external amplifier connection, with dedicated subwoofer level control from the head unit.
MOSFET 50W x 4 Amplifier: The built-in MOSFET amplifier delivers 50W x 4 maximum output for direct speaker drive without an external amplifier.
Dual Camera Inputs with AHD 1.0 Support: Two camera inputs with AHD 1.0 compatibility connect front and rear AHD cameras for comprehensive vehicle camera integration.
Full HD Video Playback via USB: Supports full HD video file playback from connected USB storage devices.
OEM CAN BUS Support for HiWorld, Raise, SimpleSoft, and Pioneer: Integrated OEM CAN BUS compatibility supports HiWorld, Raise, SimpleSoft, and Pioneer CAN BUS systems for seamless integration with factory vehicle electronics.
10" WSVGA Capacitive Touchscreen, 1024x600 Resolution: The 10" capacitive touchscreen at 1024x600 WSVGA resolution with capacitive touch buttons and Pioneer shortcut keys delivers a responsive, clear interface for in-car use.
Perfect Fit Panel Design with Ultra-Shallow Chassis: The Perfect Fit panel design is compatible with a wide range of vehicle-specific dash fascia kits, and the ultra-shallow chassis enables installation in vehicles with limited depth behind the dash.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | DMH-AP8850BT |
| Brand | Pioneer |
| Screen Size | 10" |
| Screen Type | WSVGA Capacitive Touchscreen |
| Screen Resolution | 1024 x 600 |
| Touch Buttons | Capacitive |
| Apple CarPlay | Yes (Wireless and Wired, Certified) |
| Android Auto | Yes (Wireless and Wired, Certified) |
| WebLink | Yes (Wireless and Wired) |
| WebLink Cast | Yes (iOS and Android) |
| WebLink Browser | Yes (Android) |
| Bluetooth Version | 5.4 |
| AM/FM Tuner | Yes |
| RDS | Yes |
| BSM | Yes (Best Station Memory) |
| Amplifier | MOSFET 50W x 4 |
| DSP | 64 Bit AK7604 (Asahi Kasei Microdevices) |
| Manual Time Alignment | Yes |
| Network Mode | 3-Way |
| Highpass Filter | Yes |
| Lowpass Filter | Yes |
| Subwoofer Control | Yes |
| RCA Preouts | 3 x 4V (Front/Rear/Subwoofer) |
| Camera Inputs | 2 (AHD 1.0 Compatible) |
| USB Video Playback | Full HD |
| OEM CAN BUS Support | Yes (HiWorld, Raise, SimpleSoft, Pioneer) |
| Chassis | Ultra-Shallow |
| Panel Design | Perfect Fit Trapezoid |
| DIN Format | Trapezoid (10") |
In the box
- DMH-AP8850BT head unit
- Power lead, preout lead and USB cable
- GPS aerial and microphone
- Four 3 x 8mm silver binding head screws
- Two double sided tapes
- Owner's manuals
Warranty
Pioneer Australia lists a 12 month warranty on the DMH-AP8850BT. Your rights under the Australian Consumer Law always apply.
Compatible With
The DMH-AP8850BT is a trapezoid 10" head unit compatible with vehicles using vehicle-specific trapezoid dash fascia kits. It is not compatible with standard single DIN or double DIN openings without an appropriate trapezoid fascia kit. OEM CAN BUS support covers HiWorld, Raise, SimpleSoft, and Pioneer systems. Certified wireless Apple CarPlay requires a compatible iPhone. Certified wireless Android Auto requires a compatible Android device. AHD 1.0 cameras are required for AHD camera input compatibility. Confirm vehicle fascia kit compatibility before purchase.
Also for your build: Double DIN Head Units, Pioneer Headunit
FAQ
Does the DMH-AP8850BT support wireless CarPlay and Android Auto?
Yes. The DMH-AP8850BT supports both certified wireless and wired Apple CarPlay and certified wireless and wired Android Auto.
What is the difference between the DMH-AP8850BT and the DMH-AP6850BT?
Both are Pioneer trapezoid head units with identical features, DSP, amplifier, connectivity, and panel design. The DMH-AP8850BT has a larger 10" display. The DMH-AP6850BT has a 9" display. Choose based on the trapezoid fascia kit size available for your specific vehicle.
What DSP features does the DMH-AP8850BT include?
The 64 bit AK7604 DSP from AKM provides manual time alignment, 3-way network mode for active speaker system configurations, independent high-pass and low-pass filter control per channel, and dedicated subwoofer level control.
Does the DMH-AP8850BT fit a standard double DIN opening?
No. The DMH-AP8850BT uses a 10" trapezoid Perfect Fit panel design that requires a vehicle-specific trapezoid fascia kit. It is not compatible with standard double DIN head unit openings without a trapezoid fascia kit.
Does the DMH-AP8850BT support AHD cameras?
Yes. Both camera inputs support AHD 1.0 compatible cameras. Confirm your camera's AHD version compatibility before purchase.
Does the Pioneer DMH-AP8850BT have Bluetooth?
Yes. It has built in Bluetooth for phone calls and audio streaming.
Will it fit my car?
Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
