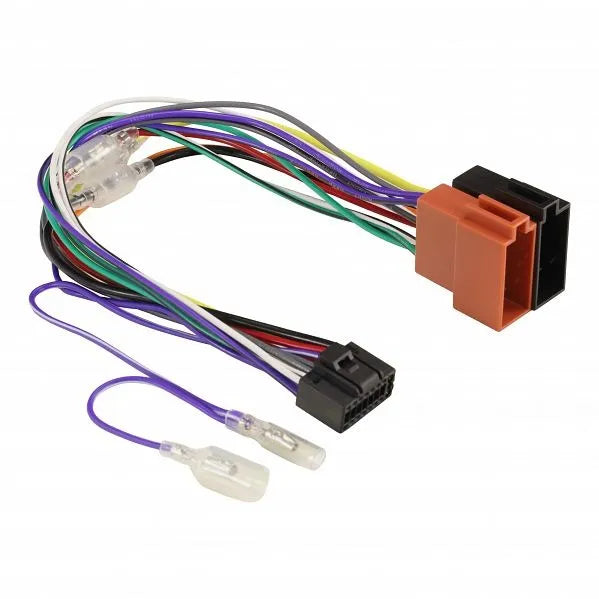

Aerpro APP8PIO9 Secondary ISO Harness for Pioneer AV Head Units, 16 Pin

The Aerpro APP8PIO9 suits various Pioneer AV head units with a 16 pin plug, converting it to the universal double ISO connector system and carrying a reverse camera trigger wire.

Aerpro makes more than one Pioneer AV harness because the pinout changes between models. This one is the PIO9 version. If you have already tried a Pioneer harness and the reverse camera will not come up, or the unit will not power on, the harness for a different Pioneer generation is often the cause.

How it connects

The Pioneer plug goes in one end. The double ISO plugs on the other end join an Aerpro vehicle specific harness, which can be an APP series primary harness, a steering wheel control interface or an Infodapter. Secure clips on both ends stop the plugs working loose behind the dash.

Check first

Run your Pioneer model through the Aerpro head unit selector before ordering. Some vehicles and head units still need a little hard wiring. We do Pioneer installs at Albion Park Rail and South Nowra.

Specifications

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

What is the difference from the APP8PIO8?

Each suits a different group of Pioneer AV units. The PIO8 also carries antenna, handbrake and VSS wires. Use the Aerpro selector to pick the right one.

How do I hook up the APP8PIO9?

Plug it into the 16 pin socket on a Pioneer AV unit, then connect its double ISO output to the Aerpro primary harness, SWC interface or Infodapter that suits your car. Run the reverse trigger to your reversing light feed if you have a camera.

Which wires are on the APP8PIO9?

A reverse camera trigger wire, with the Pioneer 16 pin plug at one end and double ISO plugs at the other. Antenna, handbrake and VSS leads are on the APP8PIO8 instead.
