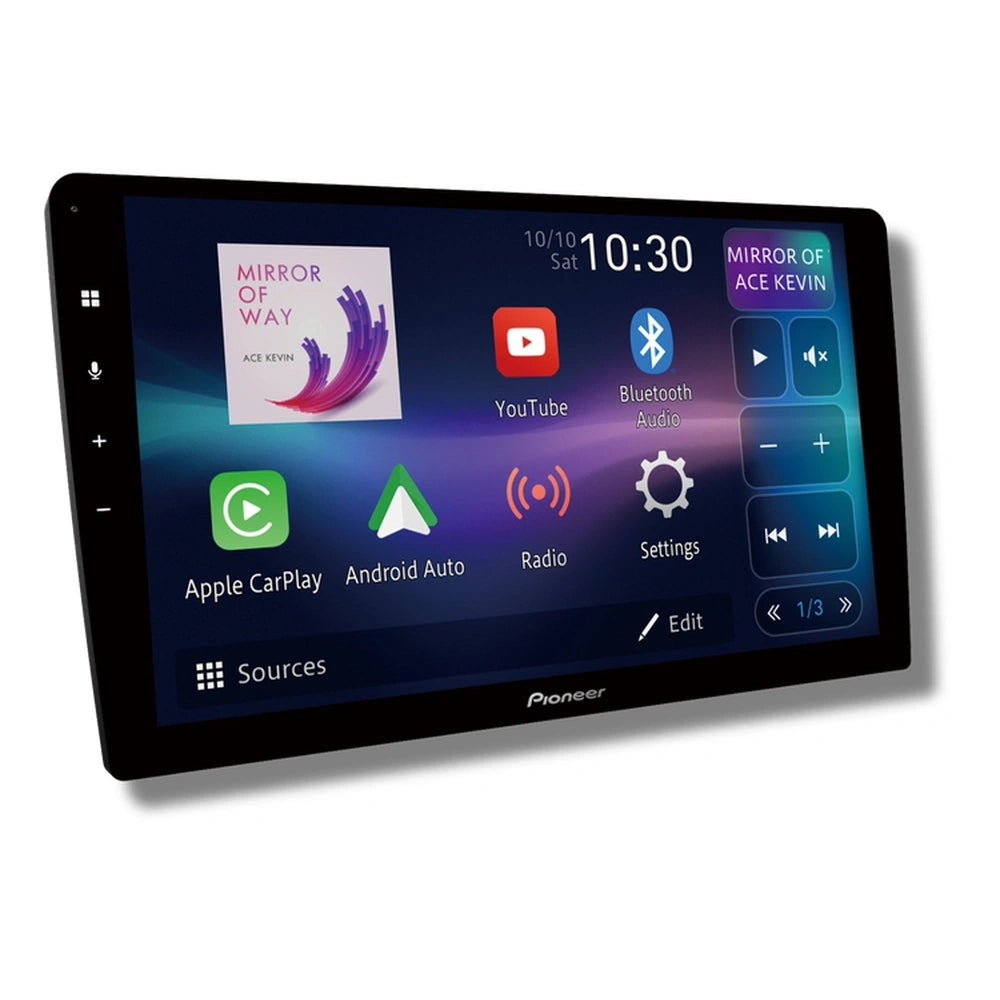

Pioneer DMH-AP6850BT 9" Wireless CarPlay Android Auto Head Unit

SKU: DMHAP6850BT
Price
$769
Buy now, pay later
  • image
  • image
  • image

This item is on preorder. Stock is expected to arrive MID AUGUST. We will dispatch your order as soon as it lands.

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Pioneer DMH-AP6850BT 9" Trapezoid Wireless Apple CarPlay and Android Auto Head Unit with 48-Bit DSP

A 9" trapezoid multimedia head unit from Pioneer, the DMH-AP6850BT features a 1024x600 WSVGA capacitive touchscreen with certified wireless and wired Apple CarPlay and Android Auto, wireless and wired WebLink and WebLink Cast smartphone mirroring, Bluetooth 5.4, dual camera inputs with AHD 1.0 support, full HD USB video playback, OEM CAN BUS support, MOSFET 50W x 4 amplifier, premium 48-bit dual-core DSP, manual time alignment, 3-way network mode, high-pass and low-pass filters, subwoofer control, three 4V RCA preouts, AM/FM with RDS, and a perfect-fit panel design with ultra-shallow chassis.

Product Overview

The Pioneer DMH-AP6850BT is a 9" trapezoid multimedia head unit designed for flexible vehicle installation using Pioneer's perfect-fit panel design, compatible with a wide range of vehicle-specific dash fascia kits. The 1024x600 WSVGA capacitive touchscreen with capacitive touch buttons and Pioneer shortcut keys provides a responsive and intuitive interface for daily driving.

Certified wireless and wired Apple CarPlay and Android Auto provide full smartphone integration without requiring a cable on every drive. Wireless and wired WebLink, WebLink Cast smartphone mirroring for compatible iOS and Android devices, and WebLink Browser for Android extend smartphone mirroring capability beyond CarPlay and Android Auto. Bluetooth 5.4 provides wireless calling and audio streaming.

The audio platform is built around a premium 48-bit dual-core DSP with manual time alignment, 3-way network mode, high-pass and low-pass filters, and subwoofer control, with three 4V RCA preouts for external amplifier connection. The MOSFET 50W x 4 amplifier powers speakers directly. Dual camera inputs with AHD 1.0 support connect front and rear cameras. OEM CAN BUS compatibility covers HiWorld, Raise, SimpleSoft, and Pioneer CAN BUS systems. The ultra-shallow chassis enables installation in vehicles with limited depth behind the dash.

Features & Benefits

Certified Wireless and Wired Apple CarPlay and Android Auto: Certified wireless and wired CarPlay and Android Auto provide full smartphone integration. Wireless connection eliminates the need to connect a cable on every drive.

Wireless and Wired WebLink and WebLink Cast: WebLink and WebLink Cast extend smartphone mirroring to compatible iOS and Android devices beyond CarPlay and Android Auto, including WebLink Browser for Android.

Bluetooth 5.4 - Wireless Calling and Audio Streaming: Bluetooth 5.4 provides hands-free calling and wireless audio streaming with improved connectivity reliability over previous Bluetooth versions.

48-Bit Dual-Core DSP with Manual Time Alignment and 3-Way Network Mode: The premium 48-bit dual-core DSP provides professional-grade audio processing with manual time alignment for precise driver-position imaging, 3-way network mode for active speaker system configurations, and high-pass and low-pass filters for complete crossover control.

Three 4V RCA Preouts with Subwoofer Control: Three 4V RCA preouts (front, rear, subwoofer) provide a high-voltage signal foundation for external amplifier connection, with dedicated subwoofer level control from the head unit.

MOSFET 50W x 4 Amplifier: The built-in MOSFET amplifier delivers 50W x 4 maximum output for direct speaker drive without an external amplifier.

Dual Camera Inputs with AHD 1.0 Support: Two camera inputs with AHD 1.0 compatibility connect front and rear AHD cameras for comprehensive vehicle camera integration.

Full HD Video Playback via USB: Supports full HD video file playback from connected USB storage devices.

OEM CAN BUS Support - HiWorld, Raise, SimpleSoft, and Pioneer: Integrated OEM CAN BUS compatibility supports HiWorld, Raise, SimpleSoft, and Pioneer CAN BUS systems for seamless integration with factory vehicle electronics.

9" WSVGA Capacitive Touchscreen - 1024x600 Resolution: The 9" capacitive touchscreen at 1024x600 WSVGA resolution with capacitive touch buttons and Pioneer shortcut keys delivers a responsive, clear interface for in-car use.

Perfect-Fit Panel Design with Ultra-Shallow Chassis: The perfect-fit panel design is compatible with a wide range of vehicle-specific dash fascia kits, and the ultra-shallow chassis enables installation in vehicles with limited depth behind the dash.

Technical Specs

Specification Detail
SKU DMH-AP6850BT
Brand Pioneer
Screen Size 9"
Screen Type WSVGA Capacitive Touchscreen
Screen Resolution 1024 x 600
Touch Buttons Capacitive
Apple CarPlay Yes (Wireless and Wired, Certified)
Android Auto Yes (Wireless and Wired, Certified)
WebLink Yes (Wireless and Wired)
WebLink Cast Yes (iOS and Android)
WebLink Browser Yes (Android)
Bluetooth Version 5.4
AM/FM Tuner Yes
RDS Yes
BSM Yes (Best Station Memory)
Amplifier MOSFET 50W x 4
DSP 48-Bit Dual-Core
Manual Time Alignment Yes
Network Mode 3-Way
Highpass Filter Yes
Lowpass Filter Yes
Subwoofer Control Yes
RCA Preouts 3 x 4V (Front/Rear/Subwoofer)
Camera Inputs 2 (AHD 1.0 Compatible)
USB Video Playback Full HD
OEM CAN BUS Support Yes (HiWorld, Raise, SimpleSoft, Pioneer)
Chassis Ultra-Shallow
Panel Design Perfect-Fit Trapezoid
DIN Format Trapezoid (9")

Compatible With

The DMH-AP6850BT is a trapezoid 9" head unit compatible with vehicles using vehicle-specific trapezoid dash fascia kits. It is not compatible with standard single DIN or double DIN openings without an appropriate trapezoid fascia kit. OEM CAN BUS support covers HiWorld, Raise, SimpleSoft, and Pioneer systems. Certified wireless Apple CarPlay requires a compatible iPhone. Certified wireless Android Auto requires a compatible Android device. AHD 1.0 cameras are required for AHD camera input compatibility. Confirm vehicle fascia kit compatibility before purchase.

Frequently Asked Questions

Does the DMH-AP6850BT support wireless CarPlay and Android Auto?

Yes. The DMH-AP6850BT supports both certified wireless and wired Apple CarPlay and certified wireless and wired Android Auto.

What is the difference between WebLink and Apple CarPlay or Android Auto on the DMH-AP6850BT?

Apple CarPlay and Android Auto are manufacturer-certified smartphone integration platforms for iPhone and Android respectively, providing access to specific apps through the CarPlay or Android Auto interface. WebLink and WebLink Cast provide additional smartphone screen mirroring capability for compatible iOS and Android apps and content that is not available through CarPlay or Android Auto, and WebLink Browser adds Android web browsing capability.

What DSP features does the DMH-AP6850BT include?

The 48-bit dual-core DSP provides manual time alignment for driver-position imaging, 3-way network mode for active speaker system configurations, independent high-pass and low-pass filter control per channel, and dedicated subwoofer level control.

Does the DMH-AP6850BT fit a standard double DIN opening?

No. The DMH-AP6850BT uses a 9" trapezoid panel design that requires a vehicle-specific trapezoid fascia kit. It is not compatible with standard double DIN head unit openings without a trapezoid fascia kit.

Does the DMH-AP6850BT support AHD cameras?

Yes. Both camera inputs support AHD 1.0 compatible cameras. Confirm your camera's AHD version compatibility before purchase.
