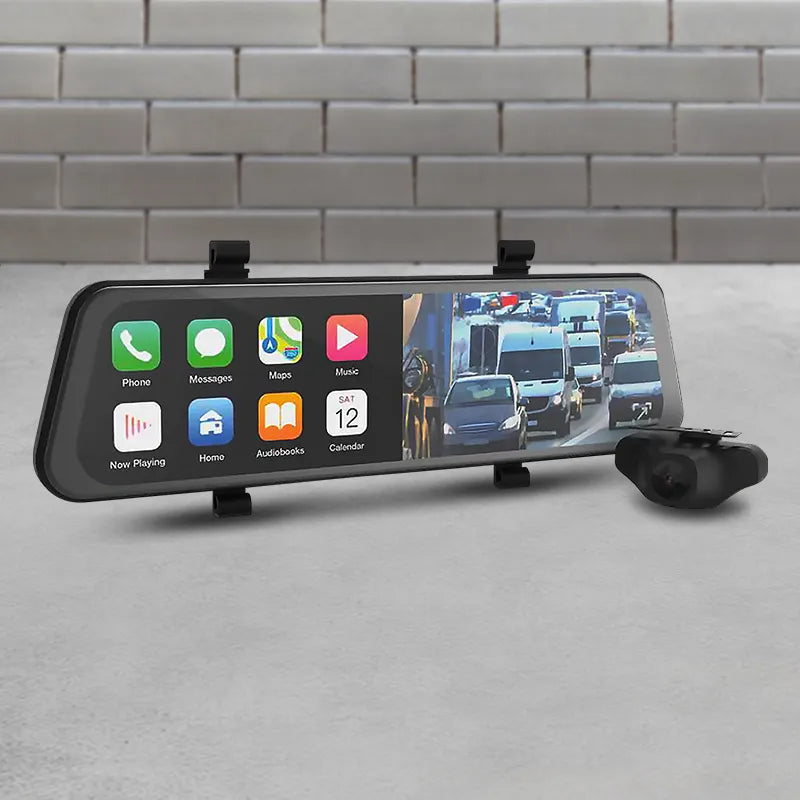

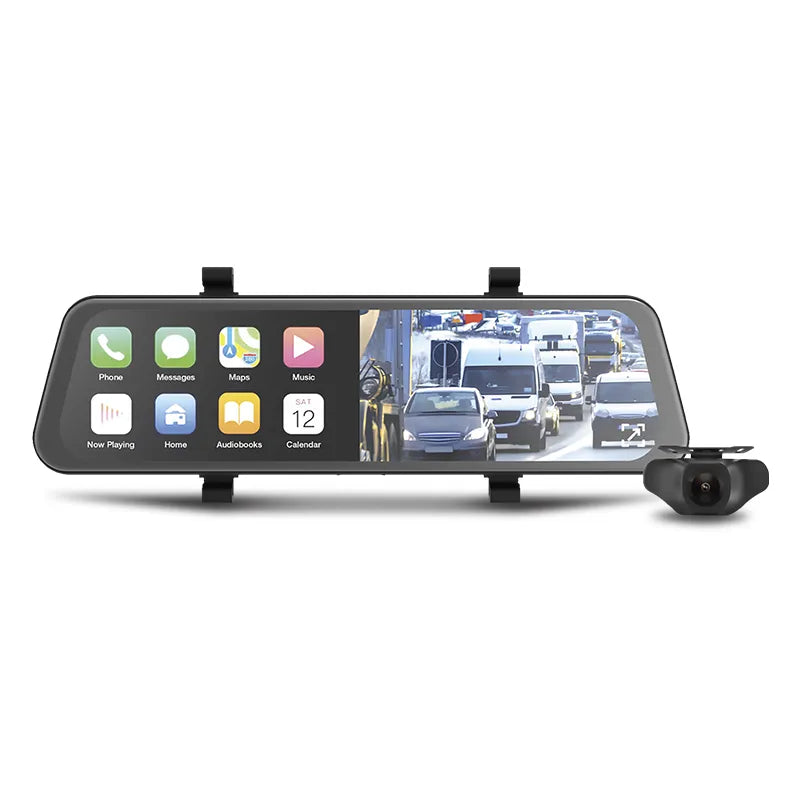

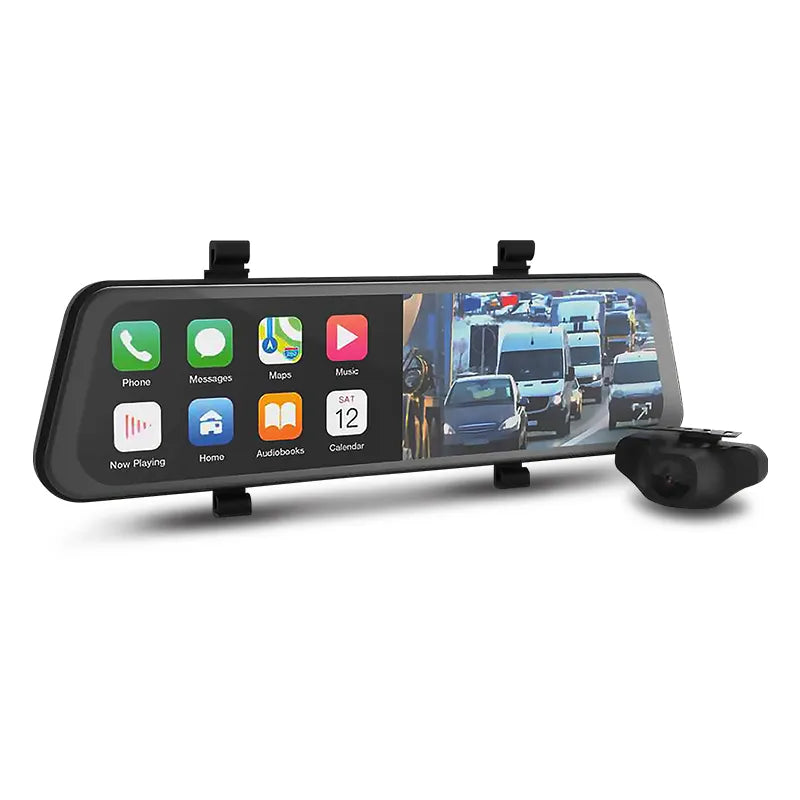

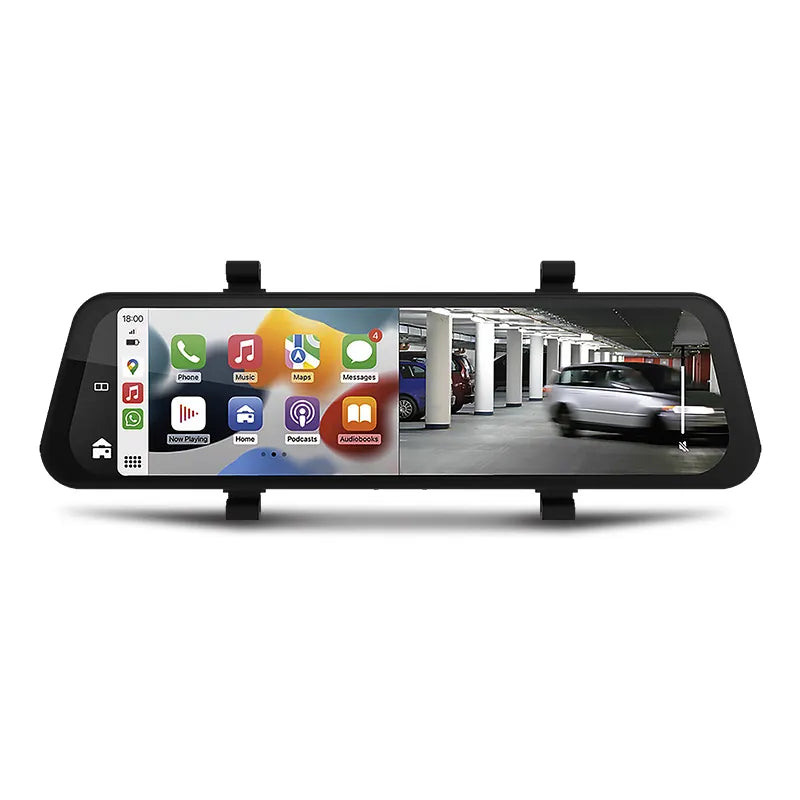

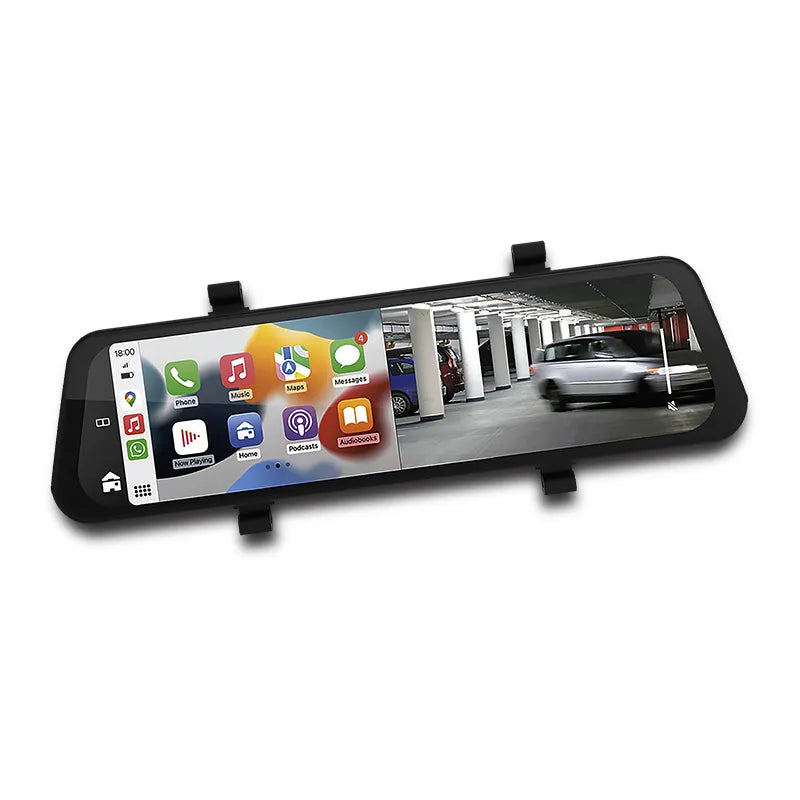

Parkmate MCPK-972DVR 9.66" Touch Screen DVR Mirror with Smart Display

Quick answer

The Parkmate MCPK-972DVR is a 9.66 inch touch screen mirror monitor with a front dash camera, an IP67 rear camera and 1080p recording.

It clips over your current mirror or replaces it on the factory windscreen base, and the screen can split between the rear view and phone apps.

Problems it solves

• No record of what happens on the road. Front and rear cameras record at the same time.
• Blind reversing in a van or ute. The rear camera switches to a reverse view with gridlines.
• Phone maps sitting low on the dash. They show on the mirror at eye level.

Specifications

• Screen: 9.66 inch touch screen
• Recording: 1080p front and rear
• Field of view: 150 degrees front, 140 degrees rear
• Rear camera: IP67, 8 m cable
• Driver aids: lane departure warning, reversing gridlines
• Park mode: 24 hour
• Mounting: rubber clip on or factory mirror replacement
• Power: 12V adaptor for a 12V or 24V accessory outlet
• Storage: micro SD card

Fitment and compatibility

Clips onto most factory rear view mirrors. The replacement mount uses the original windscreen base, and Parkmate sells a separate plate and arm for the Ford Ranger. A micro SD card is needed for recording.

What is in the box

The mirror DVR, rear camera, 8 m camera cable, rubber fasteners and clips, a set of screws, the 12V power adaptor, a mounting plate and arm, and 4 mm EVA pads.

Install notes

The rear camera mounts near the number plate lamp with two screws, and its lead passes through a small drilled hole. Insert the micro SD card with the mirror switched off. This unit holds a button battery, so keep it away from children.

Warranty

Parkmate lists a 12 month warranty on the MCPK-972DVR. This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MCPK-972DVR

Will the MCPK-972DVR fit my mirror?

It straps over most factory mirrors, or replaces the mirror on the windscreen base with the supplied arm.

What comes in the box with the MCPK-972DVR mirror?

Mirror, rear camera, 8 m cable, fasteners, screws, 12V adaptor, mounting plate, arm and EVA pads.

How do I mount the MCPK-972DVR rear camera?

Above the number plate lamp with two screws, running the lead through a small drilled hole. Clips onto most factory rear view mirrors. The replacement mount uses the original windscreen base, and Parkmate sells a separate plate and arm for the Ford Ranger.

Does the MCPK-972DVR record both cameras?

Yes. It records 1080p front and rear at once onto a micro SD card.
