Gator GRV92MKT 9” Touch Screen HD Mirror Display 1080P HD Dual Camera Kit

9" Touch Screen HD Display For Streaming & Reversing!

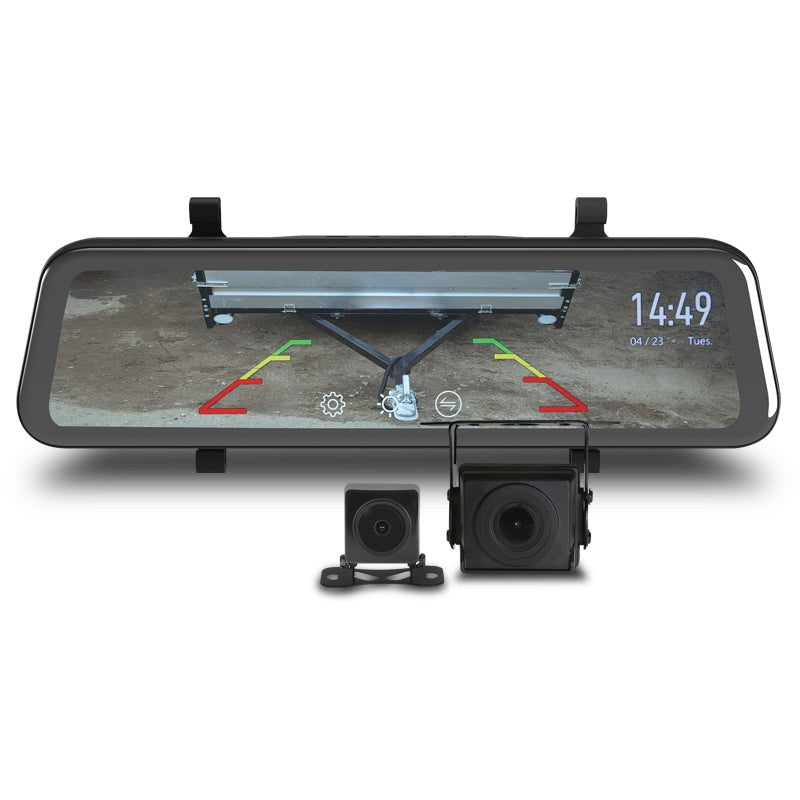

9” Touch Screen HD Mirror Display
The GRV92MKT features a large 9" high-definition touchscreen display that simply clips over the existing rearview mirror in the vehicle. The mirror has dual camera inputs and comes supplied with two 1080P HD cameras. One camera comes with a 5.4M video extension cable, while the other camera comes with 2 x 10m video extension cables. Both cameras can be displayed on the mirror while driving and to change between cameras you can simply slide your fingers across the display.

The heavy-duty camera also has a reverse trigger cable, when connected to the vehicle it will display parking gridlines while in reverse. The kit includes an accessory plug power cable for easy installation and only a small amount of wiring is required to activate the reverse camera feature.

Please Note:

• If you are planning to install the heavy-duty camera in this kit on a trailer or caravan, we recommend using the Gator GTK1 4 PIN PROLINK Trailer Connection Kit (Sold Separately).
• GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (Sold Separately)

Features:

• 9" Touch Screen HD Display, for streaming and reversing.
• Dual Camera Inputs include 2 cameras that can be mounted virtually anywhere on the vehicle or even on a trailer.
• 1080P HD Resolution produces clear footage from both cameras to capture critical details.
• Wide Angle Lens, 110-degree camera angles minimise blind spots around the vehicle.
• Both cameras can be used as either front or rear view as the image can be flipped on the display.
• Streaming Mode, view the rear camera at any time or a clear unobstructed view.
• Reversing Mode, the heavy-duty camera switches to reverse mode when the reverse gear is engaged.
• Surface Mount Cameras, are designed to mount in various locations at the front or rear of the vehicle.
• Parking Guidelines are displayed on the heavy-duty camera when the reverse trigger cable is connected and the reverse gear is engaged.
• Clip-On Mirror Mount, installs easily on the rear-view mirror in virtually any vehicle.
• 5.4M Camera Cable, for the small surface mount camera enabling installation at the front or rear of the vehicle.
• 2 x 10M Camera Cables, for the heavy-duty surface mount camera, enabling installation anywhere on the vehicle or on a trailer.
• Wired System, eliminates interference between the monitor and cameras for clear vision.
• Optional Gator GTK1 recommended to be used when installing the heavy-duty camera on a trailer or caravan (Sold Separately)
• GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (Sold Separately)
• The Heavy Duty Camera is compatible with the GATOR Prolink Extension cables, the lead can be extended to a total distance of 40M between the Monitor and Camera.

Monitor Specifications:

• Monitor Size: 9.35"
• Mounting Type: Clip-On Rearview Mirror
• Input Voltage: 5V (12/24V Accessory Power Adapter Included)
• Video Inputs: 2
• Video Connection Type: 2.5mm Jack
• Dimensions: 72mm (H) x 260mm (W) x 18mm (D)

Small Rear Camera Specifications:

• Mount Type: Surface Mount
• Camera Resolution: 1080P
• Camera Angle: 110°
• Image Sensor (CMOS/CCD): CMOS
• Parking Gridlines: No
• IP Rating: IP67
• Input Voltage: N/A
• Video Cable Length: 5.4M
• Reverse Trigger on Video Cable: No
• Dimensions (Camera Only): 22mm (H) x 22mm (W) x 30mm (L)

Large Rear Camera Specifications:

• Mount Type: Surface Mount
• Camera Resolution: 1080P
• Camera Angle: 110°
• Image Sensor (CMOS/CCD): CMOS
• Parking Gridlines: Yes
• IP Rating: IP67
• Input Voltage: N/A
• Video Cable Length: 20M (2 x 10M 4 Pin ProLink Cables)
• Reverse Trigger on Video Cable: Yes
• Dimensions (Camera Only): 35mm (H) x 41mm (W) x 35mm (L)

Kit Specifications:

• Wired/Wireless: Wired

Kit Inclusions:

• Mirror Monitor
• 2x Cameras
• 5.4M Video Cable
• 2x 10M Video Cables (4 Pin ProLink)
• 12V/24V Charging Adapter
• Mounting Screws
• 3M Adhesive For Butterfly Camera
• Mirror Protecting Pads
• Rubber Mounting Clips

Optional Extras & Spare Parts:

• Optional Extras:
  GUNIHWC: Hard Wire Kit
• Spare Parts (Not Retail Packaging & No Barcode)
  GRV9RC: Replacement Rear Camera (Small Format Only, Not Heavy Duty Camera)
  GRV912V: 12/24V Cigarette Lighter Adapter
  GRV9RMC: Monitor Rubber Mounting Clips
  GRV9BRA: Monitor Mounting Brackets
